GSX40L-AETGKV (2012)

Toyota Avalon

Production Oct 2012 - Oct 2015
Engine 2GRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1210- )

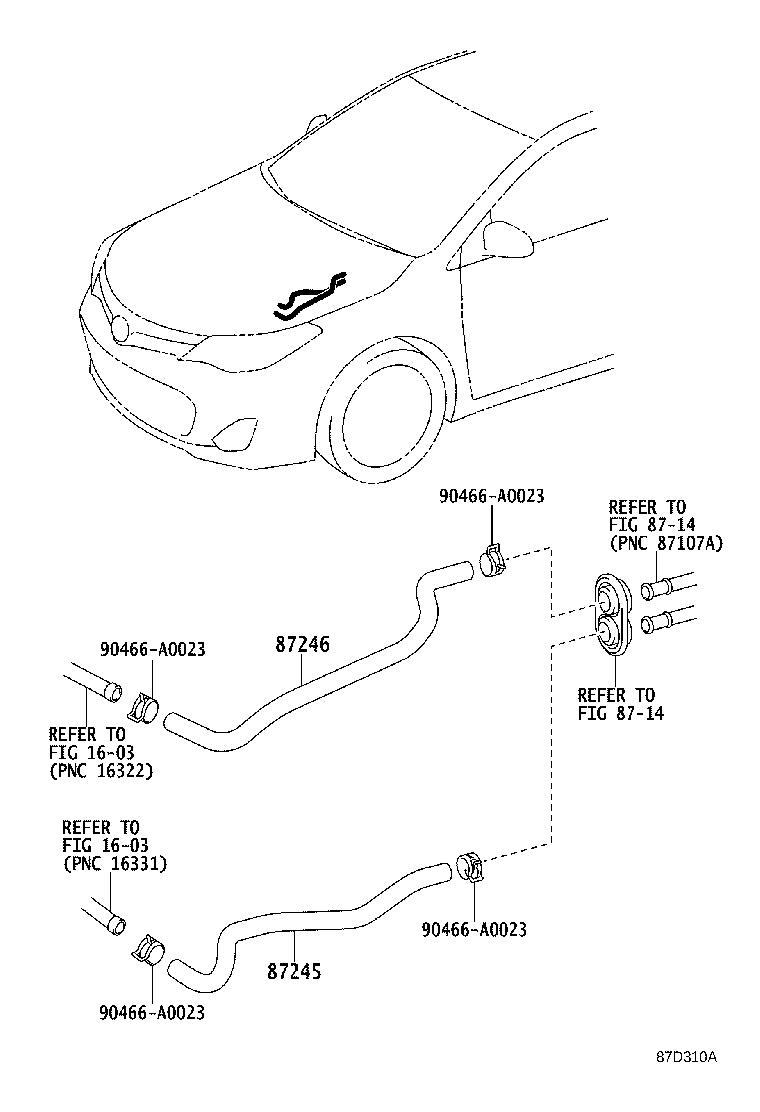

Click highlighted areas on diagram

diagram 1603 1603 8714 8714 87245 87246 90466A0023 90466A0023 90466A0023 90466A0023
Part # Description Qty Price
87245 - HOSE, HEATER WATER, INLET
87245-06800

GSX40

 1
87246 - HOSE, HEATER WATER, OUTLET
87245-07140

GSX40

 1
Common parts
90466-A0023
Linked diagrams
1603
8714
