GSX30L-AETPKV (2010)
Toyota Avalon

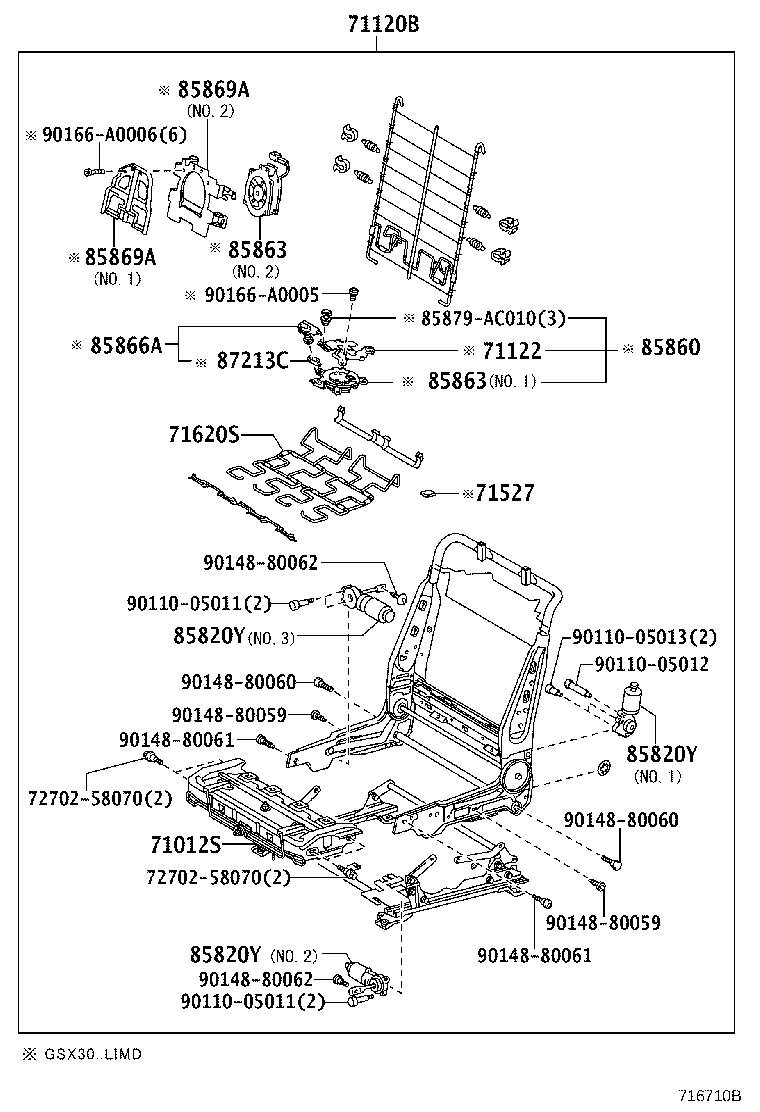

ILLUST NO. 3 OF 4(1005- )
LH SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71012S - FRAME SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71012-AC050 |
GSX30..LIMD |
1 | ||
| 71012-AC050 |
GSX30..LIMD |
1 | ||
| 71120B - FRAME ASSY, FRONT SEAT W/ADJUSTER, LH | ||||
| 71120-AC030 |
GSX30..LIMD |
1 | ||
| 71120-07040 |
GSX30..LIMD |
1 | ||
| 71122 - BRACKET, FRONT SEAT CUSHION, LH | ||||
| 85868-AC010 |
GSX30..LIMD |
1 | ||
| 85868-AC010 |
GSX30..LIMD |
1 | ||
| 71527 - TAPE, FRONT SEAT CUSHION SILENCER | ||||
| 71527-07010 |
GSX30..LIMD |
2 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71051-0E010 |
GSX30 |
1 | ||
| 71051-0E010 |
GSX30 |
1 | ||
| 85820Y - MOTOR ASSY, POWER SEAT | ||||
| 85801-60020 |
GSX30 NO.1 |
1 | ||
| 85801-60040 |
GSX30 NO.3 |
1 | ||
| 85801-60030 |
GSX30 NO.2 |
1 | ||
| 85801-60020 |
GSX30 NO.1 |
1 | ||
| 85801-60040 |
GSX30 NO.3 |
1 | ||
| 85801-60030 |
GSX30 NO.2 |
1 | ||
| 85820Y - MOTOR ASSY, POWER SEAT | ||||
| 85801-60020 |
GSX30 NO.1 |
1 | ||
| 85801-60040 |
GSX30 NO.3 |
1 | ||
| 85801-60030 |
GSX30 NO.2 |
1 | ||
| 85801-60020 |
GSX30 NO.1 |
1 | ||
| 85801-60040 |
GSX30 NO.3 |
1 | ||
| 85801-60030 |
GSX30 NO.2 |
1 | ||
| 85820Y - MOTOR ASSY, POWER SEAT | ||||
| 85801-60020 |
GSX30 NO.1 |
1 | ||
| 85801-60040 |
GSX30 NO.3 |
1 | ||
| 85801-60030 |
GSX30 NO.2 |
1 | ||
| 85801-60020 |
GSX30 NO.1 |
1 | ||
| 85801-60040 |
GSX30 NO.3 |
1 | ||
| 85801-60030 |
GSX30 NO.2 |
1 | ||
| 85860 - BLOWER ASSY, SEAT CUSHION CLIMATE CONTROL | ||||
| 85860-AC011 |
GSX30..LIMD |
2 | ||
| 85860-AC010 |
GSX30..LIMD |
2 | ||
| 85860-AC010 |
GSX30..LIMD |
2 | ||
| 85863 - BLOWER, SEAT CLIMATE CONTROL, LH | ||||
| 85867-AC010 |
GSX30..LIMD NO.2 |
1 | ||
| 85867-AC010 |
GSX30..LIMD NO.2 |
1 | ||
| 85862-AC010 |
GSX30..LIMD NO.1 |
1 | ||
| 85862-AC011 |
GSX30..LIMD NO.1 |
1 | ||
| 85862-AC010 |
GSX30..LIMD NO.1 |
1 | ||
| 85867-0C020 |
GSX30..LIMD NO.2 |
1 | ||
| 85863 - BLOWER, SEAT CLIMATE CONTROL, LH | ||||
| 85867-AC010 |
GSX30..LIMD NO.2 |
1 | ||
| 85867-AC010 |
GSX30..LIMD NO.2 |
1 | ||
| 85862-AC010 |
GSX30..LIMD NO.1 |
1 | ||
| 85862-AC011 |
GSX30..LIMD NO.1 |
1 | ||
| 85862-AC010 |
GSX30..LIMD NO.1 |
1 | ||
| 85867-0C020 |
GSX30..LIMD NO.2 |
1 | ||
| 85866A - DUCT, SEAT CUSHION CLIMATE CONTROL, LH | ||||
| 85866-AC010 |
GSX30..LIMD |
1 | ||
| 85866-AC010 |
GSX30..LIMD |
1 | ||
| 85869A - COVER, SEAT BACK CLIMATE CONTROL, LH | ||||
| 85869-AC010 |
GSX30..LIMD NO.1 |
1 | ||
| 85869-AC020 |
GSX30..LIMD NO.2 |
1 | ||
| 85869-AC010 |
GSX30..LIMD NO.1 |
1 | ||
| 85869-AC020 |
GSX30..LIMD NO.2 |
1 | ||
| 85869A - COVER, SEAT BACK CLIMATE CONTROL, LH | ||||
| 85869-AC010 |
GSX30..LIMD NO.1 |
1 | ||
| 85869-AC020 |
GSX30..LIMD NO.2 |
1 | ||
| 85869-AC010 |
GSX30..LIMD NO.1 |
1 | ||
| 85869-AC020 |
GSX30..LIMD NO.2 |
1 | ||
| 87213C - DUCT, AIR, REAR LH | ||||
| 87211-AC010 |
GSX30..LIMD |
1 | ||
| 87211-AC010 |
GSX30..LIMD |
1 | ||
| Common parts | ||||
| 72702-58070 | ||||
| 85879-AC010 | ||||
| 90110-05011 | ||||
| 90110-05012 | ||||
| 90110-05013 | ||||
| 90148-80059 | ||||
| 90148-80060 | ||||
| 90148-80061 | ||||
| 90148-80062 | ||||
| 90166-A0005 | ||||
| 90166-A0006 | ||||

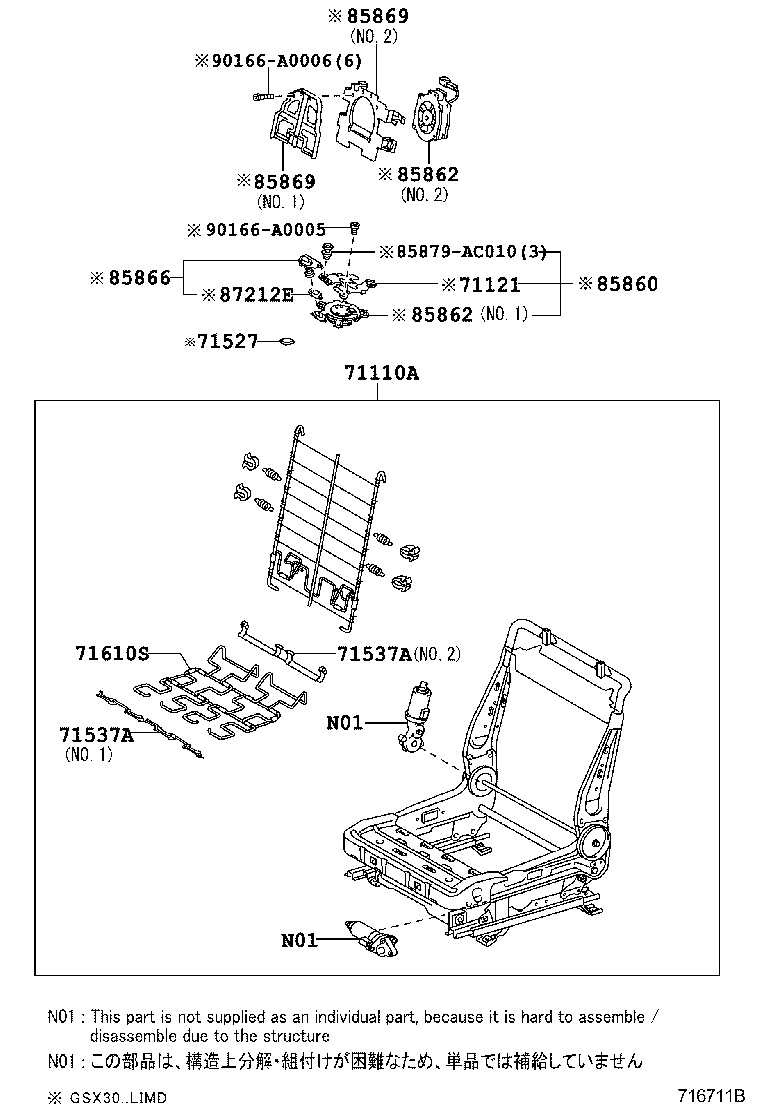

ILLUST NO. 4 OF 4(1005- )
RH SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71110A - FRAME ASSY, FRONT SEAT W/ADJUSTER, RH | ||||
| 71110-AC040 |
GSX30..LIMD |
1 | ||
| 71110-07100 |
GSX30..LIMD |
1 | ||
| 71121 - BRACKET, FRONT SEAT CUSHION, RH | ||||
| 85868-AC010 |
GSX30..LIMD |
1 | ||
| 85868-AC010 |
GSX30..LIMD |
1 | ||
| 71527 - TAPE, FRONT SEAT CUSHION SILENCER | ||||
| 71527-07010 |
GSX30..LIMD |
2 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-0E010 |
GSX30 NO.1 |
1 | ||
| 71537-0E020 |
GSX30 NO.2 |
1 | ||
| 71537-0E020 |
GSX30 NO.2 |
1 | ||
| 71537-0E010 |
GSX30 NO.1 |
1 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-0E010 |
GSX30 NO.1 |
1 | ||
| 71537-0E020 |
GSX30 NO.2 |
1 | ||
| 71537-0E020 |
GSX30 NO.2 |
1 | ||
| 71537-0E010 |
GSX30 NO.1 |
1 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71051-0E010 |
GSX30 |
1 | ||
| 71051-0E010 |
GSX30 |
1 | ||
| 85860 - BLOWER ASSY, SEAT CUSHION CLIMATE CONTROL | ||||
| 85860-AC011 |
GSX30..LIMD |
2 | ||
| 85860-AC010 |
GSX30..LIMD |
2 | ||
| 85860-AC010 |
GSX30..LIMD |
2 | ||
| 85862 - BLOWER, SEAT CLIMATE CONTROL, RH | ||||
| 85867-AC010 |
GSX30..LIMD NO.2 |
1 | ||
| 85862-AC011 |
GSX30..LIMD NO.1 |
1 | ||
| 85862-AC010 |
GSX30..LIMD NO.1 |
1 | ||
| 85867-0C020 |
GSX30..LIMD NO.2 |
1 | ||
| 85862-AC010 |
GSX30..LIMD NO.1 |
1 | ||
| 85867-AC010 |
GSX30..LIMD NO.2 |
1 | ||
| 85862 - BLOWER, SEAT CLIMATE CONTROL, RH | ||||
| 85867-AC010 |
GSX30..LIMD NO.2 |
1 | ||
| 85862-AC011 |
GSX30..LIMD NO.1 |
1 | ||
| 85862-AC010 |
GSX30..LIMD NO.1 |
1 | ||
| 85867-0C020 |
GSX30..LIMD NO.2 |
1 | ||
| 85862-AC010 |
GSX30..LIMD NO.1 |
1 | ||
| 85867-AC010 |
GSX30..LIMD NO.2 |
1 | ||
| 85866 - DUCT, SEAT CUSHION CLIMATE CONTROL, RH | ||||
| 85866-AC010 |
GSX30..LIMD |
1 | ||
| 85866-AC010 |
GSX30..LIMD |
1 | ||
| 85869 - COVER, SEAT BACK CLIMATE CONTROL, RH | ||||
| 85869-AC010 |
GSX30..LIMD NO.1 |
1 | ||
| 85869-AC020 |
GSX30..LIMD NO.2 |
1 | ||
| 85869-AC010 |
GSX30..LIMD NO.1 |
1 | ||
| 85869-AC020 |
GSX30..LIMD NO.2 |
1 | ||
| 85869 - COVER, SEAT BACK CLIMATE CONTROL, RH | ||||
| 85869-AC010 |
GSX30..LIMD NO.1 |
1 | ||
| 85869-AC020 |
GSX30..LIMD NO.2 |
1 | ||
| 85869-AC010 |
GSX30..LIMD NO.1 |
1 | ||
| 85869-AC020 |
GSX30..LIMD NO.2 |
1 | ||
| 87212E - DUCT, AIR, REAR RH | ||||
| 87211-AC010 |
GSX30..LIMD |
1 | ||
| 87211-AC010 |
GSX30..LIMD |
1 | ||
| Common parts | ||||
| 85879-AC010 | ||||
| 90166-A0005 | ||||
| 90166-A0006 | ||||

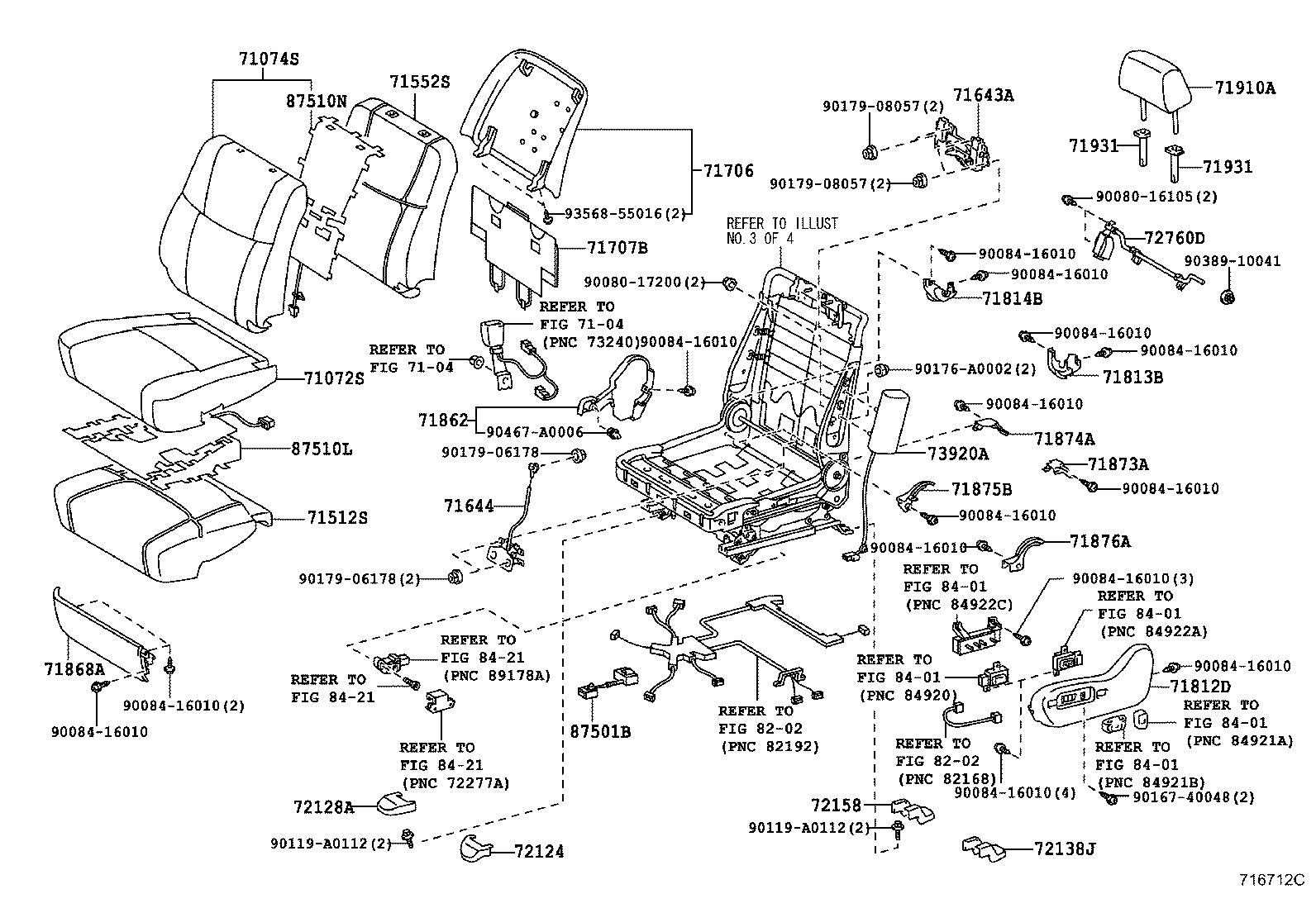

ILLUST NO. 1 OF 4(1005- )LIMD
LH SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-AC320B3 |
GSX30..LIMD GRAY,TRIM1# |
1 | ||
| 71072-07160D0 |
GSX30..LIMD CHAMBORD,TRIM2# |
1 | ||
| 71072-07160A0 |
GSX30..LIMD IVORY,TRIM0# |
1 | ||
| 71072-AC320A1 |
GSX30..LIMD IVORY,TRIM0# |
1 | ||
| 71072-07160B0 |
GSX30..LIMD LT. GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-AC260A1 |
GSX30..LIMD IVORY,TRIM0# |
1 | ||
| 71074-AC260B3 |
GSX30..LIMD GRAY,TRIM1# |
1 | ||
| 71074-07280B0 |
GSX30..LIMD LT. GRAY,TRIM1# |
1 | ||
| 71074-07280A0 |
GSX30..LIMD IVORY,TRIM0# |
1 | ||
| 71074-07280D0 |
GSX30..LIMD CHAMBORD,TRIM2# |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71512-AC100 |
GSX30..LIMD |
1 | ||
| 71512-AC100 |
GSX30..LIMD |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-07070 |
GSX30..LIMD |
1 | ||
| 71552-AC080 |
GSX30..LIMD |
1 | ||
| 71643A - UNIT, ACTIVE HEADREST, UPR | ||||
| 71643-04010 |
GSX30 |
2 | ||
| 71644 - UNIT, ACTIVE HEADREST, LWR | ||||
| 71644-04010 |
GSX30 |
2 | ||
| 71706 - BOARD SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71706-AC020B2 |
GSX30..LIMD LT.GRAY,TRIM1# |
1 | ||
| 71706-AC022C2 |
GSX30..LIMD BLACK,TRIM2# |
1 | ||
| 71706-AC022A2 |
GSX30 IVORY,TRIM0# |
1 | ||
| 71706-AC022B5 |
GSX30 LT.GRAY,TRIM1# |
1 | ||
| 71706-AC020A1 |
GSX30 IVORY,TRIM0# |
1 | ||
| 71707B - COVER SUB-ASSY, FRONT SEAT BACK BOARD | ||||
| 71074-AC290A1 |
GSX30..LIMD IVORY,TRIM0# |
1 | ||
| 71074-AC290B2 |
GSX30..LIMD LT.GRAY,TRIM1# |
1 | ||
| 71074-AC290A3 |
GSX30 IVORY,TRIM0# |
1 | ||
| 71074-AC290B7 |
GSX30 LT.GRAY,TRIM1# |
1 | ||
| 71074-AC290C0 |
GSX30..LIMD BLACK,TRIM2# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-AC060A0 |
GSX30..LIMD IVORY,TRIM0# |
1 | ||
| 71812-AC060B0 |
GSX30..LIMD LT.GRAY,TRIM1# |
1 | ||
| 71812-AC060A0 |
GSX30..LIMD IVORY,TRIM0# |
1 | ||
| 71812-AC060B0 |
GSX30..LIMD LT.GRAY,TRIM1# |
1 | ||
| 71812-AC060C0 |
GSX30..LIMD BLACK,TRIM2# |
1 | ||
| 71813B - SHIELD, FRONT SEAT BACK, RH | ||||
| 71813-0E020 |
GSX30 |
1 | ||
| 71813-0E020 |
GSX30 |
1 | ||
| 71814B - SHIELD, FRONT SEAT BACK, LH | ||||
| 71814-0E020 |
GSX30 |
1 | ||
| 71814-0E020 |
GSX30 |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-AA080B2 |
GSX30..LIMD LT.GRAY,TRIM1# |
1 | ||
| 71862-AA080A0 |
GSX30 IVORY,TRIM0# |
1 | ||
| 71862-AA080B2 |
GSX30 LT.GRAY,TRIM1# |
1 | ||
| 71862-AA080C0 |
GSX30..LIMD BLACK,TRIM2# |
1 | ||
| 71862-AA080A0 |
GSX30 IVORY,TRIM0# |
1 | ||
| 71868A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH | ||||
| 71868-AC030A0 |
GSX30..LIMD IVORY,TRIM0# |
1 | ||
| 71868-AC030B0 |
GSX30..LIMD LT.GRAY,TRIM1# |
1 | ||
| 71868-AC030B0 |
GSX30..LIMD LT.GRAY,TRIM1# |
1 | ||
| 71868-AC030A0 |
GSX30..LIMD IVORY,TRIM0# |
1 | ||
| 71868-AC030C0 |
GSX30..LIMD BLACK,TRIM2# |
1 | ||
| 71873A - SHIELD, FRONT SEAT CUSHION, LOWER | ||||
| 71806-07010 |
GSX30 |
1 | ||
| 71874-48020 |
GSX30 |
1 | ||
| 71874A - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71806-07020 |
GSX30 |
1 | ||
| 71874-0E020 |
GSX30 |
1 | ||
| 71875B - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-0E020A0 |
GSX30 IVORY,TRIM0# |
1 | ||
| 71875-0E020B0 |
GSX30..LIMD LT.GRAY,TRIM1# |
1 | ||
| 71875-0E020A0 |
GSX30 IVORY,TRIM0# |
1 | ||
| 71875-0E020B0 |
GSX30 LT.GRAY,TRIM1# |
1 | ||
| 71875-0E020C0 |
GSX30..LIMD BLACK,TRIM2# |
1 | ||
| 71876A - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-AA090A0 |
GSX30 IVORY,TRIM0# |
1 | ||
| 71876-AA090B4 |
GSX30..LIMD LT.GRAY,TRIM1# |
1 | ||
| 71876-AA090B4 |
GSX30 LT.GRAY,TRIM1# |
1 | ||
| 71876-AA090C0 |
GSX30..LIMD BLACK,TRIM2# |
1 | ||
| 71876-AA090A0 |
GSX30 IVORY,TRIM0# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-AC090A0 |
GSX30..LIMD IVORY,TRIM0# |
2 | ||
| 71910-07120A1 |
GSX30..LIMD IVORY,TRIM0# |
2 | ||
| 71910-07120B1 |
GSX30..LIMD LT. GRAY,TRIM1# |
2 | ||
| 71910-AC090B2 |
GSX30..LIMD LT.GRAY,TRIM1# |
2 | ||
| 71910-07120D0 |
GSX30..LIMD CHAMBORD,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47010P0 |
GSX30..LIMD W(LOCK),LT.GRAY,TRIM1# |
2 | ||
| 71931-47010P3 |
GSX30..LIMD W/O(LOCK),LT.GRAY,TRIM1# |
2 | ||
| 71930-47010A0 |
GSX30 W(LOCK),IVORY,TRIM0# |
2 | ||
| 71930-44020A0 |
GSX30 W(LOCK),IVORY,TRIM0# |
2 | ||
| 71930-44020B8 |
GSX30 W(LOCK),LT.GRAY,TRIM1# |
2 | ||
| 71931-47010P3 |
GSX30 W/O(LOCK),LT.GRAY,TRIM1# |
2 | ||
| 71930-44020C0 |
GSX30..LIMD W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-47010A0 |
GSX30 W/O(LOCK),IVORY,TRIM0# |
2 | ||
| 71931-47010A0 |
GSX30 W/O(LOCK),IVORY,TRIM0# |
2 | ||
| 71931-47010C0 |
GSX30..LIMD W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47010P0 |
GSX30..LIMD W(LOCK),LT.GRAY,TRIM1# |
2 | ||
| 71931-47010P3 |
GSX30..LIMD W/O(LOCK),LT.GRAY,TRIM1# |
2 | ||
| 71930-47010A0 |
GSX30 W(LOCK),IVORY,TRIM0# |
2 | ||
| 71930-44020A0 |
GSX30 W(LOCK),IVORY,TRIM0# |
2 | ||
| 71930-44020B8 |
GSX30 W(LOCK),LT.GRAY,TRIM1# |
2 | ||
| 71931-47010P3 |
GSX30 W/O(LOCK),LT.GRAY,TRIM1# |
2 | ||
| 71930-44020C0 |
GSX30..LIMD W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-47010A0 |
GSX30 W/O(LOCK),IVORY,TRIM0# |
2 | ||
| 71931-47010A0 |
GSX30 W/O(LOCK),IVORY,TRIM0# |
2 | ||
| 71931-47010C0 |
GSX30..LIMD W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH | ||||
| 72124-AC020B0 |
GSX30..LIMD LT.GRAY,TRIM1# |
1 | ||
| 72124-AC020A0 |
GSX30 IVORY,TRIM0# |
1 | ||
| 72124-AC020C0 |
GSX30..LIMD BLACK,TRIM2# |
1 | ||
| 72124-AC020B0 |
GSX30 LT.GRAY,TRIM1# |
1 | ||
| 72124-AC020A0 |
GSX30 IVORY,TRIM0# |
1 | ||
| 72128A - COVER, SEAT TRACK BRACKET, INNER FRONT LH | ||||
| 72128-AC020A0 |
GSX30 IVORY,TRIM0# |
1 | ||
| 72128-AC020C0 |
GSX30..LIMD BLACK,TRIM2# |
1 | ||
| 72128-AC020A0 |
GSX30 IVORY,TRIM0# |
1 | ||
| 72128-AC020B0 |
GSX30 LT.GRAY,TRIM1# |
1 | ||
| 72128-AC020B0 |
GSX30..LIMD LT.GRAY,TRIM1# |
1 | ||
| 72138J - COVER, FRONT SEAT TRACK, LH REAR OUTER | ||||
| 72138-AC030B0 |
GSX30..LIMD LT.GRAY,TRIM1# |
1 | ||
| 72138-AC030C0 |
GSX30..LIMD BLACK,TRIM2# |
1 | ||
| 72138-AC030A0 |
GSX30 IVORY,TRIM0# |
1 | ||
| 72138-AC030A0 |
GSX30 IVORY,TRIM0# |
1 | ||
| 72138-AC030B0 |
GSX30 LT.GRAY,TRIM1# |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-AC050B0 |
GSX30..LIMD LT.GRAY,TRIM1# |
1 | ||
| 72158-AC050B0 |
GSX30 LT.GRAY,TRIM1# |
1 | ||
| 72158-AC050A0 |
GSX30 IVORY,TRIM0# |
1 | ||
| 72158-AC050A0 |
GSX30 IVORY,TRIM0# |
1 | ||
| 72158-AC050C0 |
GSX30..LIMD BLACK,TRIM2# |
1 | ||
| 72760D - ADJUSTER ASSY, LUMBAR SUPPORT, LH | ||||
| 72760-AC040 |
GSX30 |
1 | ||
| 72760-AC040 |
GSX30 |
1 | ||
| 73920A - AIR BAG ASSY, FRONT SEAT, LH | ||||
| 73920-AC011 |
GSX30 |
1 | ||
| 73920-AC010 |
GSX30 |
1 | ||
| 87501B - CONTROL SUB-ASSY, SEAT HEATER, LH | ||||
| 87501-AC020 |
GSX30..LIMD |
1 | ||
| 87501-AC020 |
GSX30..LIMD |
1 | ||
| 87510L - HEATER ASSY, FRONT SEAT CUSHION, LH | ||||
| 87510-AC020 |
GSX30..LIMD |
1 | ||
| 87510-AC020 |
GSX30..LIMD |
1 | ||
| 87510N - HEATER ASSY, FRONT SEAT BACK, LH | ||||
| 87510-AC030 |
GSX30..LIMD |
1 | ||
| 87510-AC030 |
GSX30..LIMD |
1 | ||
| Common parts | ||||
| 90080-16105 | ||||
| 90080-17200 | ||||
| 90084-16010 | ||||
| 90119-A0112 | ||||
| 90167-40048 | ||||
| 90176-A0002 | ||||
| 90179-06178 | ||||
| 90179-08057 | ||||
| 90389-10041 | ||||
| 90467-A0006 | ||||
| 93568-55016 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 8202 | ||||
| 8401 | ||||
| 8421 | ||||

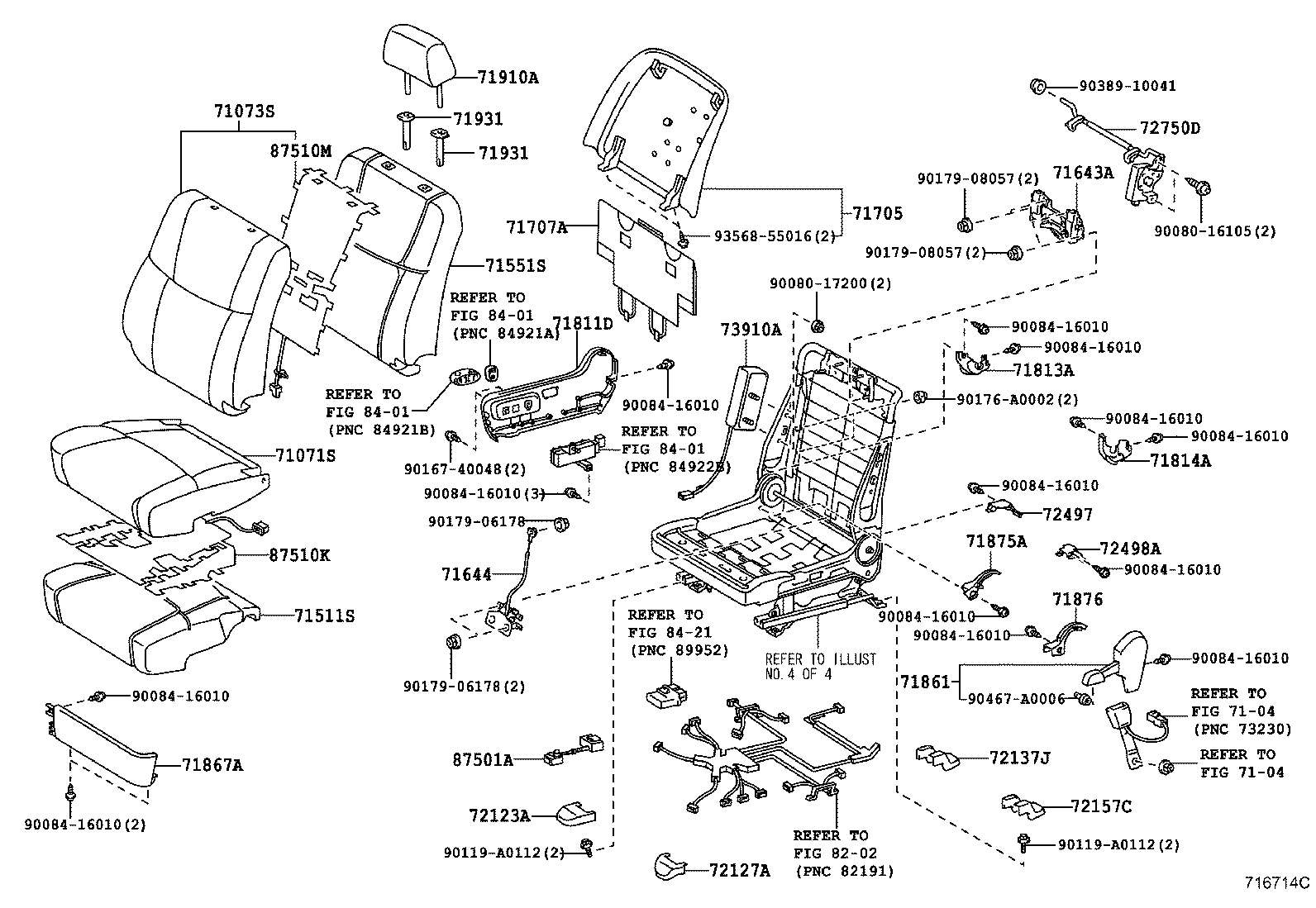

ILLUST NO. 2 OF 4(1005- )LIMD
RH SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-AC320B3 |
GSX30..LIMD GRAY,TRIM1# |
1 | ||
| 71071-07100A0 |
GSX30..LIMD IVORY,TRIM0# |
1 | ||
| 71071-AC320A1 |
GSX30..LIMD IVORY,TRIM0# |
1 | ||
| 71071-07100D0 |
GSX30..LIMD CHAMBORD,TRIM2# |
1 | ||
| 71071-07100B0 |
GSX30..LIMD LT. GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-AC260A1 |
GSX30..LIMD IVORY,TRIM0# |
1 | ||
| 71073-AC260B3 |
GSX30..LIMD GRAY,TRIM1# |
1 | ||
| 71073-07290A0 |
GSX30..LIMD IVORY,TRIM0# |
1 | ||
| 71073-07290B0 |
GSX30..LIMD LT. GRAY,TRIM1# |
1 | ||
| 71073-07290D0 |
GSX30..LIMD CHAMBORD,TRIM2# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-AC110 |
GSX30..LIMD |
1 | ||
| 71511-AC110 |
GSX30..LIMD |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-AC080 |
GSX30..LIMD |
1 | ||
| 71551-07110 |
GSX30..LIMD |
1 | ||
| 71643A - UNIT, ACTIVE HEADREST, UPR | ||||
| 71643-04010 |
GSX30 |
2 | ||
| 71644 - UNIT, ACTIVE HEADREST, LWR | ||||
| 71644-04010 |
GSX30 |
2 | ||
| 71705 - BOARD SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71705-AC090A1 |
GSX30 IVORY,TRIM0# |
1 | ||
| 71705-AC090B2 |
GSX30..LIMD LT.GRAY,TRIM1# |
1 | ||
| 71705-AC092B5 |
GSX30 LT.GRAY,TRIM1# |
1 | ||
| 71705-AC092C2 |
GSX30..LIMD BLACK,TRIM2# |
1 | ||
| 71705-AC092A2 |
GSX30 IVORY,TRIM0# |
1 | ||
| 71707A - COVER SUB-ASSY, FRONT SEAT BACK BOARD | ||||
| 71074-AC290A3 |
GSX30 IVORY,TRIM0# |
1 | ||
| 71074-AC290B2 |
GSX30..LIMD LT.GRAY,TRIM1# |
1 | ||
| 71074-AC290C0 |
GSX30..LIMD BLACK,TRIM2# |
1 | ||
| 71074-AC290B7 |
GSX30 LT.GRAY,TRIM1# |
1 | ||
| 71074-AC290A1 |
GSX30..LIMD IVORY,TRIM0# |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-AA120A0 |
GSX30..LIMD IVORY,TRIM0# |
1 | ||
| 71811-07060A0 |
GSX30..LIMD IVORY,TRIM0# |
1 | ||
| 71811-AA120B1 |
GSX30..LIMD LT.GRAY,TRIM1# |
1 | ||
| 71811-07060B0 |
GSX30..LIMD LT.GRAY,TRIM1# |
1 | ||
| 71811-07060C0 |
GSX30..LIMD BLACK,TRIM2# |
1 | ||
| 71813A - SHIELD, FRONT SEAT BACK, RH | ||||
| 71813-0E010 |
GSX30 |
1 | ||
| 71813-0E010 |
GSX30..LIMD |
1 | ||
| 71814A - SHIELD, FRONT SEAT BACK, LH | ||||
| 71814-0E010 |
GSX30..LIMD |
1 | ||
| 71814-0E010 |
GSX30 |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-AA060A0 |
GSX30..LIMD IVORY,TRIM0# |
1 | ||
| 71861-AA060B1 |
GSX30..LIMD LT.GRAY,TRIM1# |
1 | ||
| 71861-AA060C0 |
GSX30..LIMD BLACK,TRIM2# |
1 | ||
| 71861-AA060B1 |
GSX30 LT.GRAY,TRIM1# |
1 | ||
| 71861-AA060A0 |
GSX30 IVORY,TRIM0# |
1 | ||
| 71867A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH | ||||
| 71867-AA030A0 |
GSX30..LIMD IVORY,TRIM0# |
1 | ||
| 71867-AA030C0 |
GSX30..LIMD BLACK,TRIM2# |
1 | ||
| 71867-AA030B1 |
GSX30 LT.GRAY,TRIM1# |
1 | ||
| 71867-AA030B1 |
GSX30..LIMD LT.GRAY,TRIM1# |
1 | ||
| 71867-AA030A0 |
GSX30 IVORY,TRIM0# |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-0E010A0 |
GSX30..LIMD IVORY,TRIM0# |
1 | ||
| 71875-0E010B0 |
GSX30..LIMD LT.GRAY,TRIM1# |
1 | ||
| 71875-0E010C0 |
GSX30..LIMD BLACK,TRIM2# |
1 | ||
| 71875-0E010A0 |
GSX30 IVORY,TRIM0# |
1 | ||
| 71875-0E010B0 |
GSX30 LT.GRAY,TRIM1# |
1 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71875-AA090B2 |
GSX30..LIMD LT.GRAY,TRIM1# |
1 | ||
| 71875-AA090A0 |
GSX30..LIMD IVORY,TRIM0# |
1 | ||
| 71875-AA090A0 |
GSX30 IVORY,TRIM0# |
1 | ||
| 71875-AA090B2 |
GSX30 LT.GRAY,TRIM1# |
1 | ||
| 71875-AA090C0 |
GSX30..LIMD BLACK,TRIM2# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-AC090A0 |
GSX30..LIMD IVORY,TRIM0# |
2 | ||
| 71910-07120A1 |
GSX30..LIMD IVORY,TRIM0# |
2 | ||
| 71910-07120B1 |
GSX30..LIMD LT. GRAY,TRIM1# |
2 | ||
| 71910-AC090B2 |
GSX30..LIMD LT.GRAY,TRIM1# |
2 | ||
| 71910-07120D0 |
GSX30..LIMD CHAMBORD,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47010P0 |
GSX30..LIMD W(LOCK),LT.GRAY,TRIM1# |
2 | ||
| 71931-47010P3 |
GSX30..LIMD W/O(LOCK),LT.GRAY,TRIM1# |
2 | ||
| 71930-47010A0 |
GSX30 W(LOCK),IVORY,TRIM0# |
2 | ||
| 71930-44020A0 |
GSX30 W(LOCK),IVORY,TRIM0# |
2 | ||
| 71930-44020B8 |
GSX30 W(LOCK),LT.GRAY,TRIM1# |
2 | ||
| 71931-47010P3 |
GSX30 W/O(LOCK),LT.GRAY,TRIM1# |
2 | ||
| 71930-44020C0 |
GSX30..LIMD W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-47010A0 |
GSX30 W/O(LOCK),IVORY,TRIM0# |
2 | ||
| 71931-47010A0 |
GSX30 W/O(LOCK),IVORY,TRIM0# |
2 | ||
| 71931-47010C0 |
GSX30..LIMD W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47010P0 |
GSX30..LIMD W(LOCK),LT.GRAY,TRIM1# |
2 | ||
| 71931-47010P3 |
GSX30..LIMD W/O(LOCK),LT.GRAY,TRIM1# |
2 | ||
| 71930-47010A0 |
GSX30 W(LOCK),IVORY,TRIM0# |
2 | ||
| 71930-44020A0 |
GSX30 W(LOCK),IVORY,TRIM0# |
2 | ||
| 71930-44020B8 |
GSX30 W(LOCK),LT.GRAY,TRIM1# |
2 | ||
| 71931-47010P3 |
GSX30 W/O(LOCK),LT.GRAY,TRIM1# |
2 | ||
| 71930-44020C0 |
GSX30..LIMD W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-47010A0 |
GSX30 W/O(LOCK),IVORY,TRIM0# |
2 | ||
| 71931-47010A0 |
GSX30 W/O(LOCK),IVORY,TRIM0# |
2 | ||
| 71931-47010C0 |
GSX30..LIMD W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 72123A - COVER, SEAT TRACK BRACKET, OUTER FRONT RH | ||||
| 72123-AC040A0 |
GSX30..LIMD IVORY,TRIM0# |
1 | ||
| 72123-AC040A0 |
GSX30 IVORY,TRIM0# |
1 | ||
| 72123-AC040C0 |
GSX30..LIMD BLACK,TRIM2# |
1 | ||
| 72123-AC040B0 |
GSX30 LT.GRAY,TRIM1# |
1 | ||
| 72123-AC040B0 |
GSX30..LIMD LT.GRAY,TRIM1# |
1 | ||
| 72127A - COVER, SEAT TRACK BRACKET, INNER FRONT RH | ||||
| 72127-AC030C0 |
GSX30..LIMD BLACK,TRIM2# |
1 | ||
| 72127-AC030A0 |
GSX30..LIMD IVORY,TRIM0# |
1 | ||
| 72127-AC030A0 |
GSX30 IVORY,TRIM0# |
1 | ||
| 72127-AC030B0 |
GSX30..LIMD LT.GRAY,TRIM1# |
1 | ||
| 72127-AC030B0 |
GSX30 LT.GRAY,TRIM1# |
1 | ||
| 72137J - COVER, FRONT SEAT TRACK, RH REAR OUTER | ||||
| 72137-AC040A0 |
GSX30..LIMD IVORY,TRIM0# |
1 | ||
| 72137-AC040B0 |
GSX30..LIMD LT.GRAY,TRIM1# |
1 | ||
| 72137-AC040C0 |
GSX30..LIMD BLACK,TRIM2# |
1 | ||
| 72137-AC040A0 |
GSX30 IVORY,TRIM0# |
1 | ||
| 72137-AC040B0 |
GSX30 LT.GRAY,TRIM1# |
1 | ||
| 72157C - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-AC060A0 |
GSX30..LIMD IVORY,TRIM0# |
1 | ||
| 72157-AC060B0 |
GSX30..LIMD LT.GRAY,TRIM1# |
1 | ||
| 72157-AC060A0 |
GSX30 IVORY,TRIM0# |
1 | ||
| 72157-AC060B0 |
GSX30 LT.GRAY,TRIM1# |
1 | ||
| 72157-AC060C0 |
GSX30..LIMD BLACK,TRIM2# |
1 | ||
| 72497 - COVER, VERTICAL ADJUSTER BRACKET, OUTER | ||||
| 72497-60010 |
GSX30..LIMD |
1 | ||
| 71874-33070 |
GSX30..LIMD |
1 | ||
| 72498A - COVER, VERTICAL ADJUSTER BRACKET, LH | ||||
| 72498-60010 |
GSX30..LIMD |
1 | ||
| 71873-33030 |
GSX30..LIMD |
1 | ||
| 72750D - ADJUSTER ASSY, LUMBAR SUPPORT, RH | ||||
| 72750-07010 |
GSX30..LIMD |
1 | ||
| 73910A - AIR BAG ASSY, FRONT SEAT, RH | ||||
| 73910-AC010 |
GSX30 |
1 | ||
| 73910-AC011 |
GSX30 |
1 | ||
| 87501A - CONTROL SUB-ASSY, SEAT HEATER, RH | ||||
| 87501-AC020 |
GSX30..LIMD |
1 | ||
| 87501-AC020 |
GSX30..LIMD |
1 | ||
| 87510K - HEATER ASSY, FRONT SEAT CUSHION, RH | ||||
| 87510-AC020 |
GSX30..LIMD |
1 | ||
| 87510-AC020 |
GSX30..LIMD |
1 | ||
| 87510M - HEATER ASSY, FRONT SEAT BACK, RH | ||||
| 87510-AC030 |
GSX30..LIMD |
1 | ||
| 87510-AC030 |
GSX30..LIMD |
1 | ||
| Common parts | ||||
| 90080-16105 | ||||
| 90080-17200 | ||||
| 90084-16010 | ||||
| 90119-A0112 | ||||
| 90167-40048 | ||||
| 90176-A0002 | ||||
| 90179-06178 | ||||
| 90179-08057 | ||||
| 90389-10041 | ||||
| 90467-A0006 | ||||
| 93568-55016 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 8202 | ||||
| 8401 | ||||
| 8421 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
