GSX30L-AETPKV (2010)
Toyota Avalon
Production
May 2010
-
Oct 2012
Engine
2GRFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(1005- )

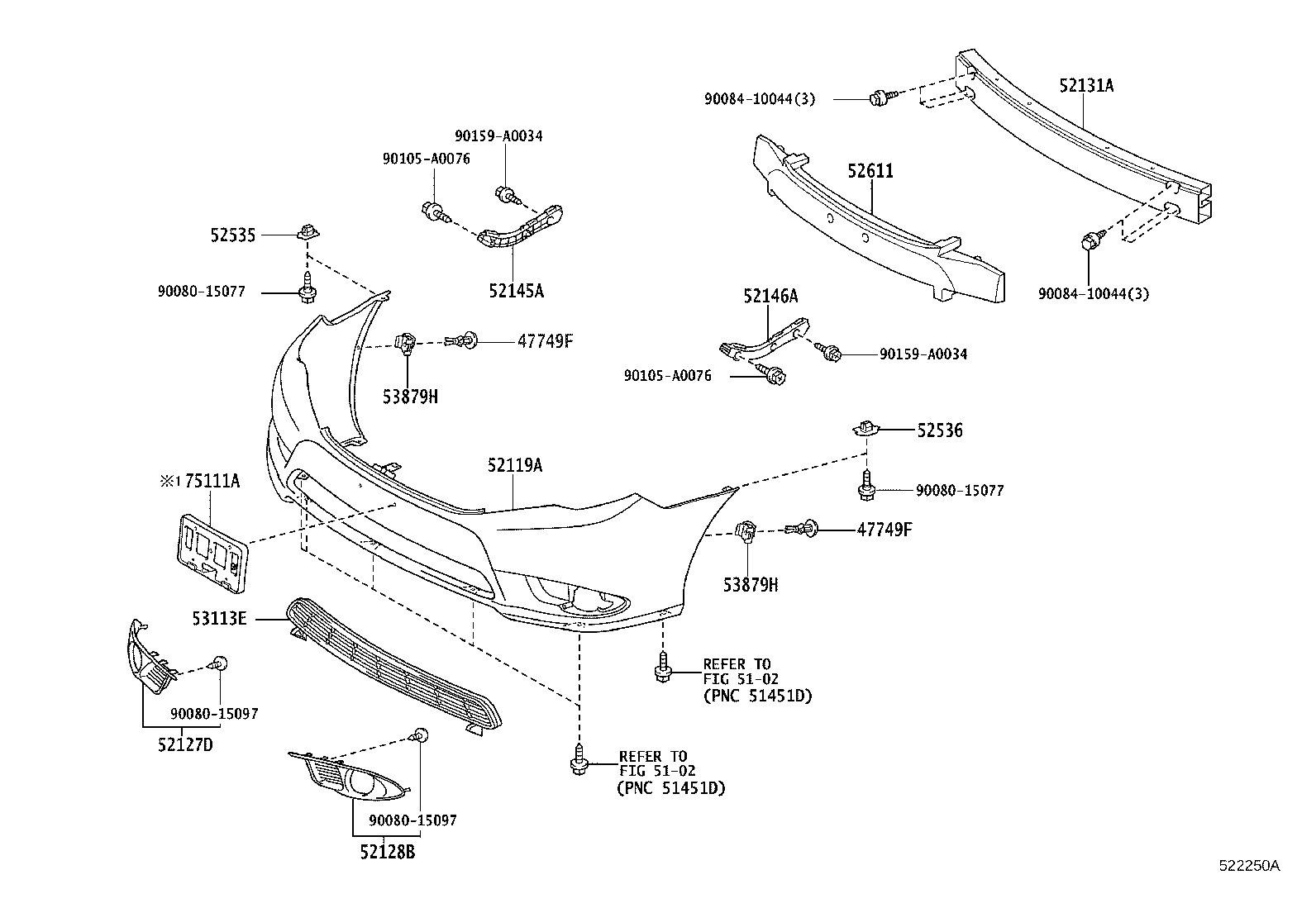

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47749F - CLIP, PIN HOLD | ||||
| 47749-58010 |
GSX30 |
2 | ||
| 47749-58010 |
GSX30 |
2 | ||
| 47749F - CLIP, PIN HOLD | ||||
| 47749-58010 |
GSX30 |
2 | ||
| 47749-58010 |
GSX30 |
2 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-07909 |
GSX30 PAINT REQ. |
1 | ||
| 52119-AC913 |
GSX30..LIMD PAINT REQ. |
1 | ||
| 52127D - COVER, FRONT BUMPER HOLE, RH | ||||
| 52030-07040 |
GSX30 |
1 | ||
| 52127-AC901 |
GSX30..LIMD |
1 | ||
| 52128B - COVER, FRONT BUMPER HOLE, LH | ||||
| 52128-AC901 |
GSX30..LIMD |
1 | ||
| 52040-07040 |
GSX30 |
1 | ||
| 52131A - REINFORCEMENT, FRONT BUMPER | ||||
| 52131-AC080 |
GSX30 |
1 | ||
| 52131-AC080 |
GSX30 |
1 | ||
| 52145A - STAY, FRONT BUMPER, NO.2 RH | ||||
| 52145-07010 |
GSX30 |
1 | ||
| 52145-AC040 |
GSX30 |
1 | ||
| 52146A - STAY, FRONT BUMPER, NO.2 LH | ||||
| 52146-AC040 |
GSX30 |
1 | ||
| 52146-07010 |
GSX30 |
1 | ||
| 52535 - RETAINER, FRONT BUMPER SIDE, RH | ||||
| 52535-50060 |
GSX30 |
1 | ||
| 52535-30150 |
GSX30 |
1 | ||
| 52536 - RETAINER, FRONT BUMPER SIDE, LH | ||||
| 52535-50060 |
GSX30 |
1 | ||
| 52535-30150 |
GSX30 |
1 | ||
| 52611 - ABSORBER, FRONT BUMPER ENERGY | ||||
| 52611-AC050 |
GSX30 |
1 | ||
| 52611-07030 |
GSX30 |
1 | ||
| 53113E - GRILLE, RADIATOR, LOWER NO.2 | ||||
| 53113-07040 |
GSX30 |
1 | ||
| 53879H - RETAINER, FRONT FENDER LINER | ||||
| 53879-58010 |
GSX30 |
2 | ||
| 53879-58010 |
GSX30 |
2 | ||
| 53879H - RETAINER, FRONT FENDER LINER | ||||
| 53879-58010 |
GSX30 |
2 | ||
| 53879-58010 |
GSX30 |
2 | ||
| 75111A - BRACKET, FRONT LICENSE PLATE | ||||
| 75101-AC050 |
GSX30 |
1 | ||
| 75101-07020 |
GSX30 |
1 | ||
| Common parts | ||||
| 90080-15077 | ||||
| 90080-15097 | ||||
| 90084-10044 | ||||
| 90105-A0076 | ||||
| 90159-A0034 | ||||
| Linked diagrams | ||||
| 5102 | ||||
