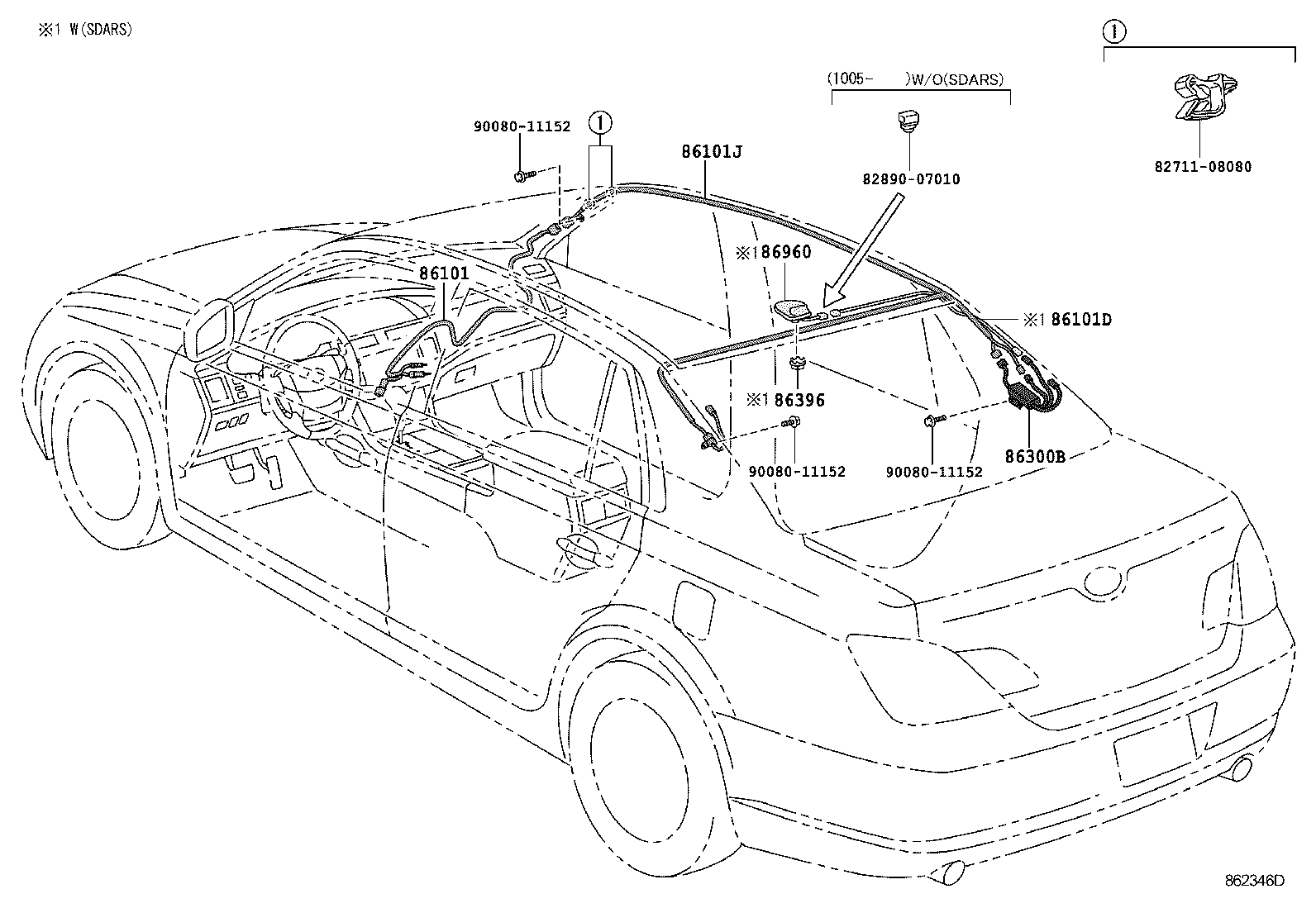

Toyota Avalon GSX30 ANTENNA - JDM Part Detective

Part #	Description	Period	Qty
86101 - CORD SUB-ASSY, ANTENNA
86101-AC150	GSX30	01/2005 - 07/2007	1
86101-AC150	GSX30	07/2007 - 03/2010	1
86101D - CORD SUB-ASSY, ANTENNA, NO.3
86101-07030	GSX30	08/2008 - 03/2010	1
86101J - CORD SUB-ASSY, ANTENNA, NO.2
86101-AC241	GSX30	07/2007 - 08/2008	1
86101-AC240	GSX30	01/2005 - 11/2006	1
86101-AC242	GSX30	08/2008 - 03/2010	1
86300B - ANTENNA ASSY, AMPLIFIER, NO.1
86300-AC060	GSX30	07/2007 - 03/2010	1
86300-AC060	GSX30	01/2005 - 07/2007	1
86396 - NUT, ANTENNA
86396-30050	GSX30	08/2008 - 03/2010	1
86960 - ANTENNA ASSY, SATELLITE RADIO
86960-07010A0	GSX30 WHITE PEARL CS.,070	08/2008 - 03/2010	1
86960-07010B0	GSX30 SILVER ME.,1F7	08/2008 - 03/2010	1
86960-07010C0	GSX30 BLACK,202	08/2008 - 03/2010	1
86960-07010E0	GSX30 BEIGE M. M.,4Q2	08/2008 - 02/2009	1
86960-07010E1	GSX30 DK.BROWN ME.,4U5	08/2008 - 03/2010	1
86960-07010J0	GSX30 BLUE ME.,8R5	08/2008 - 03/2010	1
86960-07010D0	GSX30 DK RED MC,3Q7	08/2008 - 03/2010	1
86960-07010B1	GSX30 GRAY ME.,1G3	08/2008 - 03/2010	1
86960-07010G0	GSX30 LT.GREEN ME.,6U0	08/2008 - 03/2010	1
86960-07010E2	GSX30 BEIGE ME.,4T8	02/2009 - 03/2010	1
Common parts
82711-08080
82890-07010
90080-11152

GSX30L-AETNKV (2007)
