GSX30L-AETNKV (2007)
Toyota Avalon
Production
Jul 2007
-
Mar 2010
Engine
2GRFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0501- )

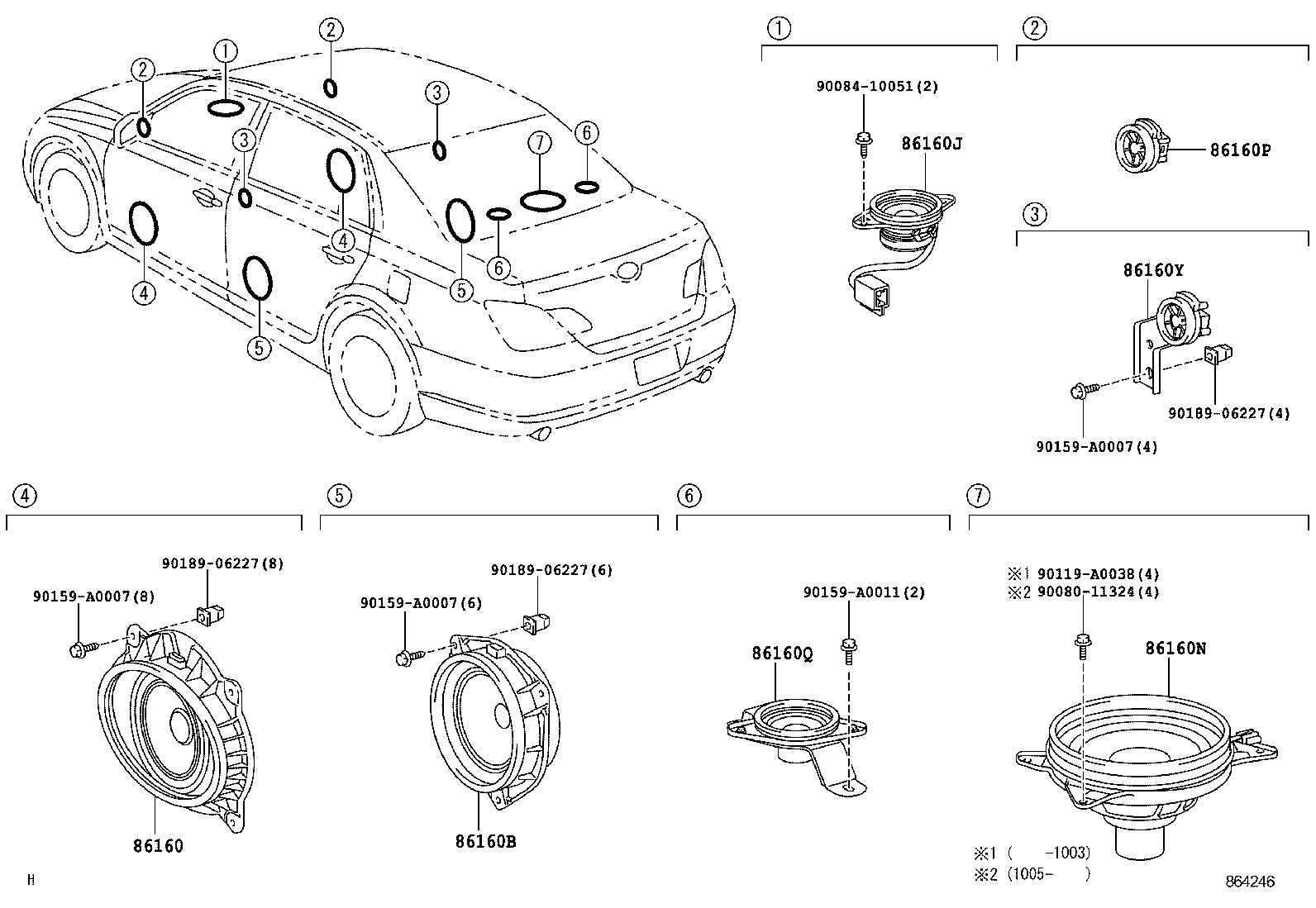

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86160 - SPEAKER ASSY, FRONT NO.1 | ||||
| 86160-AC430 |
GSX30 |
2 | ||
| 86160-AC430 |
GSX30 |
2 | ||
| 86160B - SPEAKER ASSY, REAR | ||||
| 86160-AC280 |
GSX30 |
2 | ||
| 86160-AC280 |
GSX30 |
2 | ||
| 86160J - SPEAKER ASSY, FRONT NO.3 | ||||
| 86160-AC260 |
GSX30 |
1 | ||
| 86160-AC260 |
GSX30 |
1 | ||
| 86160N - SPEAKER ASSY, STEREO COMPONENT, REAR | ||||
| 86160-AC250 |
GSX30 |
1 | ||
| 86160-AC250 |
GSX30 |
1 | ||
| 86160P - SPEAKER ASSY, FRONT NO.2 | ||||
| 86160-AC450 |
GSX30 |
2 | ||
| 86160-AC450 |
GSX30 |
2 | ||
| 86160Q - SPEAKER ASSY, ROOF | ||||
| 86160-AC270 |
GSX30 |
2 | ||
| 86160-AC271 |
GSX30 |
2 | ||
| 86160Y - SPEAKER ASSY, REAR NO.2 | ||||
| 86160-AC410 |
GSX30 RH |
1 | ||
| 86160-AC420 |
GSX30 LH |
1 | ||
| 86160-AC420 |
GSX30 LH |
1 | ||
| 86160-AC410 |
GSX30 RH |
1 | ||
| Common parts | ||||
| 90080-11324 | ||||
| 90084-10051 | ||||
| 90119-A0038 | ||||
| 90159-A0007 | ||||
| 90159-A0011 | ||||
| 90189-06227 | ||||
