GSX30L-AETNKV (2007)
Toyota Avalon
Production
Jul 2007
-
Mar 2010
Engine
2GRFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

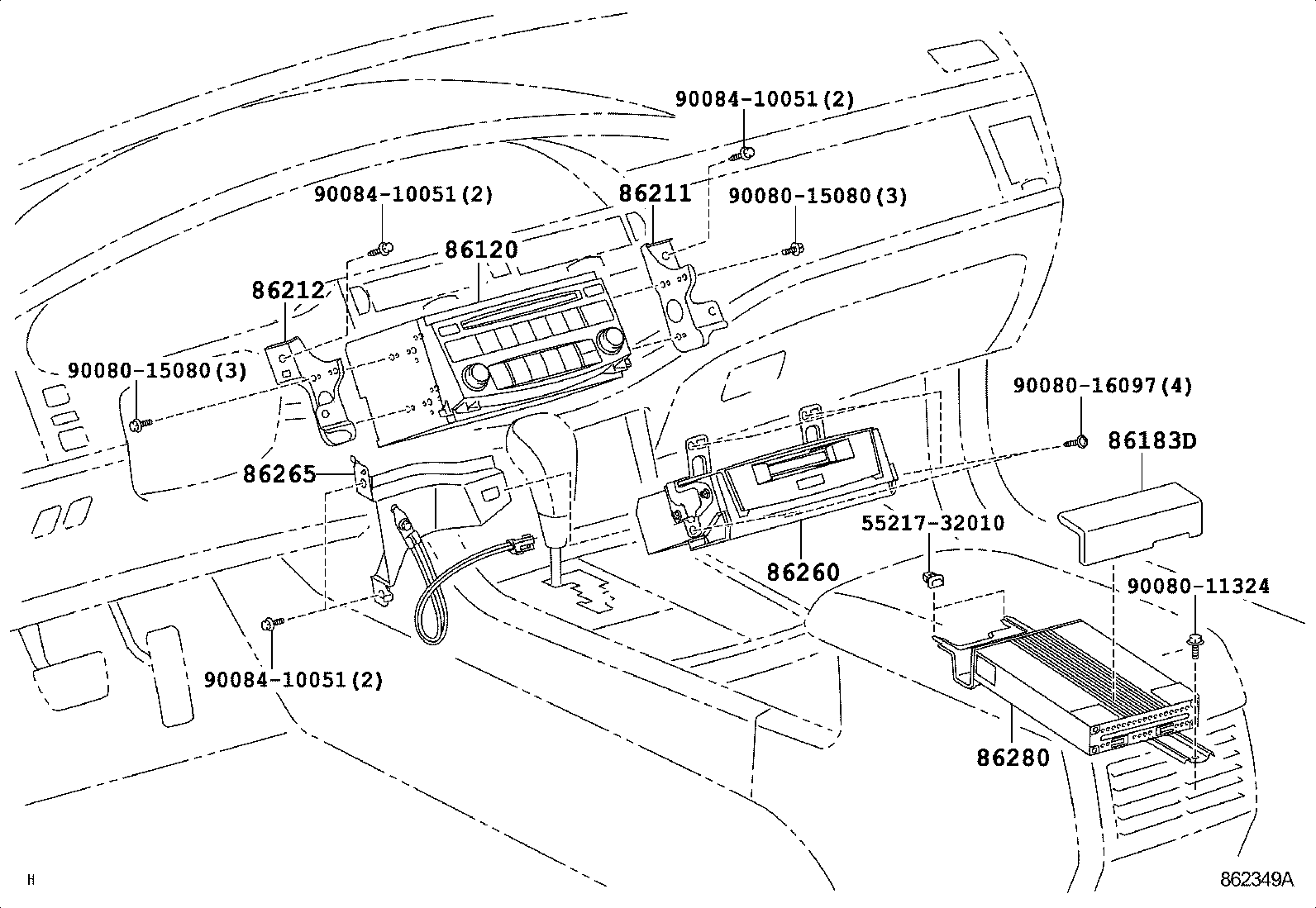

ILLUST NO. 1 OF 3(0501-1003)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-AC170 |
GSX30 MATSUSHITA,ID=A52801,TYPE A:REFER ILLUST. |
1 | ||
| 86120-07090 |
GSX30 PANASONIC,ID=A51853,TYPE A:REFER ILLUST. |
1 | ||
| 86183D - COVER, AUDIO AMPLIFIER | ||||
| 86183-AC020A0 |
GSX30 IVORY,TRIM0# |
1 | ||
| 86183-AC020B0 |
GSX30..XL GRAY,TRIM1# |
1 | ||
| 86183-AC020A0 |
GSX30 IVORY,TRIM0# |
1 | ||
| 86183-AC020B0 |
GSX30..XL GRAY,TRIM1# |
1 | ||
| 86211 - BRACKET, RADIO, NO.1 | ||||
| 86211-AC040 |
GSX30 |
1 | ||
| 86211-AC040 |
GSX30 |
1 | ||
| 86212 - BRACKET, RADIO, NO.2 | ||||
| 86212-AC040 |
GSX30 |
1 | ||
| 86212-AC040 |
GSX30 |
1 | ||
| 86260 - TAPE PLAYER ASSY | ||||
| 86260-AC010 |
GSX30 AUDIO-JBL AM/FM/SW/CD-CH 12SP ME & CASSETTE |
1 | ||
| 86260-07010 |
GSX30 AUDIO-JBL AM/FM/SW/CD-CH 12SP ME & CASSETTE |
1 | ||
| 86265 - BRACKET, TAPE PLAYER, NO.1 | ||||
| 86265-AC010 |
GSX30 AUDIO-JBL AM/FM/SW/CD-CH 12SP ME & CASSETTE |
1 | ||
| 86265-AC010 |
GSX30 AUDIO-JBL AM/FM/SW/CD-CH 12SP ME & CASSETTE |
1 | ||
| 86280 - AMPLIFIER ASSY, STEREO COMPONENT | ||||
| 86280-07030 |
GSX30 |
1 | ||
| 86280-AC050 |
GSX30 |
1 | ||
| Common parts | ||||
| 55217-32010 | ||||
| 90080-11324 | ||||
| 90080-15080 | ||||
| 90080-16097 | ||||
| 90084-10051 | ||||

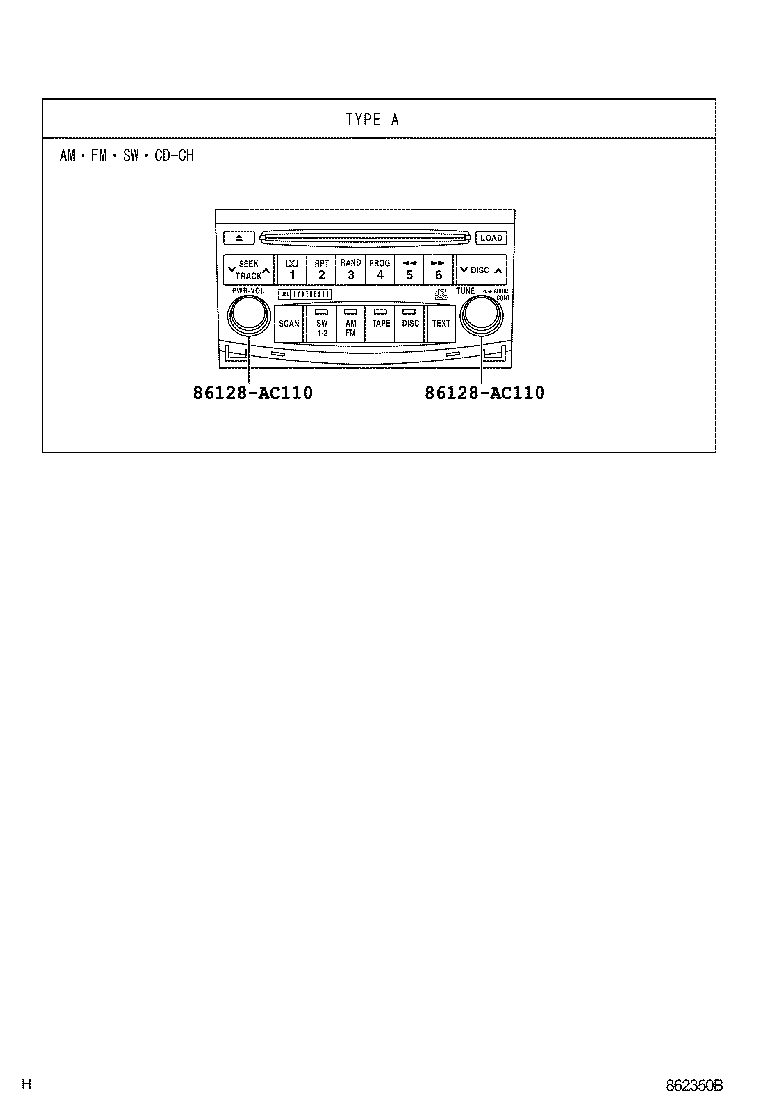

ILLUST NO. 2 OF 3(0501-1003)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 86128-AC110 | ||||
ILLUST NO. 3 OF 3(0501- )
Click highlighted areas on diagram
CONDENSER & NOISE FILTER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86011A - CONDENSER, RADIO SETTING | ||||
| 90980-04182 |
GSX30 |
2 | ||
| 90980-04182 |
GSX30 |
2 | ||
| 86011A - CONDENSER, RADIO SETTING | ||||
| 90980-04182 |
GSX30 |
2 | ||
| 90980-04182 |
GSX30 |
2 | ||
| 86011C - FILTER, NOISE | ||||
| 90980-A4003 |
GSX30 |
1 | ||
| 86011N - FILTER, NOISE | ||||
| 90980-A5001 |
GSX30 |
1 | ||
| 90980-A5001 |
GSX30 |
1 | ||
| 86011P - FILTER, NOISE | ||||
| 90980-04129 |
GSX30 |
1 | ||
| 90980-04129 |
GSX30 |
1 | ||
| Common parts | ||||
| 90119-A0038 | ||||
| 90119-A0142 | ||||
| 91673-80610 | ||||
