GSX30L-AETNKV (2007)
Toyota Avalon
Production
Jul 2007
-
Mar 2010
Engine
2GRFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0501- )

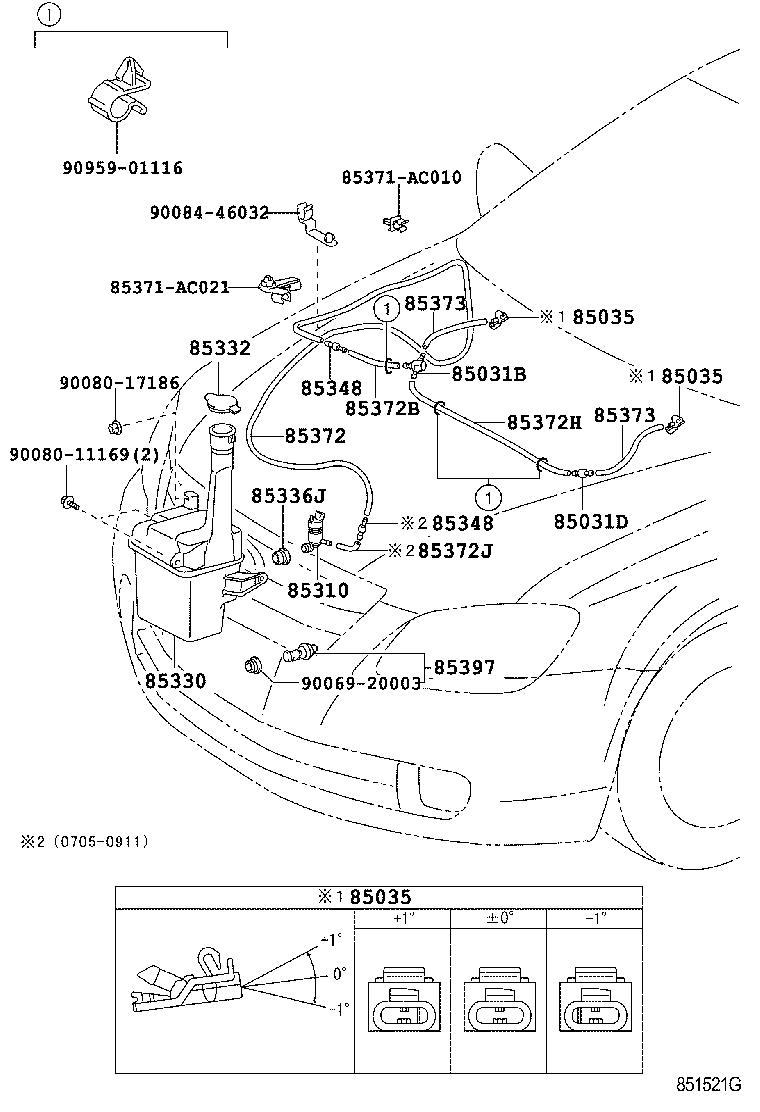

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85031B - VALVE SUB-ASSY, WASHER | ||||
| 85321-30080 |
GSX30 |
1 | ||
| 85321-30080 |
GSX30 |
1 | ||
| 85321-28020 |
GSX30 |
1 | ||
| 85031D - VALVE SUB-ASSY, WASHER NO.2 | ||||
| 85321-26020 |
GSX30 |
1 | ||
| 85375-0E010 |
GSX30 |
1 | ||
| 85375-06020 |
GSX30 |
1 | ||
| 85321-26020 |
GSX30 |
1 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-AC030 |
GSX30 ANGLE -1 |
2 | ||
| 85381-AC011 |
GSX30 ANGLE 0 |
2 | ||
| 85381-AC020 |
GSX30 ANGLE +1 |
2 | ||
| 85381-AC010 |
GSX30 ANGLE 0 |
2 | ||
| 85381-AC021 |
GSX30 ANGLE +1 |
2 | ||
| 85381-AC040 |
GSX30 ANGLE -1 |
2 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-AC030 |
GSX30 ANGLE -1 |
2 | ||
| 85381-AC011 |
GSX30 ANGLE 0 |
2 | ||
| 85381-AC020 |
GSX30 ANGLE +1 |
2 | ||
| 85381-AC010 |
GSX30 ANGLE 0 |
2 | ||
| 85381-AC021 |
GSX30 ANGLE +1 |
2 | ||
| 85381-AC040 |
GSX30 ANGLE -1 |
2 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-AC030 |
GSX30 ANGLE -1 |
2 | ||
| 85381-AC011 |
GSX30 ANGLE 0 |
2 | ||
| 85381-AC020 |
GSX30 ANGLE +1 |
2 | ||
| 85381-AC010 |
GSX30 ANGLE 0 |
2 | ||
| 85381-AC021 |
GSX30 ANGLE +1 |
2 | ||
| 85381-AC040 |
GSX30 ANGLE -1 |
2 | ||
| 85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER | ||||
| 85330-06031 |
GSX30 |
1 | ||
| 85330-06030 |
GSX30 |
1 | ||
| 85330 - JAR ASSY, WINDSHIELD WASHER | ||||
| 85315-AA030 |
GSX30 |
1 | ||
| 85315-AA031 |
GSX30 |
1 | ||
| 85332 - CAP, WINDSHIELD WASHER JAR | ||||
| 85316-06021 |
GSX30 |
1 | ||
| 85316-06021 |
GSX30 |
1 | ||
| 85336J - PROTECTOR, WASHER JAR | ||||
| 85365-02010 |
GSX30 |
1 | ||
| 85365-02010 |
GSX30 |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85375-AA010 |
GSX30 |
1 | ||
| 85375-AA010 |
GSX30 |
2 | ||
| 85375-AA010 |
GSX30 |
1 | ||
| 85334-22470 |
GSX30 |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85375-AA010 |
GSX30 |
1 | ||
| 85375-AA010 |
GSX30 |
2 | ||
| 85375-AA010 |
GSX30 |
1 | ||
| 85334-22470 |
GSX30 |
1 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 85374-AC031 |
GSX30 L=2095 |
1 | ||
| 85374-AC030 |
GSX30 L=2095 |
1 | ||
| 85374-AC030 |
GSX30 L=2095 |
1 | ||
| 85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2 | ||||
| 85374-AC010 |
GSX30 L=210 |
1 | ||
| 85374-AC010 |
GSX30 L=210 |
1 | ||
| 85374-AC011 |
GSX30 L=210 |
1 | ||
| 85372H - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3 | ||||
| 85374-AC020 |
GSX30 L=855 |
1 | ||
| 85374-AC020 |
GSX30 L=855 |
1 | ||
| 85374-AC021 |
GSX30 L=845 |
1 | ||
| 85372J - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4 | ||||
| 85374-07050 |
GSX30 L=40 |
1 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90069-46030 |
GSX30 L=225,ANGLE 0 |
2 | ||
| 90069-46030 |
GSX30 L=225 |
2 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90069-46030 |
GSX30 L=225,ANGLE 0 |
2 | ||
| 90069-46030 |
GSX30 L=225 |
2 | ||
| 85397 - SWITCH ASSY,LEVEL WARNING | ||||
| 85397-AA010 |
GSX30 |
1 | ||
| 85397-AA010 |
GSX30 |
1 | ||
| Common parts | ||||
| 85371-AC010 | ||||
| 85371-AC021 | ||||
| 90069-20003 | ||||
| 90080-11169 | ||||
| 90080-17186 | ||||
| 90084-46032 | ||||
| 90959-01116 | ||||
