Toyota Avalon GSX30 WIRING & CLAMP

GSX30L-AETNKV (2007)

Toyota Avalon

Production Jul 2007 - Mar 2010

Engine 2GRFE

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 3 OF 9(0501-1003)

Click highlighted areas on diagram

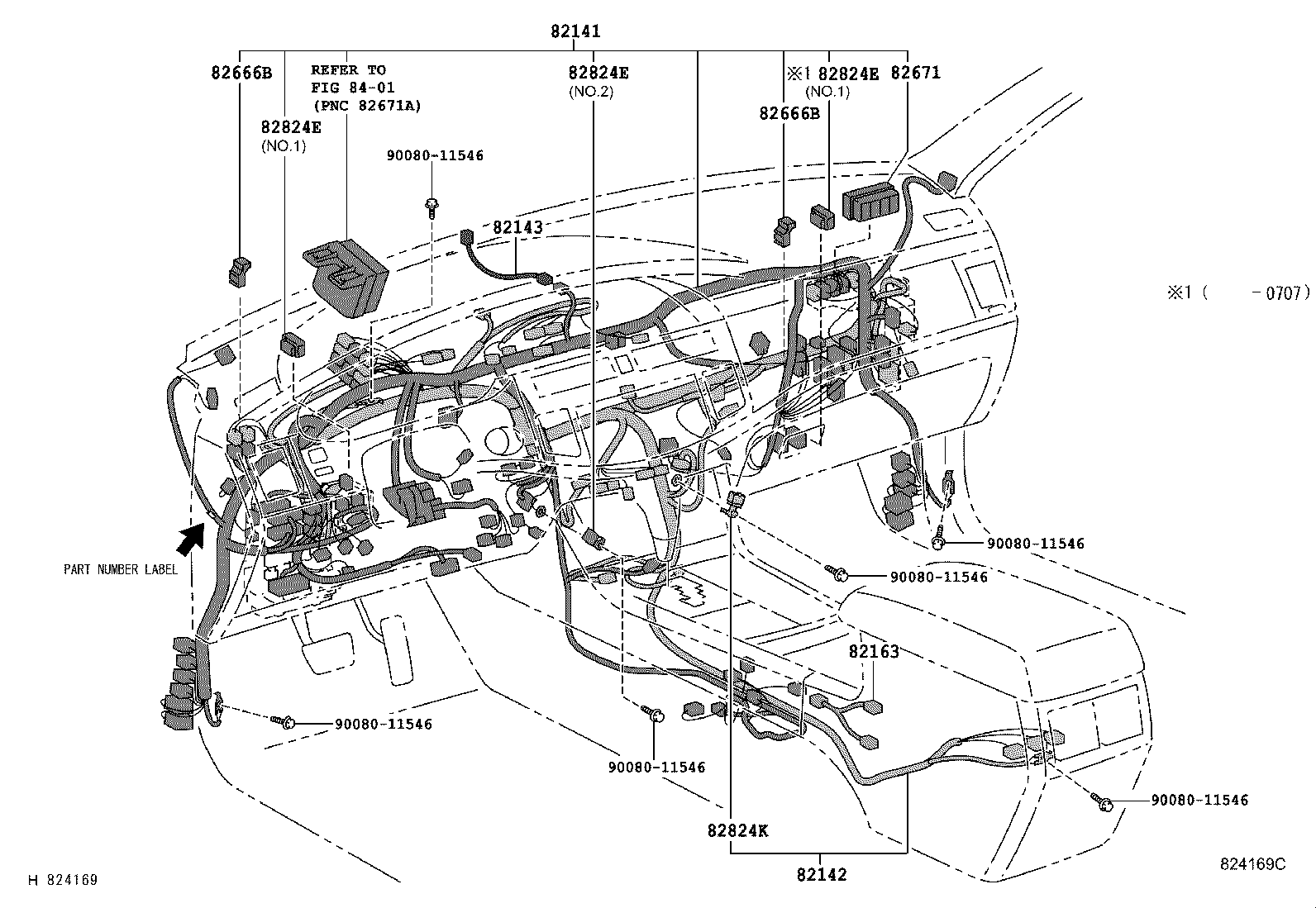

INSTRUMENT PANEL

Part #	Description	Period	Qty
82141 - WIRE, INSTRUMENT PANEL
82141-07480	GSX30..XL	07/2007 - 08/2008	1
82141-AC020	GSX30..XL	01/2005 - 08/2006	1
82141-07481	GSX30..XL	08/2008 - 08/2009	1
82141-AC020	GSX30..XL PART NUMBER LABEL=82141-AC020	01/2005 - 08/2006	1
82141-07482	GSX30..XL	08/2009 - 03/2010	1
82141-07482	GSX30..XL PART NUMBER LABEL=82141-07482	08/2009 - 03/2010	1
82141-07480	GSX30..XL PART NUMBER LABEL=82141-07480	07/2007 - 08/2008	1
82141-07481	GSX30..XL PART NUMBER LABEL=82141-07481	08/2008 - 08/2009	1
82142 - WIRE, INSTRUMENT PANEL, NO.2
82142-07040	GSX30	07/2007 - 03/2010	1
82142-AC030	GSX30	01/2005 - 08/2006	1
82143 - WIRE, INSTRUMENT PANEL, NO.3
82143-AC010	GSX30	07/2007 - 03/2010	1
82143-AC010	GSX30	01/2005 - 07/2007	1
82163 - WIRE, FLOOR, NO.3
82163-AC030	GSX30	01/2005 - 07/2007	1
82163-07020	GSX30	07/2007 - 03/2010	1
82666B - HOLDER, CONNECTOR NO.3
82666-48030	GSX30	01/2005 - 07/2007	2
82666-48030	GSX30	07/2007 - 03/2010	2
82666B - HOLDER, CONNECTOR NO.3
82666-48030	GSX30	01/2005 - 07/2007	2
82666-48030	GSX30	07/2007 - 03/2010	2
82671 - BLOCK, JUNCTION
82671-AC020	GSX30	07/2007 - 03/2010	1
82671-AC020	GSX30	01/2005 - 07/2007	1
82824E - CONNECTOR, WIRING HARNESS
82824-12210	GSX30 NO.1	07/2007 - 03/2010	1
82824-12210	GSX30 NO.1	01/2005 - 07/2007	2
82824-48070	GSX30 NO.2	01/2005 - 07/2007	1
82824-48070	GSX30 NO.2	07/2007 - 03/2010	1
82824E - CONNECTOR, WIRING HARNESS
82824-12210	GSX30 NO.1	07/2007 - 03/2010	1
82824-12210	GSX30 NO.1	01/2005 - 07/2007	2
82824-48070	GSX30 NO.2	01/2005 - 07/2007	1
82824-48070	GSX30 NO.2	07/2007 - 03/2010	1
82824E - CONNECTOR, WIRING HARNESS
82824-12210	GSX30 NO.1	07/2007 - 03/2010	1
82824-12210	GSX30 NO.1	01/2005 - 07/2007	2
82824-48070	GSX30 NO.2	01/2005 - 07/2007	1
82824-48070	GSX30 NO.2	07/2007 - 03/2010	1
82824K - CONNECTOR, WIRING HARNESS
82824-48070	GSX30	07/2007 - 03/2010	1
82824-48070	GSX30	01/2005 - 07/2007	1
Common parts
90080-11546
Linked diagrams
8401

ILLUST NO. 4 OF 9(0501- )

Click highlighted areas on diagram

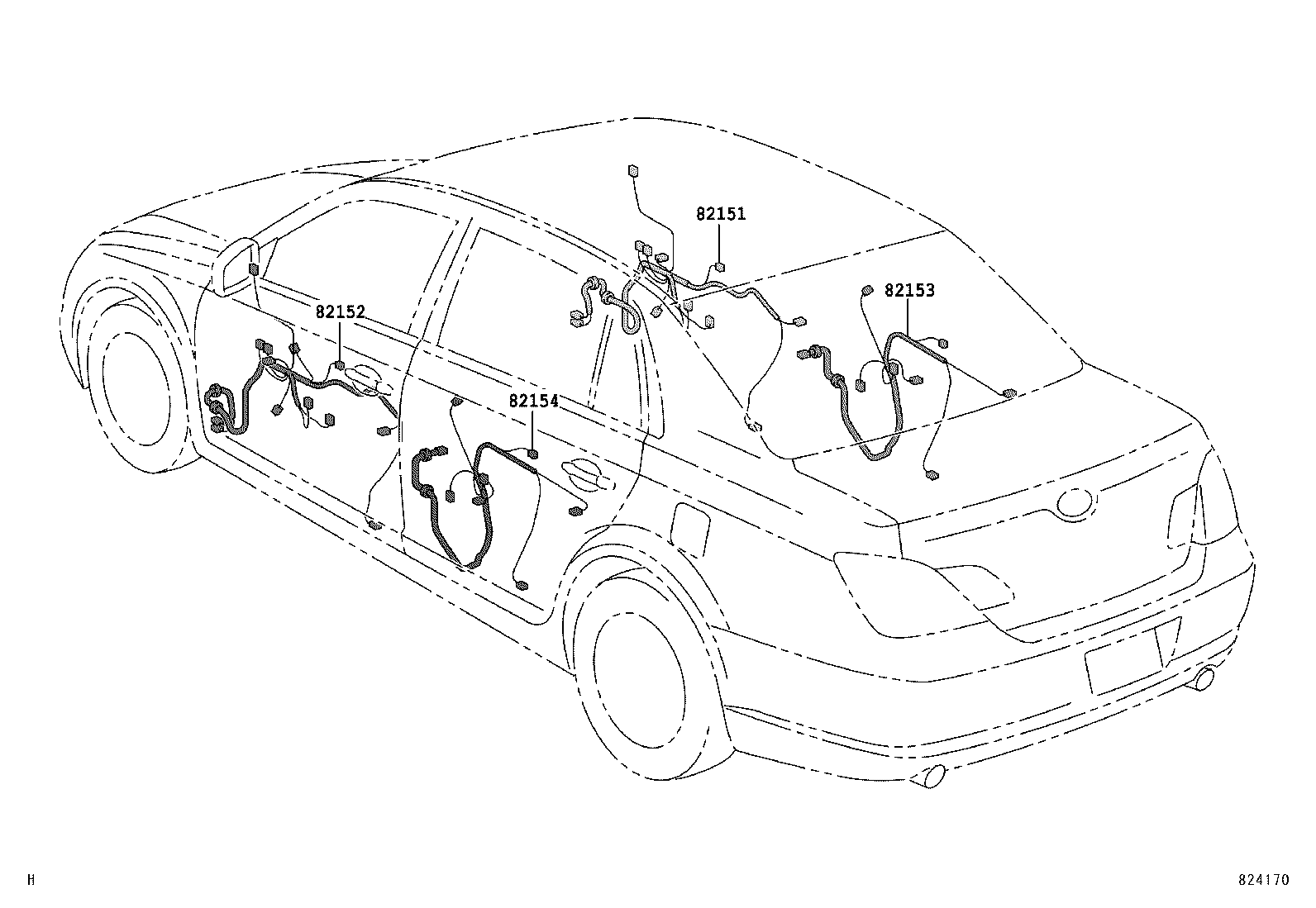

DOOR

Part #	Description	Period	Qty
82151 - WIRE, FRONT DOOR, RH
82151-AC080	GSX30..XL	01/2005 - 07/2007	1
82151-AC080	GSX30..XL	07/2007 - 08/2009	1
82151-AC081	GSX30..XL	08/2009 - 03/2010	1
82152 - WIRE, FRONT DOOR, LH
82152-AC080	GSX30..XL	07/2007 - 08/2009	1
82152-AC080	GSX30..XL	01/2005 - 07/2007	1
82152-AC081	GSX30..XL	08/2009 - 03/2010	1
82153 - WIRE, REAR DOOR, NO.1
82153-AC030	GSX30..XL	07/2007 - 08/2009	1
82153-AC031	GSX30..XL	08/2009 - 03/2010	1
82153-AC030	GSX30..XL	01/2005 - 07/2007	1
82154 - WIRE, REAR DOOR, NO.2
82154-AC030	GSX30..XL	01/2005 - 07/2007	1
82154-AC030	GSX30..XL	07/2007 - 08/2009	1
82154-AC031	GSX30..XL	08/2009 - 03/2010	1

ILLUST NO. 5 OF 9(0501- )

Click highlighted areas on diagram

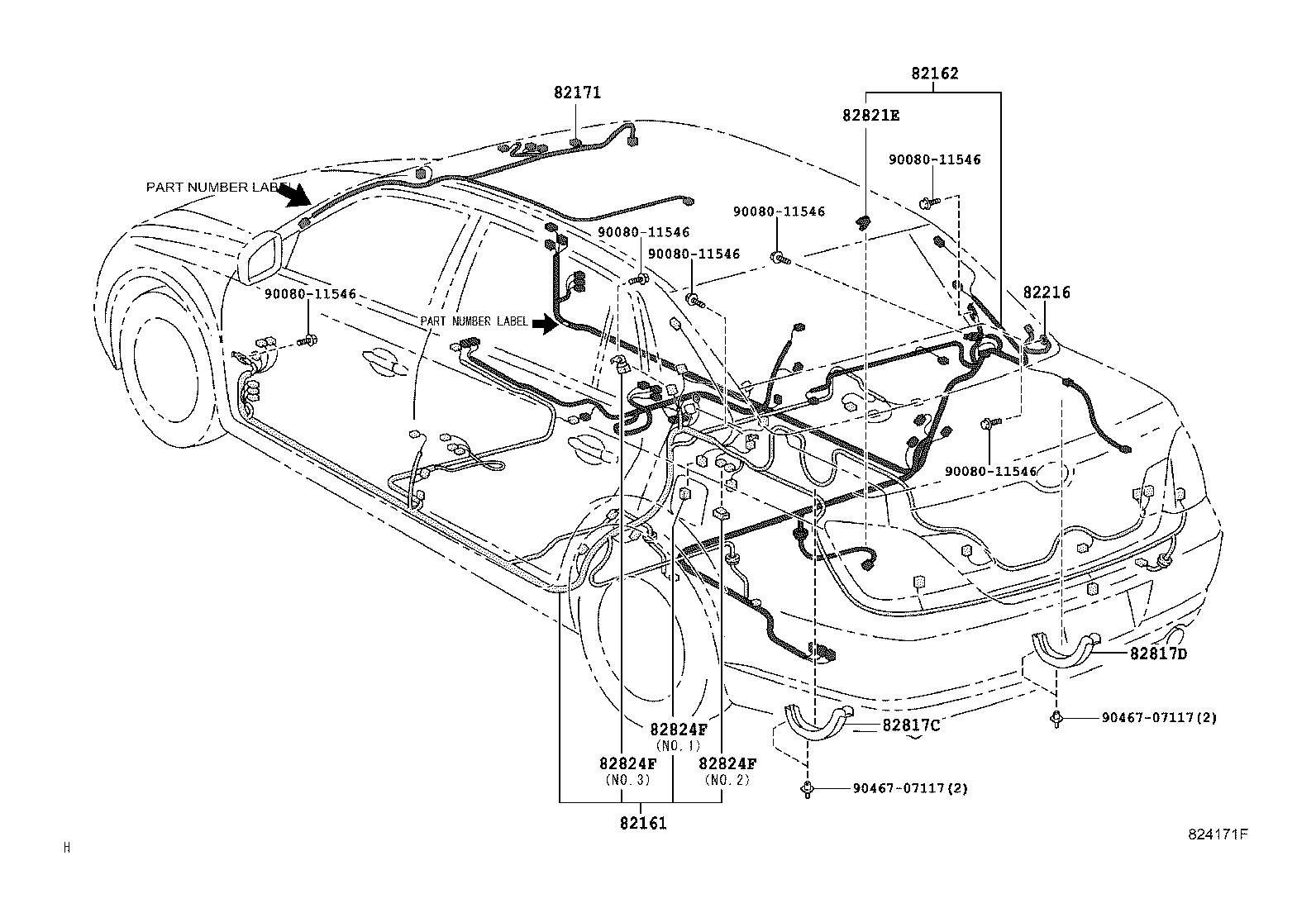

FLOOR & ROOF

Part #	Description	Period	Qty
82161 - WIRE, FLOOR
82161-AC170	GSX30..XL	01/2005 - 08/2006	1
82161-AC170	GSX30..XL PART NUMBER LABEL=82161-AC170	01/2005 - 08/2006	1
82161-07470	GSX30..XL	07/2007 - 08/2009	1
82161-07471	GSX30..XL	08/2009 - 03/2010	1
82161-07470	GSX30..XL PART NUMBER LABEL=82161-07470	07/2007 - 08/2009	1
82161-07471	GSX30..XL PART NUMBER LABEL=82161-07471	08/2009 - 03/2010	1
82162 - WIRE, FLOOR, NO.2
82162-07270	GSX30..XL	07/2007 - 08/2009	1
82162-07271	GSX30..XL PART NUMBER LABEL=82162-07271	08/2009 - 03/2010	1
82162-AC180	GSX30..XL	01/2005 - 07/2007	1
82162-07271	GSX30..XL	08/2009 - 03/2010	1
82162-AC180	GSX30..XL PART NUMBER LABEL=82162-AC180	01/2005 - 07/2007	1
82162-07270	GSX30..XL PART NUMBER LABEL=82162-07270	07/2007 - 08/2009	1
82171 - WIRE, ROOF, NO.1
82171-AC060	GSX30..XL SUN ROOF & MOON ROOF-MOON ROOF(TILT & SLIDE)	01/2005 - 07/2007	1
82171-07181	GSX30..XL MOON ROOF-WITH(TILT & SLIDE)	01/2010 - 03/2010	1
82171-AC051	GSX30..XL	01/2010 - 03/2010	1
82171-AC050	GSX30..XL	07/2007 - 01/2010	1
82171-07180	GSX30..XL MOON ROOF-WITH(TILT & SLIDE)	07/2007 - 01/2010	1
82171-07180	GSX30..XL PART NUMBER LABEL=82171-07180	07/2007 - 01/2010	1
82171-AC050	GSX30..XL	01/2005 - 07/2007	1
82171-AC060	GSX30..XL PART NUMBER LABEL=82171-AC060	01/2005 - 07/2007	1
82171-AC050	GSX30..XL PART NUMBER LABEL=82171-AC050	07/2007 - 01/2010	1
82171-AC051	GSX30..XL PART NUMBER LABEL=82171-AC051	01/2010 - 03/2010	1
82171-AC050	GSX30..XL PART NUMBER LABEL=82171-AC050	01/2005 - 07/2007	1
82171-07181	GSX30..XL PART NUMBER LABEL=82171-07181	01/2010 - 03/2010	1
82216 - WIRE, REAR WINDOW DEFOGGER
82216-AC020	GSX30	07/2007 - 03/2010	1
82216-AC020	GSX30	01/2005 - 07/2007	1
82817C - PROTECTOR, WIRING HARNESS, NO.4
82817-AC050	GSX30	07/2007 - 03/2010	1
82817-AC050	GSX30	01/2005 - 07/2007	1
82817D - PROTECTOR, WIRING HARNESS, NO.5
82817-AC100	GSX30	07/2007 - 03/2010	1
82817-AC100	GSX30	01/2005 - 07/2007	1
82821E - COVER, CONNECTOR
82821-30600	GSX30	07/2007 - 03/2010	2
82824F - CONNECTOR, WIRING HARNESS
82824-48070	GSX30 NO.3	07/2007 - 03/2010	2
82824-30180	GSX30 NO.2	07/2007 - 03/2010	1
82824-22080	GSX30 NO.1	07/2007 - 03/2010	1
82824F - CONNECTOR, WIRING HARNESS
82824-48070	GSX30 NO.3	07/2007 - 03/2010	2
82824-30180	GSX30 NO.2	07/2007 - 03/2010	1
82824-22080	GSX30 NO.1	07/2007 - 03/2010	1
82824F - CONNECTOR, WIRING HARNESS
82824-48070	GSX30 NO.3	07/2007 - 03/2010	2
82824-30180	GSX30 NO.2	07/2007 - 03/2010	1
82824-22080	GSX30 NO.1	07/2007 - 03/2010	1
Common parts
90080-11546
90467-07117

ILLUST NO. 6 OF 9(0501- )

Click highlighted areas on diagram

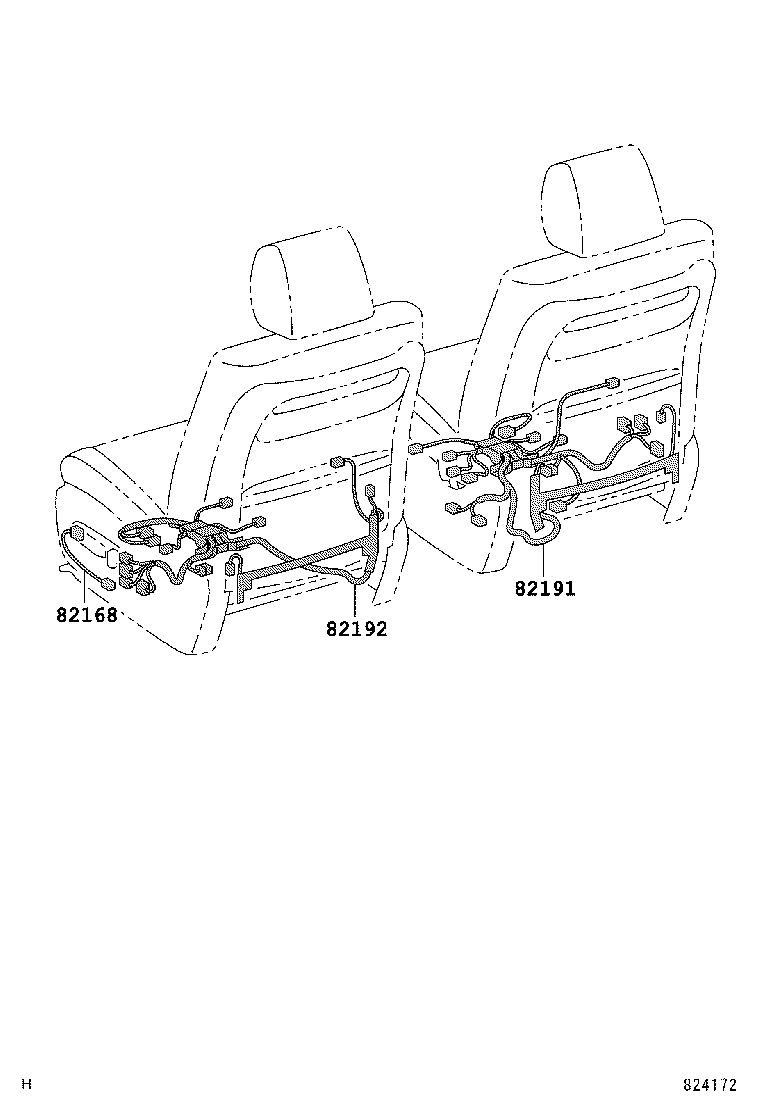

SEAT

Part #	Description	Period	Qty
82191 - WIRE, FRONT SEAT, RH
82191-AA040	GSX30..XL	01/2005 - 07/2007	1
82191-AA040	GSX30..XL	07/2007 - 03/2010	1
82192 - WIRE, FRONT SEAT, LH
82192-AC031	GSX30..XL	07/2007 - 03/2010	1
82192-AC030	GSX30..XL	01/2005 - 07/2007	1

ILLUST NO. 7 OF 9(0501- )

Click highlighted areas on diagram

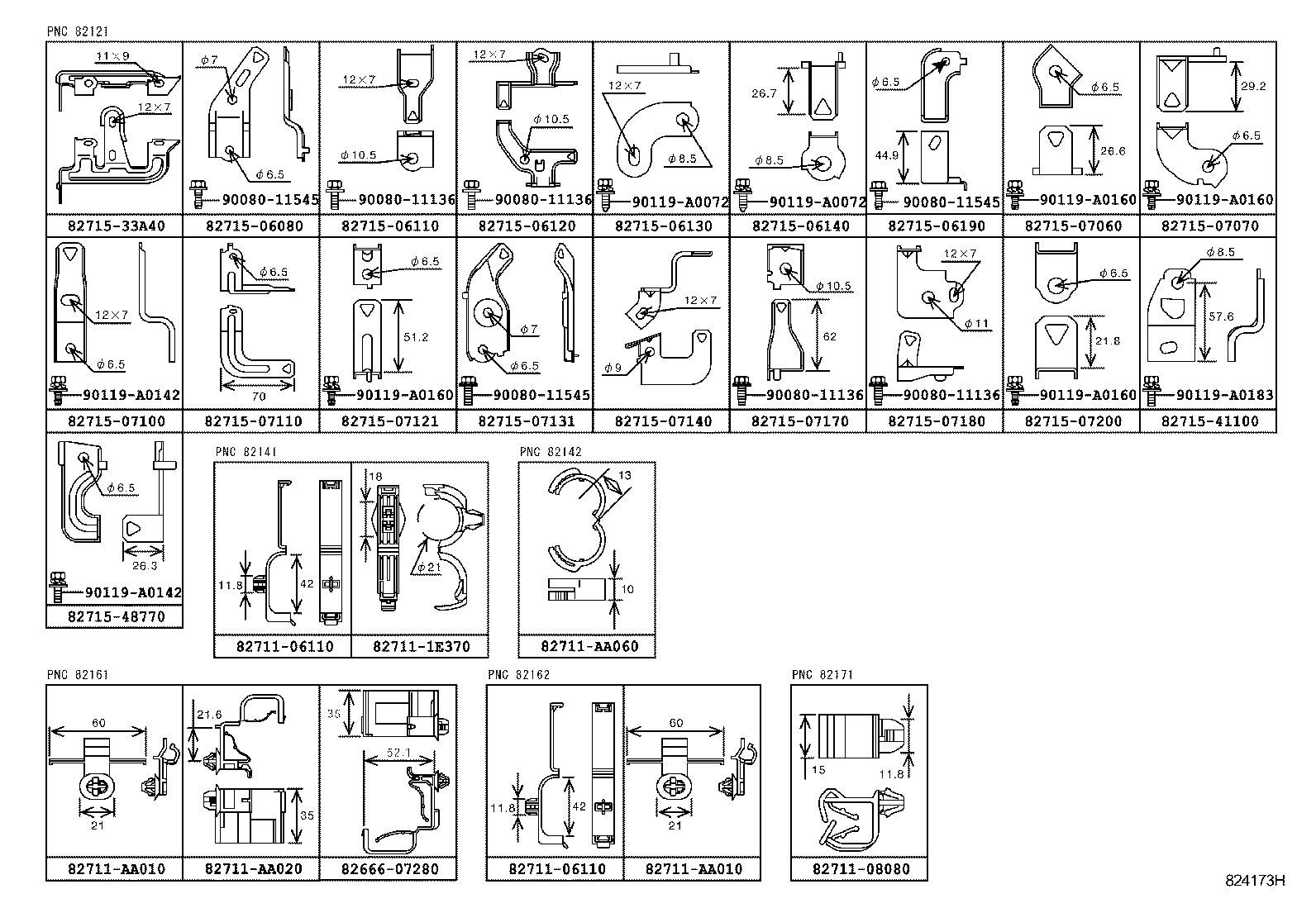

CLAMP & BRACKET

Part #	Description	Period	Qty	Price
Common parts
82666-07280
82711-06110
82711-08080
82711-1E370
82711-AA010
82711-AA020
82711-AA060
82715-06080
82715-06110
82715-06120
82715-06130
82715-06140
82715-06190
82715-07060
82715-07070
82715-07100
82715-07110
82715-07121
82715-07131
82715-07140
82715-07170
82715-07180
82715-07200
82715-33A40
82715-41100
82715-48770
90080-11136
90080-11545
90119-A0072
90119-A0142
90119-A0160
90119-A0183

ILLUST NO. 9 OF 9(0501- )

Click highlighted areas on diagram

CONNECTOR

Part #	Description	Period	Qty	Price
Common parts
82824-60460
90980-10619
90980-10794
90980-10795
90980-10860
90980-11003
90980-11020
90980-11028
90980-11156
90980-11159
90980-11292
90980-11349
90980-11660

ILLUST NO. 2 OF 9(0707- )

Click highlighted areas on diagram

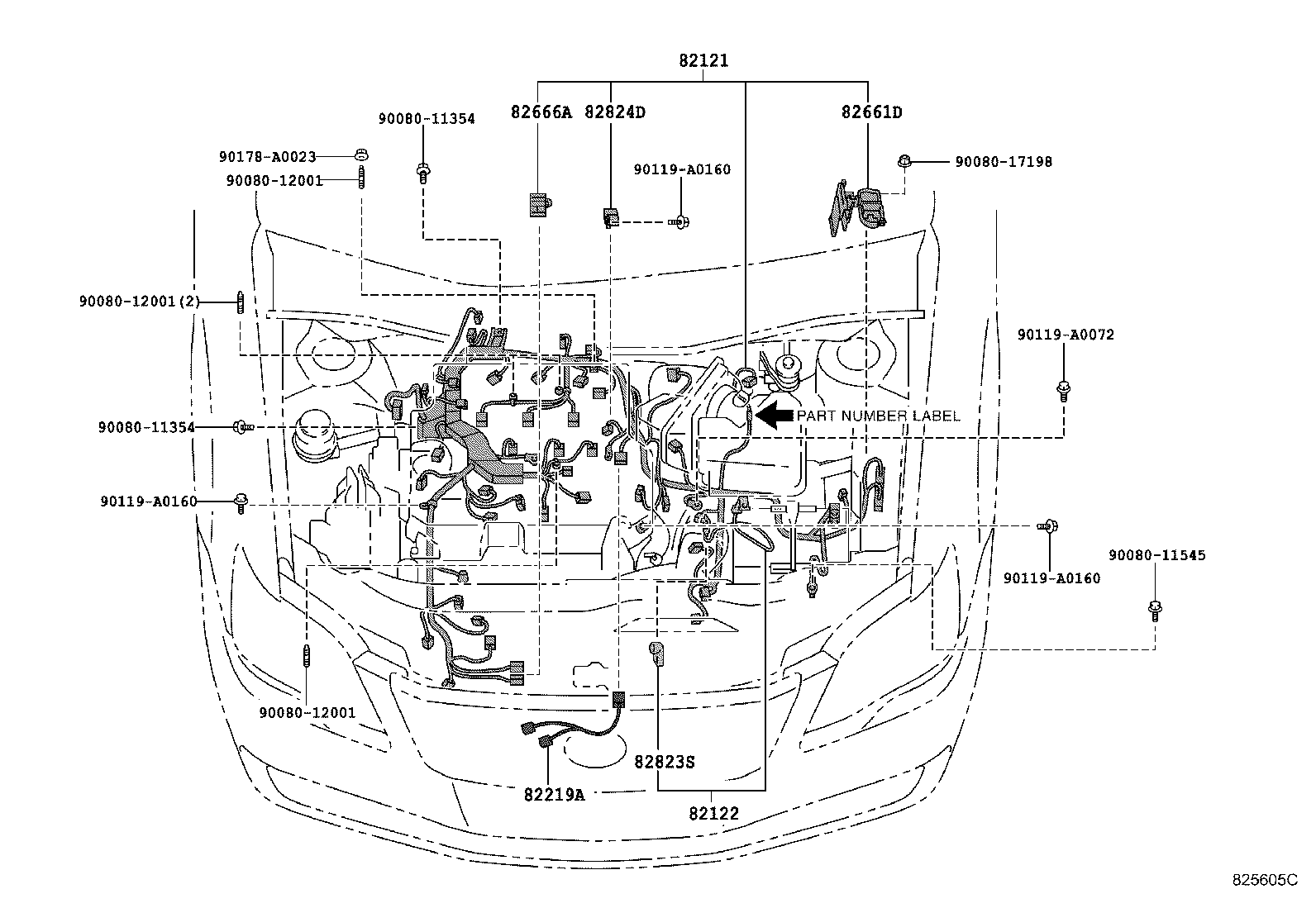

ENGINE

Part #	Description	Period	Qty
82121 - WIRE, ENGINE
82121-07090	GSX30..XL	01/2005 - 08/2005	1
82121-07200	GSX30..XL	07/2007 - 03/2010	1
82122 - WIRE, ENGINE, NO.2
82122-07030	GSX30	01/2005 - 07/2007	1
82122-06060	GSX30	07/2007 - 03/2010	1
82219A - WIRE, SENSOR
82219-06010	GSX30	07/2007 - 03/2010	1
82219-41010	GSX30	01/2005 - 01/2006	1
82661D - COVER, RELAY BLOCK, SIDE NO.1
82661-07010	GSX30	07/2007 - 03/2010	1
82661-07010	GSX30	01/2005 - 07/2007	1
82666A - HOLDER, CONNECTOR NO.2
82666-43040	GSX30	07/2007 - 03/2010	1
82666-43040	GSX30	01/2005 - 07/2007	1
82823S - CAP, STARTER TERMINAL
82823-12090	GSX30	07/2007 - 03/2010	1
82824D - CONNECTOR, WIRING HARNESS
82824-48020	GSX30	07/2007 - 03/2010	1
82824-50110	GSX30	01/2005 - 07/2007	1
Common parts
90080-11354
90080-11545
90080-12001
90080-17198
90119-A0072
90119-A0160
90178-A0023

ILLUST NO. 8 OF 9(0707-1003)

Click highlighted areas on diagram

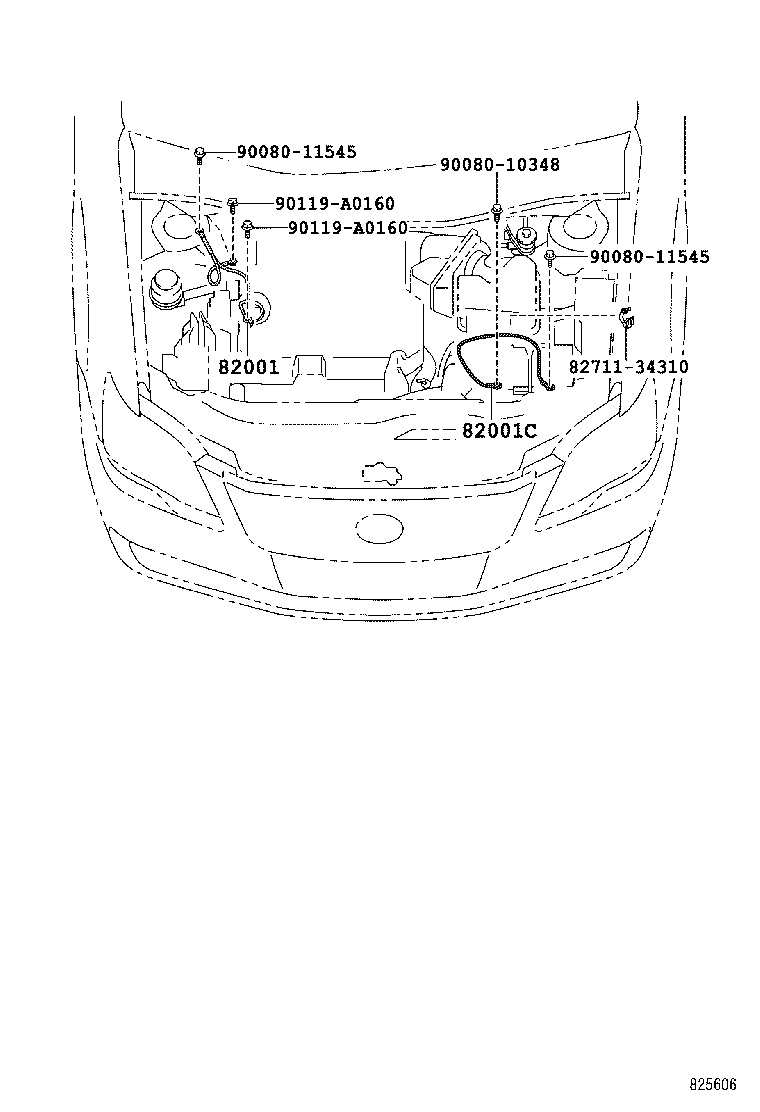

CABLE BOND

Part #	Description	Period	Qty
82001 - CABLE, BOND, NO.1
90980-A7002	GSX30	07/2007 - 03/2010	1
90980-07421	GSX30	01/2005 - 07/2007	1
82001C - CABLE, BOND, NO.2
90980-07422	GSX30	01/2005 - 07/2007	1
90980-A7003	GSX30	07/2007 - 03/2010	1
Common parts
82711-34310
90080-10348
90080-11545
90119-A0160

ILLUST NO. 1 OF 9(0501- )

Click highlighted areas on diagram

ENGINE ROOM

Part #	Description	Period	Qty
82111 - WIRE, ENGINE ROOM MAIN
82111-07690	GSX30..XL	07/2007 - 03/2010	1
82111-07470	GSX30..XL	01/2005 - 07/2007	1
82111-07690	GSX30..XL PART NUMBER LABEL=82111-07690	07/2007 - 03/2010	1
82111-07470	GSX30..XL PART NUMBER LABEL=82111-07470	01/2005 - 07/2007	1
82815A - COVER, WIRING HARNESS PROTECTOR
82815-07240	GSX30	07/2007 - 03/2010	1
82815B - COVER, WIRING HARNESS PROTECTOR
82815-07250	GSX30	07/2007 - 03/2010	1
82824 - CONNECTOR, WIRING HARNESS
82824-52080	GSX30 NO.2	01/2005 - 07/2007	1
82824-48020	GSX30 NO.1	01/2005 - 07/2007	4
82824-52080	GSX30 NO.2	07/2007 - 03/2010	1
82824-20110	GSX30 NO.3	07/2007 - 03/2010	1
82824-48020	GSX30 NO.1	07/2007 - 03/2010	4
82824 - CONNECTOR, WIRING HARNESS
82824-52080	GSX30 NO.2	01/2005 - 07/2007	1
82824-48020	GSX30 NO.1	01/2005 - 07/2007	4
82824-52080	GSX30 NO.2	07/2007 - 03/2010	1
82824-20110	GSX30 NO.3	07/2007 - 03/2010	1
82824-48020	GSX30 NO.1	07/2007 - 03/2010	4
82824 - CONNECTOR, WIRING HARNESS
82824-52080	GSX30 NO.2	01/2005 - 07/2007	1
82824-48020	GSX30 NO.1	01/2005 - 07/2007	4
82824-52080	GSX30 NO.2	07/2007 - 03/2010	1
82824-20110	GSX30 NO.3	07/2007 - 03/2010	1
82824-48020	GSX30 NO.1	07/2007 - 03/2010	4
82824 - CONNECTOR, WIRING HARNESS
82824-52080	GSX30 NO.2	01/2005 - 07/2007	1
82824-48020	GSX30 NO.1	01/2005 - 07/2007	4
82824-52080	GSX30 NO.2	07/2007 - 03/2010	1
82824-20110	GSX30 NO.3	07/2007 - 03/2010	1
82824-48020	GSX30 NO.1	07/2007 - 03/2010	4
Common parts
90080-11391
90080-11545
90080-11546
90080-17244
Linked diagrams
8401

GSX30L-AETNKV (2007)

ILLUST NO. 3 OF 9(0501-1003)

ILLUST NO. 4 OF 9(0501- )

ILLUST NO. 5 OF 9(0501- )

ILLUST NO. 6 OF 9(0501- )

ILLUST NO. 7 OF 9(0501- )

ILLUST NO. 9 OF 9(0501- )

ILLUST NO. 2 OF 9(0707- )

ILLUST NO. 8 OF 9(0707-1003)

ILLUST NO. 1 OF 9(0501- )
