GSX30L-AETNKV (2007)
Toyota Avalon
Production
Jul 2007
-
Mar 2010
Engine
2GRFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0501-1003)

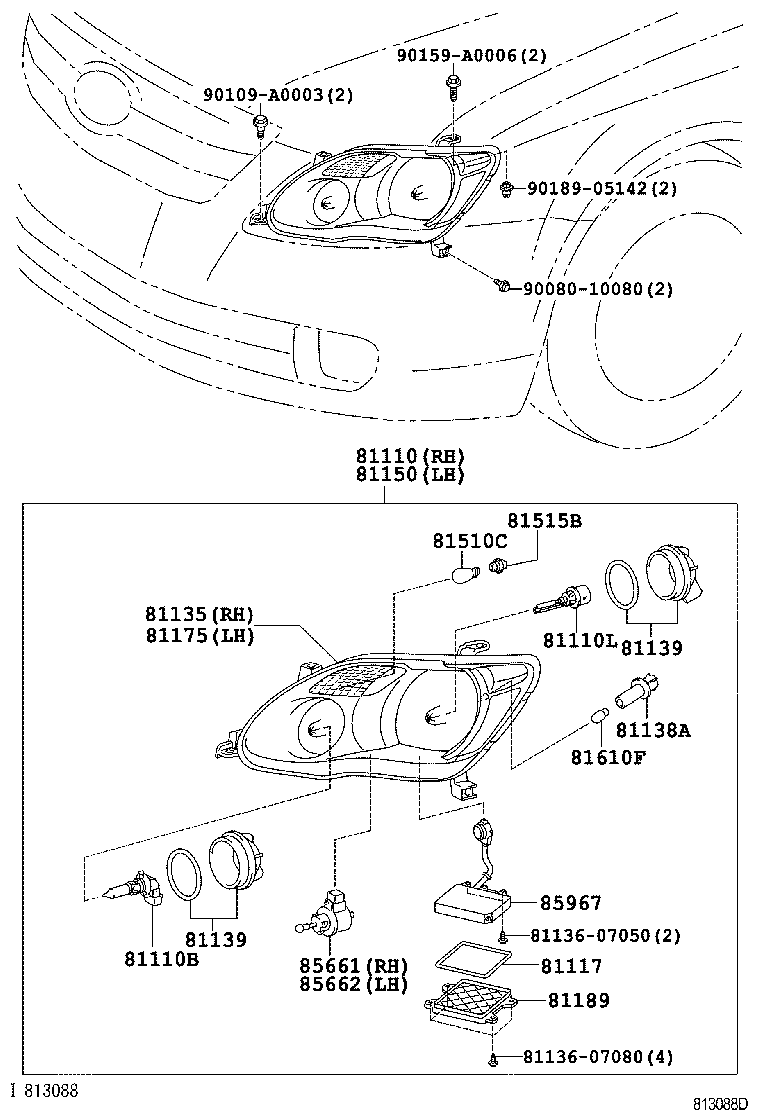

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-07080 |
GSX30 |
1 | ||
| 81110-07081 |
GSX30 |
1 | ||
| 81110-AC060 |
GSX30 |
1 | ||
| 81110-07082 |
GSX30 |
1 | ||
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-13066 |
GSX30 12V 65W,HALOGEN |
2 | ||
| 90080-81041 |
GSX30 12V 65W |
2 | ||
| 81110L - BULB, DISCHARGE HEADLAMP | ||||
| 90981-20012 |
GSX30 45V 35W |
2 | ||
| 90981-20002 |
GSX30 85V 35W |
2 | ||
| 81117 - PACKING, HEADLAMP HOUSING | ||||
| 90075-68007 |
GSX30 |
2 | ||
| 81117-07050 |
GSX30 |
2 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81145-07082 |
GSX30 |
1 | ||
| 81145-07080 |
GSX30 |
1 | ||
| 81145-07081 |
GSX30 |
1 | ||
| 81130-AC060 |
GSX30 |
1 | ||
| 81138A - SOCKET & WIRE, HEADLAMP | ||||
| 81138-22680 |
GSX30 |
2 | ||
| 81138-22680 |
GSX30 |
2 | ||
| 81139 - COVER, HEADLAMP SOCKET | ||||
| 81139-AE020 |
GSX30 |
4 | ||
| 81139-AE020 |
GSX30 |
4 | ||
| 81139 - COVER, HEADLAMP SOCKET | ||||
| 81139-AE020 |
GSX30 |
4 | ||
| 81139-AE020 |
GSX30 |
4 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-07081 |
GSX30 |
1 | ||
| 81150-07080 |
GSX30 |
1 | ||
| 81150-AC060 |
GSX30 |
1 | ||
| 81150-07082 |
GSX30 |
1 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81185-07080 |
GSX30 |
1 | ||
| 81185-07081 |
GSX30 |
1 | ||
| 81170-AC060 |
GSX30 |
1 | ||
| 81185-07082 |
GSX30 |
1 | ||
| 81189 - COVER, HEADLAMP | ||||
| 81189-07050 |
GSX30 |
2 | ||
| 81510C - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 90981-AF002 |
GSX30 12V 28/8W |
2 | ||
| 90981-AF002 |
GSX30 12V 28/8W |
2 | ||
| 81515B - SOCKET, FRONT TURN SIGNAL LAMP | ||||
| 81515-AE010 |
GSX30 |
2 | ||
| 81515-AE010 |
GSX30 |
2 | ||
| 81610F - BULB(FOR CLEARANCE LAMP) | ||||
| 99132-12050 |
GSX30 12V 5W |
2 | ||
| 99132-12050 |
GSX30 12V 5W |
2 | ||
| 85661 - MOTOR, HEADLAMP LEVELING, RH | ||||
| 85661-48030 |
GSX30 |
1 | ||
| 85662 - MOTOR, HEADLAMP LEVELING, LH | ||||
| 85661-48030 |
GSX30 |
1 | ||
| 85967 - COMPUTER, LIGHT CONTROL | ||||
| 85967-07010 |
GSX30 |
2 | ||
| 85967-06020 |
GSX30 |
2 | ||
| Common parts | ||||
| 81136-07050 | ||||
| 81136-07080 | ||||
| 90080-10080 | ||||
| 90109-A0003 | ||||
| 90159-A0006 | ||||
| 90189-05142 | ||||
