GSX30L-AETNKV (2007)
Toyota Avalon
Production
Jul 2007
-
Mar 2010
Engine
2GRFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0501-1003)XL

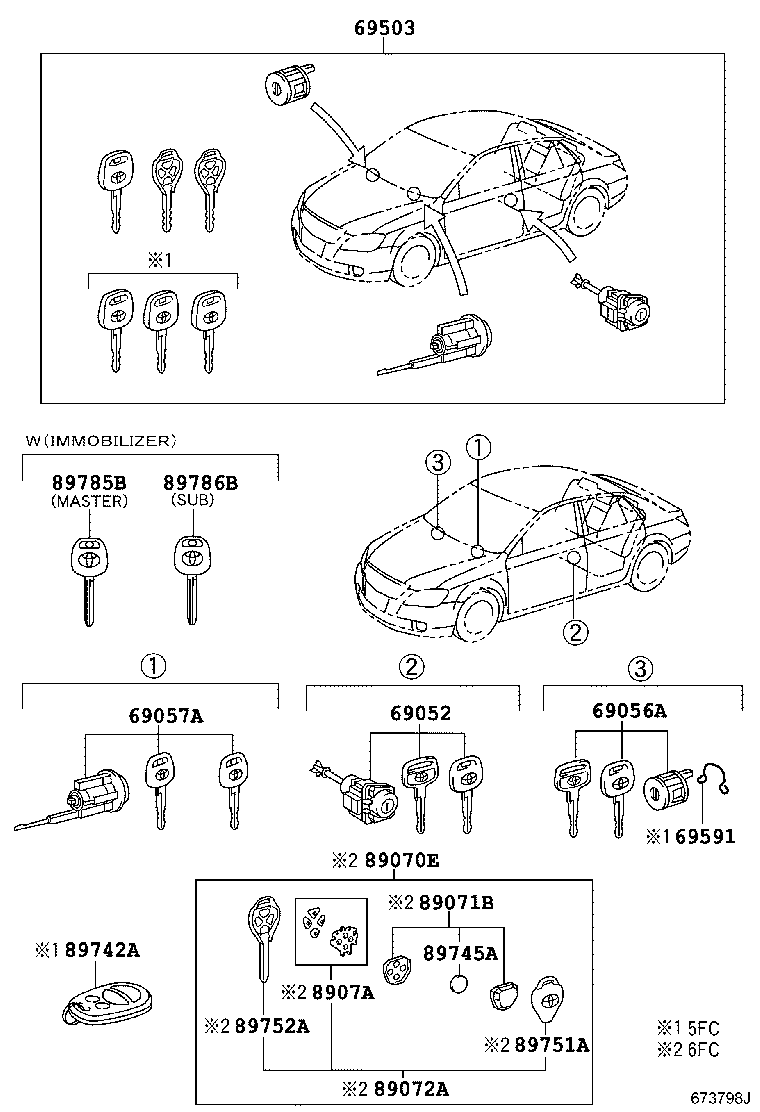

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69052 - CYLINDER & KEY SET, DOOR LOCK, LH | ||||
| 69052-07030 |
GSX30..XL |
1 | ||
| 69052-AC010 |
GSX30..XL |
1 | ||
| 69056A - CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK | ||||
| 69056-07030 |
GSX30..XL |
1 | ||
| 69056-AE010 |
GSX30..XL |
1 | ||
| 69057A - CYLINDER & KEY SET, IGNITION SWITCH LOCK | ||||
| 69057-AA010 |
GSX30..XL |
1 | ||
| 69057-07040 |
GSX30..XL |
1 | ||
| 69503 - CYLINDER SET, LOCK | ||||
| 69005-07010 |
GSX30..XL |
1 | ||
| 69005-AC010 |
GSX30..XL |
1 | ||
| 69591 - RING, REAR SEAT ARMREST DOOR KEY CYLINDER | ||||
| 69591-41010 |
GSX30 |
1 | ||
| 89070E - TRANSMITTER ASSY, DOOR CONTROL | ||||
| 89070-07050 |
GSX30..XL |
1 | ||
| 89071B - MODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL | ||||
| 89071-07021 |
GSX30..XL |
2 | ||
| 89071-07020 |
GSX30..XL |
2 | ||
| 89072A - HOUSING SET, DOOR CONTROL TRANSMITTER | ||||
| 89072-02100 |
GSX30..XL |
1 | ||
| 8907A - SWITCH SET, TRANSMITTER | ||||
| 8907A-33010 |
GSX30..XL |
2 | ||
| 89742A - TRANSMITTER, DOOR CONTROL | ||||
| 89742-AC080 |
GSX30..XL |
2 | ||
| 89745A - BATTERY, TRANSMITTER | ||||
| 89745-02040 |
GSX30..XL |
1 | ||
| 89751A - COVER, TRANSMITTER HOUSING | ||||
| 89751-28070 |
GSX30..XL |
2 | ||
| 89752A - CASE, TRANSMITTER HOUSING | ||||
| 89752-02070 |
GSX30..XL |
1 | ||
| 89785B - TRANSMITTER, TRANSPONDER KEY MASTER | ||||
| 89785-08020 |
GSX30..XL |
1 | ||
| 89786B - TRANSMITTER, TRANSPONDER KEY SUB | ||||
| 89786-08020 |
GSX30..XL BLANK KEY |
1 | ||
| 89786-08020 |
GSX30..XL BLANK KEY |
1 | ||
