GSX30L-AETNKV (2007)
Toyota Avalon
ILLUST NO. 1 OF 2(0501-1003)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55308C - BRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55308-07010 |
GSX30 |
1 | ||
| 55308-07010 |
GSX30 |
1 | ||
| 55328 - PIN, INSTRUMENT PANEL, NO.1 | ||||
| 55328-48040 |
GSX30 |
2 | ||
| 55328-48040 |
GSX30 |
2 | ||
| 55330B - REINFORCEMENT ASSY, INSTRUMENT PANEL | ||||
| 55330-07030 |
GSX30 |
1 | ||
| 55330-07031 |
GSX30 |
1 | ||
| 55330-07030 |
GSX30 |
1 | ||
| 55394B - BOLT, INSTRUMENT PANEL | ||||
| 55394-30021 |
GSX30 |
3 | ||
| 55394-30020 |
GSX30 |
3 | ||
| 55394C - BOLT, INSTRUMENT PANEL | ||||
| 55394-51010 |
GSX30 |
2 | ||
| 55394-33041 |
GSX30 |
2 | ||
| 55401E - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY | ||||
| 55401-07060B3 |
GSX30..XL GRAY,TRIM1# |
1 | ||
| 55401-07060E1 |
GSX30 SANDAL WOOD,TRIM0# |
1 | ||
| 55401-07060E1 |
GSX30 SANDAL WOOD,TRIM0# |
1 | ||
| 55401-07060B3 |
GSX30..XL GRAY,TRIM1# |
1 | ||
| 73900 - AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 73900-07010B1 |
GSX30..XL GRAY,TRIM16 |
1 | ||
| 73900-07010A0 |
GSX30 IVORY,TRIM0# |
1 | ||
| 73900-07010B0 |
GSX30..XL LT.GRAY,TRIM17 |
1 | ||
| 73900-07011B1 |
GSX30..XL GRAY,TRIM1# |
1 | ||
| 73900-07011A0 |
GSX30 IVORY,TRIM0# |
1 | ||
| 73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR | ||||
| 73960-07060 |
GSX30 |
1 | ||
| 73960-07060 |
GSX30 |
1 | ||
| 82140 - WIRE ASSY, INSTRUMENT PANEL | ||||
| 82140-30020 |
GSX30 |
1 | ||
| 82140-30020 |
GSX30 |
1 | ||
| Common parts | ||||
| 90080-16097 | ||||
| 90080-18013 | ||||
| 90080-18071 | ||||
| 90084-46027 | ||||
| 90119-06951 | ||||
| 90119-08C29 | ||||
| 90119-A0011 | ||||
| 90119-A0105 | ||||
| 90159-A0021 | ||||
| 90167-A0005 | ||||
| 90179-06206 | ||||
| 90183-A0002 | ||||
| 90901-19031 | ||||
| 91643-H0822 | ||||
| 93568-55014 | ||||

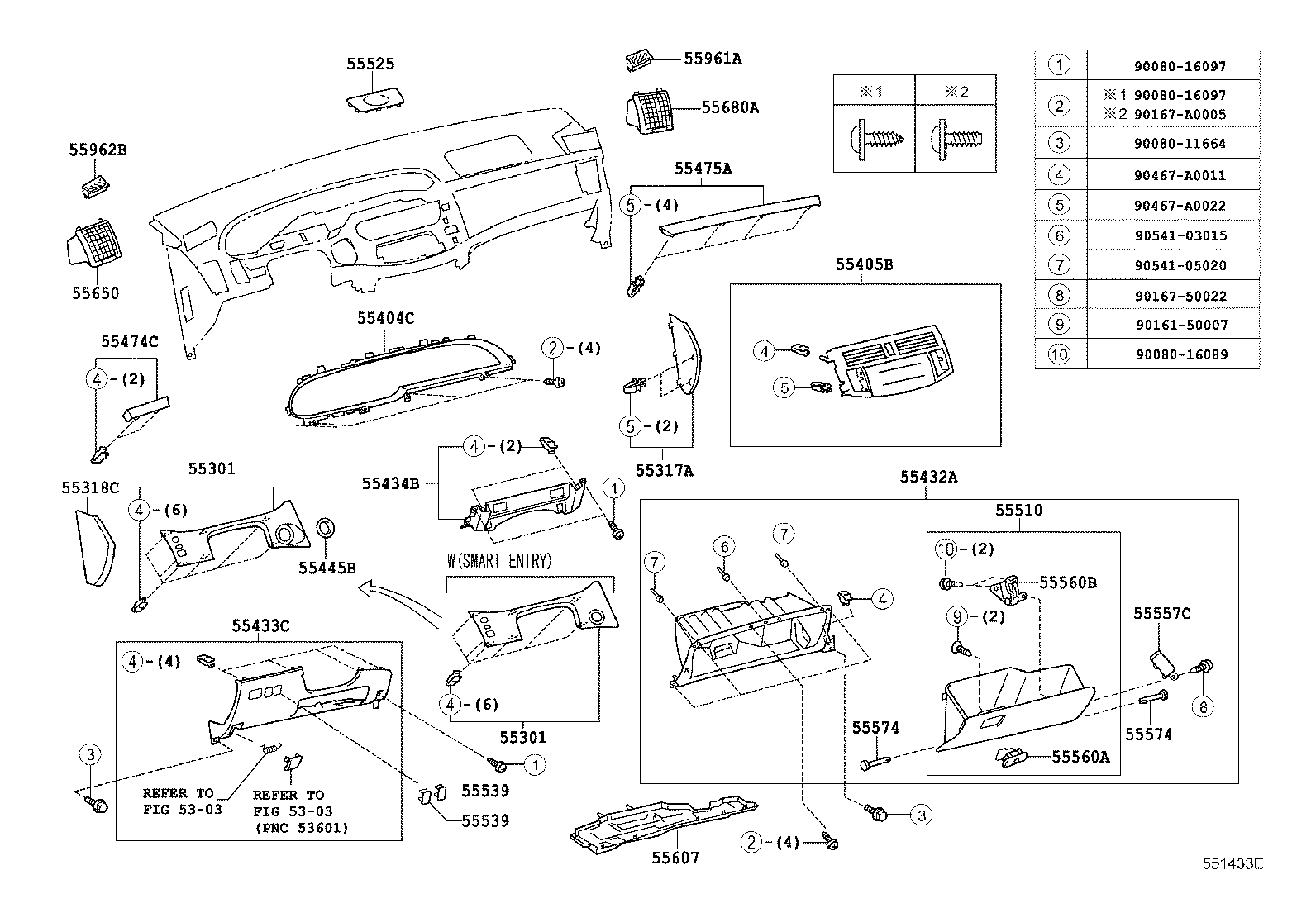

ILLUST NO. 2 OF 2(0501-1003)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55301 - PANEL SUB-ASSY, INSTRUMENT | ||||
| 55301-07020B1 |
GSX30..XL GRAY,TRIM1# |
1 | ||
| 55301-07020A0 |
GSX30..XL IVORY,TRIM0# |
1 | ||
| 55301-07020A0 |
GSX30..XL IVORY,TRIM0# |
1 | ||
| 55301-07020B0 |
GSX30..XL LT.GRAY,TRIM17 |
1 | ||
| 55301-07020B1 |
GSX30..XL GRAY,TRIM16 |
1 | ||
| 55301 - PANEL SUB-ASSY, INSTRUMENT | ||||
| 55301-07020B1 |
GSX30..XL GRAY,TRIM1# |
1 | ||
| 55301-07020A0 |
GSX30..XL IVORY,TRIM0# |
1 | ||
| 55301-07020A0 |
GSX30..XL IVORY,TRIM0# |
1 | ||
| 55301-07020B0 |
GSX30..XL LT.GRAY,TRIM17 |
1 | ||
| 55301-07020B1 |
GSX30..XL GRAY,TRIM16 |
1 | ||
| 55317A - PANEL, INSTRUMENT SIDE, RH | ||||
| 55317-07010B0 |
GSX30..XL LT.GRAY,TRIM17 |
1 | ||
| 55317-07010B1 |
GSX30..XL GRAY,TRIM16 |
1 | ||
| 55317-07010A0 |
GSX30 IVORY,TRIM0# |
1 | ||
| 55317-07010B1 |
GSX30..XL GRAY,TRIM1# |
1 | ||
| 55317-07010A0 |
GSX30 IVORY,TRIM0# |
1 | ||
| 55318C - PANEL, INSTRUMENT SIDE, LH | ||||
| 55318-07010A0 |
GSX30 IVORY,TRIM0# |
1 | ||
| 55318-07010B1 |
GSX30..XL GRAY,TRIM16 |
1 | ||
| 55318-07010A0 |
GSX30 IVORY,TRIM0# |
1 | ||
| 55318-07010B0 |
GSX30..XL LT.GRAY,TRIM17 |
1 | ||
| 55318-07010B1 |
GSX30..XL GRAY,TRIM1# |
1 | ||
| 55404C - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2 | ||||
| 55404-07020 |
GSX30 |
1 | ||
| 55404-07020 |
GSX30 |
1 | ||
| 55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-07010 |
GSX30 |
1 | ||
| 55405-07011 |
GSX30 |
1 | ||
| 55405-07012 |
GSX30 |
1 | ||
| 55432A - PANEL, INSTRUMENT PANEL FINISH, LOWER RH | ||||
| 55303-07010A0 |
GSX30 IVORY,TRIM0# |
1 | ||
| 55303-07010B1 |
GSX30..XL GRAY,TRIM1# |
1 | ||
| 55303-07010B0 |
GSX30..XL LT.GRAY,TRIM17 |
1 | ||
| 55303-07010A0 |
GSX30 IVORY,TRIM0# |
1 | ||
| 55303-07010B1 |
GSX30..XL GRAY,TRIM16 |
1 | ||
| 55433C - PANEL, INSTRUMENT PANEL FINISH, LOWER LH | ||||
| 55302-07020B0 |
GSX30..XL LT.GRAY,TRIM17 |
1 | ||
| 55302-07020B1 |
GSX30..XL GRAY,TRIM16 |
1 | ||
| 55302-07020A0 |
GSX30 IVORY,TRIM0# |
1 | ||
| 55302-07020A0 |
GSX30 IVORY,TRIM0# |
1 | ||
| 55302-07030B2 |
GSX30..XL GRAY,TRIM1# |
1 | ||
| 55302-07020B1 |
GSX30..XL GRAY,TRIM1# |
1 | ||
| 55302-07030A0 |
GSX30 IVORY,TRIM0# |
1 | ||
| 55434B - PANEL, INSTRUMENT PANEL FINISH, LOWER CENTER | ||||
| 55434-07010A0 |
GSX30 IVORY,TRIM0# |
1 | ||
| 55434-07010B1 |
GSX30..XL GRAY,TRIM16 |
1 | ||
| 55434-07010B0 |
GSX30..XL LT.GRAY,TRIM17 |
1 | ||
| 55434-07010A0 |
GSX30 IVORY,TRIM0# |
1 | ||
| 55434-07010B1 |
GSX30..XL GRAY,TRIM1# |
1 | ||
| 55445B - PLATE, INSTRUMENT PANEL FINISH | ||||
| 55445-51020B6 |
GSX30..XL GRAY,TRIM16 |
1 | ||
| 55445-51020B0 |
GSX30..XL LT.GRAY,TRIM17 |
1 | ||
| 55445-51020A0 |
GSX30..XL IVORY,TRIM0# |
1 | ||
| 55445-51020B6 |
GSX30..XL GRAY,TRIM1# |
1 | ||
| 55445-51020A0 |
GSX30..XL IVORY,TRIM0# |
1 | ||
| 55474C - GARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.1 | ||||
| 55474-07011 |
GSX30..XL |
1 | ||
| 55474-07010B0 |
GSX30..XL SILVER,TRIM0#,1# |
1 | ||
| 55475A - GARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.2 | ||||
| 55475-07031 |
GSX30..XL |
1 | ||
| 55475-07030B0 |
GSX30..XL SILVER,TRIM0#,1# |
1 | ||
| 55510 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55501-07010A0 |
GSX30 IVORY,TRIM0# |
1 | ||
| 55501-07010B1 |
GSX30..XL GRAY,TRIM16 |
1 | ||
| 55501-07010B1 |
GSX30..XL GRAY,TRIM1# |
1 | ||
| 55501-07010B0 |
GSX30..XL LT.GRAY,TRIM17 |
1 | ||
| 55501-07010A0 |
GSX30 IVORY,TRIM0# |
1 | ||
| 55525 - COVER, SPEAKER HOLE, NO.1 | ||||
| 55525-07010B0 |
GSX30..XL DK.GRAY,TRIM16,17 |
1 | ||
| 55525-07010E0 |
GSX30 SANDAL WOOD,TRIM0# |
1 | ||
| 55525-07010E0 |
GSX30 SANDAL WOOD,TRIM0# |
1 | ||
| 55525-07010B0 |
GSX30 DK.GRAY,TRIM1# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-04040B4 |
GSX30..XL ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM & *GBS),LT.GRAY,TRIM17 |
1 | ||
| 55539-04040B4 |
GSX30..XL LT.GRAY,TRIM17 |
1 | ||
| 55539-04040A0 |
GSX30..XL ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM & *GBS),IVORY,TRIM0# |
1 | ||
| 55539-04040A0 |
GSX30 IVORY,TRIM0# |
1 | ||
| 55539-04040B5 |
GSX30..XL GRAY,TRIM16 |
1 | ||
| 55539-04040B5 |
GSX30..XL ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM & *GBS),GRAY,TRIM16 |
1 | ||
| 55539-04040A0 |
GSX30 IVORY,TRIM0# |
1 | ||
| 55539-04040B5 |
GSX30..XL GRAY,TRIM1# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-04040B4 |
GSX30..XL ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM & *GBS),LT.GRAY,TRIM17 |
1 | ||
| 55539-04040B4 |
GSX30..XL LT.GRAY,TRIM17 |
1 | ||
| 55539-04040A0 |
GSX30..XL ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM & *GBS),IVORY,TRIM0# |
1 | ||
| 55539-04040A0 |
GSX30 IVORY,TRIM0# |
1 | ||
| 55539-04040B5 |
GSX30..XL GRAY,TRIM16 |
1 | ||
| 55539-04040B5 |
GSX30..XL ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM & *GBS),GRAY,TRIM16 |
1 | ||
| 55539-04040A0 |
GSX30 IVORY,TRIM0# |
1 | ||
| 55539-04040B5 |
GSX30..XL GRAY,TRIM1# |
1 | ||
| 55557C - DAMPER, GLOVE COMPARTMENT DOOR | ||||
| 55557-33030 |
GSX30 |
1 | ||
| 55557-33030 |
GSX30 |
1 | ||
| 55560A - LOCK ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55506-60010A0 |
GSX30 IVORY,TRIM0# |
1 | ||
| 55506-60010A0 |
GSX30 IVORY,TRIM0# |
1 | ||
| 55506-60010B2 |
GSX30..XL GRAY,TRIM1# |
1 | ||
| 55506-60010B1 |
GSX30..XL LT.GRAY,TRIM17 |
1 | ||
| 55506-60010B2 |
GSX30..XL GRAY,TRIM16 |
1 | ||
| 55560B - LOCK ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55560-AC010 |
GSX30 |
1 | ||
| 55560-AC010 |
GSX30 |
1 | ||
| 55574 - SHAFT, GLOVE COMPARTMENT DOOR HINGE | ||||
| 55574-10010 |
GSX30 |
2 | ||
| 55574-10010 |
GSX30 |
2 | ||
| 55574 - SHAFT, GLOVE COMPARTMENT DOOR HINGE | ||||
| 55574-10010 |
GSX30 |
2 | ||
| 55574-10010 |
GSX30 |
2 | ||
| 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-07010 |
GSX30 |
1 | ||
| 55607-07010 |
GSX30 |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-07020A0 |
GSX30 IVORY,TRIM0# |
1 | ||
| 55650-07021A0 |
GSX30 IVORY,TRIM0# |
1 | ||
| 55650-07020B0 |
GSX30..XL LT.GRAY,TRIM17 |
1 | ||
| 55650-07021B1 |
GSX30..XL GRAY,TRIM1# |
1 | ||
| 55650-07020B1 |
GSX30..XL GRAY,TRIM16 |
1 | ||
| 55680A - REGISTER ASSY, INSTRUMENT PANEL, NO.4 | ||||
| 55680-07011A0 |
GSX30 IVORY,TRIM0# |
1 | ||
| 55680-07010A0 |
GSX30 IVORY,TRIM0# |
1 | ||
| 55680-07010B1 |
GSX30..XL GRAY,TRIM16 |
1 | ||
| 55680-07010B0 |
GSX30..XL LT.GRAY,TRIM17 |
1 | ||
| 55680-07011B1 |
GSX30..XL GRAY,TRIM1# |
1 | ||
| 55961A - NOZZLE, SIDE DEFROSTER, RH | ||||
| 55962-07010E0 |
GSX30 SANDAL WOOD,TRIM0# |
1 | ||
| 55962-07010B0 |
GSX30..XL DK.GRAY,TRIM16,17 |
1 | ||
| 55962-07010B0 |
GSX30 DK.GRAY,TRIM1# |
1 | ||
| 55962-07010E0 |
GSX30 SANDAL WOOD,TRIM0# |
1 | ||
| 55962B - NOZZLE, SIDE DEFROSTER, LH | ||||
| 55961-07010B0 |
GSX30..XL DK.GRAY,TRIM16,17 |
1 | ||
| 55961-07010E0 |
GSX30 SANDAL WOOD,TRIM0# |
1 | ||
| 55961-07010B0 |
GSX30 DK.GRAY,TRIM1# |
1 | ||
| 55961-07010E0 |
GSX30 SANDAL WOOD,TRIM0# |
1 | ||
| Common parts | ||||
| 90080-11664 | ||||
| 90080-16089 | ||||
| 90080-16097 | ||||
| 90161-50007 | ||||
| 90167-50022 | ||||
| 90167-A0005 | ||||
| 90467-A0011 | ||||
| 90467-A0022 | ||||
| 90541-03015 | ||||
| 90541-05020 | ||||
| Linked diagrams | ||||
| 5303 | ||||
