GSX30L-AETNKV (2007)
Toyota Avalon
Production
Jul 2007
-
Mar 2010
Engine
2GRFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

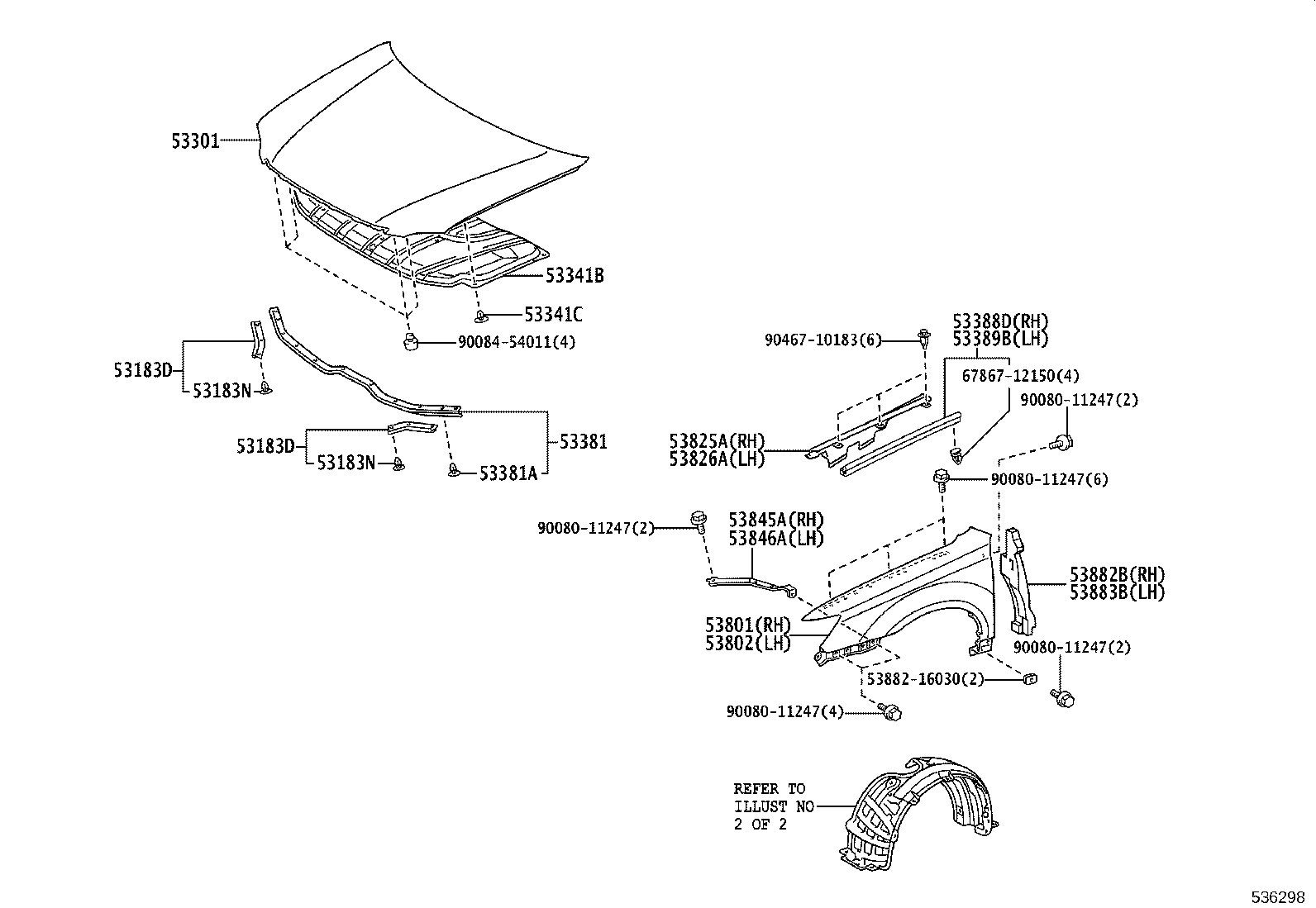

ILLUST NO. 1 OF 2(0501- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53183D - SEAL, HEADLAMP COVER TO HOOD | ||||
| 53183-AC030 |
GSX30 |
2 | ||
| 53183-AC030 |
GSX30 |
2 | ||
| 53183D - SEAL, HEADLAMP COVER TO HOOD | ||||
| 53183-AC030 |
GSX30 |
2 | ||
| 53183-AC030 |
GSX30 |
2 | ||
| 53183N - CLIP(FOR HEADLAMP COVER SEAL) | ||||
| 90080-46010 |
GSX30 |
6 | ||
| 90080-46010 |
GSX30 |
6 | ||
| 53183N - CLIP(FOR HEADLAMP COVER SEAL) | ||||
| 90080-46010 |
GSX30 |
6 | ||
| 90080-46010 |
GSX30 |
6 | ||
| 53301 - HOOD SUB-ASSY | ||||
| 53301-AC040 |
GSX30 |
1 | ||
| 53301-AC040 |
GSX30 |
1 | ||
| 53341B - INSULATOR, HOOD | ||||
| 53341-AC030 |
GSX30 |
1 | ||
| 53341-AC030 |
GSX30 |
1 | ||
| 53341C - CLIP(FOR HOOD INSULATOR) | ||||
| 90467-A0003 |
GSX30 |
11 | ||
| 90467-A0003 |
GSX30 |
11 | ||
| 53381 - SEAL, HOOD TO RADIATOR SUPPORT | ||||
| 53381-AC030 |
GSX30 |
1 | ||
| 53381-AC030 |
GSX30 |
1 | ||
| 53381A - CLIP(FOR HOOD TO RADIATOR SUPPORT SEAL) | ||||
| 90080-46010 |
GSX30 |
10 | ||
| 90080-46010 |
GSX30 |
10 | ||
| 53388D - SEAL, HOOD TO FRONT FENDER, RH | ||||
| 53388-AC010 |
GSX30 |
1 | ||
| 53388-AC010 |
GSX30 |
1 | ||
| 53389B - SEAL, HOOD TO FRONT FENDER, LH | ||||
| 53389-AC010 |
GSX30 |
1 | ||
| 53389-AC010 |
GSX30 |
1 | ||
| 53801 - FENDER SUB-ASSY, FRONT RH | ||||
| 53811-AC050 |
GSX30 |
1 | ||
| 53811-AC050 |
GSX30 |
1 | ||
| 53802 - FENDER SUB-ASSY, FRONT LH | ||||
| 53812-AC050 |
GSX30 |
1 | ||
| 53812-AC050 |
GSX30 |
1 | ||
| 53825A - PROTECTOR, FRONT FENDER, UPPER RH | ||||
| 53825-07010 |
GSX30 |
1 | ||
| 53825-07010 |
GSX30 |
1 | ||
| 53826A - PROTECTOR, FRONT FENDER, UPPER LH | ||||
| 53826-07010 |
GSX30 |
1 | ||
| 53826-07010 |
GSX30 |
1 | ||
| 53845A - BRACE, FRONT WHEEL OPENING APRON, RH | ||||
| 53845-AC020 |
GSX30 |
1 | ||
| 53845-AC020 |
GSX30 |
1 | ||
| 53846A - BRACE, FRONT WHEEL OPENING APRON, LH | ||||
| 53846-AC020 |
GSX30 |
1 | ||
| 53846-AC020 |
GSX30 |
1 | ||
| 53882B - SEAL, FRONT FENDER, RH | ||||
| 53882-AC020 |
GSX30 |
1 | ||
| 53882-AC020 |
GSX30 |
1 | ||
| 53883B - SEAL, FRONT FENDER, LH | ||||
| 53883-AC020 |
GSX30 |
1 | ||
| 53883-AC020 |
GSX30 |
1 | ||
| Common parts | ||||
| 53882-16030 | ||||
| 67867-12150 | ||||
| 90080-11247 | ||||
| 90084-54011 | ||||
| 90467-10183 | ||||

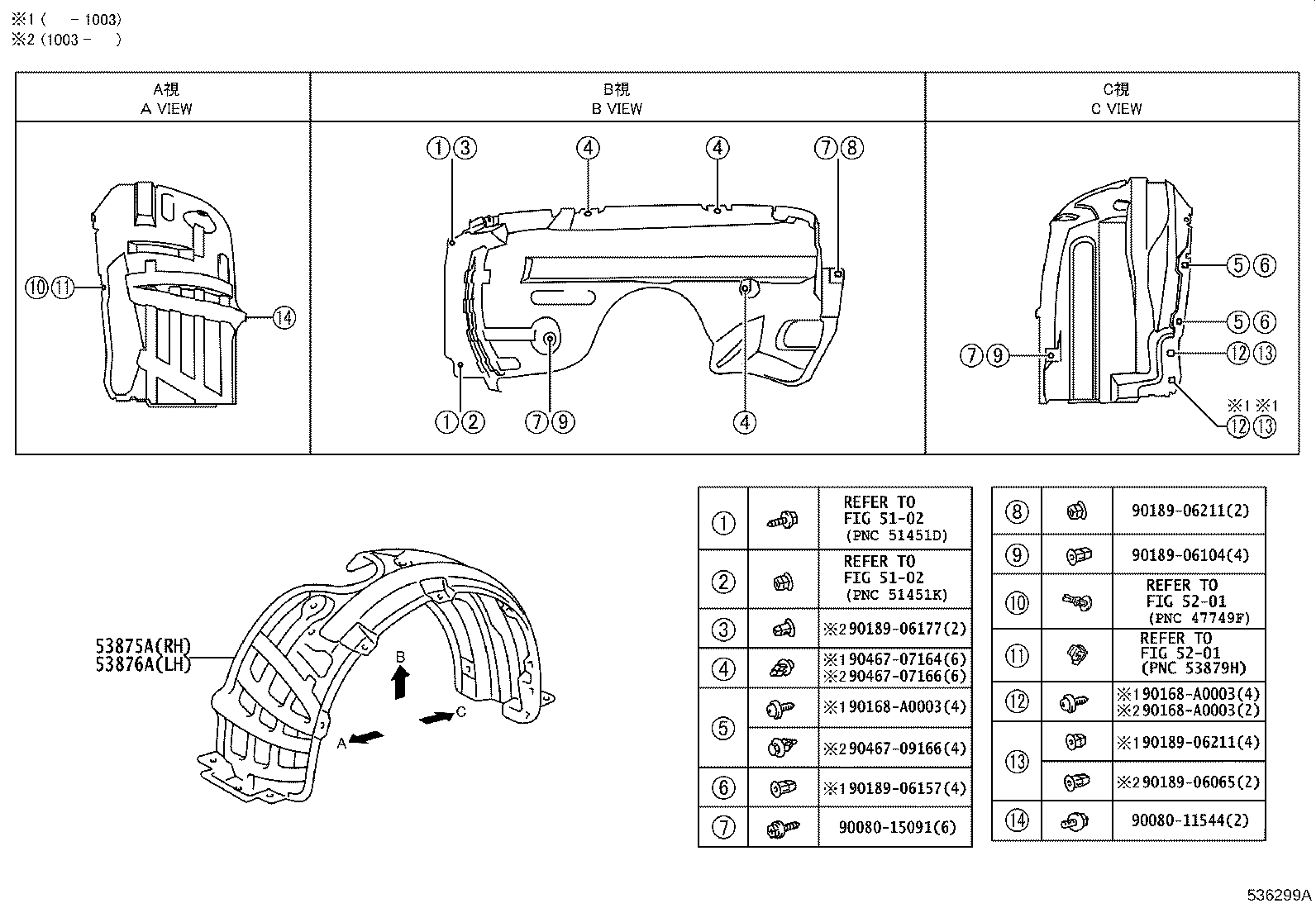

ILLUST NO. 2 OF 2(0501- )
Click highlighted areas on diagram
FENDER LINER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53875A - LINER, FRONT FENDER, RH | ||||
| 53875-AC030 |
GSX30 |
1 | ||
| 53875-AC030 |
GSX30 |
1 | ||
| 53876A - LINER, FRONT FENDER, LH | ||||
| 53876-AC030 |
GSX30 |
1 | ||
| 53876-AC030 |
GSX30 |
1 | ||
| Common parts | ||||
| 90080-11544 | ||||
| 90080-15091 | ||||
| 90168-A0003 | ||||
| 90189-06065 | ||||
| 90189-06104 | ||||
| 90189-06157 | ||||
| 90189-06177 | ||||
| 90189-06211 | ||||
| 90467-07164 | ||||
| 90467-07166 | ||||
| 90467-09166 | ||||
| Linked diagrams | ||||
| 5102 | ||||
| 5201 | ||||
