GSX30L-AETNKV (2007)

Toyota Avalon

Production Jul 2007 - Mar 2010
Engine 2GRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0501-1003)

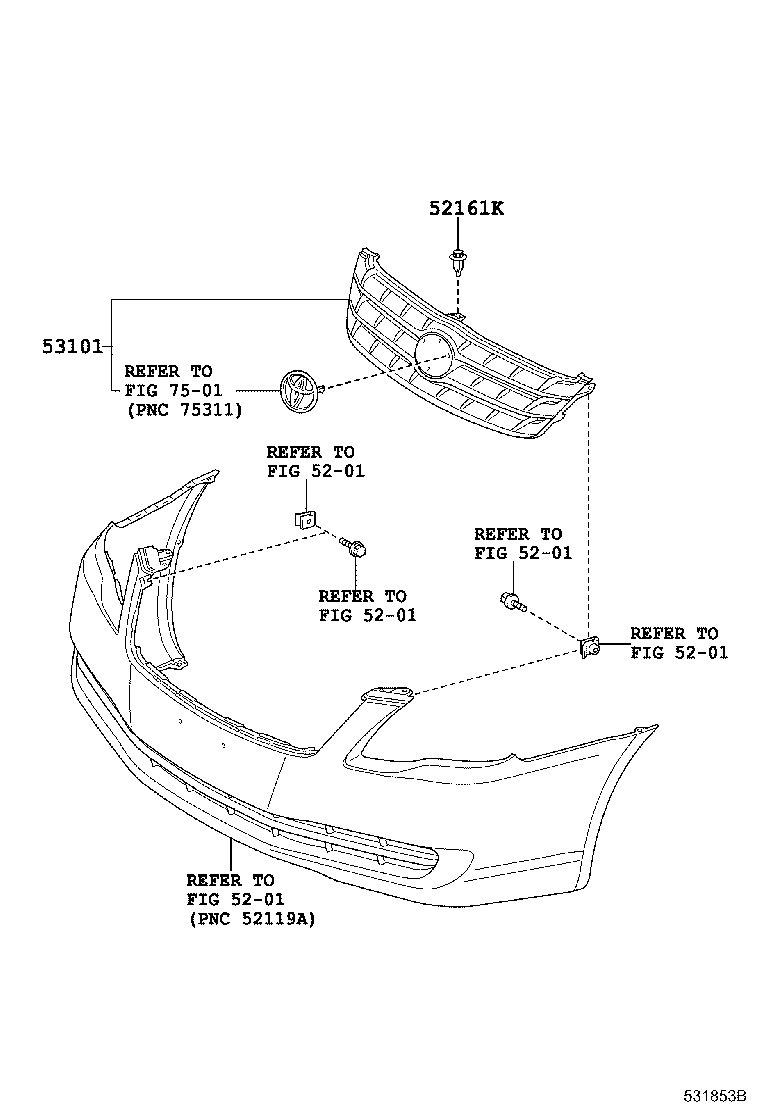

Click highlighted areas on diagram

diagram 5201 5201 5201 5201 5201 52161K 53101 7501
Part # Description Qty Price
52161K - PIECE, FRONT BUMPER
52161-02020

GSX30

 1
52161-02020

GSX30

 1
53101 - GRILLE SUB-ASSY, RADIATOR
53101-AC030A0

GSX30

WHITE PEARL CS.,070

 1
53101-AC030B0

GSX30

SILVER ME.,1D4

 1
53101-AC030D0

GSX30

DK RED MC,3Q7

 1
53101-AC030C0

GSX30

BLACK,202

 1
53101-AC030G0

GSX30

LT.GREEN ME.,6U0

 1
53101-AC030B1

GSX30

GRAY M.M.,1E3

 1
53101-AC030J0

GSX30

DK.BLUE M.M.,8P4

 1
53101-07030

GSX30..XL

PLATED

 1
53101-AC030E0

GSX30

BEIGE M. M.,4Q2

 1
53101-AC030J1

GSX30

BLUE ME.,8R5

 1
Linked diagrams
5201
7501
