GSX30L-AETNKV (2007)
Toyota Avalon
Production
Jul 2007
-
Mar 2010
Engine
2GRFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0707-1003)

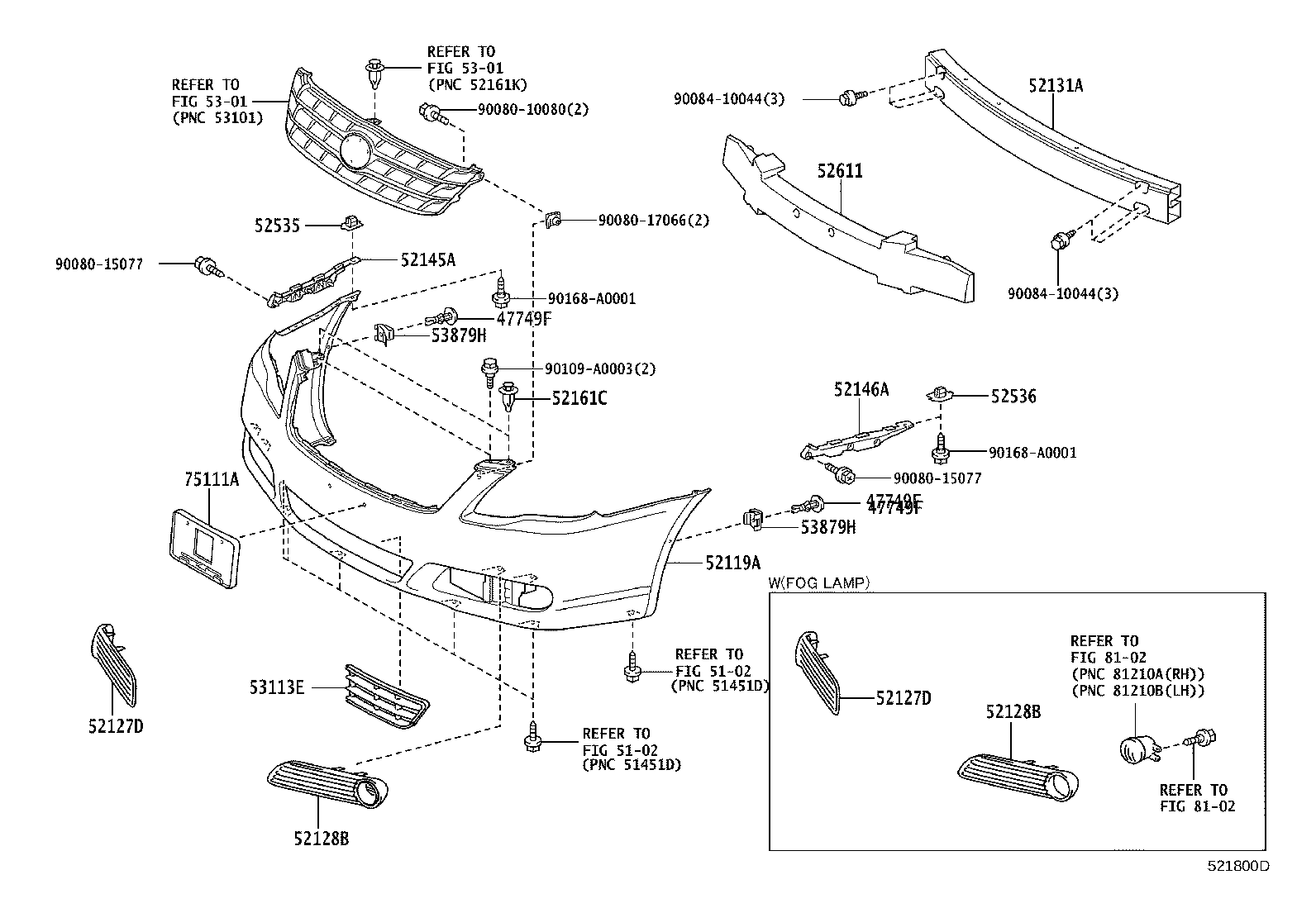

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47749F - CLIP, PIN HOLD | ||||
| 47749-58010 |
GSX30 |
2 | ||
| 47749-58010 |
GSX30 |
2 | ||
| 47749F - CLIP, PIN HOLD | ||||
| 47749-58010 |
GSX30 |
2 | ||
| 47749-58010 |
GSX30 |
2 | ||
| 47749F - CLIP, PIN HOLD | ||||
| 47749-58010 |
GSX30 |
2 | ||
| 47749-58010 |
GSX30 |
2 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-07904 |
GSX30 PAINT REQ. |
1 | ||
| 52119-AC912 |
GSX30..XL PAINT REQ. |
1 | ||
| 52127D - COVER, FRONT BUMPER HOLE, RH | ||||
| 52030-07010 |
GSX30..XL |
1 | ||
| 52127D - COVER, FRONT BUMPER HOLE, RH | ||||
| 52030-07010 |
GSX30..XL |
1 | ||
| 52128B - COVER, FRONT BUMPER HOLE, LH | ||||
| 52040-07010 |
GSX30..XL |
1 | ||
| 52128B - COVER, FRONT BUMPER HOLE, LH | ||||
| 52040-07010 |
GSX30..XL |
1 | ||
| 52131A - REINFORCEMENT, FRONT BUMPER | ||||
| 52131-AC080 |
GSX30 |
1 | ||
| 52131-AC080 |
GSX30 |
1 | ||
| 52145A - STAY, FRONT BUMPER, NO.2 RH | ||||
| 52145-AC040 |
GSX30 |
1 | ||
| 52145-AC040 |
GSX30 |
1 | ||
| 52146A - STAY, FRONT BUMPER, NO.2 LH | ||||
| 52146-AC040 |
GSX30 |
1 | ||
| 52146-AC040 |
GSX30 |
1 | ||
| 52161C - PIECE, FRONT BUMPER | ||||
| 52161-02020 |
GSX30 |
2 | ||
| 52161-02020 |
GSX30 |
2 | ||
| 52535 - RETAINER, FRONT BUMPER SIDE, RH | ||||
| 52535-30150 |
GSX30 |
1 | ||
| 52535-30150 |
GSX30 |
1 | ||
| 52536 - RETAINER, FRONT BUMPER SIDE, LH | ||||
| 52535-30150 |
GSX30 |
1 | ||
| 52535-30150 |
GSX30 |
1 | ||
| 52611 - ABSORBER, FRONT BUMPER ENERGY | ||||
| 52611-07020 |
GSX30 |
1 | ||
| 52611-AC050 |
GSX30 |
1 | ||
| 53113E - GRILLE, RADIATOR, LOWER NO.2 | ||||
| 53113-07010 |
GSX30 |
1 | ||
| 53879H - RETAINER, FRONT FENDER LINER | ||||
| 53879-58010 |
GSX30 |
2 | ||
| 53879-58010 |
GSX30 |
2 | ||
| 53879H - RETAINER, FRONT FENDER LINER | ||||
| 53879-58010 |
GSX30 |
2 | ||
| 53879-58010 |
GSX30 |
2 | ||
| 75111A - BRACKET, FRONT LICENSE PLATE | ||||
| 75101-AC050 |
GSX30 |
1 | ||
| 75101-07010 |
GSX30 |
1 | ||
| Common parts | ||||
| 90080-10080 | ||||
| 90080-15077 | ||||
| 90080-17066 | ||||
| 90084-10044 | ||||
| 90109-A0003 | ||||
| 90168-A0001 | ||||
| Linked diagrams | ||||
| 5102 | ||||
| 5301 | ||||
| 8102 | ||||
