GSX30L-AETNKV (2007)
Toyota Avalon
Production
Jul 2007
-
Mar 2010
Engine
2GRFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

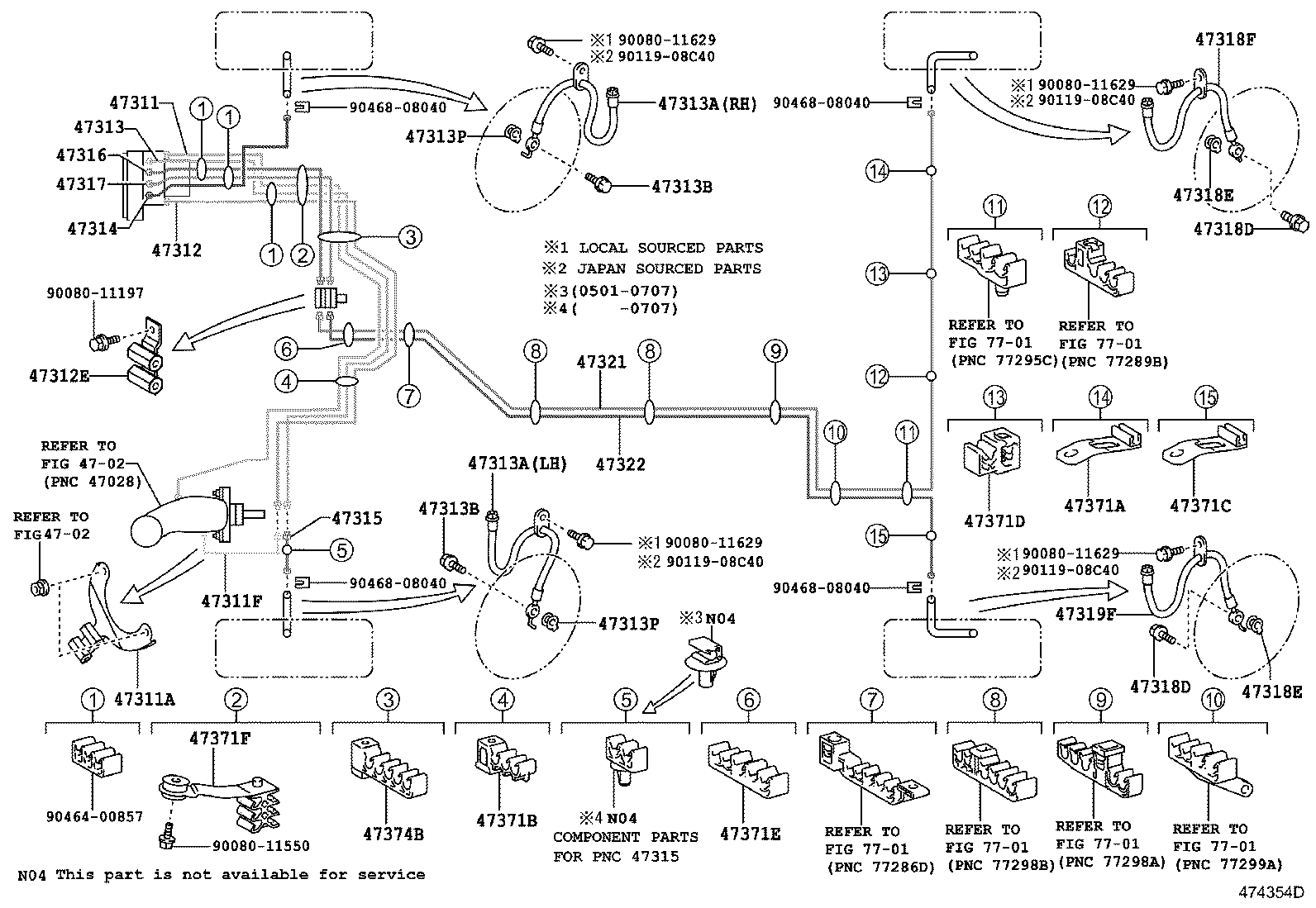

ILLUST NO. 1 OF 2(0501-1003)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-07090 |
GSX30 |
1 | ||
| 47311-06140 |
GSX30 |
1 | ||
| 47311A - WAY(FOR FRONT BRAKE TUBE) | ||||
| 90412-10256 |
GSX30 |
1 | ||
| 90412-10262 |
GSX30 |
1 | ||
| 47311F - TUBE, FRONT BRAKE, FRAME NO.1 | ||||
| 47311-07100 |
GSX30 |
1 | ||
| 47311-06130 |
GSX30 |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-07070 |
GSX30 |
1 | ||
| 47312-06110 |
GSX30 |
1 | ||
| 47312E - WAY, NO.2(FOR FRONT BRAKE TUBE) | ||||
| 90412-10246 |
GSX30 |
1 | ||
| 90412-10246 |
GSX30 |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-06100 |
GSX30 |
1 | ||
| 47313-07040 |
GSX30 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-A2012 |
GSX30 LH |
1 | ||
| 90947-A2011 |
GSX30 RH |
1 | ||
| 90947-A2011 |
GSX30 RH |
1 | ||
| 90947-A2012 |
GSX30 LH |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-A2012 |
GSX30 LH |
1 | ||
| 90947-A2011 |
GSX30 RH |
1 | ||
| 90947-A2011 |
GSX30 RH |
1 | ||
| 90947-A2012 |
GSX30 LH |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
GSX30 |
2 | ||
| 90401-10015 |
GSX30 |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
GSX30 |
2 | ||
| 90401-10015 |
GSX30 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
GSX30 |
2 | ||
| 47389-50021 |
GSX30 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
GSX30 |
2 | ||
| 47389-50021 |
GSX30 |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-06100 |
GSX30 |
1 | ||
| 47314-07050 |
GSX30 |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-07070 |
GSX30 |
1 | ||
| 47315-06140 |
GSX30 |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-06170 |
GSX30 |
1 | ||
| 47316-07080 |
GSX30 |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-06150 |
GSX30 |
1 | ||
| 47317-07080 |
GSX30 |
1 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10058 |
GSX30 |
2 | ||
| 90401-10015 |
GSX30 |
2 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10058 |
GSX30 |
2 | ||
| 90401-10015 |
GSX30 |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 90430-10074 |
GSX30 |
4 | ||
| 47389-50021 |
GSX30 |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 90430-10074 |
GSX30 |
4 | ||
| 47389-50021 |
GSX30 |
2 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90080-94125 |
GSX30 |
1 | ||
| 90947-A2017 |
GSX30 |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-A2018 |
GSX30 |
1 | ||
| 90080-94126 |
GSX30 |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-07060 |
GSX30 |
1 | ||
| 47321-07060 |
GSX30 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-07060 |
GSX30 |
1 | ||
| 47322-07060 |
GSX30 |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-32130 |
GSX30 |
1 | ||
| 47371-32130 |
GSX30 |
1 | ||
| 47371B - CLAMP, BRAKE TUBE, NO.6 | ||||
| 90949-01C95 |
GSX30 |
1 | ||
| 90949-01C95 |
GSX30 |
1 | ||
| 47371C - CLAMP, BRAKE TUBE, NO.7 | ||||
| 47371-32140 |
GSX30 |
1 | ||
| 47371-32140 |
GSX30 |
1 | ||
| 47371D - CLAMP, BRAKE TUBE, NO.8 | ||||
| 90949-01B45 |
GSX30 |
1 | ||
| 90949-01B45 |
GSX30 |
1 | ||
| 47371E - CLAMP, BRAKE TUBE, NO.9 | ||||
| 90949-01C53 |
GSX30 |
1 | ||
| 90949-01C53 |
GSX30 |
1 | ||
| 47371F - CLAMP, BRAKE TUBE, NO.10 | ||||
| 90949-A4009 |
GSX30 |
1 | ||
| 90949-A4009 |
GSX30 |
1 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 90949-A1009 |
GSX30 |
1 | ||
| 90949-A1009 |
GSX30 |
1 | ||
| Common parts | ||||
| 90080-11197 | ||||
| 90080-11550 | ||||
| 90080-11629 | ||||
| 90119-08C40 | ||||
| 90464-00857 | ||||
| 90468-08040 | ||||
| Linked diagrams | ||||
| 4702 | ||||
| 7701 | ||||

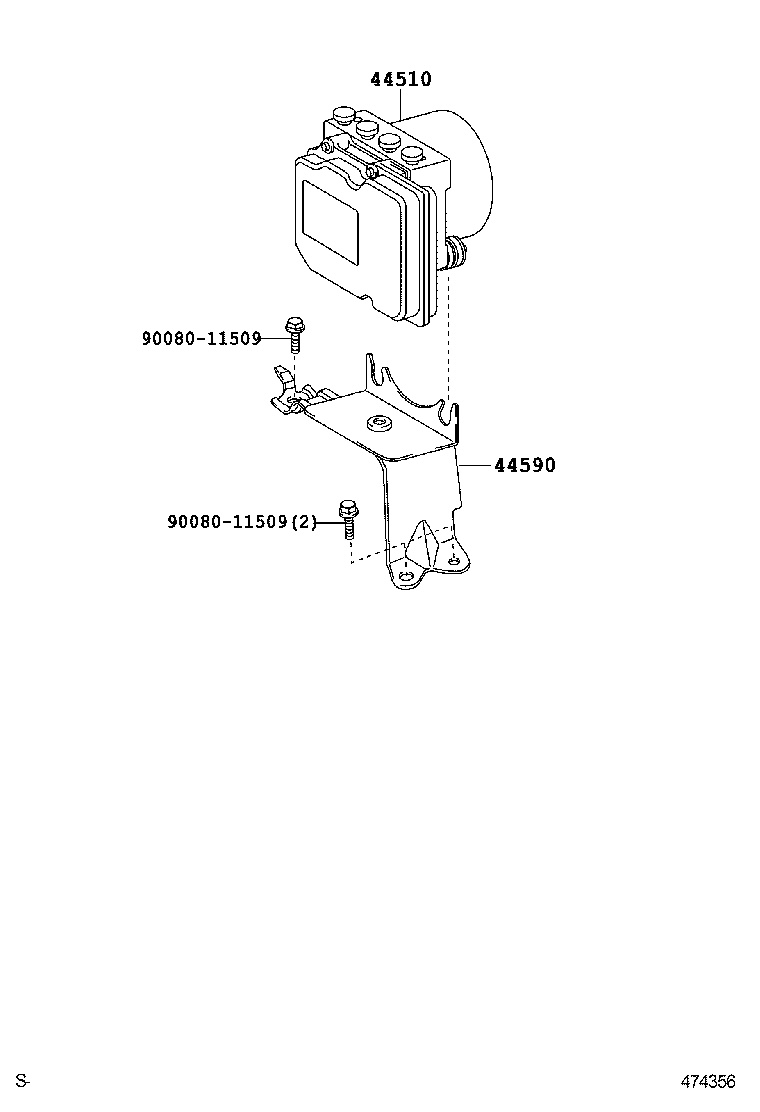

ILLUST NO. 2 OF 2(0501-1003)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44050-07010 |
GSX30 |
1 | ||
| 44050-07090 |
GSX30 |
1 | ||
| 44590 - BRACKET ASSY, BRAKE ACTUATOR | ||||
| 44590-07010 |
GSX30 |
1 | ||
| 44590-07010 |
GSX30 |
1 | ||
| Common parts | ||||
| 90080-11509 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
Unable to retrieve price information.
