GSX30L-AETNKV (2007)

Toyota Avalon

Production Jul 2007 - Mar 2010
Engine 2GRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 3(0501- )

Click highlighted areas on diagram

diagram 42603
Part # Description Qty Price

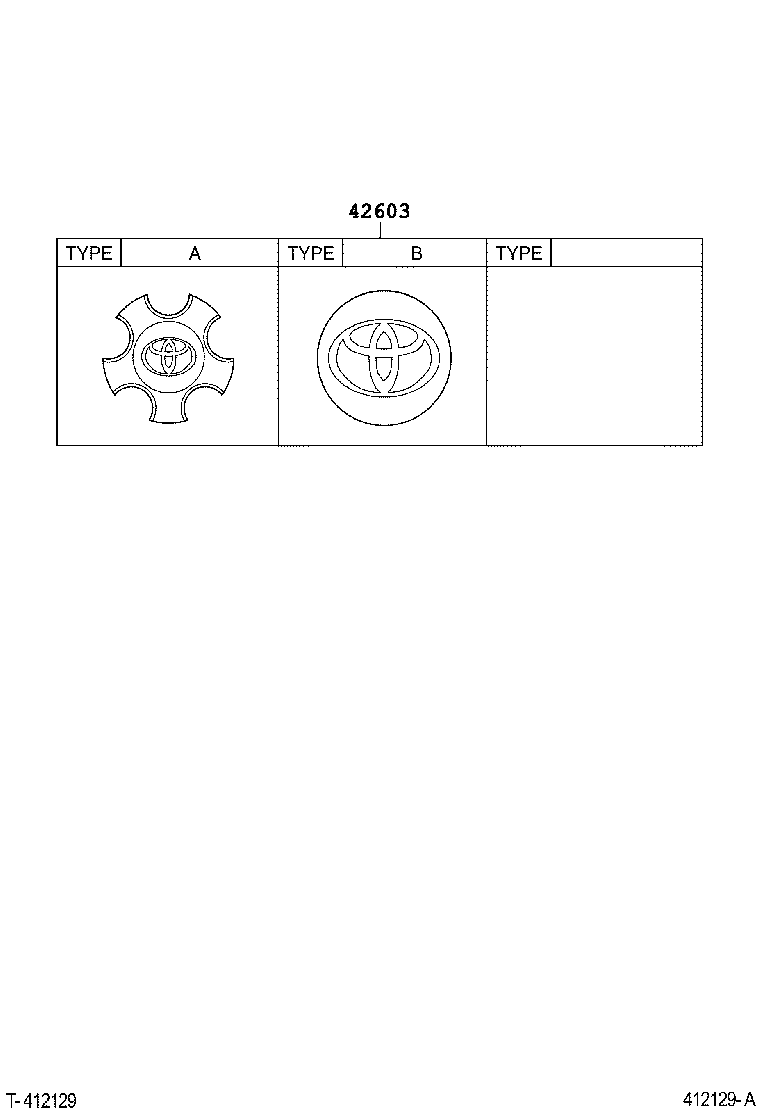

42603 - ORNAMENT SUB-ASSY, WHEEL HUB
42603-AC060

GSX30..XL

*CHR,TYPE B:REFER ILLUST.

 4
42603-08020

GSX30..XL

*ALU,TYPE A:REFER ILLUST.

 4

ILLUST NO. 1 OF 3(0501- )

Click highlighted areas on diagram

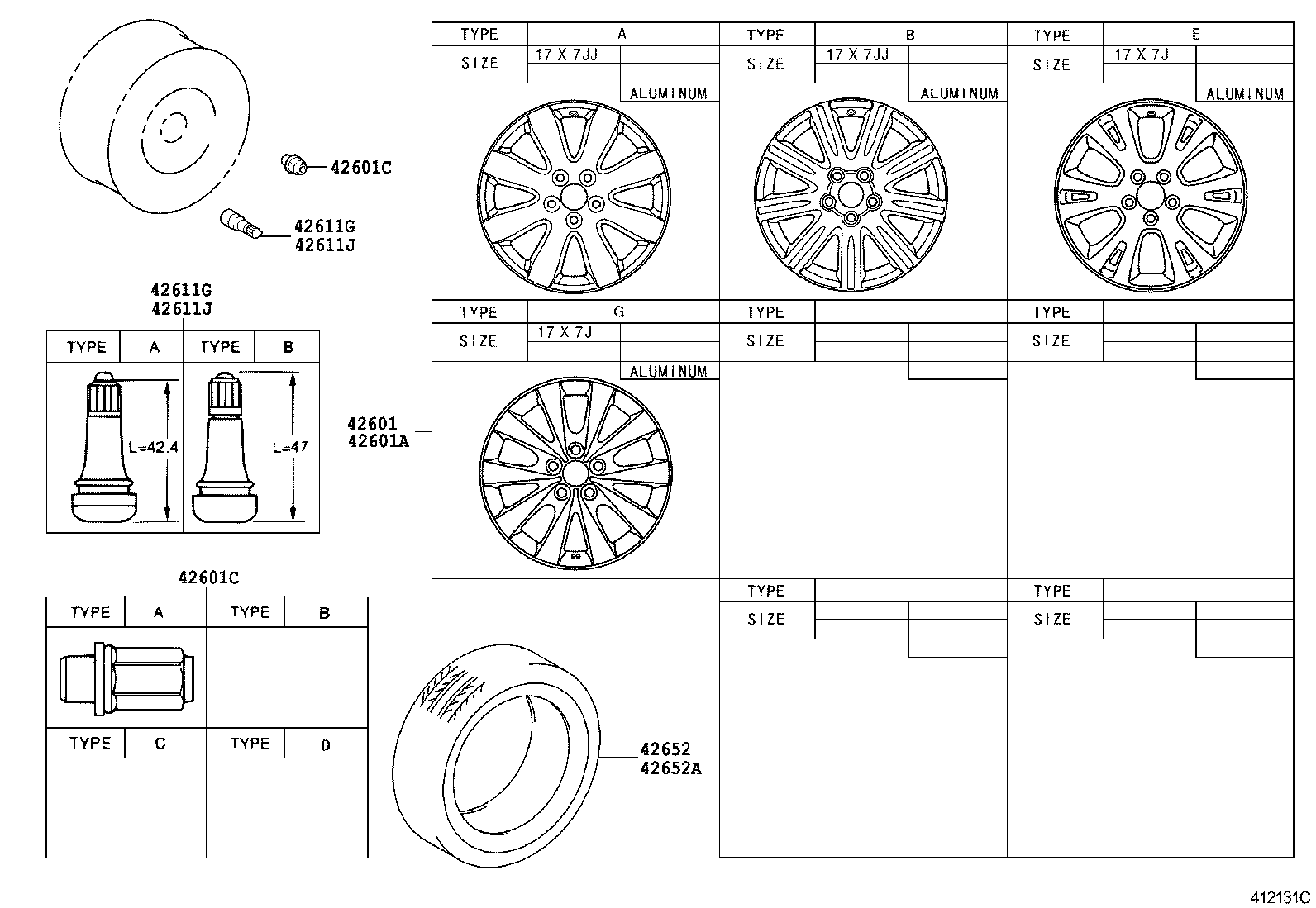

diagram 42601 42601A 42601C 42601C 42611G 42611G 42611J 42611J 42652 42652A
Part # Description Qty Price
42601 - WHEEL, DISC
42611-AC090

GSX30..XL

17X7JJ, #,TYPE A:REFER ILLUST.

 4
42611-07030

GSX30..XL

17X7J, #,TYPE E:REFER ILLUST.

 4
42601A - WHEEL, DISC (FOR SPARE)
42611-AC090

GSX30..XL

17X7JJ, #,TYPE A:REFER ILLUST.

 1
42611-07030

GSX30..XL

17X7J, #,TYPE E:REFER ILLUST.

 1
42601C - NUT, HUB (FOR AXLE)
90084-94001

GSX30

 20
90084-94001

GSX30

 20
42601C - NUT, HUB (FOR AXLE)
90084-94001

GSX30

 20
90084-94001

GSX30

 20
42611G - VALVE (FOR TUBELESS TIRE)
90080-45006

GSX30

TYPE B:REFER ILLUST.

 4
90080-45001

GSX30

TYPE A:REFER ILLUST.

 4
90080-45006

GSX30

TYPE B:REFER ILLUST.

 4
42611G - VALVE (FOR TUBELESS TIRE)
90080-45006

GSX30

TYPE B:REFER ILLUST.

 4
90080-45001

GSX30

TYPE A:REFER ILLUST.

 4
90080-45006

GSX30

TYPE B:REFER ILLUST.

 4
42611J - VALVE (FOR TUBELESS TIRE SPARE)
90080-45006

GSX30

TYPE B:REFER ILLUST.

 1
90080-45006

GSX30

TYPE B:REFER ILLUST.

 1
90080-45001

GSX30

TYPE A:REFER ILLUST.

 1
42611J - VALVE (FOR TUBELESS TIRE SPARE)
90080-45006

GSX30

TYPE B:REFER ILLUST.

 1
90080-45006

GSX30

TYPE B:REFER ILLUST.

 1
90080-45001

GSX30

TYPE A:REFER ILLUST.

 1
42652 - TIRE
42652-AC030

GSX30

P215/55R17,*T/Y

 4
42652A - TIRE (FOR SPARE)
42652-AC030

GSX30

P215/55R17,*T/Y

 1

ILLUST NO. 3 OF 3(0501- )

Click highlighted areas on diagram

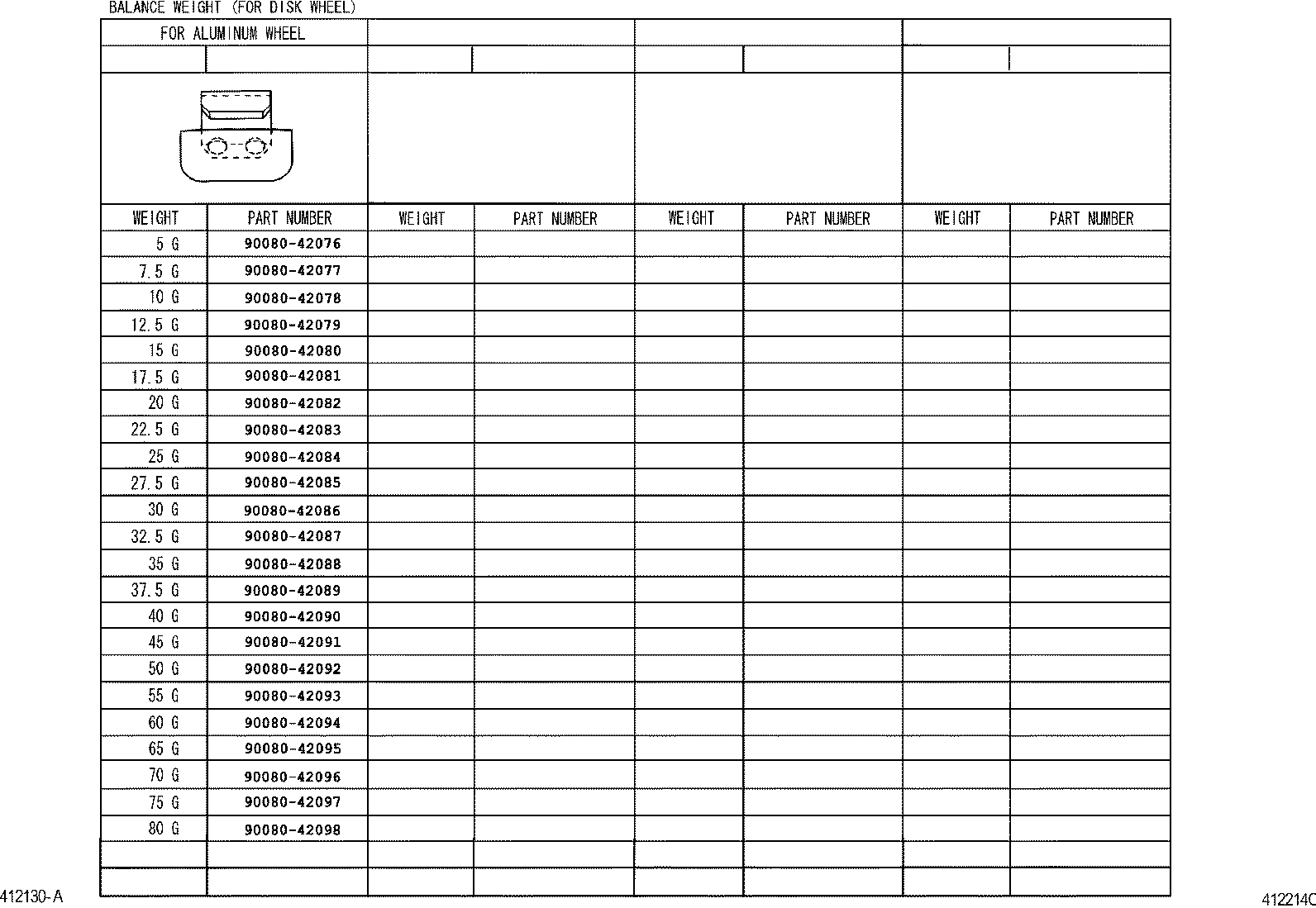

diagram 9008042076 9008042077 9008042078 9008042079 9008042080 9008042081 9008042082 9008042083 9008042084 9008042085 9008042086 9008042087 9008042088 9008042089 9008042090 9008042091 9008042092 9008042093 9008042094 9008042095 9008042096 9008042097 9008042098
Part # Description Qty Price
Common parts
90080-42076
90080-42077
90080-42078
90080-42079
90080-42080
90080-42081
90080-42082
90080-42083
90080-42084
90080-42085
90080-42086
90080-42087
90080-42088
90080-42089
90080-42090
90080-42091
90080-42092
90080-42093
90080-42094
90080-42095
90080-42096
90080-42097
90080-42098
