GSX30L-AETNKV (2007)
Toyota Avalon
Production
Jul 2007
-
Mar 2010
Engine
2GRFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0707- )

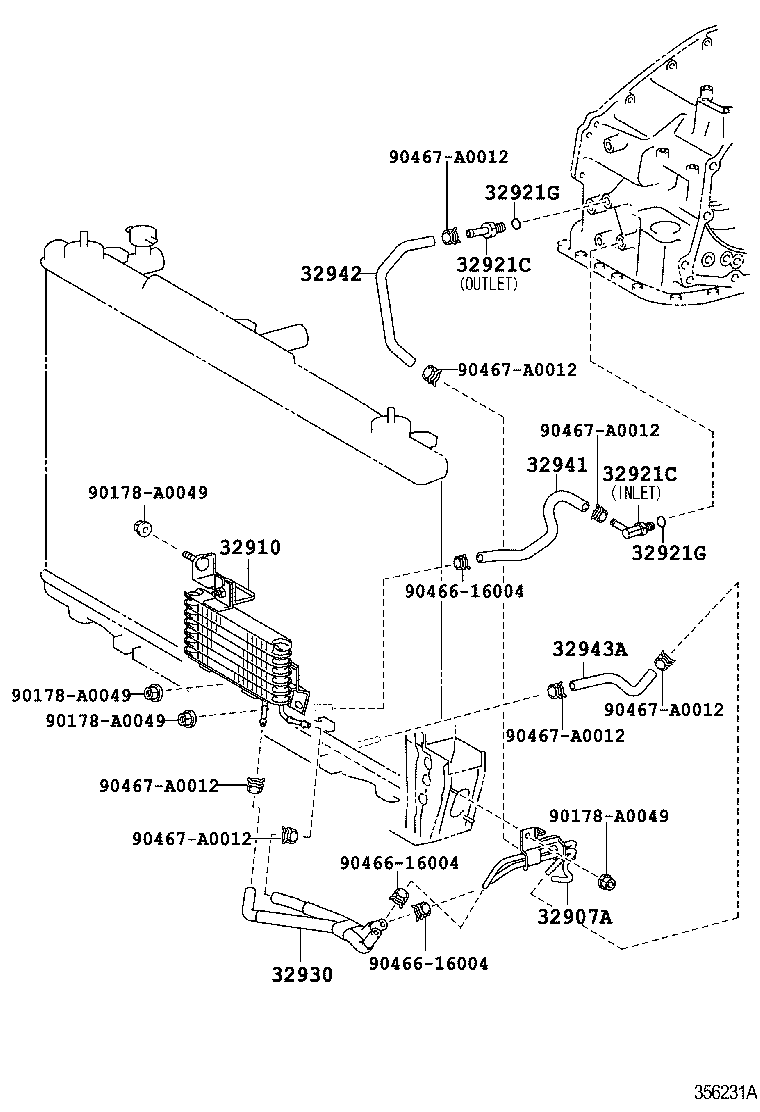

Click highlighted areas on diagram
U660E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 32907A - TUBE, OIL COOLER | ||||
| 32907-41050 |
GSX30 |
1 | ||
| 32910 - COOLER ASSY, OIL | ||||
| 32910-41040 |
GSX30 |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90407-16010 |
GSX30 NO.1 |
1 | ||
| 90404-16031 |
GSX30 NO.2 |
1 | ||
| 90404-14027 |
GSX30 OUTLET |
1 | ||
| 90407-14032 |
GSX30 INLET |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90407-16010 |
GSX30 NO.1 |
1 | ||
| 90404-16031 |
GSX30 NO.2 |
1 | ||
| 90404-14027 |
GSX30 OUTLET |
1 | ||
| 90407-14032 |
GSX30 INLET |
1 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-A0022 |
GSX30 (L) |
2 | ||
| 90301-11006 |
GSX30 (J) |
2 | ||
| 90301-10189 |
GSX30 |
2 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-A0022 |
GSX30 (L) |
2 | ||
| 90301-11006 |
GSX30 (J) |
2 | ||
| 90301-10189 |
GSX30 |
2 | ||
| 32930 - ACCESSORY ASSY, OIL COOLER | ||||
| 32930-41010 |
GSX30 |
1 | ||
| 32941 - HOSE, OIL COOLER INLET, NO.1 | ||||
| 32941-06060 |
GSX30 |
1 | ||
| 32942 - HOSE, OIL COOLER OUTLET, NO.1 | ||||
| 32942-07020 |
GSX30 |
1 | ||
| 32942-33070 |
GSX30 |
1 | ||
| 32943A - HOSE, TRANSMISSION OIL COOLER, NO.2 | ||||
| 32943-33100 |
GSX30 |
1 | ||
| Common parts | ||||
| 90178-A0049 | ||||
| 90466-16004 | ||||
| 90467-A0012 | ||||
