GSX30L-AETNKV (2007)
Toyota Avalon
Production
Jul 2007
-
Mar 2010
Engine
2GRFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

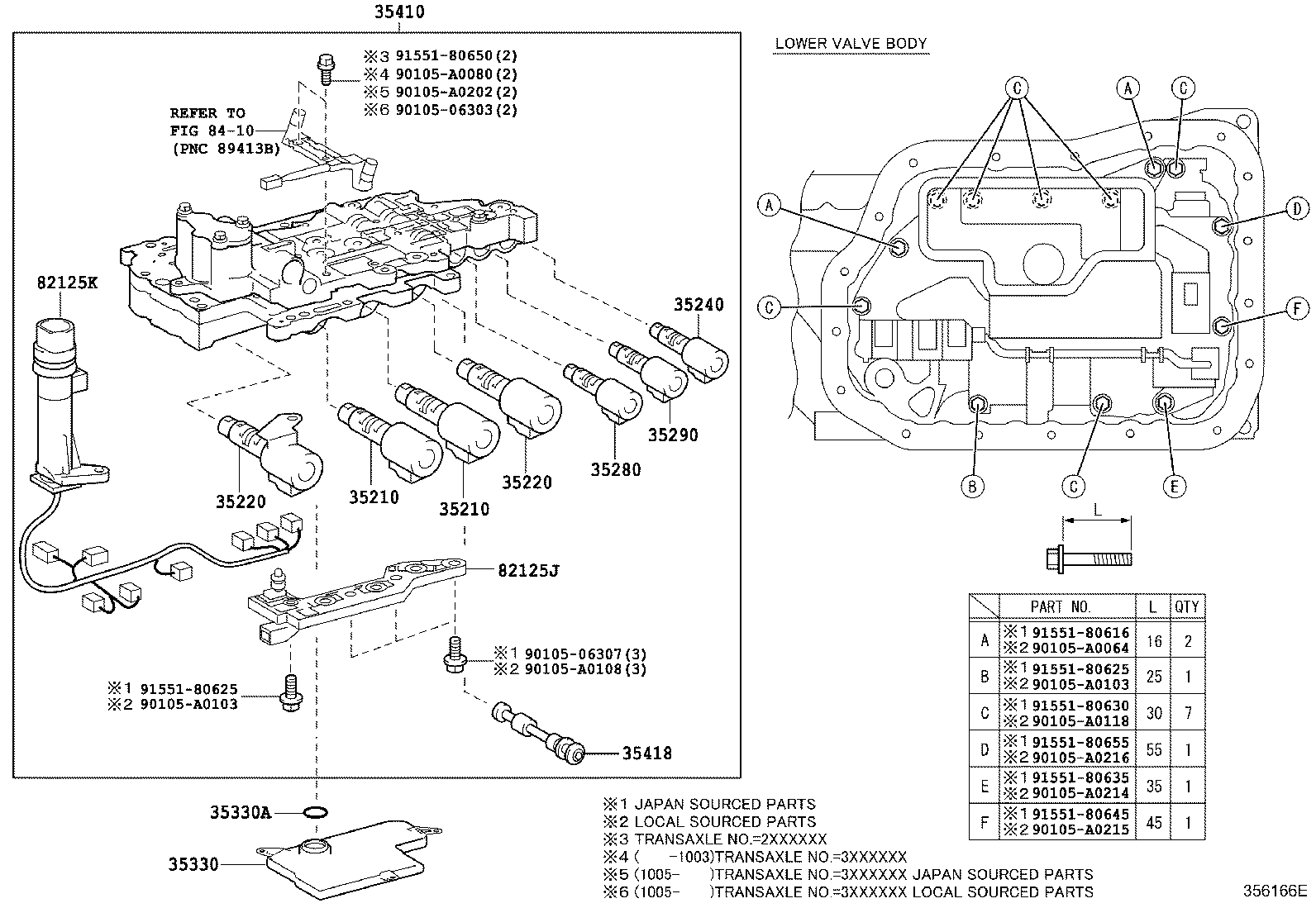

ILLUST NO. 1 OF 2(0707- )
Click highlighted areas on diagram
U660E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35210 - SOLENOID ASSY, CLUTCH CONTROL, NO.1 | ||||
| 35210-33030 |
GSX30 |
2 | ||
| 35210-45010 |
GSX30 |
1 | ||
| 35210 - SOLENOID ASSY, CLUTCH CONTROL, NO.1 | ||||
| 35210-33030 |
GSX30 |
2 | ||
| 35210-45010 |
GSX30 |
1 | ||
| 35220 - SOLENOID ASSY, CLUTCH CONTROL, NO.2 | ||||
| 35220-33040 |
GSX30 |
2 | ||
| 35220-33040 |
GSX30 |
2 | ||
| 35220-45010 |
GSX30 |
2 | ||
| 35220 - SOLENOID ASSY, CLUTCH CONTROL, NO.2 | ||||
| 35220-33040 |
GSX30 |
2 | ||
| 35220-33040 |
GSX30 |
2 | ||
| 35220-45010 |
GSX30 |
2 | ||
| 35240 - SOLENOID ASSY, AUTOMATIC TRANSMISSION 3WAY | ||||
| 35240-33040 |
GSX30 TRANSAXLE NO.=2XXXXX |
1 | ||
| 35240-73010 |
GSX30 TRANSAXLE NO.=3XXXXX |
1 | ||
| 35240-33030 |
GSX30 |
1 | ||
| 35240-73010 |
GSX30 TRANSAXLE NO.=2XXXXX |
1 | ||
| 35240-33040 |
GSX30 TRANSAXLE NO.=3XXXXX |
1 | ||
| 35240-73010 |
GSX30 TRANSAXLE NO.=3XXXXX |
1 | ||
| 35280 - SOLENOID ASSY, LOCK UP CONTROL | ||||
| 35280-52040 |
GSX30 |
1 | ||
| 35280-52040 |
GSX30 |
1 | ||
| 35290 - SOLENOID ASSY, LINE PRESSURE CONTROL | ||||
| 35290-45010 |
GSX30 |
1 | ||
| 35290-33040 |
GSX30 |
1 | ||
| 35290-33040 |
GSX30 |
1 | ||
| 35330 - STRAINER ASSY, VALVE BODY OIL | ||||
| 35330-08010 |
GSX30 |
1 | ||
| 35330-33050 |
GSX30 |
1 | ||
| 35330A - RING, O (FOR OIL STRAINER) | ||||
| 90301-A0026 |
GSX30 (L) |
1 | ||
| 90301-27010 |
GSX30 (J) |
1 | ||
| 35410 - BODY ASSY, TRANSMISSION VALVE | ||||
| 35410-33171 |
GSX30 (J) |
1 | ||
| 35410-07010 |
GSX30 (L) |
1 | ||
| 35410-08020 |
GSX30 (L) |
1 | ||
| 35410-08010 |
GSX30 |
1 | ||
| 35418 - VALVE, MANUAL | ||||
| 35418-33020 |
GSX30 |
1 | ||
| 35418-33010 |
GSX30 |
1 | ||
| 35418-73010 |
GSX30 |
1 | ||
| 82125J - WIRE, TRANSMISSION | ||||
| 82125-08010 |
GSX30 |
1 | ||
| 82125-33090 |
GSX30 |
1 | ||
| 82125K - WIRE, TRANSMISSION | ||||
| 82125-33100 |
GSX30 |
1 | ||
| Common parts | ||||
| 90105-06303 | ||||
| 90105-06307 | ||||
| 90105-A0064 | ||||
| 90105-A0080 | ||||
| 90105-A0103 | ||||
| 90105-A0108 | ||||
| 90105-A0118 | ||||
| 90105-A0202 | ||||
| 90105-A0214 | ||||
| 90105-A0215 | ||||
| 90105-A0216 | ||||
| 91551-80616 | ||||
| 91551-80625 | ||||
| 91551-80630 | ||||
| 91551-80635 | ||||
| 91551-80645 | ||||
| 91551-80650 | ||||
| 91551-80655 | ||||
| Linked diagrams | ||||
| 8410 | ||||

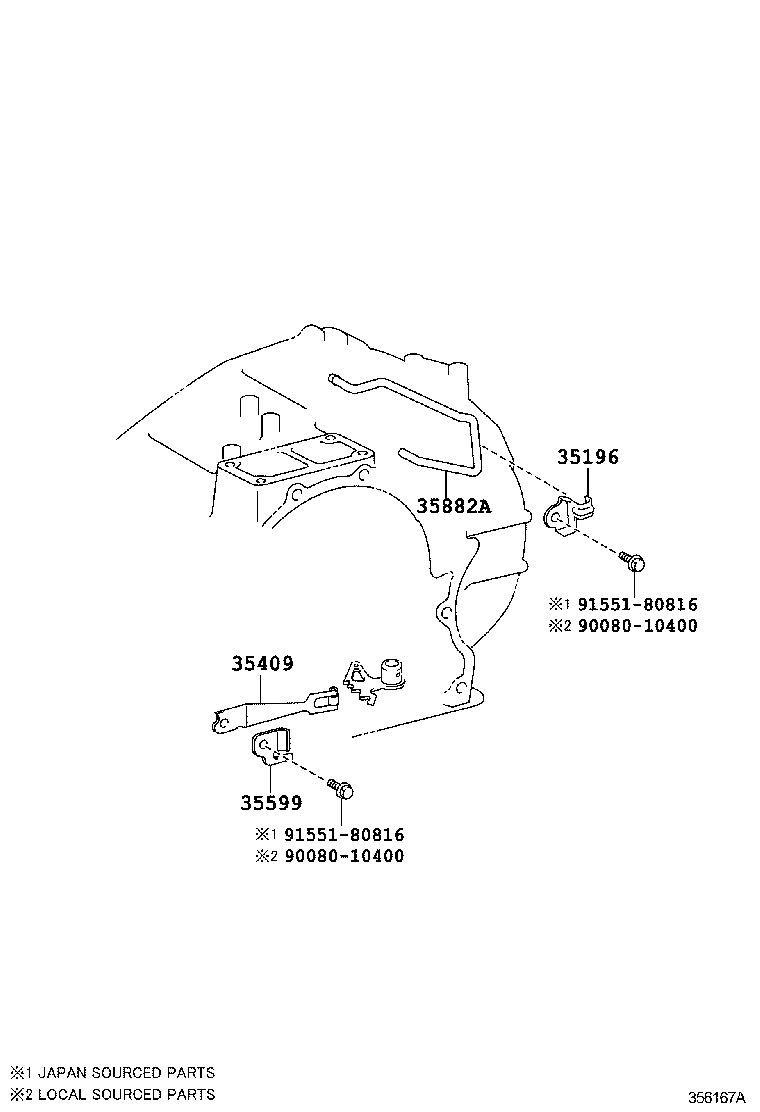

ILLUST NO. 2 OF 2(0707- )
Click highlighted areas on diagram
U660E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35196 - CLAMP, TRANSAXLE APPLY TUBE, NO.2 | ||||
| 35196-33010 |
GSX30 |
1 | ||
| 35196-21010 |
GSX30 |
1 | ||
| 35409 - SPRING SUB-ASSY, MANUAL DETENT | ||||
| 35409-21010 |
GSX30 |
1 | ||
| 35409-33010 |
GSX30 |
1 | ||
| 35599 - COVER, MANUAL DETENT SPRING | ||||
| 35599-21010 |
GSX30 |
1 | ||
| 35599-33010 |
GSX30 |
1 | ||
| 35882A - TUBE, DIFFERENTIAL GEAR LUBE APPLY | ||||
| 35882-33040 |
GSX30 (J) |
1 | ||
| 35882-06010 |
GSX30 |
1 | ||
| 35882-07010 |
GSX30 (L) |
1 | ||
| Common parts | ||||
| 90080-10400 | ||||
| 91551-80816 | ||||
