GSX30L-AETNKV (2007)
Toyota Avalon
Production
Jul 2007
-
Mar 2010
Engine
2GRFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0707- )

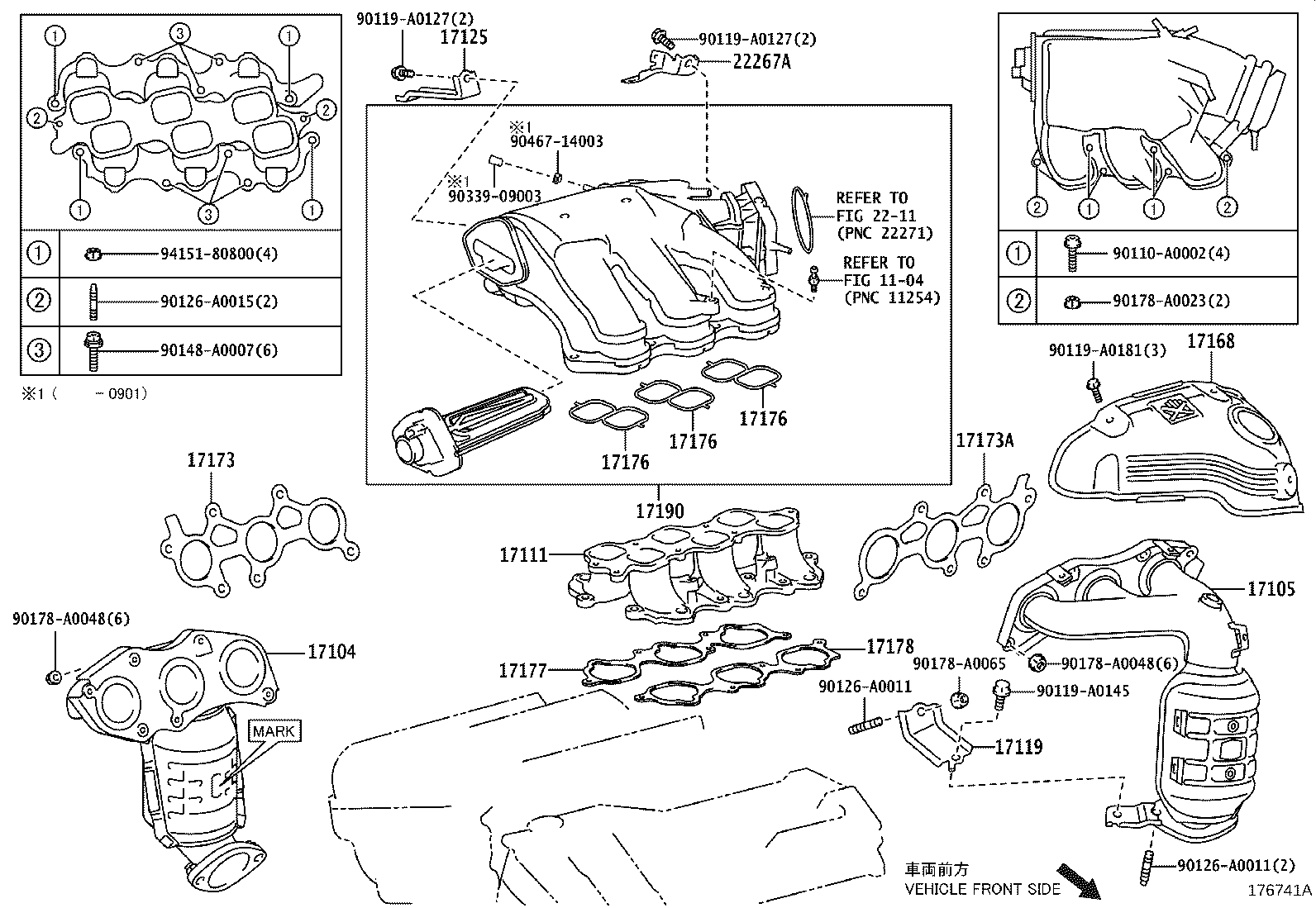

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17104 - MANIFOLD SUB-ASSY, EXHAUST, RH | ||||
| 17140-0P041 |
2GRFE..GSX30 *114=TOYOTA/R0P041/Y,MARK R0P041 |
1 | ||
| 17140-31050 |
2GRFE..GSX30 |
1 | ||
| 17140-31161 |
2GRFE..GSX30 *114=TOYOTA/R31161/Y,MARK R31161 |
1 | ||
| 17105 - MANIFOLD SUB-ASSY, EXHAUST, LH | ||||
| 17150-31050 |
2GRFE..GSX30 |
1 | ||
| 17150-0P040 |
2GRFE..GSX30 |
1 | ||
| 17111 - MANIFOLD, INTAKE | ||||
| 17111-31140 |
2GRFE..GSX30 *132 |
1 | ||
| 17111-0P030 |
2GRFE..GSX30 |
1 | ||
| 17119 - STAY, MANIFOLD, NO.2 | ||||
| 17119-31020 |
2GRFE..GSX30 |
1 | ||
| 17119-0P030 |
2GRFE..GSX30 |
1 | ||
| 17125 - STAY, SURGE TANK, NO.1 | ||||
| 17125-0P020 |
2GRFE..GSX30 |
1 | ||
| 17125-31040 |
2GRFE..GSX30 |
1 | ||
| 17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2 | ||||
| 17168-0P011 |
2GRFE..GSX30 |
1 | ||
| 17168-31010 |
2GRFE..GSX30 |
1 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-31020 |
2GRFE..GSX30 |
1 | ||
| 17173-0P020 |
2GRFE..GSX30 |
1 | ||
| 17173A - GASKET, EXHAUST MANIFOLD TO HEAD, LH | ||||
| 17173-0P020 |
2GRFE..GSX30 |
1 | ||
| 17173-31020 |
2GRFE..GSX30 |
1 | ||
| 17176 - GASKET, AIR SURGE TANK TO INTAKE MANIFOLD | ||||
| 17176-31040 |
2GRFE..GSX30 (J) |
3 | ||
| 17176-0P020 |
2GRFE..GSX30 |
3 | ||
| 17176 - GASKET, AIR SURGE TANK TO INTAKE MANIFOLD | ||||
| 17176-31040 |
2GRFE..GSX30 (J) |
3 | ||
| 17176-0P020 |
2GRFE..GSX30 |
3 | ||
| 17176 - GASKET, AIR SURGE TANK TO INTAKE MANIFOLD | ||||
| 17176-31040 |
2GRFE..GSX30 (J) |
3 | ||
| 17176-0P020 |
2GRFE..GSX30 |
3 | ||
| 17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1 | ||||
| 17177-31040 |
2GRFE..GSX30 (J) |
1 | ||
| 17177-0P020 |
2GRFE..GSX30 |
1 | ||
| 17178 - GASKET, INTAKE MANIFOLD TO HEAD, NO.2 | ||||
| 17178-0P020 |
2GRFE..GSX30 |
1 | ||
| 17178-31030 |
2GRFE..GSX30 (J) |
1 | ||
| 17190 - TANK ASSY, INTAKE AIR SURGE | ||||
| 17190-31060 |
2GRFE..GSX30 |
1 | ||
| 17190-0P031 |
2GRFE..GSX30 |
1 | ||
| 22267A - BRACKET, THROTTLE BODY | ||||
| 22267-31030 |
2GRFE..GSX30 |
1 | ||
| 22267-0P020 |
2GRFE..GSX30 |
1 | ||
| Common parts | ||||
| 90110-A0002 | ||||
| 90119-A0127 | ||||
| 90119-A0145 | ||||
| 90119-A0181 | ||||
| 90126-A0011 | ||||
| 90126-A0015 | ||||
| 90148-A0007 | ||||
| 90178-A0023 | ||||
| 90178-A0048 | ||||
| 90178-A0065 | ||||
| 90339-09003 | ||||
| 90467-14003 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 2211 | ||||
