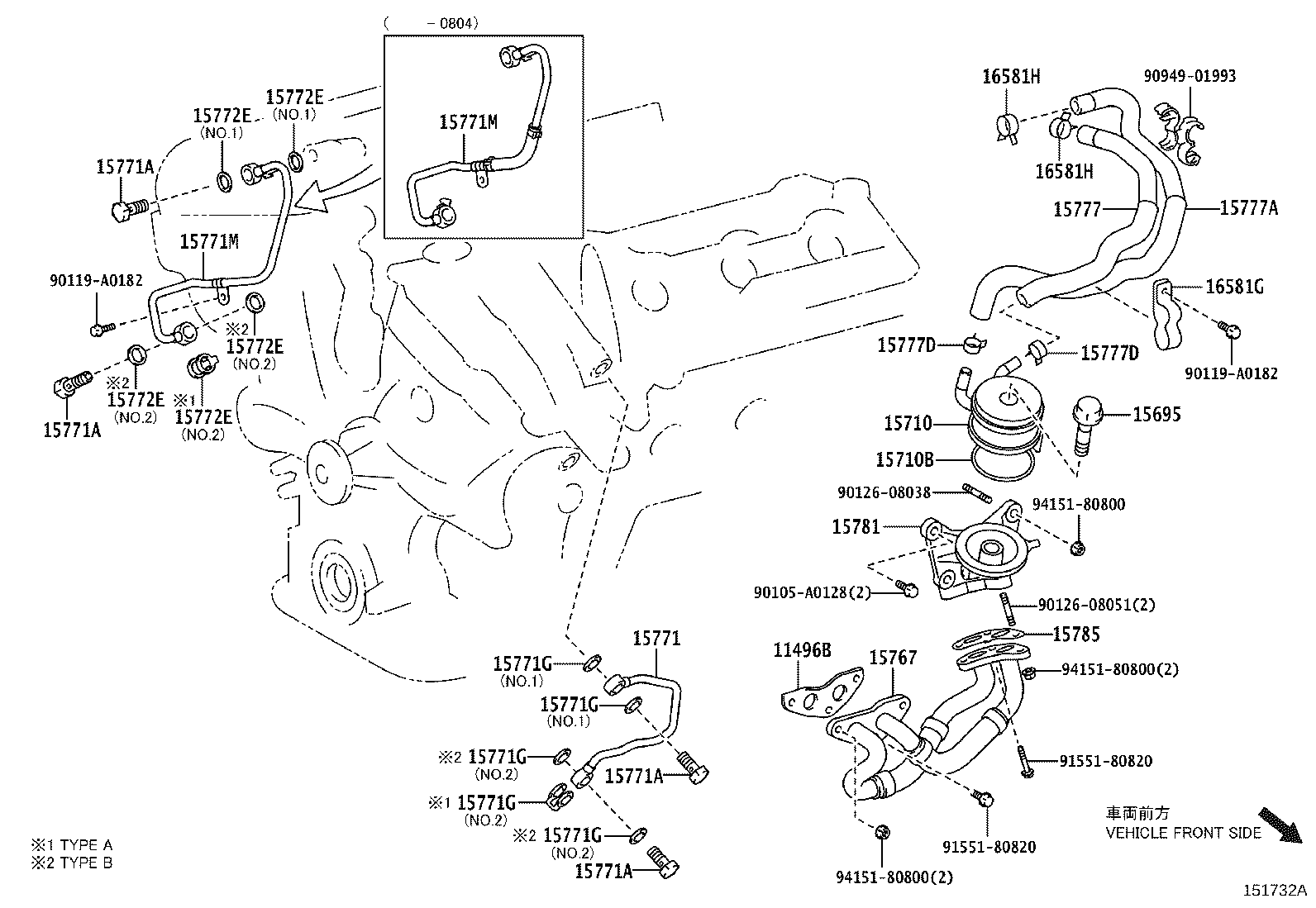

GSX30L-AETNKV (2007)
Toyota Avalon
(0707- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11496B - GASKET, OIL HOLE COVER | ||||
| 11496-31010 |
2GRFE..GSX30 |
1 | ||
| 15695 - BOLT, OIL COOLER UNION | ||||
| 15695-31010 |
2GRFE..GSX30 |
1 | ||
| 15710 - COOLER ASSY, OIL | ||||
| 15710-31021 |
2GRFE..GSX30 |
1 | ||
| 15710B - RING, O(FOR OIL COOLER) | ||||
| 90301-67004 |
2GRFE..GSX30 |
1 | ||
| 15767 - PIPE, OIL COOLER | ||||
| 15767-31010 |
2GRFE..GSX30 |
1 | ||
| 15771 - PIPE, OIL, NO.1 | ||||
| 15771-31010 |
2GRFE..GSX30 |
1 | ||
| 15771-31010 |
2GRFE..GSX30 |
1 | ||
| 15771A - UNION(FOR OIL PIPE) | ||||
| 90401-16043 |
2GRFE..GSX30 |
4 | ||
| 90401-16035 |
2GRFE..GSX30 |
4 | ||
| 15771A - UNION(FOR OIL PIPE) | ||||
| 90401-16043 |
2GRFE..GSX30 |
4 | ||
| 90401-16035 |
2GRFE..GSX30 |
4 | ||
| 15771A - UNION(FOR OIL PIPE) | ||||
| 90401-16043 |
2GRFE..GSX30 |
4 | ||
| 90401-16035 |
2GRFE..GSX30 |
4 | ||
| 15771A - UNION(FOR OIL PIPE) | ||||
| 90401-16043 |
2GRFE..GSX30 |
4 | ||
| 90401-16035 |
2GRFE..GSX30 |
4 | ||
| 15771G - GASKET | ||||
| 90430-16012 |
2GRFE..GSX30 NO.1,NO.2,TYPE B |
2 | ||
| 90430-16017 |
2GRFE..GSX30 NO.2,TYPE B,NO.1 |
2 | ||
| 90430-16016 |
2GRFE..GSX30 NO.2 |
1 | ||
| 90430-16012 |
2GRFE..GSX30 NO.1 |
2 | ||
| 90430-16016 |
2GRFE..GSX30 NO.2,TYPE A |
1 | ||
| 15771G - GASKET | ||||
| 90430-16012 |
2GRFE..GSX30 NO.1,NO.2,TYPE B |
2 | ||
| 90430-16017 |
2GRFE..GSX30 NO.2,TYPE B,NO.1 |
2 | ||
| 90430-16016 |
2GRFE..GSX30 NO.2 |
1 | ||
| 90430-16012 |
2GRFE..GSX30 NO.1 |
2 | ||
| 90430-16016 |
2GRFE..GSX30 NO.2,TYPE A |
1 | ||
| 15771G - GASKET | ||||
| 90430-16012 |
2GRFE..GSX30 NO.1,NO.2,TYPE B |
2 | ||
| 90430-16017 |
2GRFE..GSX30 NO.2,TYPE B,NO.1 |
2 | ||
| 90430-16016 |
2GRFE..GSX30 NO.2 |
1 | ||
| 90430-16012 |
2GRFE..GSX30 NO.1 |
2 | ||
| 90430-16016 |
2GRFE..GSX30 NO.2,TYPE A |
1 | ||
| 15771G - GASKET | ||||
| 90430-16012 |
2GRFE..GSX30 NO.1,NO.2,TYPE B |
2 | ||
| 90430-16017 |
2GRFE..GSX30 NO.2,TYPE B,NO.1 |
2 | ||
| 90430-16016 |
2GRFE..GSX30 NO.2 |
1 | ||
| 90430-16012 |
2GRFE..GSX30 NO.1 |
2 | ||
| 90430-16016 |
2GRFE..GSX30 NO.2,TYPE A |
1 | ||
| 15771G - GASKET | ||||
| 90430-16012 |
2GRFE..GSX30 NO.1,NO.2,TYPE B |
2 | ||
| 90430-16017 |
2GRFE..GSX30 NO.2,TYPE B,NO.1 |
2 | ||
| 90430-16016 |
2GRFE..GSX30 NO.2 |
1 | ||
| 90430-16012 |
2GRFE..GSX30 NO.1 |
2 | ||
| 90430-16016 |
2GRFE..GSX30 NO.2,TYPE A |
1 | ||
| 15771M - PIPE, OIL | ||||
| 15707-31010 |
2GRFE..GSX30 |
1 | ||
| 15707-31012 |
2GRFE..GSX30 |
1 | ||
| 15772-31030 |
2GRFE..GSX30 |
1 | ||
| 15771M - PIPE, OIL | ||||
| 15707-31010 |
2GRFE..GSX30 |
1 | ||
| 15707-31012 |
2GRFE..GSX30 |
1 | ||
| 15772-31030 |
2GRFE..GSX30 |
1 | ||
| 15772E - GASKET(FOR OIL PIPE) | ||||
| 90430-16016 |
2GRFE..GSX30 NO.2 |
1 | ||
| 90430-16012 |
2GRFE..GSX30 NO.1 |
2 | ||
| 90430-16016 |
2GRFE..GSX30 NO.2,TYPE A |
1 | ||
| 90430-16012 |
2GRFE..GSX30 NO.1,NO.2,TYPE B |
2 | ||
| 90430-16017 |
2GRFE..GSX30 NO.1,NO.2,TYPE B |
2 | ||
| 15772E - GASKET(FOR OIL PIPE) | ||||
| 90430-16016 |
2GRFE..GSX30 NO.2 |
1 | ||
| 90430-16012 |
2GRFE..GSX30 NO.1 |
2 | ||
| 90430-16016 |
2GRFE..GSX30 NO.2,TYPE A |
1 | ||
| 90430-16012 |
2GRFE..GSX30 NO.1,NO.2,TYPE B |
2 | ||
| 90430-16017 |
2GRFE..GSX30 NO.1,NO.2,TYPE B |
2 | ||
| 15772E - GASKET(FOR OIL PIPE) | ||||
| 90430-16016 |
2GRFE..GSX30 NO.2 |
1 | ||
| 90430-16012 |
2GRFE..GSX30 NO.1 |
2 | ||
| 90430-16016 |
2GRFE..GSX30 NO.2,TYPE A |
1 | ||
| 90430-16012 |
2GRFE..GSX30 NO.1,NO.2,TYPE B |
2 | ||
| 90430-16017 |
2GRFE..GSX30 NO.1,NO.2,TYPE B |
2 | ||
| 15772E - GASKET(FOR OIL PIPE) | ||||
| 90430-16016 |
2GRFE..GSX30 NO.2 |
1 | ||
| 90430-16012 |
2GRFE..GSX30 NO.1 |
2 | ||
| 90430-16016 |
2GRFE..GSX30 NO.2,TYPE A |
1 | ||
| 90430-16012 |
2GRFE..GSX30 NO.1,NO.2,TYPE B |
2 | ||
| 90430-16017 |
2GRFE..GSX30 NO.1,NO.2,TYPE B |
2 | ||
| 15772E - GASKET(FOR OIL PIPE) | ||||
| 90430-16016 |
2GRFE..GSX30 NO.2 |
1 | ||
| 90430-16012 |
2GRFE..GSX30 NO.1 |
2 | ||
| 90430-16016 |
2GRFE..GSX30 NO.2,TYPE A |
1 | ||
| 90430-16012 |
2GRFE..GSX30 NO.1,NO.2,TYPE B |
2 | ||
| 90430-16017 |
2GRFE..GSX30 NO.1,NO.2,TYPE B |
2 | ||
| 15777 - HOSE, OIL COOLER | ||||
| 16281-31030 |
2GRFE..GSX30 |
1 | ||
| 15777A - HOSE, OIL COOLER | ||||
| 16282-31020 |
2GRFE..GSX30 TYPE A:REFER ILLUST. |
1 | ||
| 15777D - CLAMP OR CLIP, HOSE(FOR OIL COOLER HOSE) | ||||
| 96136-42101 |
2GRFE..GSX30 |
2 | ||
| 96136-52101 |
2GRFE..GSX30 |
2 | ||
| 15777D - CLAMP OR CLIP, HOSE(FOR OIL COOLER HOSE) | ||||
| 96136-42101 |
2GRFE..GSX30 |
2 | ||
| 96136-52101 |
2GRFE..GSX30 |
2 | ||
| 15781 - BRACKET, OIL COOLER, NO.1 | ||||
| 15781-31010 |
2GRFE..GSX30 |
1 | ||
| 15785 - GASKET, OIL COOLER | ||||
| 15785-31010 |
2GRFE..GSX30 |
1 | ||
| 16581G - CLAMP, HOSE(FOR OIL COOLER HOSE) | ||||
| 16581-31020 |
2GRFE..GSX30 |
1 | ||
| 16581H - CLIP, HOSE(FOR OIL COOLER HOSE) | ||||
| 96136-52101 |
2GRFE..GSX30 |
2 | ||
| 96136-42101 |
2GRFE..GSX30 |
2 | ||
| 16581H - CLIP, HOSE(FOR OIL COOLER HOSE) | ||||
| 96136-52101 |
2GRFE..GSX30 |
2 | ||
| 96136-42101 |
2GRFE..GSX30 |
2 | ||
| Common parts | ||||
| 90105-A0128 | ||||
| 90119-A0182 | ||||
| 90126-08038 | ||||
| 90126-08051 | ||||
| 90949-01993 | ||||
| 91551-80820 | ||||
| 94151-80800 | ||||
