GSX30L-AETNKV (2007)
Toyota Avalon
ILLUST NO. 1 OF 2(0501- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11101 - HEAD SUB-ASSY, CYLINDER | ||||
| 11101-39535 |
2GRFE..GSX30 (J) |
1 | ||
| 11101-39535 |
2GRFE..GSX30 |
1 | ||
| 11101-09260 |
2GRFE..GSX30 (L) |
1 | ||
| 11101-39535 |
2GRFE..GSX30 (J) |
1 | ||
| 11102 - HEAD, CYLINDER, LH | ||||
| 11102-39055 |
2GRFE..GSX30 (J) |
1 | ||
| 11102-09140 |
2GRFE..GSX30 (L) |
1 | ||
| 11102-39055 |
2GRFE..GSX30 (J) |
1 | ||
| 11102-39055 |
2GRFE..GSX30 |
1 | ||
| 11103C - HOUSING SUB-ASSY, CAMSHAFT, RH | ||||
| 11103-31020 |
2GRFE..GSX30 *132 |
1 | ||
| 11103-0P011 |
2GRFE..GSX30 |
1 | ||
| 11103-0P012 |
2GRFE..GSX30 |
1 | ||
| 11103-0P013 |
2GRFE..GSX30 |
1 | ||
| 11103-0P014 |
2GRFE..GSX30 |
1 | ||
| 11104A - HOUSING SUB-ASSY, CAMSHAFT, LH | ||||
| 11104-31020 |
2GRFE..GSX30 *132 |
1 | ||
| 11104-0P011 |
2GRFE..GSX30 |
1 | ||
| 11104-0P010 |
2GRFE..GSX30 |
1 | ||
| 11115 - GASKET, CYLINDER HEAD | ||||
| 11115-0P010 |
2GRFE..GSX30 |
1 | ||
| 11115-0P020 |
2GRFE..GSX30 |
1 | ||
| 11115-31060 |
2GRFE..GSX30 *132 |
1 | ||
| 11116 - GASKET, CYLINDER HEAD, NO.2 | ||||
| 11116-0P010 |
2GRFE..GSX30 |
1 | ||
| 11116-0P020 |
2GRFE..GSX30 |
1 | ||
| 11116-31040 |
2GRFE..GSX30 *132 |
1 | ||
| 11117E - PLUG, W/HEAD STRAIGHT SCREW, NO.1 | ||||
| 90341-20012 |
2GRFE..GSX30 |
2 | ||
| 90341-20012 |
2GRFE..GSX30 |
2 | ||
| 11117F - PLUG, W/HEAD STRAIGHT SCREW, NO.2 | ||||
| 90341-27006 |
2GRFE..GSX30 |
1 | ||
| 90341-27006 |
2GRFE..GSX30 |
1 | ||
| 11117H - GASKET(FOR WATER HOLE) | ||||
| 90430-20004 |
2GRFE..GSX30 |
2 | ||
| 90430-20004 |
2GRFE..GSX30 |
2 | ||
| 11117J - GASKET(FOR CYLINDER HEAD SCREW PLUG) | ||||
| 90430-27005 |
2GRFE..GSX30 |
1 | ||
| 90430-27005 |
2GRFE..GSX30 |
1 | ||
| 11117K - PLUG, W/HEAD STRAIGHT SCREW, LH NO.1 | ||||
| 90341-20012 |
2GRFE..GSX30 |
2 | ||
| 90341-20012 |
2GRFE..GSX30 |
2 | ||
| 11117L - PLUG, W/HEAD STRAIGHT SCREW, LH NO.2 | ||||
| 90341-27006 |
2GRFE..GSX30 |
1 | ||
| 90341-27006 |
2GRFE..GSX30 |
1 | ||
| 11117M - GASKET(FOR WATER HOLE NO.2) | ||||
| 90430-20004 |
2GRFE..GSX30 |
2 | ||
| 90430-20004 |
2GRFE..GSX30 |
2 | ||
| 11117N - GASKET(FOR CYLINDER HEAD SCREW PLUG NO.2) | ||||
| 90430-27005 |
2GRFE..GSX30 |
1 | ||
| 90430-27005 |
2GRFE..GSX30 |
1 | ||
| 11119A - PIN, STRAIGHT, NO.1 | ||||
| 90250-05021 |
2GRFE..GSX30 L=13.8,OD=5.0 |
3 | ||
| 90250-05021 |
2GRFE..GSX30 L=13.8,OD=5.0 |
3 | ||
| 11119A - PIN, STRAIGHT, NO.1 | ||||
| 90250-05021 |
2GRFE..GSX30 L=13.8,OD=5.0 |
3 | ||
| 90250-05021 |
2GRFE..GSX30 L=13.8,OD=5.0 |
3 | ||
| 11122 - BUSH, INTAKE VALVE GUIDE | ||||
| 11122-31050 |
2GRFE..GSX30 STD |
6 | ||
| 11123-31050 |
2GRFE..GSX30 O/S 0.05 |
6 | ||
| 11122-31050 |
2GRFE..GSX30 STD |
6 | ||
| 11123-31050 |
2GRFE..GSX30 O/S 0.05 |
6 | ||
| 11122B - BUSH, INTAKE VALVE GUIDE, NO.2 | ||||
| 11122-31050 |
2GRFE..GSX30 STD |
6 | ||
| 11123-31050 |
2GRFE..GSX30 O/S 0.05 |
6 | ||
| 11123-31050 |
2GRFE..GSX30 O/S 0.05 |
6 | ||
| 11122-31050 |
2GRFE..GSX30 STD |
6 | ||
| 11126 - BUSH, EXHAUST VALVE GUIDE | ||||
| 11127-31030 |
2GRFE..GSX30 O/S 0.05 |
6 | ||
| 11126-31030 |
2GRFE..GSX30 STD |
6 | ||
| 11127-31030 |
2GRFE..GSX30 O/S 0.05 |
6 | ||
| 11126-31030 |
2GRFE..GSX30 STD |
6 | ||
| 11126B - BUSH, EXHAUST VALVE GUIDE, NO.2 | ||||
| 11127-31030 |
2GRFE..GSX30 O/S 0.05 |
6 | ||
| 11127-31030 |
2GRFE..GSX30 O/S 0.05 |
6 | ||
| 11126-31030 |
2GRFE..GSX30 STD |
6 | ||
| 11126-31030 |
2GRFE..GSX30 STD |
6 | ||
| 11131 - SEAT, INTAKE VALVE | ||||
| 11131-31040 |
2GRFE..GSX30 STD,(J) |
6 | ||
| 11132-31040 |
2GRFE..GSX30 O/S 0.03 |
6 | ||
| 11131-0P020 |
2GRFE..GSX30 STD,(L) |
6 | ||
| 11131-31050 |
2GRFE..GSX30 STD,(J) |
6 | ||
| 11132-0P020 |
2GRFE..GSX30 O/S 0.03 |
6 | ||
| 11131A - SEAT, INTAKE VALVE, NO.2 | ||||
| 11131-0P020 |
2GRFE..GSX30 STD,(L) |
6 | ||
| 11131-31040 |
2GRFE..GSX30 STD,(J) |
6 | ||
| 11131-31050 |
2GRFE..GSX30 STD,(J) |
6 | ||
| 11132-0P020 |
2GRFE..GSX30 O/S 0.03 |
6 | ||
| 11132-31040 |
2GRFE..GSX30 O/S 0.03 |
6 | ||
| 11135 - SEAT, EXHAUST VALVE | ||||
| 11135-31060 |
2GRFE..GSX30 STD,(J) |
6 | ||
| 11135-31080 |
2GRFE..GSX30 STD,(J) |
6 | ||
| 11136-0P020 |
2GRFE..GSX30 O/S 0.03 |
6 | ||
| 11135-0P020 |
2GRFE..GSX30 STD,(L) |
6 | ||
| 11136-31060 |
2GRFE..GSX30 O/S 0.03 |
6 | ||
| 11135A - SEAT, EXHAUST VALVE, NO.2 | ||||
| 11135-31080 |
2GRFE..GSX30 STD,(J) |
6 | ||
| 11136-31060 |
2GRFE..GSX30 O/S 0.03 |
6 | ||
| 11135-31060 |
2GRFE..GSX30 STD,(J) |
6 | ||
| 11135-0P020 |
2GRFE..GSX30 STD,(L) |
6 | ||
| 11136-0P020 |
2GRFE..GSX30 O/S 0.03 |
6 | ||
| 11151E - BOLT(FOR CAMSHAFT BEARING CAP TO HOUSING RH, NO.1) | ||||
| 90119-07009 |
2GRFE..GSX30 (J) |
8 | ||
| 90119-A0302 |
2GRFE..GSX30 |
8 | ||
| 11153A - BOLT(FOR CAMSHAFT BEARING CAP TO HOUSING LH, NO.1) | ||||
| 90119-07009 |
2GRFE..GSX30 (J) |
8 | ||
| 90119-A0302 |
2GRFE..GSX30 |
8 | ||
| 11155A - PIN, RING W/HEAD | ||||
| 90253-11021 |
2GRFE..GSX30 |
10 | ||
| 90253-11021 |
2GRFE..GSX30 |
10 | ||
| 90253-A0007 |
2GRFE..GSX30 (L) |
10 | ||
| 90253-11021 |
2GRFE..GSX30 (J) |
10 | ||
| 11155A - PIN, RING W/HEAD | ||||
| 90253-11021 |
2GRFE..GSX30 |
10 | ||
| 90253-11021 |
2GRFE..GSX30 |
10 | ||
| 90253-A0007 |
2GRFE..GSX30 (L) |
10 | ||
| 90253-11021 |
2GRFE..GSX30 (J) |
10 | ||
| 11159F - GASKET, CAMSHAFT BEARING CAP OIL HOLE, RH | ||||
| 11159-0P010 |
2GRFE..GSX30 |
2 | ||
| 11159-31010 |
2GRFE..GSX30 (J) |
2 | ||
| 11159G - GASKET, CAMSHAFT BEARING CAP OIL HOLE, LH | ||||
| 11159-31010 |
2GRFE..GSX30 (J) |
2 | ||
| 11159-0P010 |
2GRFE..GSX30 |
2 | ||
| 11193 - GASKET, SPARK PLUG TUBE | ||||
| 11193-0A010 |
2GRFE..GSX30 |
3 | ||
| 11193-70010 |
2GRFE..GSX30 (J) |
3 | ||
| 11193A - GASKET, SPARK PLUG TUBE, LH | ||||
| 11193-70010 |
2GRFE..GSX30 (J) |
3 | ||
| 11193-0A010 |
2GRFE..GSX30 |
3 | ||
| 11201 - COVER SUB-ASSY, CYLINDER HEAD | ||||
| 11201-31250 |
2GRFE..GSX30 (J) |
1 | ||
| 11201-0P020 |
2GRFE..GSX30 |
1 | ||
| 11202 - COVER SUB-ASSY, CYLINDER HEAD, LH | ||||
| 11202-31030 |
2GRFE..GSX30 (J) |
1 | ||
| 11202-0P020 |
2GRFE..GSX30 |
1 | ||
| 11209 - COVER SUB-ASSY, V-BANK | ||||
| 11209-0P010 |
2GRFE..GSX30 |
1 | ||
| 11209-31030 |
2GRFE..GSX30 |
1 | ||
| 11213 - GASKET, CYLINDER HEAD COVER | ||||
| 11213-31050 |
2GRFE..GSX30 (J) |
1 | ||
| 11213-0P010 |
2GRFE..GSX30 |
1 | ||
| 11214 - GASKET, CYLINDER HEAD COVER, NO.2 | ||||
| 11214-31020 |
2GRFE..GSX30 (J) |
1 | ||
| 11214-0P040 |
2GRFE..GSX30 |
1 | ||
| 11254 - BRACKET, V-BANK COVER, NO.1 | ||||
| 11254-31020 |
2GRFE..GSX30 |
3 | ||
| 11254-31020 |
2GRFE..GSX30 |
3 | ||
| 11254 - BRACKET, V-BANK COVER, NO.1 | ||||
| 11254-31020 |
2GRFE..GSX30 |
3 | ||
| 11254-31020 |
2GRFE..GSX30 |
3 | ||
| 11401M - SENSOR, CRANK POSITION, NO.2 | ||||
| 90919-05060 |
2GRFE..GSX30 |
4 | ||
| 90919-05060 |
2GRFE..GSX30 |
4 | ||
| 11401M - SENSOR, CRANK POSITION, NO.2 | ||||
| 90919-05060 |
2GRFE..GSX30 |
4 | ||
| 90919-05060 |
2GRFE..GSX30 |
4 | ||
| 11401M - SENSOR, CRANK POSITION, NO.2 | ||||
| 90919-05060 |
2GRFE..GSX30 |
4 | ||
| 90919-05060 |
2GRFE..GSX30 |
4 | ||
| 11401M - SENSOR, CRANK POSITION, NO.2 | ||||
| 90919-05060 |
2GRFE..GSX30 |
4 | ||
| 90919-05060 |
2GRFE..GSX30 |
4 | ||
| 12108 - CAP SUB-ASSY, OIL FILLER | ||||
| 12180-21010 |
2GRFE..GSX30 |
1 | ||
| 12180-28010 |
2GRFE..GSX30 |
1 | ||
| 12108A - GASKET(FOR OIL FILLER CAP) | ||||
| 90430-37140 |
2GRFE..GSX30 |
1 | ||
| 90430-37004 |
2GRFE..GSX30 |
1 | ||
| 12281A - HANGER, ENGINE, NO.1 | ||||
| 12281-31120 |
2GRFE..GSX30 |
1 | ||
| 12281-31120 |
2GRFE..GSX30 |
1 | ||
| 12282D - HANGER, ENGINE, NO.2 | ||||
| 12282-31100 |
2GRFE..GSX30 |
1 | ||
| 12282-31100 |
2GRFE..GSX30 |
1 | ||
| 15330A - RING, O(FOR CAM TIMING OIL CONTROL VALVE) | ||||
| 90099-14137 |
2GRFE..GSX30 (J) |
2 | ||
| 90068-14030 |
2GRFE..GSX30 |
2 | ||
| 15330A - RING, O(FOR CAM TIMING OIL CONTROL VALVE) | ||||
| 90099-14137 |
2GRFE..GSX30 (J) |
2 | ||
| 90068-14030 |
2GRFE..GSX30 |
2 | ||
| 15330B - VALVE ASSY, CAM TIMING OIL CONTROL, RH | ||||
| 15330-0P030 |
2GRFE..GSX30 NO.2 |
1 | ||
| 15330-0P020 |
2GRFE..GSX30 NO.1 |
1 | ||
| 15330-31030 |
2GRFE..GSX30 (J),NO.2 |
1 | ||
| 15330-31020 |
2GRFE..GSX30 (J),NO.1 |
1 | ||
| 15330B - VALVE ASSY, CAM TIMING OIL CONTROL, RH | ||||
| 15330-0P030 |
2GRFE..GSX30 NO.2 |
1 | ||
| 15330-0P020 |
2GRFE..GSX30 NO.1 |
1 | ||
| 15330-31030 |
2GRFE..GSX30 (J),NO.2 |
1 | ||
| 15330-31020 |
2GRFE..GSX30 (J),NO.1 |
1 | ||
| 15340 - VALVE ASSY, CAM TIMING OIL CONTROL, LH | ||||
| 15330-0P020 |
2GRFE..GSX30 NO.1 |
1 | ||
| 15340-0P020 |
2GRFE..GSX30 NO.2 |
1 | ||
| 15330-31020 |
2GRFE..GSX30 (J),NO.1 |
1 | ||
| 15340-31020 |
2GRFE..GSX30 (J),NO.2 |
1 | ||
| 15340 - VALVE ASSY, CAM TIMING OIL CONTROL, LH | ||||
| 15330-0P020 |
2GRFE..GSX30 NO.1 |
1 | ||
| 15340-0P020 |
2GRFE..GSX30 NO.2 |
1 | ||
| 15330-31020 |
2GRFE..GSX30 (J),NO.1 |
1 | ||
| 15340-31020 |
2GRFE..GSX30 (J),NO.2 |
1 | ||
| 15340A - RING, O(FOR CAM TIMING OIL CONTROL VALVE) | ||||
| 90099-14137 |
2GRFE..GSX30 (J) |
2 | ||
| 90068-14030 |
2GRFE..GSX30 |
2 | ||
| 15340A - RING, O(FOR CAM TIMING OIL CONTROL VALVE) | ||||
| 90099-14137 |
2GRFE..GSX30 (J) |
2 | ||
| 90068-14030 |
2GRFE..GSX30 |
2 | ||
| 15678D - FILTER, OIL CONTROL VALVE, RH | ||||
| 15678-46020 |
2GRFE..GSX30 |
1 | ||
| 15678-46020 |
2GRFE..GSX30 |
1 | ||
| 15678E - FILTER, OIL CONTROL VALVE, LH | ||||
| 15678-46020 |
2GRFE..GSX30 |
1 | ||
| 15678-46020 |
2GRFE..GSX30 |
1 | ||
| Common parts | ||||
| 90105-A0064 | ||||
| 90119-A0117 | ||||
| 90119-A0160 | ||||
| 90126-06029 | ||||
| 90126-08051 | ||||
| 90126-08052 | ||||
| 90126-A0014 | ||||
| 90126-A0018 | ||||
| 90126-A0019 | ||||
| 90250-08028 | ||||
| 90250-A0013 | ||||
| 90253-11021 | ||||
| 90253-A0007 | ||||
| 90430-10024 | ||||
| 90430-A0001 | ||||
| 90480-22024 | ||||
| 91551-80616 | ||||
| 91671-10825 | ||||
| 91671-80616 | ||||
| Linked diagrams | ||||
| 1701 | ||||

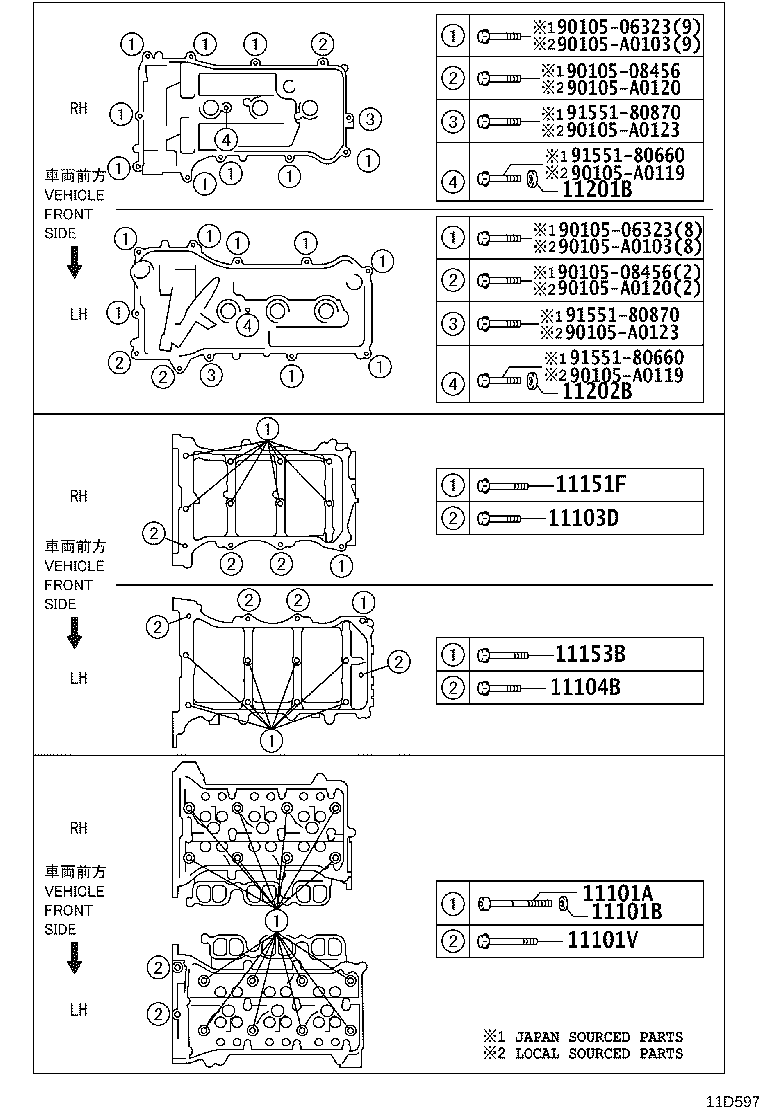

ILLUST NO. 2 OF 2(0501- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11101A - BOLT(FOR CYLINDER HEAD SET) | ||||
| 90910-02149 |
2GRFE..GSX30 |
16 | ||
| 90910-A2006 |
2GRFE..GSX30 |
16 | ||
| 11101B - WASHER, PLATE(FOR CYLINDER HEAD SET) | ||||
| 90201-11034 |
2GRFE..GSX30 |
16 | ||
| 90201-11034 |
2GRFE..GSX30 |
16 | ||
| 11101V - BOLT(FOR CYLINDER HEAD SET SUB) | ||||
| 90105-10521 |
2GRFE..GSX30 |
2 | ||
| 90105-10521 |
2GRFE..GSX30 |
2 | ||
| 11103D - BOLT(FOR CAMSHAFT HOUSING TO CYLINDER HEAD, RH) | ||||
| 91673-F0850 |
2GRFE..GSX30 |
3 | ||
| 90119-A0207 |
2GRFE..GSX30 |
3 | ||
| 11104B - BOLT(FOR CAMSHAFT HOUSING TO CYLINDER HEAD, LH) | ||||
| 90119-A0207 |
2GRFE..GSX30 |
4 | ||
| 91673-F0850 |
2GRFE..GSX30 |
4 | ||
| 11151F - BOLT(FOR CAMSHAFT BEARING CAP TO HOUSING RH, NO.2) | ||||
| 91673-F0870 |
2GRFE..GSX30 |
9 | ||
| 90119-A0208 |
2GRFE..GSX30 |
9 | ||
| 11153B - BOLT(FOR CAMSHAFT BEARING CAP TO HOUSING LH, NO.2) | ||||
| 91673-F0870 |
2GRFE..GSX30 |
9 | ||
| 90119-A0208 |
2GRFE..GSX30 |
9 | ||
| 11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER) | ||||
| 90210-06013 |
2GRFE..GSX30 |
1 | ||
| 90210-06013 |
2GRFE..GSX30 |
1 | ||
| 11202B - WASHER, SEAL(FOR CYLINDER HEAD COVER, LH) | ||||
| 90210-06013 |
2GRFE..GSX30 |
1 | ||
| 90210-06013 |
2GRFE..GSX30 |
1 | ||
| Common parts | ||||
| 90105-06323 | ||||
| 90105-08456 | ||||
| 90105-A0103 | ||||
| 90105-A0119 | ||||
| 90105-A0120 | ||||
| 90105-A0123 | ||||
| 91551-80660 | ||||
| 91551-80870 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
