ZRE181L-DHXDP (2012)

Toyota Auris (Ukp)

Production Oct 2012 - May 2015
Engine 1ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1210-1505)CVT

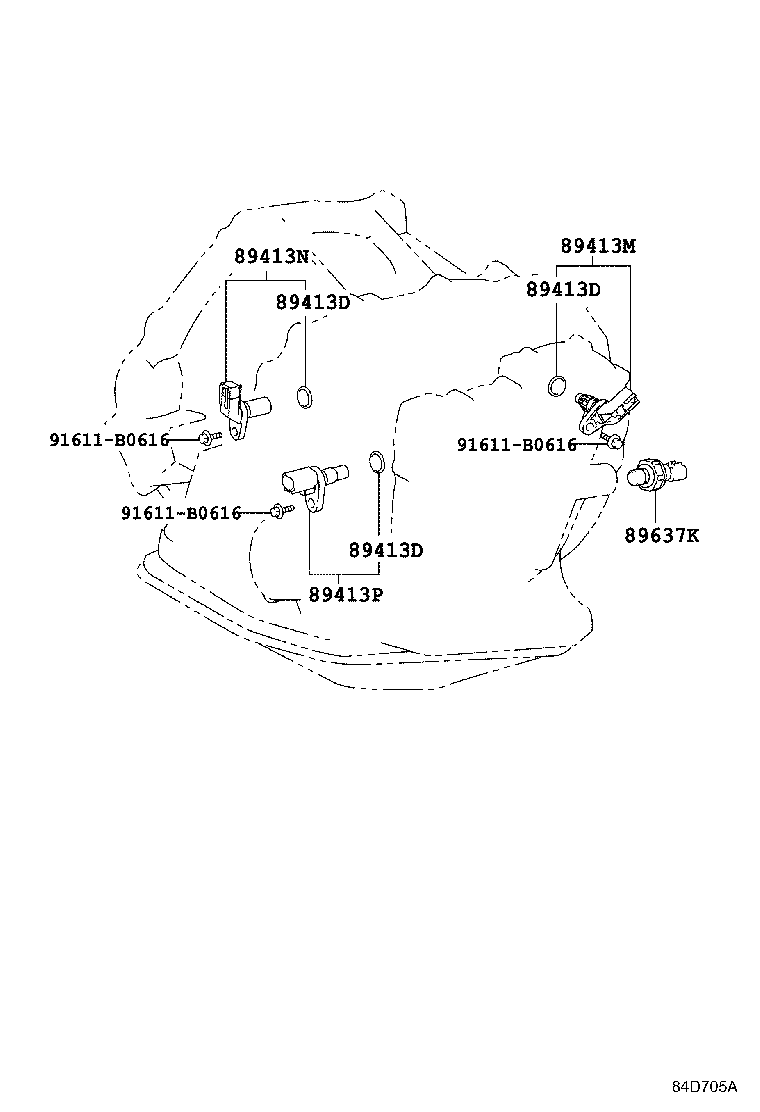

Click highlighted areas on diagram

K311

diagram 89413D 89413D 89413D 89413M 89413N 89413P 89637K 91611B0616 91611B0616 91611B0616
Part # Description Qty Price
89413D - RING, O(FOR TRANSMISSION REVOLUTION SENSOR)
90301-11008

ZRE181..CVT

 3
89413D - RING, O(FOR TRANSMISSION REVOLUTION SENSOR)
90301-11008

ZRE181..CVT

 3
89413D - RING, O(FOR TRANSMISSION REVOLUTION SENSOR)
90301-11008

ZRE181..CVT

 3
89413M - SENSOR, TRANSMISSION REVOLUTION, (NOUT)
89413-12020

ZRE181..CVT

 1
89413N - SENSOR, TRANSMISSION REVOLUTION, (NT)
89413-12020

ZRE181..CVT

 1
89413P - SENSOR, TRANSMISSION REVOLUTION, (NIN)
89413-60020

ZRE181..CVT

 1
89637K - SENSOR, OIL PRESSURE
89637-63010

ZRE181..CVT

 1
Common parts
91611-B0616
