ZRE181L-DHFDP (2012)

Toyota Auris (Ukp)

Production Oct 2012 - May 2015

Engine 1ZRFAE

Transmission 6F MTM

Displacement 2500cc

Power 168 HP (125 kW)

(1210- )

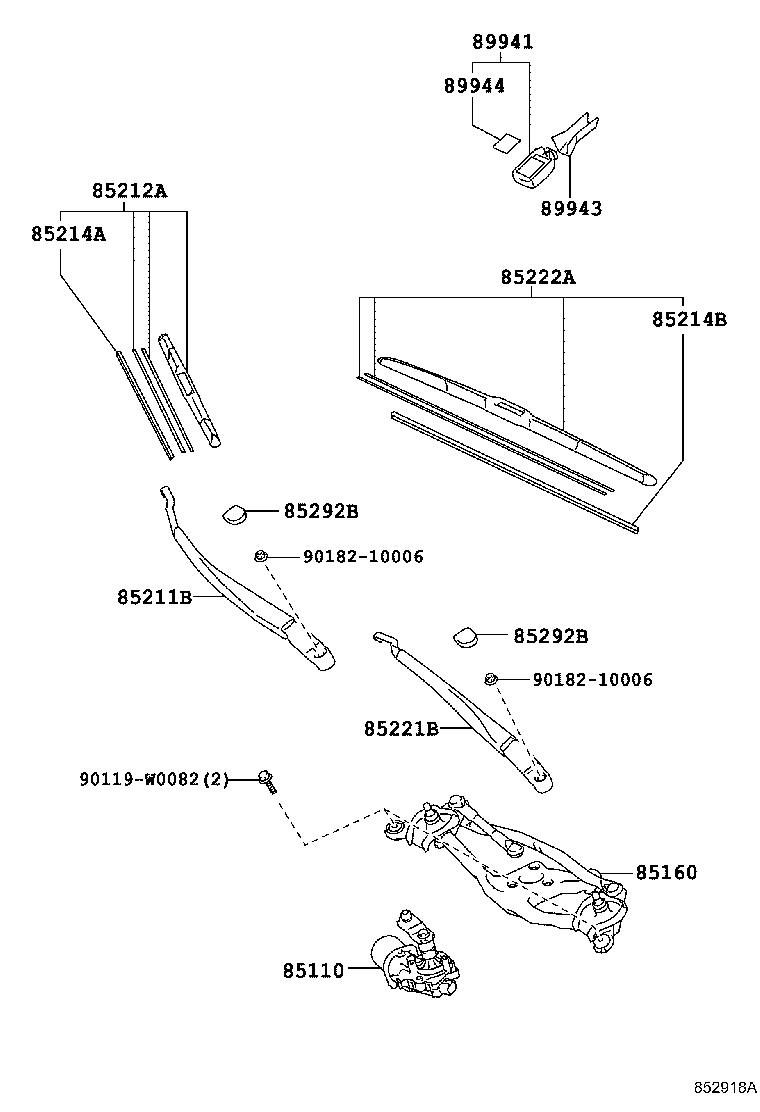

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price
85110 - MOTOR ASSY, WINDSHIELD WIPER
85110-02340	ZRE181	10/2012 - 05/2015	1
85160 - LINK ASSY, WINDSHIELD WIPER
85150-02300	ZRE181	10/2012 - 05/2015	1
85211B - ARM, FRONT WIPER, RH
85211-02300	ZRE181	10/2012 - 05/2015	1
85212A - BLADE, FR WIPER, RH
85212-02250	ZRE181	10/2012 - 05/2015	1
85214A - RUBBER, WIPER, RH
85214-02260	ZRE181	10/2012 - 05/2015	1
85214B - RUBBER, WIPER, LH
85214-02340	ZRE181	03/2013 - 05/2015	1
85214-02220	ZRE181	10/2012 - 02/2013	1
85221B - ARM, FRONT WIPER, LH
85221-02310	ZRE181	10/2012 - 05/2015	1
85222A - BLADE, FR WIPER, LH
85222-02300	ZRE181	10/2012 - 05/2015	1
85292B - CAP, FRONT WIPER ARM HEAD
85292-0F010	ZRE181	10/2012 - 05/2015	2
85292B - CAP, FRONT WIPER ARM HEAD
85292-0F010	ZRE181	10/2012 - 05/2015	2
Common parts
90119-W0082
90182-10006
