ZRE181L-DHFDP (2012)

Toyota Auris (Ukp)

Production Oct 2012 - May 2015
Engine 1ZRFAE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1210- )

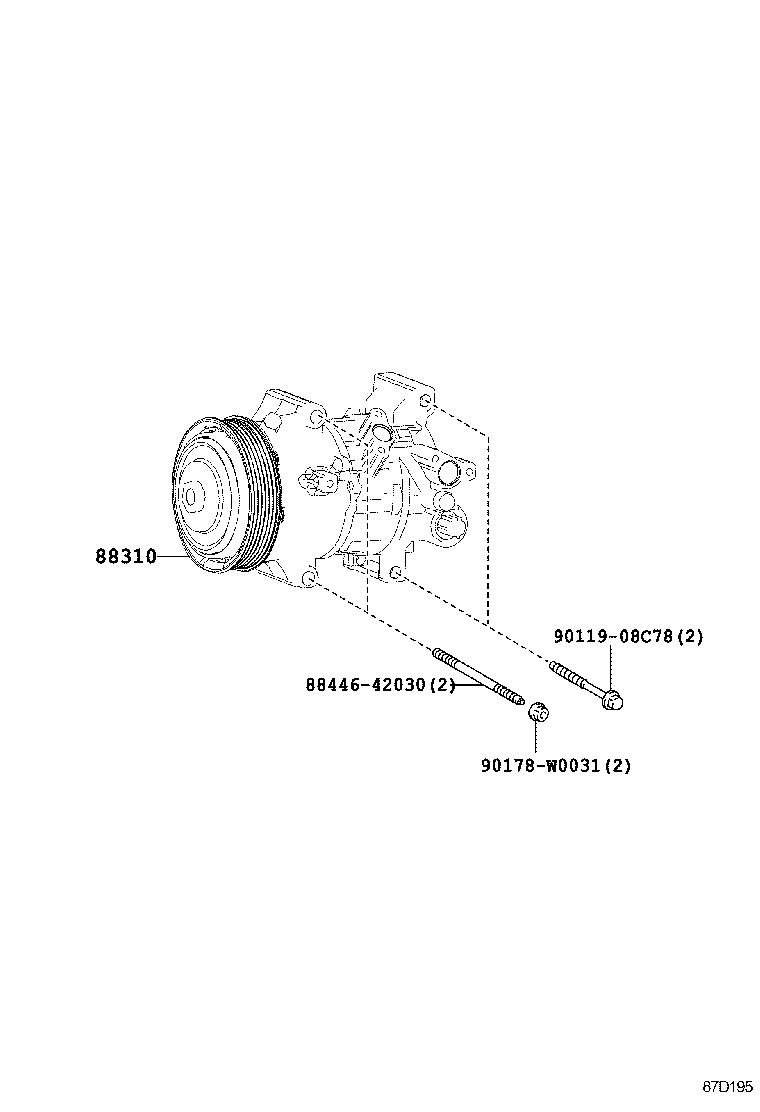

Click highlighted areas on diagram

diagram 88310 8844642030 9011908C78 90178W0031
Part # Description Qty Price
88310 - COMPRESSOR ASSY, W/PULLEY
88310-02790

ZRE181

 1
Common parts
88446-42030
90119-08C78
90178-W0031
