ZRE181L-DHFDP (2012)
Toyota Auris (Ukp)
Production
Oct 2012
-
May 2015
Engine
1ZRFAE
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(1210-1505)

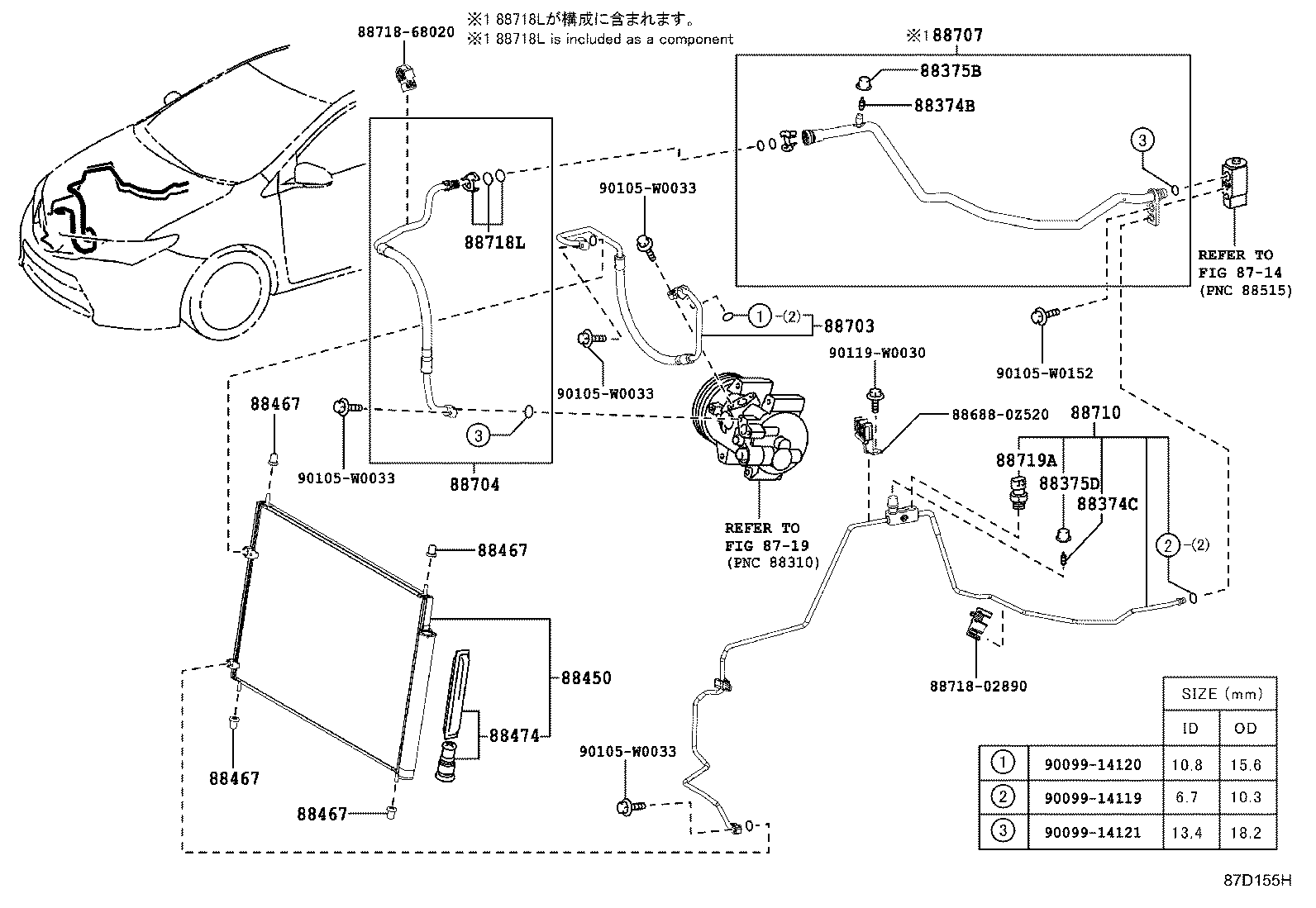

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
ZRE181 |
1 | ||
| 88374C - VALVE, SERVICE, NO.2 | ||||
| 88374-30010 |
ZRE181 |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-30290 |
ZRE181 |
1 | ||
| 88375D - CAP, SERVICE VALVE, NO.2 | ||||
| 88375-30280 |
ZRE181 |
1 | ||
| 88450 - CONDENSER ASSY, W/RECEIVER | ||||
| 88450-12280 |
ZRE181 |
1 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 16716-28010 |
ZRE181 |
4 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 16716-28010 |
ZRE181 |
4 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 16716-28010 |
ZRE181 |
4 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 16716-28010 |
ZRE181 |
4 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-12030 |
ZRE181 |
1 | ||
| 88703 - HOSE SUB-ASSY, DISCHARGE | ||||
| 88703-02770 |
ZRE181 |
1 | ||
| 88704 - HOSE SUB-ASSY, SUCTION | ||||
| 88704-0Z130 |
ZRE181 |
1 | ||
| 88707 - PIPE SUB-ASSY, SUCTION | ||||
| 88707-02200 |
ZRE181 |
1 | ||
| 88710 - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-0Z300 |
ZRE181 |
1 | ||
| 88718L - CLAMP, PIPING | ||||
| 88718-52260 |
ZRE181 |
1 | ||
| 88719A - SENSOR, AIR CONDITIONER PRESSURE | ||||
| 88719-33020 |
ZRE181 |
1 | ||
| Common parts | ||||
| 88688-0Z520 | ||||
| 88718-02890 | ||||
| 88718-68020 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90105-W0033 | ||||
| 90105-W0152 | ||||
| 90119-W0030 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8719 | ||||
