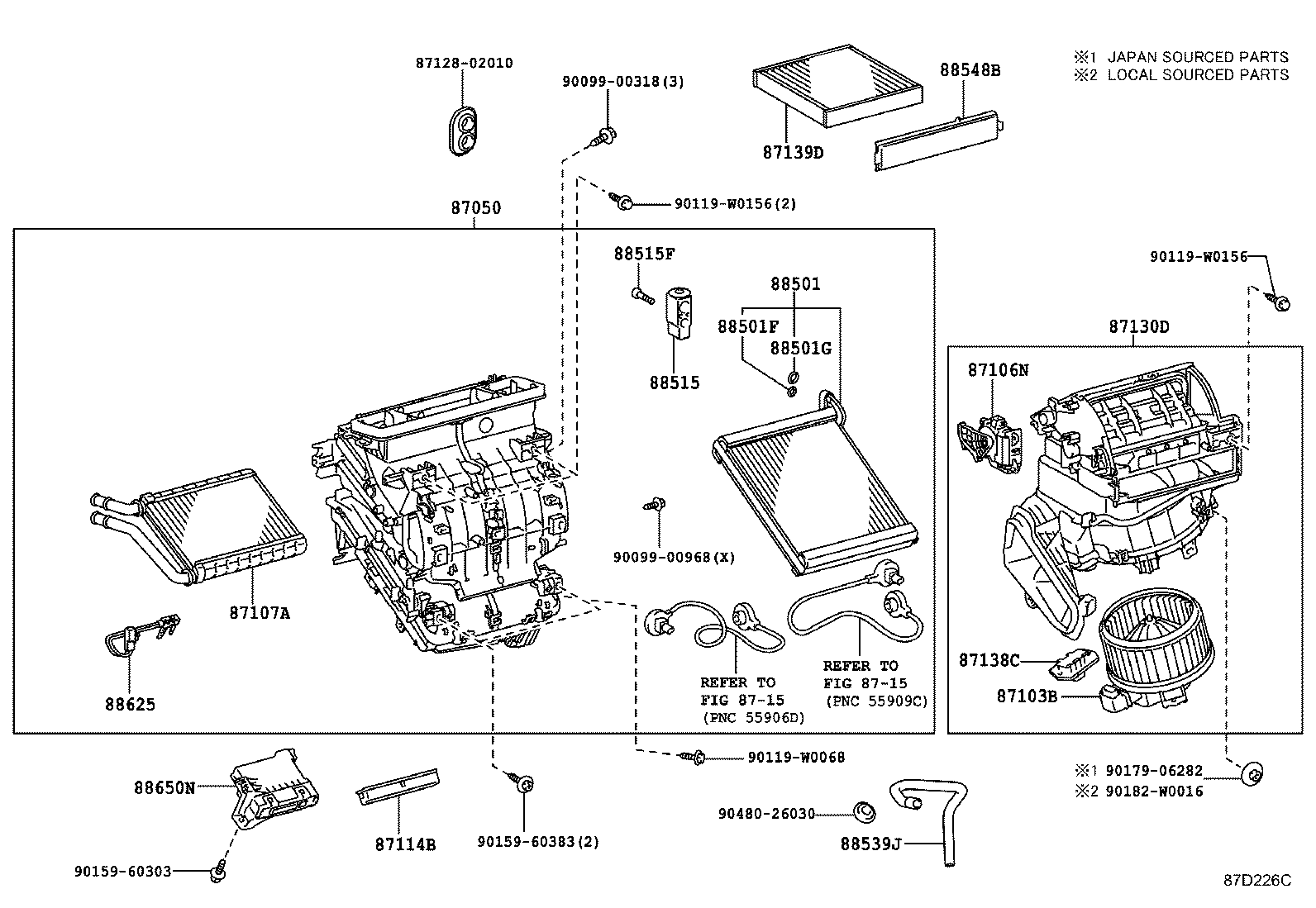

Toyota Auris (ukp) ZRE181 HEATING & AIR CONDITIONING - COOLER UNIT

Part #	Description	Period	Qty
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-02870	ZRE181	10/2012 - 05/2015	1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-02140	ZRE181	10/2012 - 05/2015	1
87106N - SERVO SUB-ASSY, DAMPER(FOR RECIRCULATION)
87106-02170	ZRE181	10/2012 - 10/2013	1
87106-02260	ZRE181	11/2013 - 05/2015	1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-02150	ZRE181	10/2012 - 05/2015	1
87114B - COVER, HEATER
87114-02010	ZRE181	10/2012 - 05/2015	1
87130D - BLOWER ASSY
87130-02291	ZRE181	10/2012 - 05/2015	1
87138C - RESISTOR, BLOWER
87138-02100	ZRE181	10/2012 - 05/2015	1
87139D - ELEMENT, AIR REFINER
87139-0D070	ZRE181 POLLEN FILTER	10/2012 - 05/2015	1
87139-50100	ZRE181 *DPF	10/2012 - 05/2015	1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-02202	ZRE181	10/2012 - 05/2015	1
88501F - O-RING, COOLER EVAPORATOR NO.1(DISCHARGE)
90099-14120	ZRE181 ID=10.8,OD=15.6	10/2012 - 05/2015	1
88501G - O-RING, COOLER EVAPORATOR NO.1(SUCTION)
90099-14121	ZRE181 ID=13.4,OD=18.2	10/2012 - 05/2015	1
88515 - VALVE, COOLER EXPANSION
88515-02520	ZRE181	10/2012 - 05/2015	1
88515F - BOLT(FOR COOLER EXPANSION VALVE)
90099-04542	ZRE181	10/2012 - 05/2015	2
88539J - HOSE, DRAIN COOLER
88539-02260	ZRE181	10/2012 - 05/2015	1
88548B - CASE, AIR FILTER
88548-02070	ZRE181	10/2012 - 05/2015	1
88625 - THERMISTOR, COOLER, NO.1
88625-02110	ZRE181	10/2012 - 05/2015	1
88650N - AMPLIFIER ASSY, AIR CONDITIONER
88650-02360	ZRE181	10/2012 - 05/2015	1
Common parts
87128-02010
90099-00318
90099-00968
90119-W0068
90119-W0156
90159-60303
90159-60383
90179-06282
90182-W0016
90480-26030
Linked diagrams
8715

ZRE181L-DHFDP (2012)
