ZRE181L-DHFDP (2012)
Toyota Auris (Ukp)
Production
Oct 2012
-
May 2015
Engine
1ZRFAE
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(1210-1505)

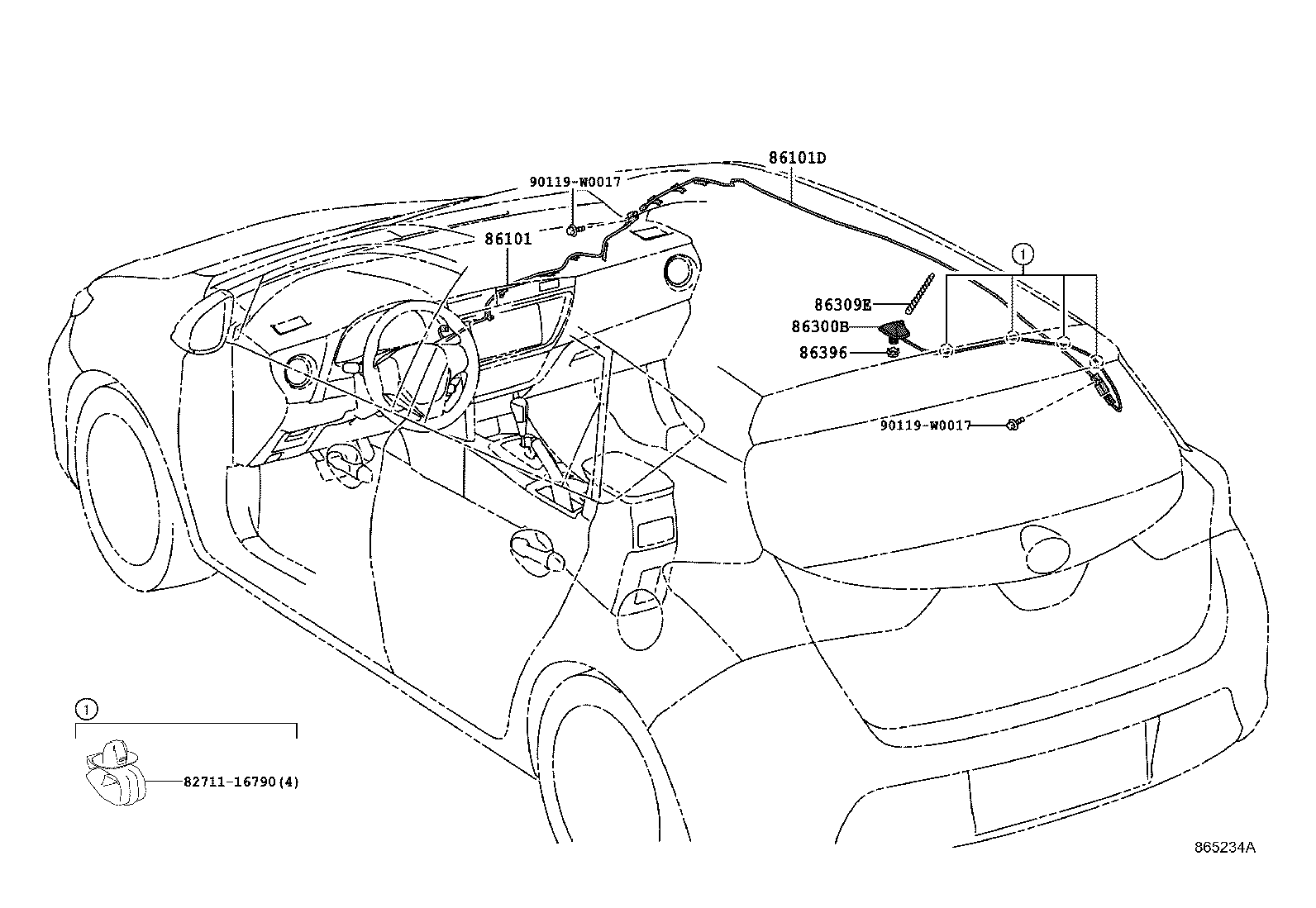

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86101 - CORD SUB-ASSY, ANTENNA | ||||
| 86101-02310 |
ZRE181 |
1 | ||
| 86101-02311 |
ZRE181 |
1 | ||
| 86101D - CORD SUB-ASSY, ANTENNA, NO.3 | ||||
| 86101-02280 |
ZRE181 |
1 | ||
| 86300B - ANTENNA ASSY, AMPLIFIER, NO.1 | ||||
| 86300-02270 |
ZRE181 |
1 | ||
| 86309E - POLE SUB-ASSY, ROOF ANTENNA | ||||
| 86309-0D110 |
ZRE181 |
1 | ||
| 86396 - NUT, ANTENNA | ||||
| 86396-47010 |
ZRE181 |
1 | ||
| Common parts | ||||
| 82711-16790 | ||||
| 90119-W0017 | ||||
