ZRE181L-DHFDP (2012)
Toyota Auris (Ukp)
ILLUST NO. 1 OF 7(1210- )
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-28020 |
ZRE181 DENSO |
1 | ||
| 83530-60020 |
ZRE181 YAZAKI |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-52050 |
ZRE181..6F |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-02280 |
ZRE181 |
1 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-12030 |
ZRE181 |
1 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-12030 |
ZRE181 |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-02020 |
ZRE181 (L) |
1 | ||
| 89615-20090 |
ZRE181 (J) |
1 | ||
| Common parts | ||||
| 82715-02500 | ||||
| 82715-02510 | ||||
| 82715-20C40 | ||||
| 82715-42710 | ||||
| 90105-W0086 | ||||
| 90105-W0140 | ||||
| 90119-W0019 | ||||
| 90430-18008 | ||||
| 91551-80835 | ||||
| 91651-40620 | ||||

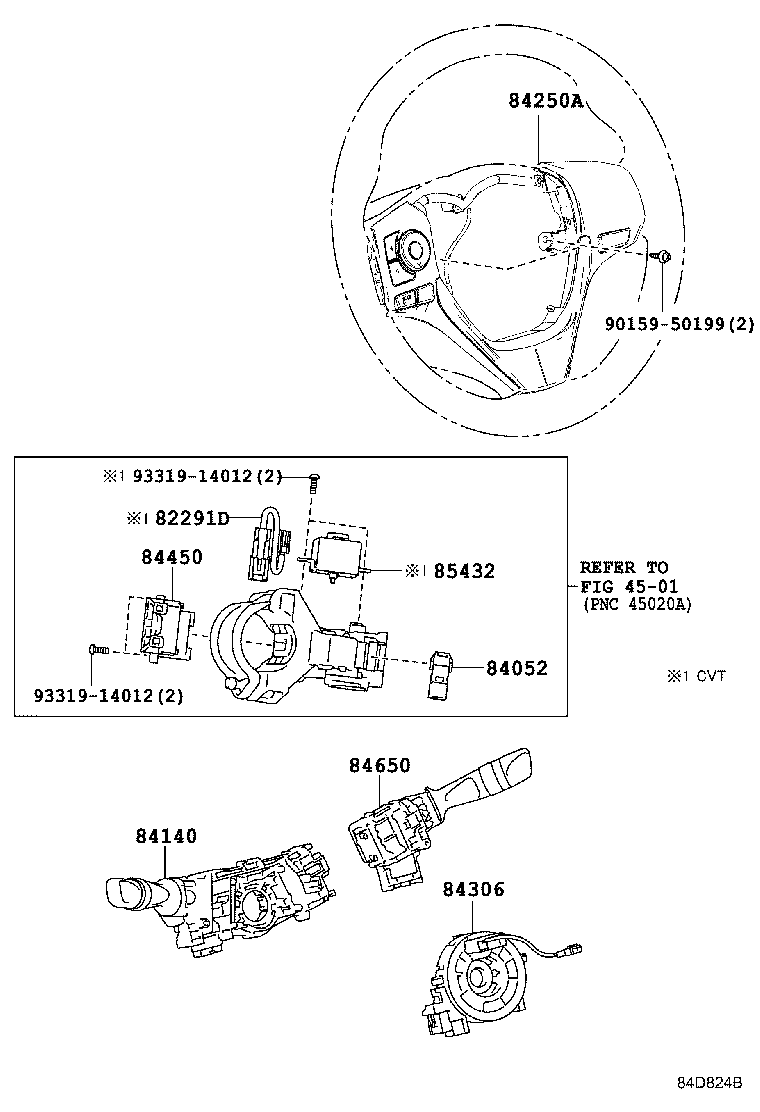

ILLUST NO. 6 OF 7(1210- )
STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-71010 |
ZRE181 |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-02750 |
ZRE181 |
1 | ||
| 84250A - SWITCH ASSY, STEERING PAD | ||||
| 84250-02340C0 |
ZRE181 BLACK,TRIM2# |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-02210 |
ZRE181 |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-02030 |
ZRE181 |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-02540 |
ZRE181 |
1 | ||
| Common parts | ||||
| 90159-50199 | ||||
| 93319-14012 | ||||
| Linked diagrams | ||||
| 4501 | ||||

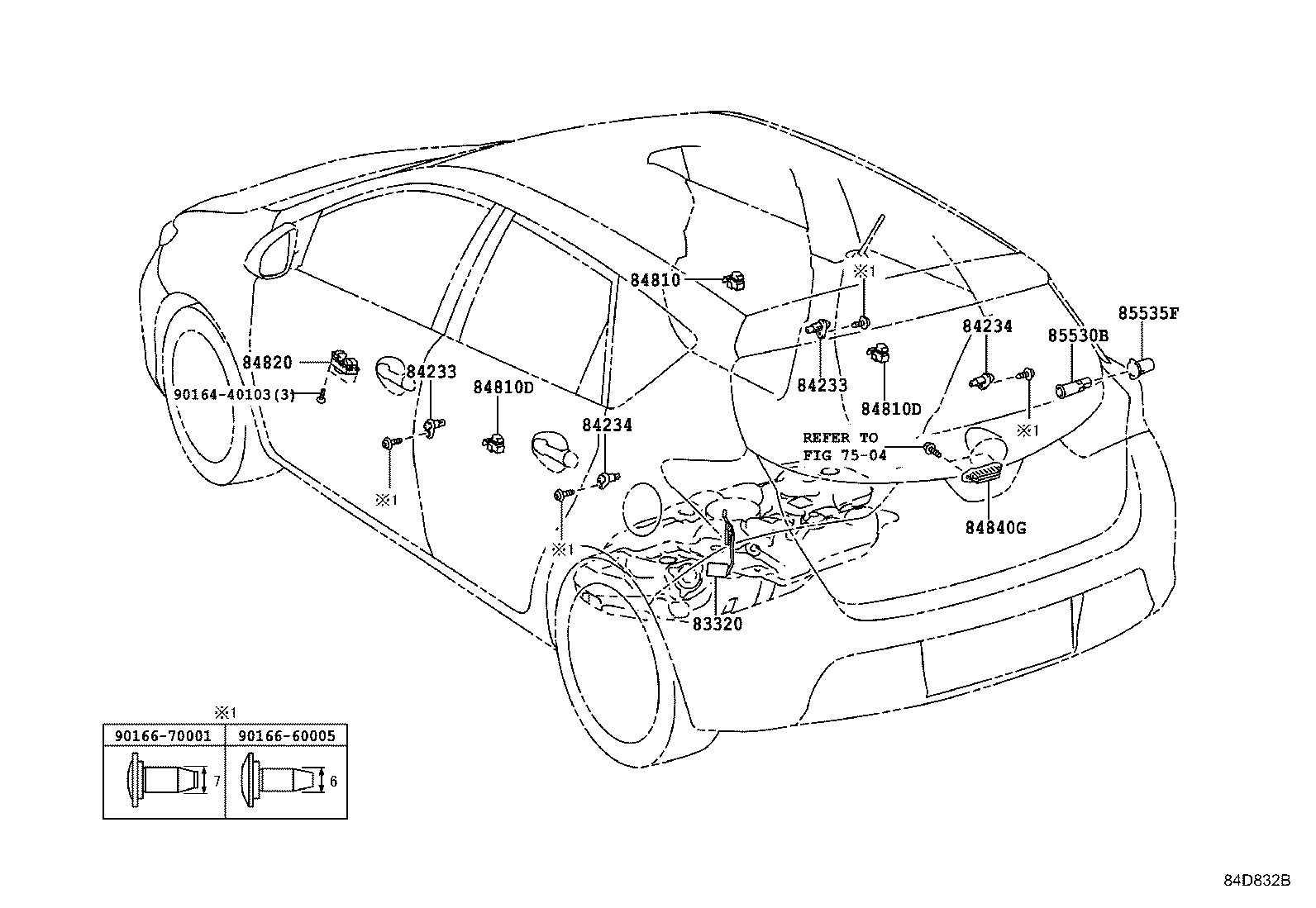

ILLUST NO. 7 OF 7(1210- )
DOOR,ROOF,FLOOR & BACK DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-02170 |
ZRE181 |
1 | ||
| 83320-12760 |
ZRE181 |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-0D030 |
ZRE181 |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-0D030 |
ZRE181 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-0D030 |
ZRE181 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-0D030 |
ZRE181 |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-0D030 |
ZRE181 |
1 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-02340 |
ZRE181 |
1 | ||
| 84840G - SWITCH ASSY, BACK DOOR OPENER | ||||
| 84840-02030 |
ZRE181 |
1 | ||
| 85530B - SOCKET ASSY, POWER OUTLET, REAR NO.1 | ||||
| 85530-0D020 |
ZRE181 |
1 | ||
| 85535F - COVER, POWER OUTLET SOCKET, REAR | ||||
| 85535-12050C0 |
ZRE181 BLACK,TRIM2# |
1 | ||
| Common parts | ||||
| 90164-40103 | ||||
| 90166-60005 | ||||
| 90166-70001 | ||||
| Linked diagrams | ||||
| 7504 | ||||

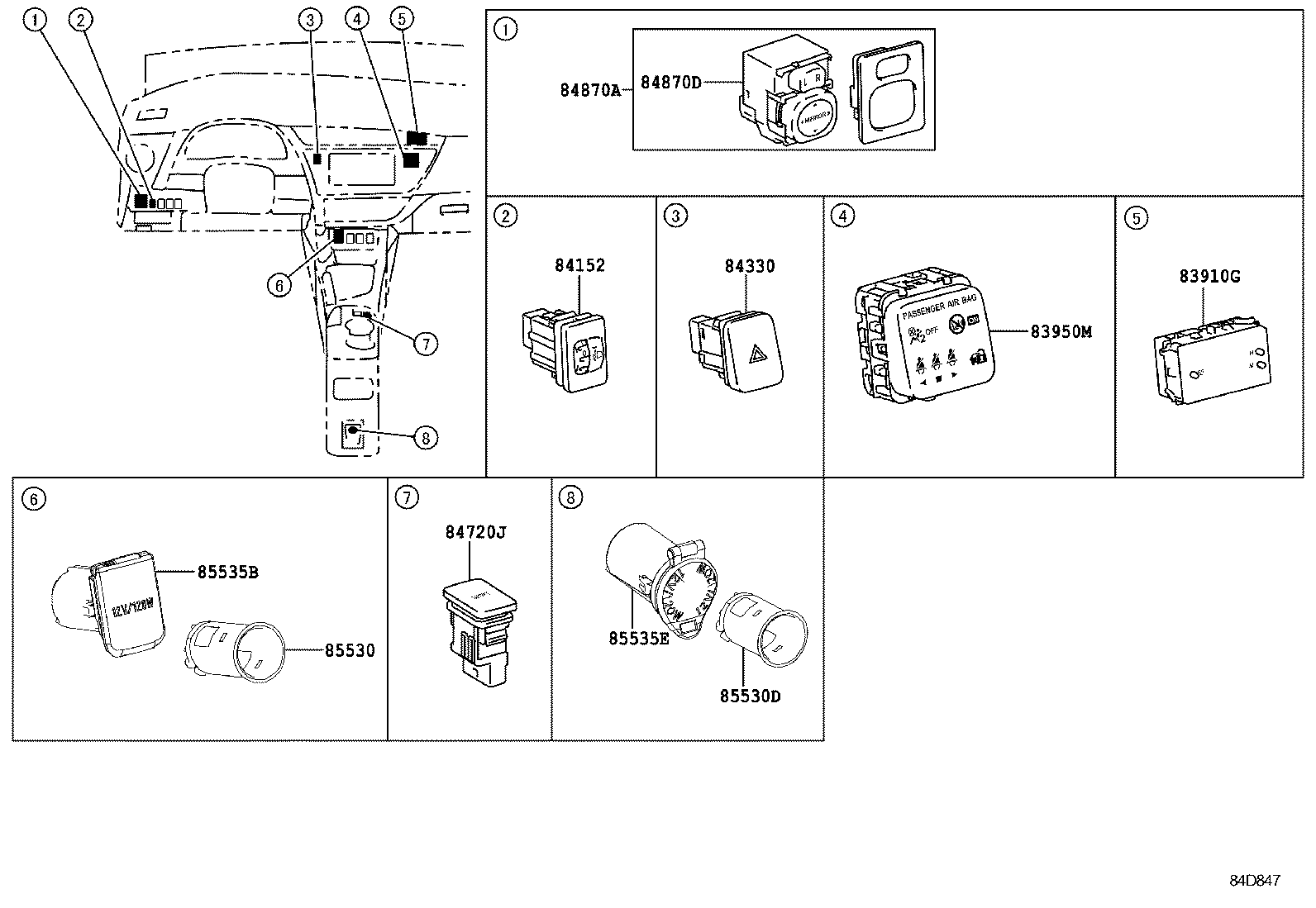

ILLUST NO. 5 OF 7(1210-1505)
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83910G - CLOCK ASSY | ||||
| 83910-12620 |
ZRE181 |
1 | ||
| 83910-12630 |
ZRE181 |
1 | ||
| 83950M - LAMP ASSY, TELLTALE | ||||
| 83950-02190 |
ZRE181 |
1 | ||
| 84152 - SWITCH, HEADLAMP LEVELING | ||||
| 84152-02080 |
ZRE181 |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-02180 |
ZRE181 |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-02090C0 |
ZRE181 BLACK,TRIM2# |
1 | ||
| 84870D - SWITCH ASSY, OUTER MIRROR, NO.2 | ||||
| 84872-02140 |
ZRE181 |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-0D020 |
ZRE181 |
1 | ||
| 85530D - SOCKET ASSY, POWER OUTLET, NO.2 | ||||
| 85530-0D020 |
ZRE181 |
1 | ||
| 85535B - COVER, POWER OUTLET SOCKET, NO.1 | ||||
| 85535-12060 |
ZRE181 |
1 | ||
| 85535E - COVER, POWER OUTLET SOCKET, NO.2 | ||||
| 85535-12050C0 |
ZRE181 BLACK,TRIM2# |
1 | ||

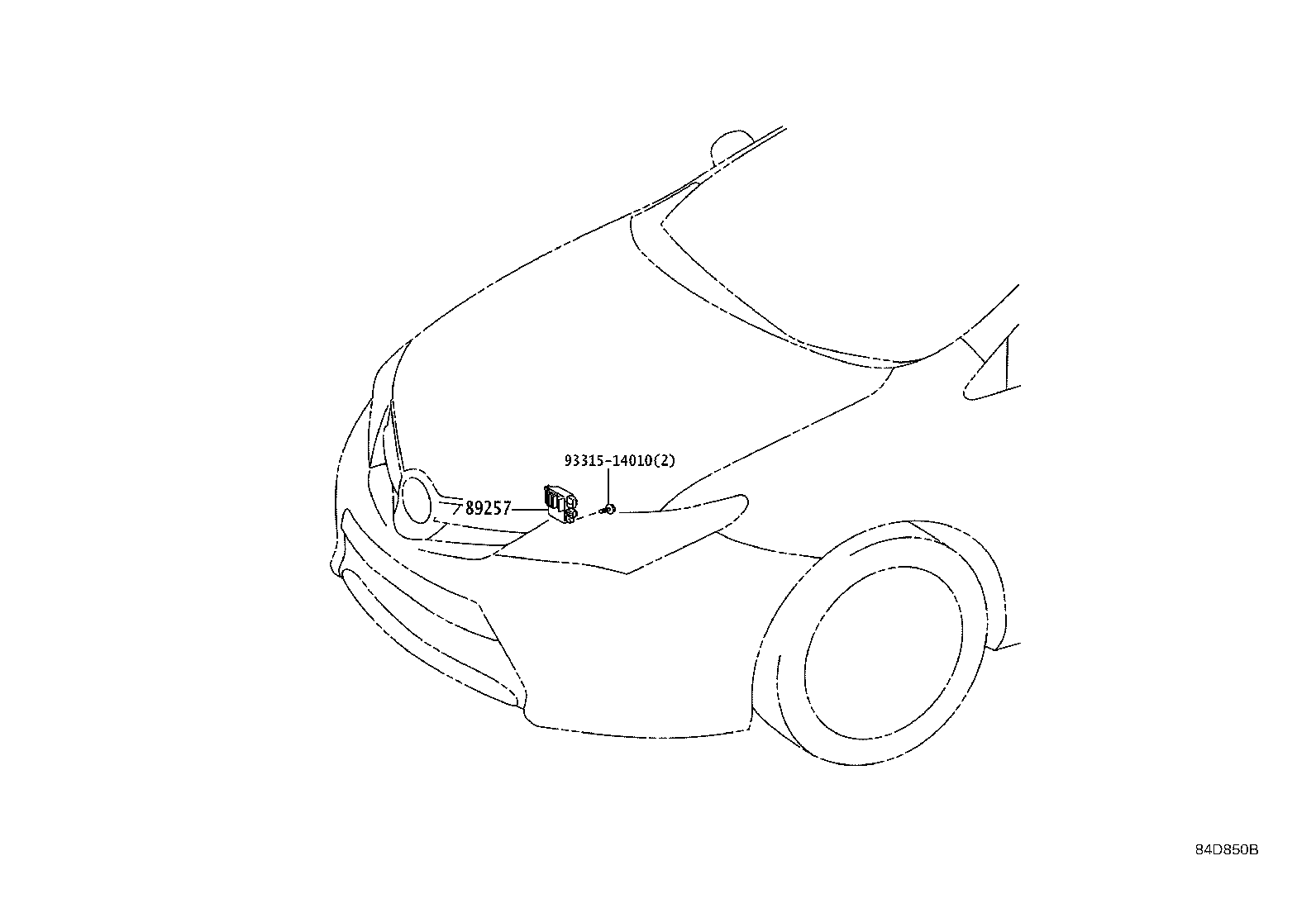

ILLUST NO. 2 OF 7(1210- )
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89257 - COMPUTER, COOLING FAN | ||||
| 89257-12010 |
ZRE181 |
1 | ||
| Common parts | ||||
| 93315-14010 | ||||

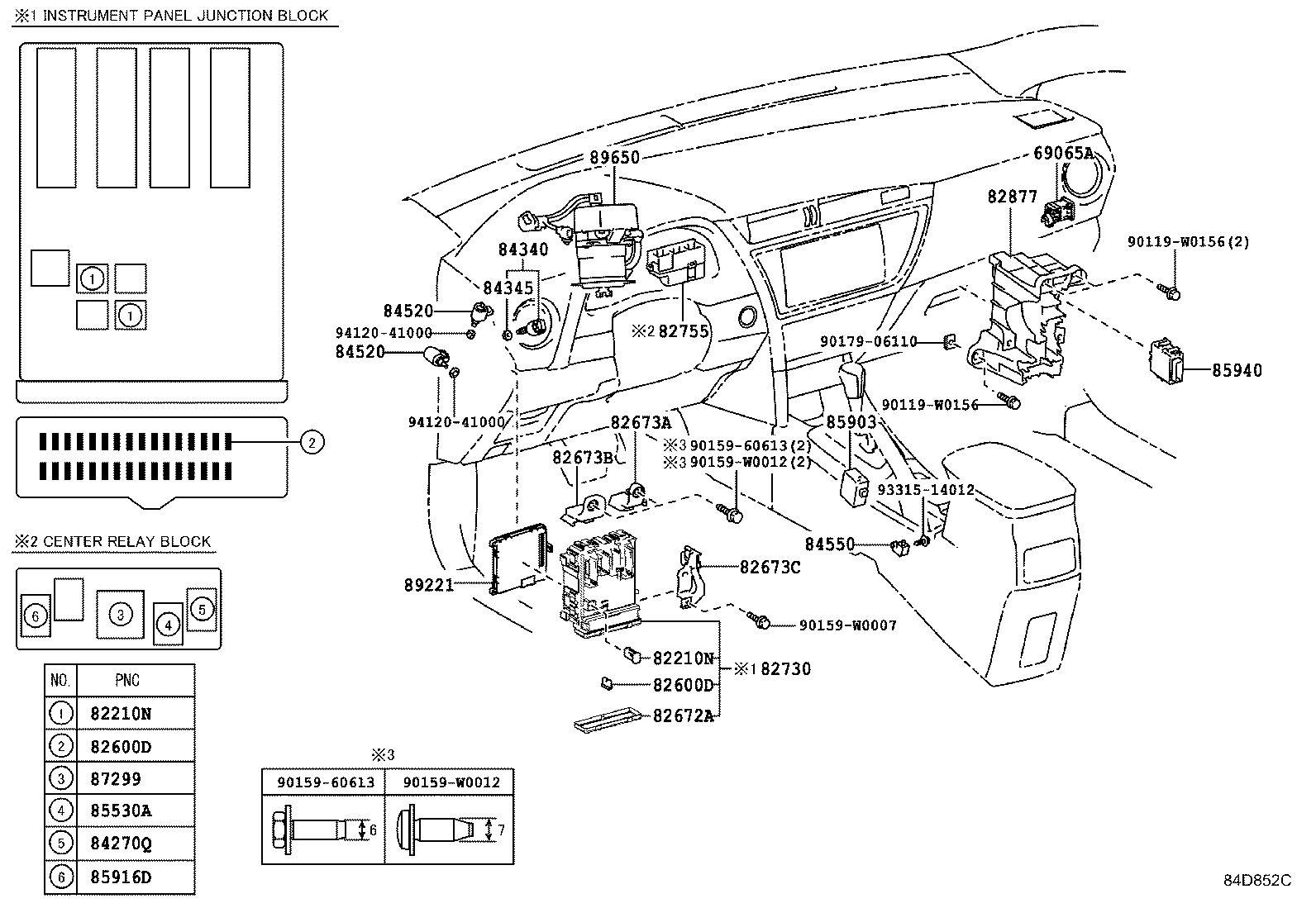

ILLUST NO. 4 OF 7(1210- )
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69065A - CYLINDER SUB-ASSY, AIR BAG CUT OFF SWITCH | ||||
| 69065-02010 |
ZRE181 |
1 | ||
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08306 |
ZRE181 30A,TERM.:FEMALE,PNK |
1 | ||
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08306 |
ZRE181 30A,TERM.:FEMALE,PNK |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09023 |
ZRE181 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09024 |
ZRE181 25A,MINI FUSE |
1 | ||
| 90982-09021 |
ZRE181 10A,MINI FUSE,RED |
1 | ||
| 90982-09020 |
ZRE181 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09019 |
ZRE181 5A,MINI FUSE,TAN |
1 | ||
| 90982-09022 |
ZRE181 15A,MINI FUSE,BLUE |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09023 |
ZRE181 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09024 |
ZRE181 25A,MINI FUSE |
1 | ||
| 90982-09021 |
ZRE181 10A,MINI FUSE,RED |
1 | ||
| 90982-09020 |
ZRE181 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09019 |
ZRE181 5A,MINI FUSE,TAN |
1 | ||
| 90982-09022 |
ZRE181 15A,MINI FUSE,BLUE |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-12450 |
ZRE181 |
1 | ||
| 82673A - BRACKET, JUNCTION BLOCK | ||||
| 82673-02110 |
ZRE181 |
1 | ||
| 82673B - BRACKET, JUNCTION BLOCK | ||||
| 82673-02120 |
ZRE181 |
1 | ||
| 82673C - BRACKET, JUNCTION BLOCK | ||||
| 82673-02130 |
ZRE181 |
1 | ||
| 82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION | ||||
| 82730-12X70 |
ZRE181 |
1 | ||
| 82755 - BLOCK, CENTER RELAY | ||||
| 82755-02040 |
ZRE181 |
1 | ||
| 84270Q - RELAY, LAMP CUT | ||||
| 90080-87021 |
ZRE181 |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-09020 |
ZRE181 |
1 | ||
| 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING | ||||
| 84345-51010 |
ZRE181 |
1 | ||
| 84520 - SWITCH ASSY, CLUTCH START | ||||
| 84520-42010 |
ZRE181..6F |
2 | ||
| 84520 - SWITCH ASSY, CLUTCH START | ||||
| 84520-42010 |
ZRE181..6F |
2 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-33010 |
ZRE181 |
1 | ||
| 85530A - RELAY, POWER OUTLET SOCKET | ||||
| 90987-02027 |
ZRE181 |
1 | ||
| 87299 - RELAY, HEATER | ||||
| 90080-87030 |
ZRE181 |
1 | ||
| 89221 - COMPUTER, MULTIPLEX NETWORK BODY | ||||
| 89220-02041 |
ZRE181 |
1 | ||
| 89220-02040 |
ZRE181 |
1 | ||
| 89650 - COMPUTER ASSY, POWER STEERING | ||||
| 89650-12C90 |
ZRE181 |
1 | ||
| Common parts | ||||
| 90119-W0156 | ||||
| 90159-60613 | ||||
| 90159-W0007 | ||||
| 90159-W0012 | ||||
| 90179-06110 | ||||
| 93315-14012 | ||||
| 94120-41000 | ||||

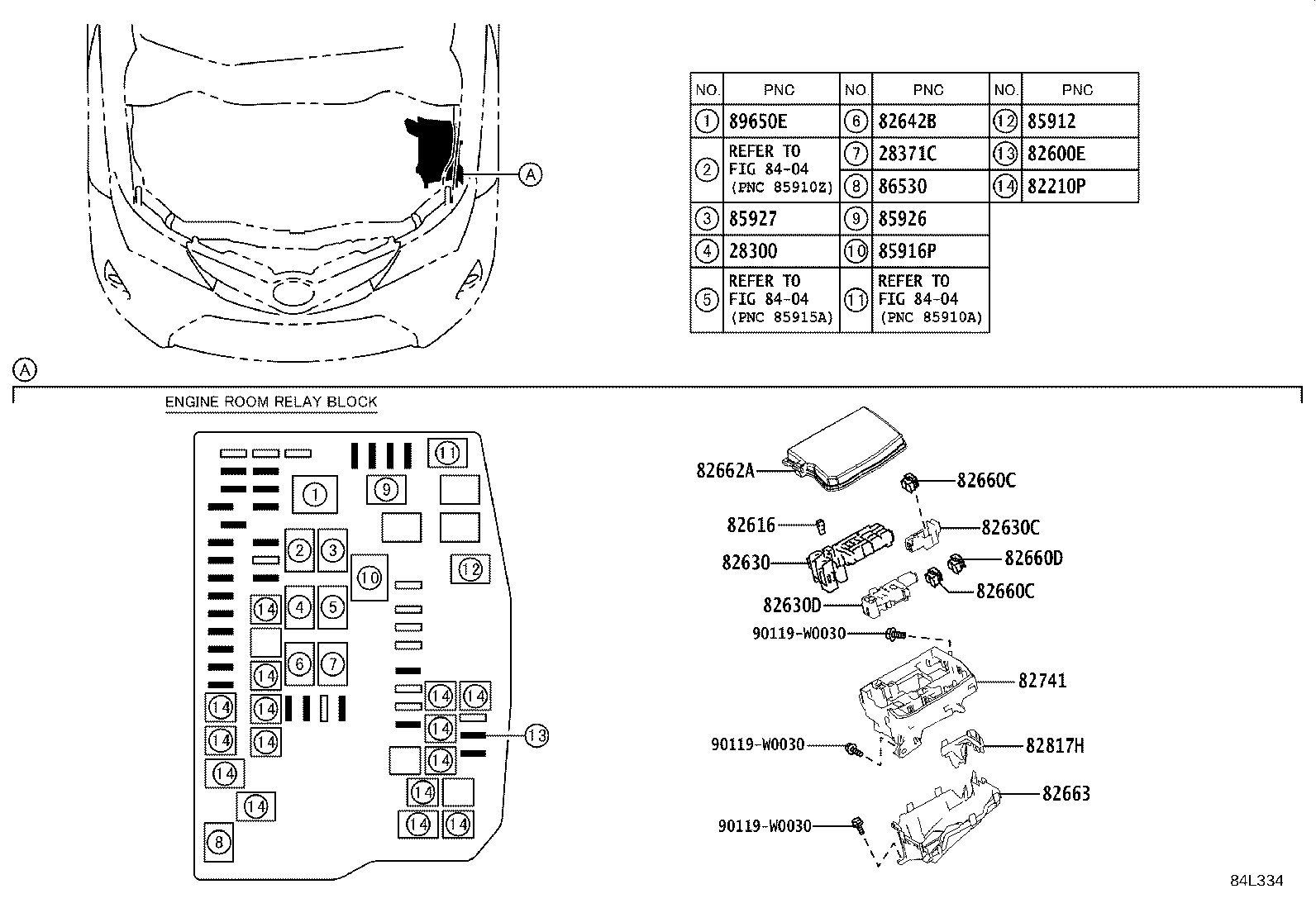

ILLUST NO. 3 OF 7(1210- )
ENGINE ROOM RELAY BLOCK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-21020 |
1ZRFAE..ZRE181 |
1 | ||
| 28300-28010 |
1ZRFAE..ZRE181 |
1 | ||
| 28371C - RELAY, IGNITION, NO.2 | ||||
| 90080-87021 |
1ZRFAE..ZRE181 |
1 | ||
| 82210P - ENGINE ROOM FUSIBLE LINK | ||||
| 90982-08294 |
ZRE181 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08296 |
ZRE181 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08274 |
ZRE181 120A,TERM.:MALE,WHT |
1 | ||
| 90982-08305 |
ZRE181 80A,TERM.:FEMALE,BLK |
1 | ||
| 90982-08295 |
ZRE181 30A,TERM.:FEMALE,PNK |
1 | ||
| 82600E - ENGINE ROOM FUSE | ||||
| 90982-09020 |
ZRE181 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09021 |
ZRE181 10A,MINI FUSE,RED |
1 | ||
| 90982-09019 |
ZRE181 5A,MINI FUSE,TAN |
1 | ||
| 90982-09023 |
ZRE181 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09022 |
ZRE181 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09025 |
ZRE181 30A,MINI FUSE,GRN |
1 | ||
| 90982-09024 |
ZRE181 25A,MINI FUSE |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-58010 |
ZRE181 |
1 | ||
| 82630 - HOLDER ASSY, FUSE | ||||
| 82631-12040 |
ZRE181 |
1 | ||
| 82630C - HOLDER ASSY, FUSE | ||||
| 82631-12060 |
ZRE181 |
1 | ||
| 82630D - HOLDER, FUSE | ||||
| 82631-12100 |
ZRE181 |
1 | ||
| 82642B - RELAY, DAY TIME RUNNING LIGHT, NO.1 | ||||
| 90080-87021 |
ZRE181 |
1 | ||
| 82660C - BLOCK ASSY, RELAY | ||||
| 82660-42030 |
ZRE181 |
2 | ||
| 82660C - BLOCK ASSY, RELAY | ||||
| 82660-42030 |
ZRE181 |
2 | ||
| 82660D - BLOCK ASSY, RELAY | ||||
| 82660-52010 |
ZRE181 |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-02450 |
ZRE181 |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-02090 |
ZRE181 |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-02090 |
ZRE181 |
1 | ||
| 82817H - PROTECTOR, WIRING HARNESS | ||||
| 82817-02E00 |
ZRE181 |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90080-87020 |
ZRE181 |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90080-87030 |
ZRE181 |
1 | ||
| 85926 - RELAY, HEADLAMP DIMMER | ||||
| 90080-87021 |
ZRE181 |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90080-87021 |
ZRE181 |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90080-87021 |
ZRE181 |
1 | ||
| 89650E - RELAY, ELECTRIC POWER STEERING | ||||
| 90080-87030 |
ZRE181 |
1 | ||
| Common parts | ||||
| 90119-W0030 | ||||
| Linked diagrams | ||||
| 8404 | ||||
