ZRE181L-DHFDP (2012)

Toyota Auris (Ukp)

Production Oct 2012 - May 2015
Engine 1ZRFAE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1210- )

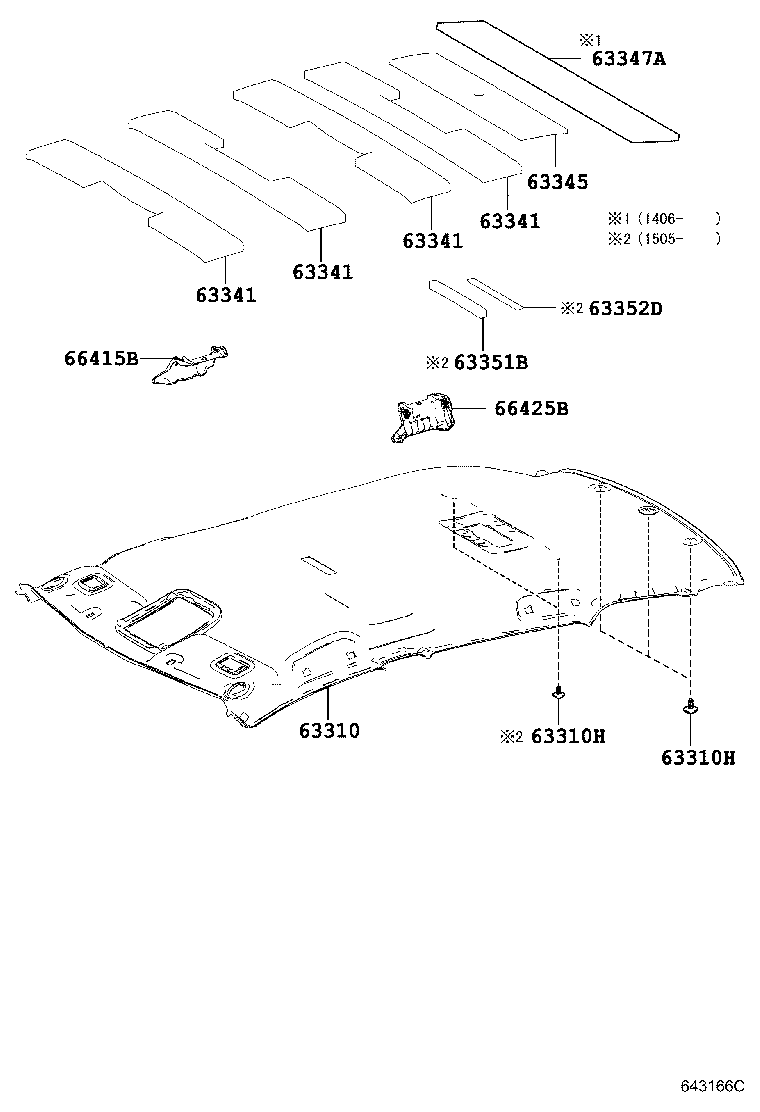

Click highlighted areas on diagram

diagram 63310 63310H 63310H 63341 63341 63341 63341 63345 63347A 63351B 63352D 66415B 66425B
Part # Description Qty Price
63310 - HEADLINING ASSY, ROOF
63310-02D21B3

ZRE181

GRAY,TRIM2#

 1
63310-02D20B3

ZRE181

GRAY,TRIM2#

 1
63310H - CLIP(FOR ROOF HEADLINING)
90467-W0006B0

ZRE181

LT.GRAY,TRIM2#

 3
63310H - CLIP(FOR ROOF HEADLINING)
90467-W0006B0

ZRE181

LT.GRAY,TRIM2#

 3
63341 - PAD, ROOF SILENCER, NO.1
63341-02130

ZRE181

 4
63341 - PAD, ROOF SILENCER, NO.1
63341-02130

ZRE181

 4
63341 - PAD, ROOF SILENCER, NO.1
63341-02130

ZRE181

 4
63341 - PAD, ROOF SILENCER, NO.1
63341-02130

ZRE181

 4
63345 - PAD, ROOF SILENCER, NO.5
63345-02030

ZRE181

 1
63347A - PAD, ROOF SILENCER, NO.7
63347-02120

ZRE181

 1
66415B - SPACER, SIDE RAIL, REAR NO.2 RH
66415-02070

ZRE181

 1
66425B - SPACER, SIDE RAIL, REAR NO.2 LH
66425-02070

ZRE181

 1
