ZRE181L-DHFDP (2012)

Toyota Auris (Ukp)

Production Oct 2012 - May 2015
Engine 1ZRFAE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1210-1505)

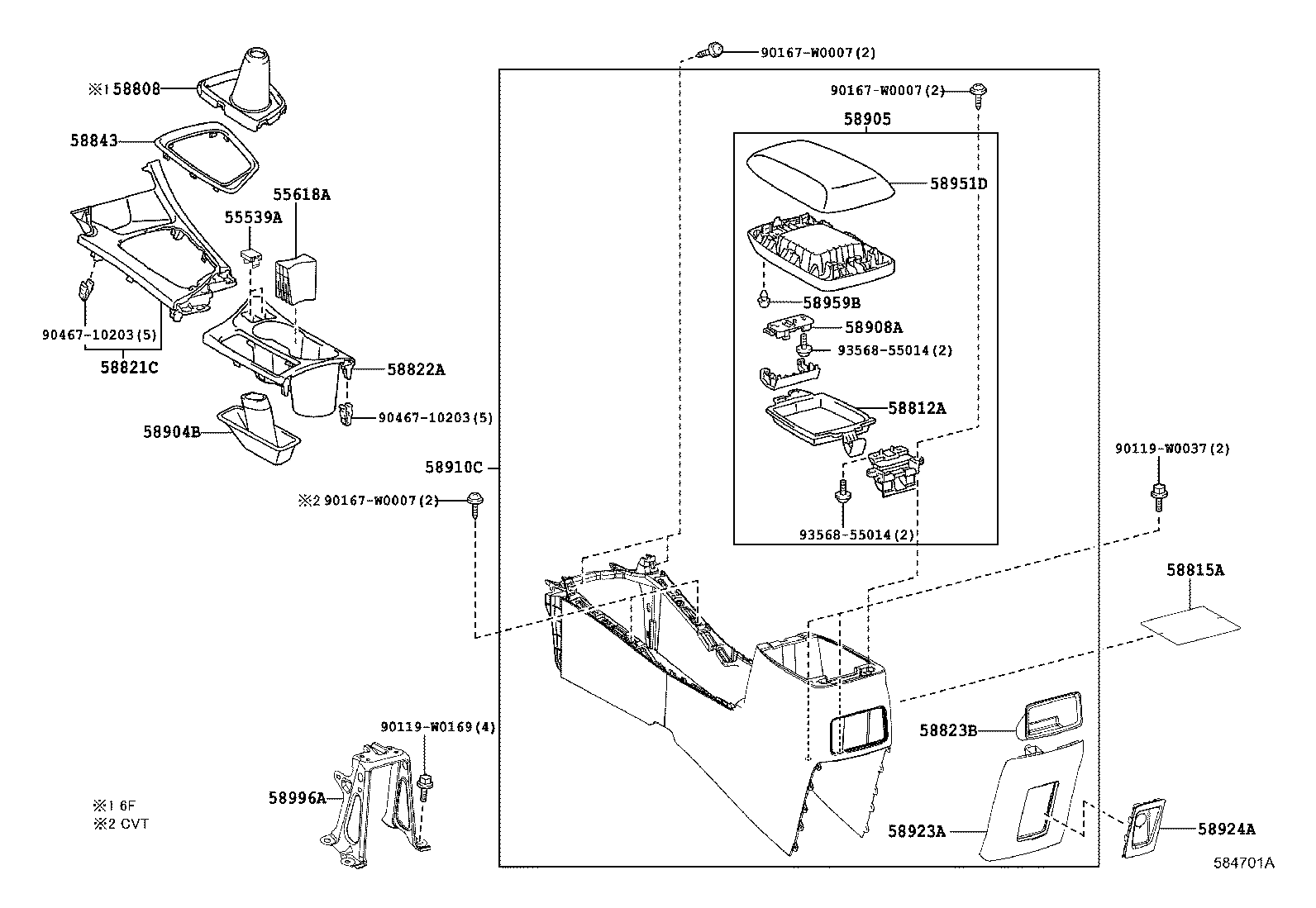

Click highlighted areas on diagram

diagram 55539A 55618A 58808 58812A 58815A 58821C 58822A 58823B 58843 58904B 58905 58908A 58910C 58923A 58924A 58951D 58959B 58996A 90119W0037 90119W0169 90167W0007 90167W0007 90167W0007 9046710203 9046710203 9356855014 9356855014
Part # Description Qty Price
55539A - COVER, SPARE SWITCH HOLE
55539-02100C0

ZRE181

BLACK,TRIM2#

 1
55618A - HOLDER, CONSOLE BOX CUP
55618-02190C0

ZRE181

BLACK,TRIM2#

 1
58808 - COVER SUB-ASSY, SHIFTING HOLE
58808-02290

ZRE181..6F

 1
58812A - BOX, CONSOLE, LOWER
58812-02130C3

ZRE181

BLACK,TRIM2#

 1
58815A - CARPET, CONSOLE BOX
58815-02240

ZRE181

 1
58821C - PANEL, CONSOLE, UPPER
58821-02610C0

ZRE181

BLACK,TRIM2#

 1
58822A - PANEL, CONSOLE, UPPER REAR
58822-02010C0

ZRE181

BLACK,TRIM2#

 1
58823B - BOX, CONSOLE COMPARTMENT
58823-02010C0

ZRE181

BLACK,TRIM2#

 1
58843 - BEZEL, SHIFTING HOLE
58843-02380C0

ZRE181..6F

BLACK,TRIM2#

 1
58904B - COVER SUB-ASSY, PARKING BRAKE HOLE
58904-02190

ZRE181

 1
58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT
58905-02760C4

ZRE181

BLACK,TRIM2#

 1
58908A - LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
58908-02030

ZRE181

 1
58910C - BOX ASSY, CONSOLE, REAR
58910-02160C1

ZRE181

BLACK,TRIM2#

 1
58923A - PANEL, CONSOLE REAR END
58923-02160C0

ZRE181

BLACK,TRIM2#

 1
58924A - PANEL, CONSOLE REAR END, NO.2
58924-02010C0

ZRE181

BLACK,TRIM2#

 1
58951D - DOOR, CONSOLE COMPARTMENT, OUTER
58951-02530C4

ZRE181

BLACK,TRIM2#

 1
58959B - CUSHION, CONSOLE COMPARTMENT DOOR
90541-03078

ZRE181

 3
58959-60060

ZRE181

 3
58996A - BRACKET, CONSOLE BOX MOUNTING, NO.2
58996-02100

ZRE181

 1
Common parts
90119-W0037
90119-W0169
90167-W0007
90467-10203
93568-55014
