ZRE181L-DHFDP (2012)
Toyota Auris (Ukp)
Production
Oct 2012
-
May 2015
Engine
1ZRFAE
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(1210-1505)

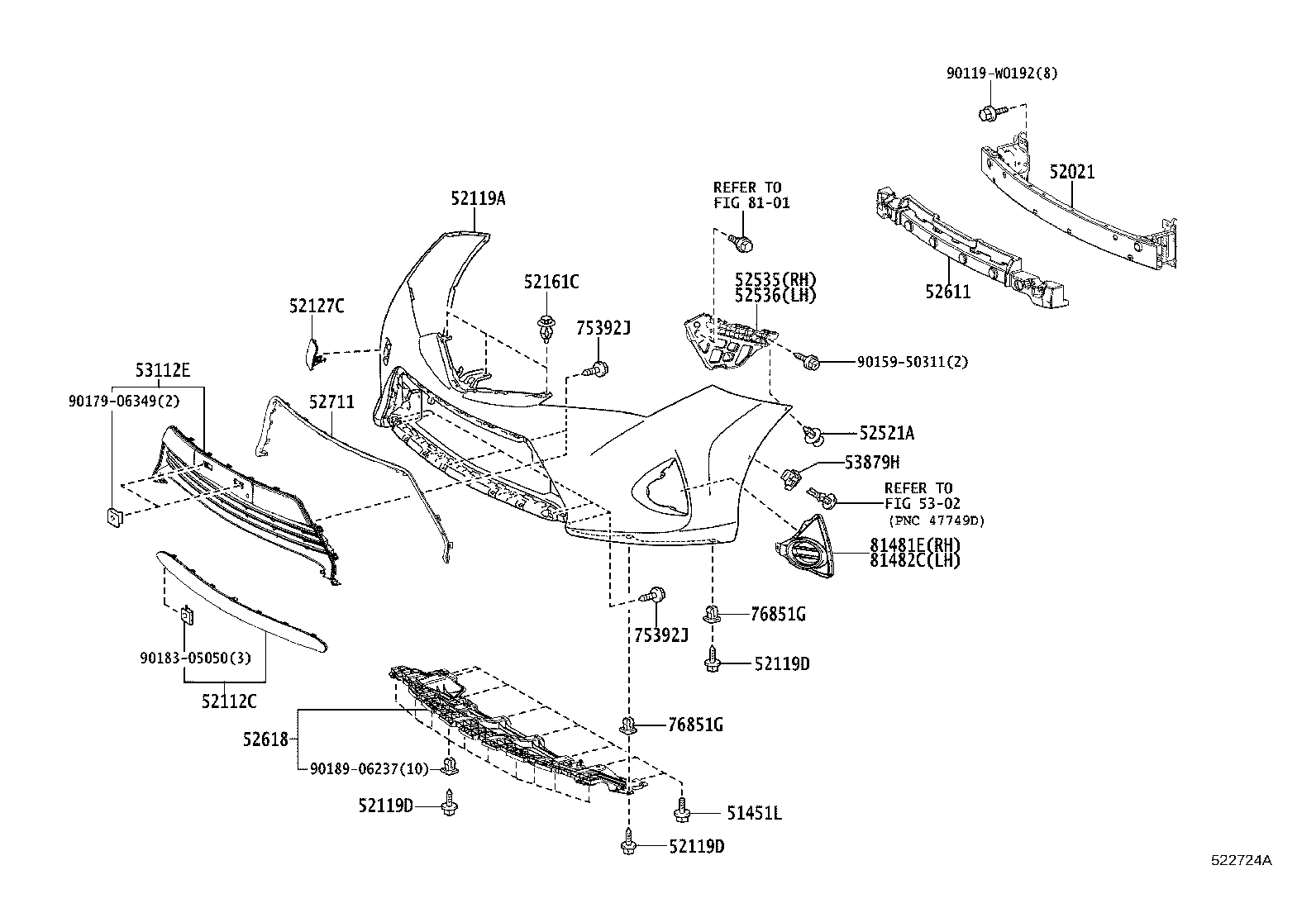

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51451L - BOLT, NO.1 | ||||
| 90119-06767 |
ZRE181 (J) |
8 | ||
| 90119-W0089 |
ZRE181 (L) |
8 | ||
| 52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER | ||||
| 52021-02230 |
ZRE181 |
1 | ||
| 52021-02310 |
ZRE181 |
1 | ||
| 52112C - EXTENSION, FRONT BUMPER | ||||
| 52112-02060 |
ZRE181 |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-0Z923 |
ZRE181 PAINT REQ. |
1 | ||
| 52119D - SCREW, NO.1 | ||||
| 90159-60431 |
ZRE181 (J) |
6 | ||
| 90159-W0007 |
ZRE181 (L) |
2 | ||
| 52119D - SCREW, NO.1 | ||||
| 90159-60431 |
ZRE181 (J) |
6 | ||
| 90159-W0007 |
ZRE181 (L) |
2 | ||
| 52119D - SCREW, NO.1 | ||||
| 90159-60431 |
ZRE181 (J) |
6 | ||
| 90159-W0007 |
ZRE181 (L) |
2 | ||
| 52127C - COVER, FRONT BUMPER HOLE | ||||
| 52127-02919 |
ZRE181 |
1 | ||
| 52161C - PIECE, FRONT BUMPER | ||||
| 52161-02030 |
ZRE181 (L) |
3 | ||
| 52161-16010 |
ZRE181 (J) |
3 | ||
| 52521A - CLIP(FOR FRONT BUMPER RETAINER) | ||||
| 90467-05170 |
ZRE181 |
2 | ||
| 52535 - RETAINER, FRONT BUMPER SIDE, RH | ||||
| 52535-02050 |
ZRE181 |
1 | ||
| 52536 - RETAINER, FRONT BUMPER SIDE, LH | ||||
| 52536-02040 |
ZRE181 |
1 | ||
| 52611 - ABSORBER, FRONT BUMPER ENERGY | ||||
| 52611-02260 |
ZRE181 |
1 | ||
| 52618 - ABSORBER, FRONT BUMPER, LOWER | ||||
| 52618-02040 |
ZRE181 |
1 | ||
| 52711 - MOULDING, FRONT BUMPER | ||||
| 52711-02060 |
ZRE181 NO PAINT REQ. |
1 | ||
| 53112E - GRILLE, RADIATOR, LOWER NO.1 | ||||
| 53112-02440 |
ZRE181 NO PAINT REQ. |
1 | ||
| 53879H - RETAINER, FRONT FENDER LINER | ||||
| 53879-50020 |
ZRE181 |
2 | ||
| 75392J - RETAINER, OUTSIDE MOULDING | ||||
| 75392-42030 |
ZRE181 |
9 | ||
| 75392J - RETAINER, OUTSIDE MOULDING | ||||
| 75392-42030 |
ZRE181 |
9 | ||
| 76851G - GROMMET, SCREW, NO.1 | ||||
| 90189-06237 |
ZRE181 |
4 | ||
| 76851G - GROMMET, SCREW, NO.1 | ||||
| 90189-06237 |
ZRE181 |
4 | ||
| 81481E - COVER, FOG LAMP, RH | ||||
| 81481-02300 |
ZRE181 |
1 | ||
| 81482C - COVER, FOG LAMP, LH | ||||
| 81482-02290 |
ZRE181 |
1 | ||
| Common parts | ||||
| 90119-W0192 | ||||
| 90159-50311 | ||||
| 90179-06349 | ||||
| 90183-05050 | ||||
| 90189-06237 | ||||
| Linked diagrams | ||||
| 5302 | ||||
| 8101 | ||||
