ZRE181L-DHFDP (2012)

Toyota Auris (Ukp)

Production Oct 2012 - May 2015
Engine 1ZRFAE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1210- )

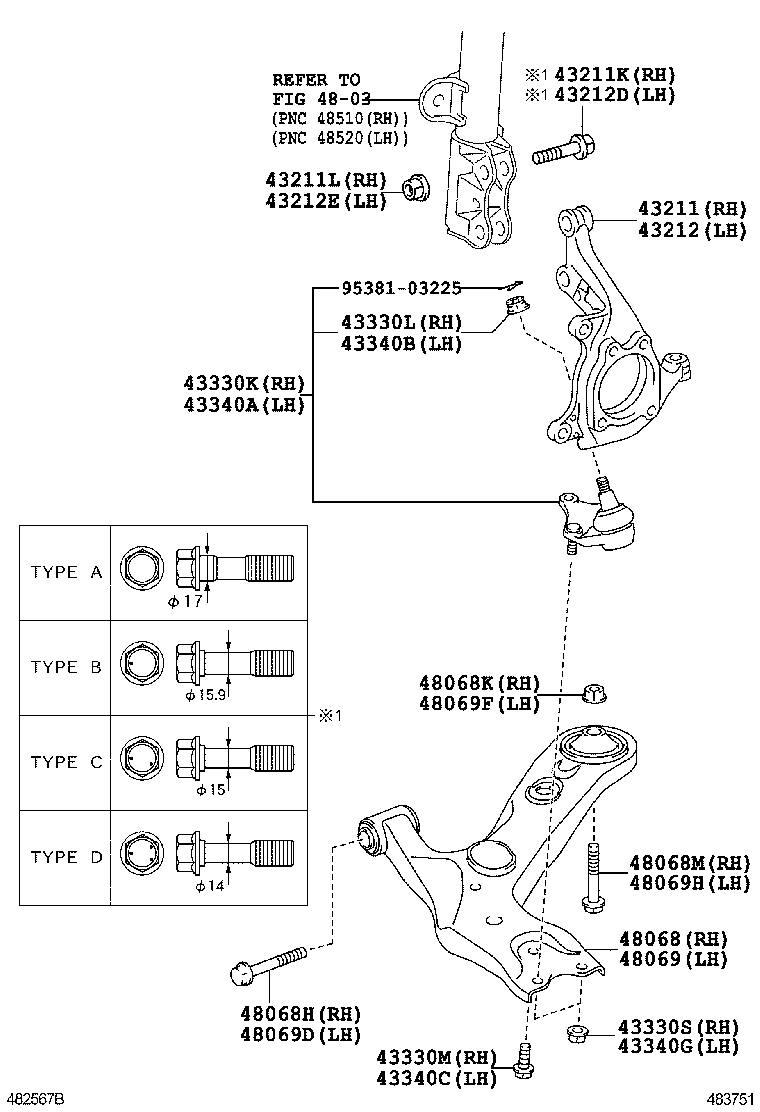

Click highlighted areas on diagram

diagram 43211 43211K 43211L 43212 43212D 43212E 43330K 43330L 43330M 43330S 43340A 43340B 43340C 43340G 4803 48068 48068H 48068K 48068M 48069 48069D 48069F 48069H 9538103225
Part # Description Qty Price
43211 - KNUCKLE, STEERING, RH
43211-05090

ZRE181

 1
43211K - BOLT (FOR STEERING KNUCKLE RH)
90105-17009

ZRE181

OD=15.9,TYPE B:REFER ILLUST.

 1
90105-17011

ZRE181

OD=14,TYPE D:REFER ILLUST.

 1
90105-17010

ZRE181

OD=15,TYPE C:REFER ILLUST.

 1
90105-W0070

ZRE181

OD=17,TYPE A:REFER ILLUST.

 2
43211L - NUT (FOR STEERING KNUCKLE RH)
90178-17002

ZRE181

 2
43212 - KNUCKLE, STEERING, LH
43212-05090

ZRE181

 1
43212D - BOLT (FOR STEERING KNUCKLE LH)
90105-17009

ZRE181

OD=15.9,TYPE B:REFER ILLUST.

 1
90105-17010

ZRE181

OD=15,TYPE C:REFER ILLUST.

 1
90105-W0070

ZRE181

OD=17,TYPE A:REFER ILLUST.

 2
90105-17011

ZRE181

OD=14,TYPE D:REFER ILLUST.

 1
43212E - NUT (FOR STEERING KNUCKLE LH)
90178-17002

ZRE181

 2
43330K - JOINT ASSY, LOWER BALL, FRONT RH
43330-09630

ZRE181

 1
43330L - NUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)
90171-14003

ZRE181

 1
43330M - BOLT (FOR FRONT LOWER BALL JOINT RH)
90105-W0077

ZRE181

 1
43330S - NUT (FOR FRONT LOWER BALL JOINT RH)
90178-12019

ZRE181

 2
43340A - JOINT ASSY, LOWER BALL, FRONT LH
43330-09630

ZRE181

 1
43340B - NUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)
90171-14003

ZRE181

 1
43340C - BOLT (FOR FRONT LOWER BALL JOINT LH)
90105-W0077

ZRE181

 1
43340G - NUT (FOR FRONT LOWER BALL JOINT LH)
90178-12019

ZRE181

 2
48068 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH
48068-02130

ZRE181

 1
48068H - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)
90105-16090

ZRE181

 1
91554-L1690

ZRE181

 1
48068K - NUT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)
90178-16006

ZRE181

 1
48068M - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)
91554-L1690

ZRE181

 1
90105-16090

ZRE181

 1
48069 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH
48069-02130

ZRE181

 1
48069D - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)
91554-L1690

ZRE181

 1
90105-16090

ZRE181

 1
48069F - NUT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)
90178-16006

ZRE181

 1
48069H - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)
90105-16090

ZRE181

 1
91554-L1690

ZRE181

 1
Common parts
95381-03225
Linked diagrams
4803
