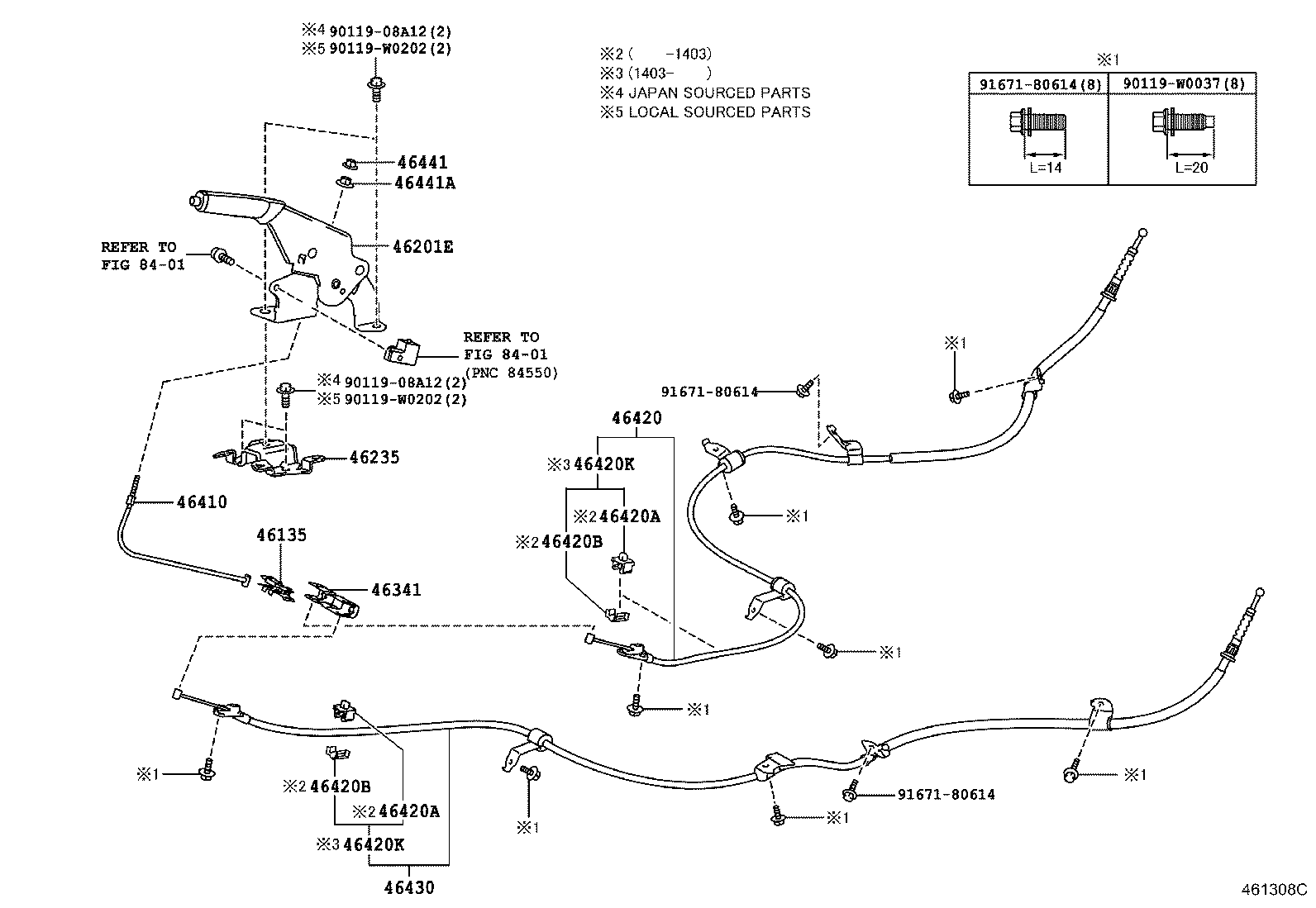

Toyota Auris (ukp) ZRE181 PARKING BRAKE & CABLE

Part #	Description	Period	Qty
46135 - STOPPER, PARKING BRAKE CABLE END
46135-02040	ZRE181	10/2012 - 05/2015	1
46201E - LEVER SUB-ASSY, PARKING BRAKE
46201-02200C0	ZRE181 BLACK,TRIM2#	10/2012 - 05/2015	1
46235 - BRACKET, PARKING BRAKE LEVER SUPPORT
46235-02030	ZRE181	10/2012 - 05/2015	1
46341 - EQUALIZER, PARKING BRAKE
46341-02110	ZRE181	10/2012 - 05/2015	1
46410 - CABLE ASSY, PARKING BRAKE, NO.1
46410-02140	ZRE181	10/2012 - 05/2015	1
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-02121	ZRE181	10/2012 - 05/2015	1
46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE)
46411-12030	ZRE181	10/2012 - 03/2014	2
46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE)
46411-12030	ZRE181	10/2012 - 03/2014	2
46420B - CLAMP, NO.2(FOR PARKING BRAKE CABLE)
46411-12040	ZRE181	10/2012 - 03/2014	2
46420B - CLAMP, NO.2(FOR PARKING BRAKE CABLE)
46411-12040	ZRE181	10/2012 - 03/2014	2
46420K - CLAMP, NO.4(FOR PARKING BRAKE CABLE)
46402-12030	ZRE181	03/2014 - 05/2015	2
46420K - CLAMP, NO.4(FOR PARKING BRAKE CABLE)
46402-12030	ZRE181	03/2014 - 05/2015	2
46430 - CABLE ASSY, PARKING BRAKE, NO.3
46430-02121	ZRE181	10/2012 - 05/2015	1
46441 - NUT, WIRE ADJUSTING, NO.1
90179-06299	ZRE181	10/2012 - 05/2015	1
46441A - NUT, WIRE ADJUSTING, NO.2
46441-12010	ZRE181	10/2012 - 05/2015	1
Common parts
90119-08A12
90119-W0037
90119-W0202
91671-80614
Linked diagrams
8401

ZRE181L-DHFDP (2012)
