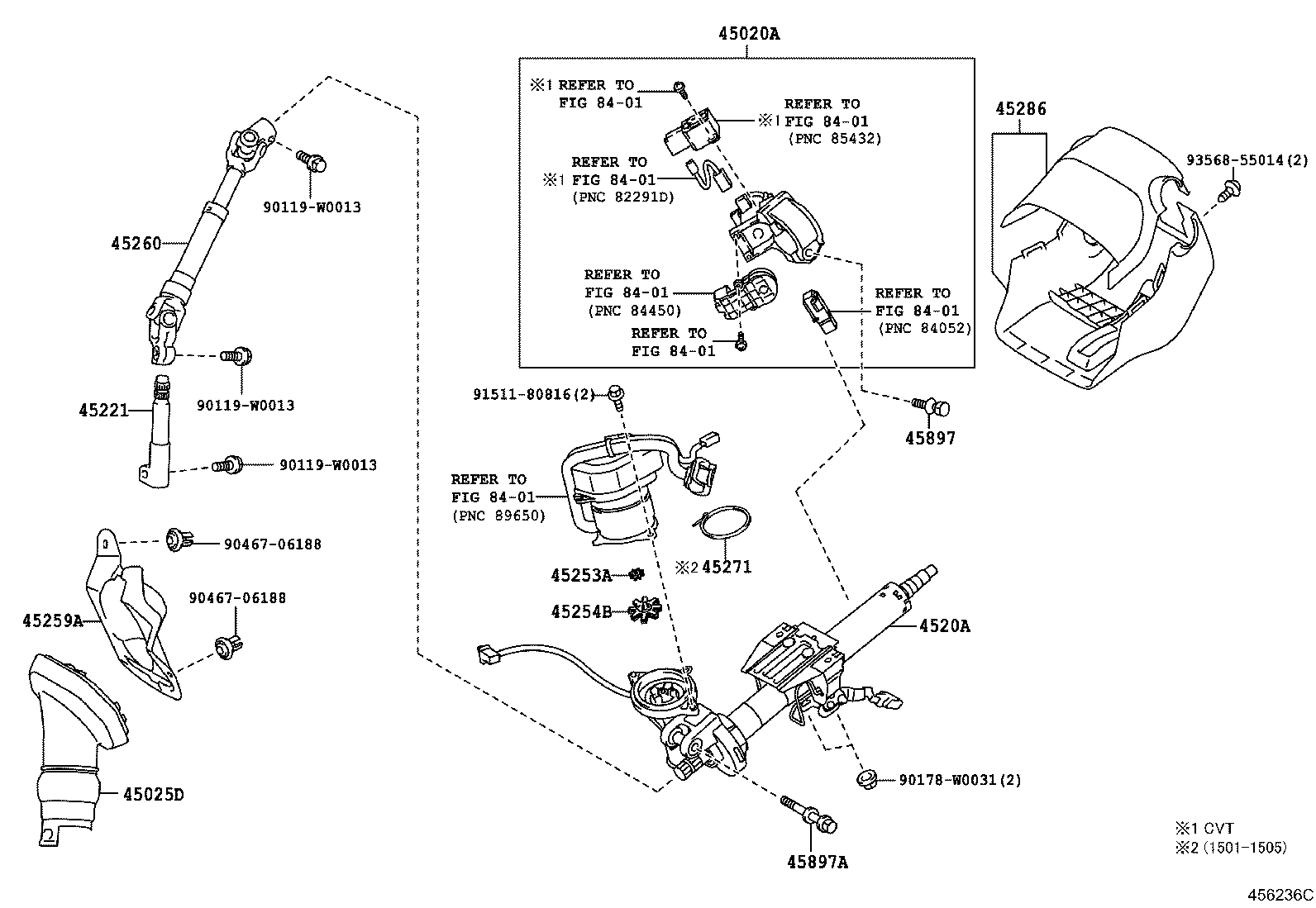

Toyota Auris (ukp) ZRE181 STEERING COLUMN & SHAFT

Part #	Description	Period	Qty
45020A - ACTUATOR ASSY, STEERING LOCK
45020-02480	ZRE181..6F	10/2012 - 05/2015	1
45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45025-02090	ZRE181	10/2012 - 05/2015	1
4520A - COLUMN SUB-ASSY, ELECTRIC POWER STEERING
4520A-02110	ZRE181	10/2012 - 03/2014	1
4520A-02112	ZRE181	01/2015 - 05/2015	1
4520A-02111	ZRE181	04/2014 - 12/2014	1
45221 - SHAFT, STEERING INTERMEDIATE
45221-02100	ZRE181	10/2012 - 05/2015	1
45253A - SPACER, ELECTRIC POWER STEERING MOTOR SHAFT
45253-28130	ZRE181	10/2012 - 05/2015	1
45254B - DAMPER, ELECTRIC POWER STEERING MOTOR SHAFT
45254-28040	ZRE181	10/2012 - 05/2015	1
45259A - SHEET, COLUMN HOLE COVER SILENCER
45259-02080	ZRE181	10/2012 - 05/2015	1
45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2
45260-02160	ZRE181	10/2012 - 05/2015	1
45271 - CLAMP, STEERING COLUMN, UPPER
45271-52040	ZRE181	01/2015 - 05/2015	1
45286 - COVER, STEERING COLUMN
45286-02942C0	ZRE181 BLACK,TRIM2#	10/2012 - 05/2015	1
45897 - BOLT, STEERING LOCK SET
45897-12050	ZRE181	10/2012 - 05/2015	1
45897A - BOLT, TILT STEERING PAWL SET
45897-20020	ZRE181	10/2012 - 12/2012	1
90119-10981	ZRE181	01/2013 - 05/2015	1
Common parts
90119-W0013
90178-W0031
90467-06188
91511-80816
93568-55014
Linked diagrams
8401

ZRE181L-DHFDP (2012)
