ZRE181L-DHFDP (2012)
Toyota Auris (Ukp)
ILLUST NO. 1 OF 3(1210- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42601 - WHEEL, DISC | ||||
| 42611-02E90 |
ZRE181 16X6.5J, #,TIRE & DISC WHEEL-205/55R16 6.5J ALUMI GENERAL COUNTRIES&SPARE TIRE-TEMPORARY(T125/70D17),PNC 42601A = T/P F,TYPE C:REFER ILLUST. |
4 | ||
| 42611-02E90 |
ZRE181 16X6.5J, #,TIRE & DISC WHEEL-205/55R16 6.5J ALUMI GENERAL COUNTRIES,TYPE C:REFER ILLUST. |
4 | ||
| 42611-02B90 |
ZRE181 15X6J, #,TYPE A:REFER ILLUST. |
4 | ||
| 42601A - WHEEL, DISC (FOR SPARE) | ||||
| 42611-0F091 |
ZRE181 17X4T,SPARE TIRE-TEMPORARY(T125/70D17),PNC 42601A = T/P F,TYPE H:REFER ILLUST. |
1 | ||
| 42611-02B90 |
ZRE181 15X6J, #,TYPE A:REFER ILLUST. |
1 | ||
| 42611-02F10 |
ZRE181 16X6.5J, #,TIRE & DISC WHEEL-205/55R16 6.5J ALUMI GENERAL COUNTRIES,TYPE A:REFER ILLUST. |
1 | ||
| 42611-0F090 |
ZRE181 17X4T,SPARE TIRE-TEMPORARY(T125/70D17),PNC 42601A = T/P F,TYPE F:REFER ILLUST. |
1 | ||
| 42601A - WHEEL, DISC (FOR SPARE) | ||||
| 42611-0F091 |
ZRE181 17X4T,SPARE TIRE-TEMPORARY(T125/70D17),PNC 42601A = T/P F,TYPE H:REFER ILLUST. |
1 | ||
| 42611-02B90 |
ZRE181 15X6J, #,TYPE A:REFER ILLUST. |
1 | ||
| 42611-02F10 |
ZRE181 16X6.5J, #,TIRE & DISC WHEEL-205/55R16 6.5J ALUMI GENERAL COUNTRIES,TYPE A:REFER ILLUST. |
1 | ||
| 42611-0F090 |
ZRE181 17X4T,SPARE TIRE-TEMPORARY(T125/70D17),PNC 42601A = T/P F,TYPE F:REFER ILLUST. |
1 | ||
| 42601A - WHEEL, DISC (FOR SPARE) | ||||
| 42611-0F091 |
ZRE181 17X4T,SPARE TIRE-TEMPORARY(T125/70D17),PNC 42601A = T/P F,TYPE H:REFER ILLUST. |
1 | ||
| 42611-02B90 |
ZRE181 15X6J, #,TYPE A:REFER ILLUST. |
1 | ||
| 42611-02F10 |
ZRE181 16X6.5J, #,TIRE & DISC WHEEL-205/55R16 6.5J ALUMI GENERAL COUNTRIES,TYPE A:REFER ILLUST. |
1 | ||
| 42611-0F090 |
ZRE181 17X4T,SPARE TIRE-TEMPORARY(T125/70D17),PNC 42601A = T/P F,TYPE F:REFER ILLUST. |
1 | ||
| 42601C - NUT, HUB (FOR AXLE) | ||||
| 90942-01007 |
ZRE181 TYPE A:REFER ILLUST. |
20 | ||
| 90942-01033 |
ZRE181 TIRE & DISC WHEEL-205/55R16 6.5J ALUMI GENERAL COUNTRIES,TYPE B:REFER ILLUST. |
20 | ||
| 42611G - VALVE (FOR TUBELESS TIRE) | ||||
| 90942-05009 |
ZRE181 |
4 | ||
| 42611J - VALVE (FOR TUBELESS TIRE SPARE) | ||||
| 90942-05009 |
ZRE181 |
1 | ||
| 42652 - TIRE | ||||
| 42652-02P40 |
ZRE181 195/65R15,GOODYEAR |
4 | ||
| 42652-02D31 |
ZRE181 205/55R16,*B/S,TIRE & DISC WHEEL-205/55R16 6.5J ALUMI GENERAL COUNTRIES&SPARE TIRE-TEMPORARY(T125/70D17),PNC 42601A = T/P F |
4 | ||
| 42652-02D11 |
ZRE181 205/55R16,TIRE & DISC WHEEL-205/55R16 6.5J ALUMI GENERAL COUNTRIES |
4 | ||
| 42652-02P41 |
ZRE181 195/65R15,GOODYEAR |
4 | ||
| 42652-02D11 |
ZRE181 205/55R16,TIRE & DISC WHEEL-205/55R16 6.5J ALUMI GENERAL COUNTRIES&SPARE TIRE-TEMPORARY(T125/70D17),PNC 42601A = T/P F |
4 | ||
| 42652-02D31 |
ZRE181 205/55R16,*B/S,TIRE & DISC WHEEL-205/55R16 6.5J ALUMI GENERAL COUNTRIES |
4 | ||
| 42652A - TIRE (FOR SPARE) | ||||
| 42652-02P40 |
ZRE181 195/65R15,GOODYEAR |
1 | ||
| 42652-02D11 |
ZRE181 205/55R16,TIRE & DISC WHEEL-205/55R16 6.5J ALUMI GENERAL COUNTRIES |
1 | ||
| 42652-02L00 |
ZRE181 T125/70D17,*B/S,SPARE TIRE-TEMPORARY(T125/70D17),PNC 42601A = T/P F |
1 | ||
| 42652-05250 |
ZRE181 T125/70D17,MICHELIN,SPARE TIRE-TEMPORARY(T125/70D17),PNC 42601A = T/P F |
1 | ||
| 42652-02P41 |
ZRE181 195/65R15,GOODYEAR |
1 | ||
| 4265A-02020 |
ZRE181 T125/70D17,MICHELIN,SPARE TIRE-TEMPORARY(T125/70D17),PNC 42601A = T/P F |
1 | ||
| 42652-02D31 |
ZRE181 205/55R16,*B/S,TIRE & DISC WHEEL-205/55R16 6.5J ALUMI GENERAL COUNTRIES |
1 | ||
| Linked diagrams | ||||
| 7403 | ||||

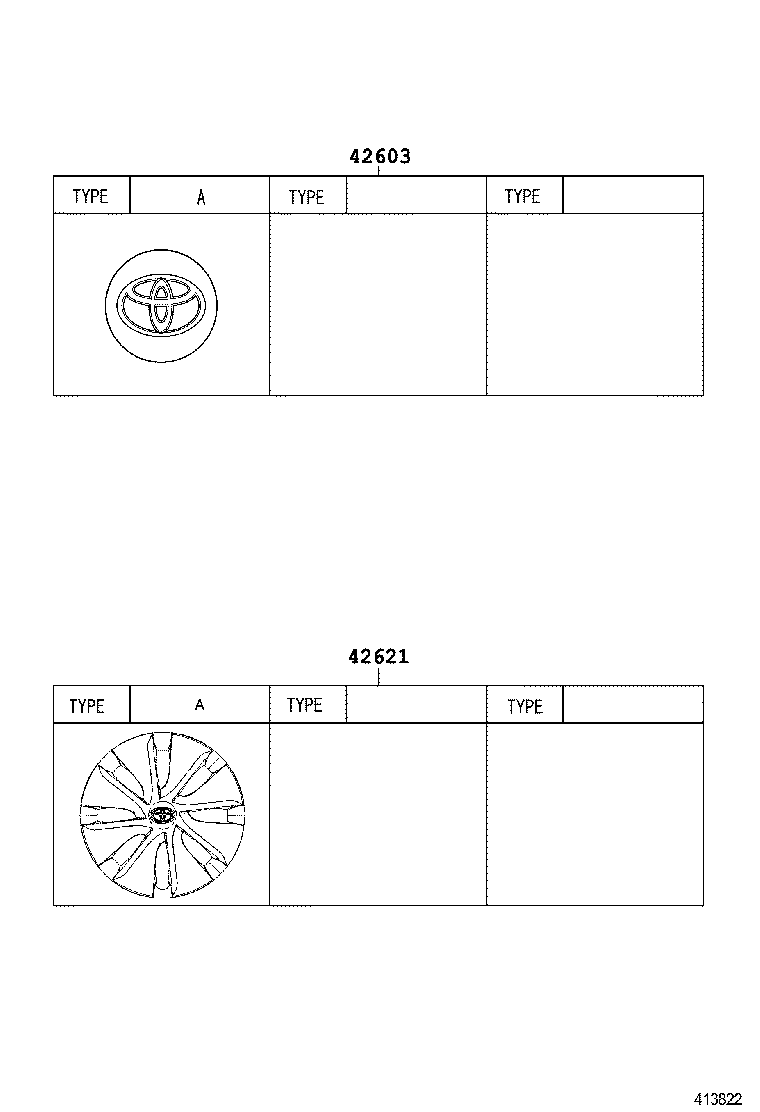

ILLUST NO. 2 OF 3(1210- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42603 - ORNAMENT SUB-ASSY, WHEEL HUB | ||||
| 42603-02300 |
ZRE181 *ALU,TIRE & DISC WHEEL-205/55R16 6.5J ALUMI GENERAL COUNTRIES,(L),T/P A:REF.ILLUST |
4 | ||
| 42603-12760 |
ZRE181 *ALU, NO PAINT REQ.,TIRE & DISC WHEEL-205/55R16 6.5J ALUMI GENERAL COUNTRIES,(J),T/P A:REF.ILLUST |
4 | ||
| 42621 - CAP, WHEEL | ||||
| 42602-02340 |
ZRE181 TYPE A:REFER ILLUST. |
4 | ||

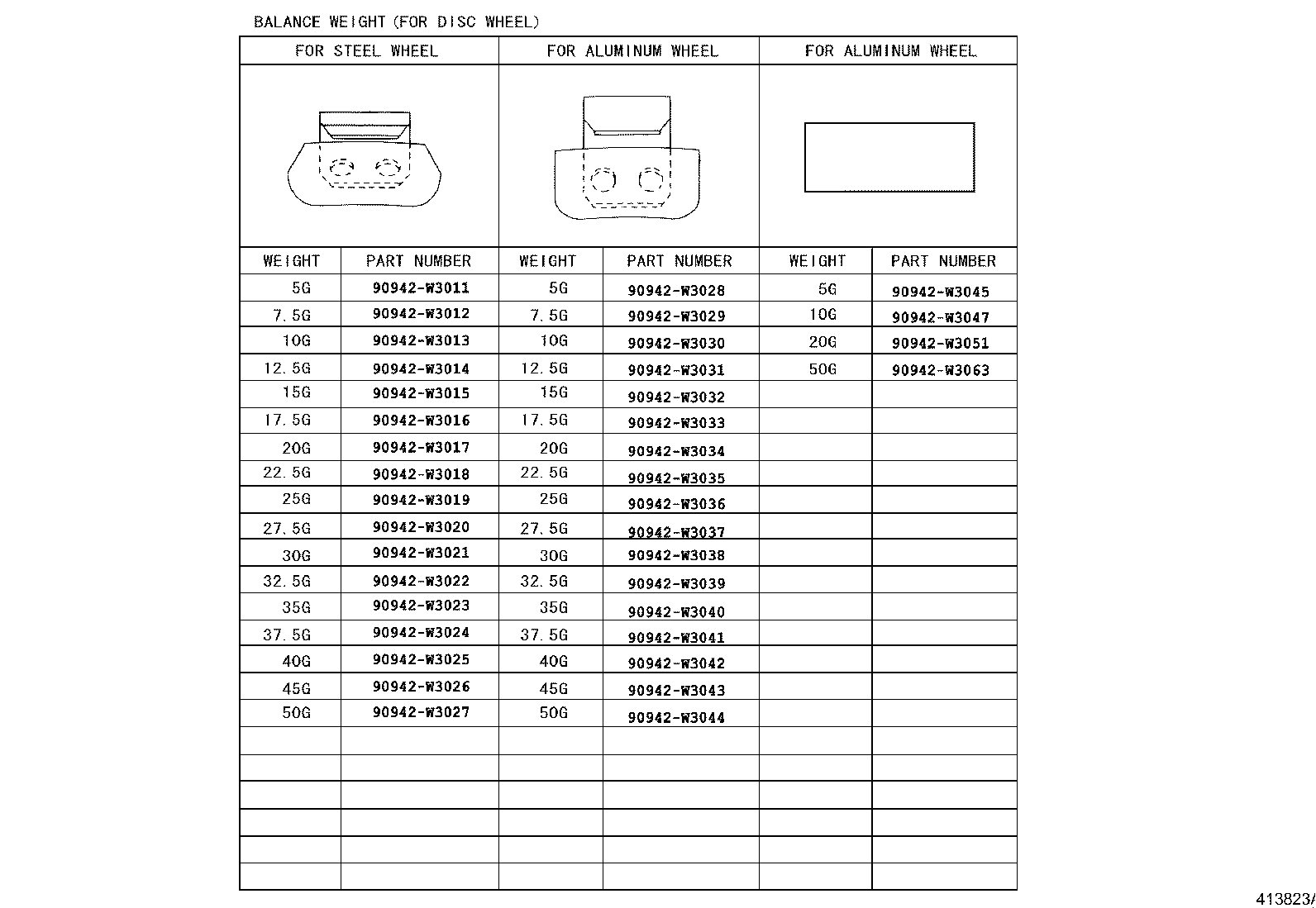

ILLUST NO. 3 OF 3(1210- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90942-W3011 | ||||
| 90942-W3012 | ||||
| 90942-W3013 | ||||
| 90942-W3014 | ||||
| 90942-W3015 | ||||
| 90942-W3016 | ||||
| 90942-W3017 | ||||
| 90942-W3018 | ||||
| 90942-W3019 | ||||
| 90942-W3020 | ||||
| 90942-W3021 | ||||
| 90942-W3022 | ||||
| 90942-W3023 | ||||
| 90942-W3024 | ||||
| 90942-W3025 | ||||
| 90942-W3026 | ||||
| 90942-W3027 | ||||
| 90942-W3028 | ||||
| 90942-W3029 | ||||
| 90942-W3030 | ||||
| 90942-W3031 | ||||
| 90942-W3032 | ||||
| 90942-W3033 | ||||
| 90942-W3034 | ||||
| 90942-W3035 | ||||
| 90942-W3036 | ||||
| 90942-W3037 | ||||
| 90942-W3038 | ||||
| 90942-W3039 | ||||
| 90942-W3040 | ||||
| 90942-W3041 | ||||
| 90942-W3042 | ||||
| 90942-W3043 | ||||
| 90942-W3044 | ||||
| 90942-W3045 | ||||
| 90942-W3047 | ||||
| 90942-W3051 | ||||
| 90942-W3063 | ||||
