ZRE181L-DHFDP (2012)

Toyota Auris (Ukp)

Production Oct 2012 - May 2015
Engine 1ZRFAE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1210- )

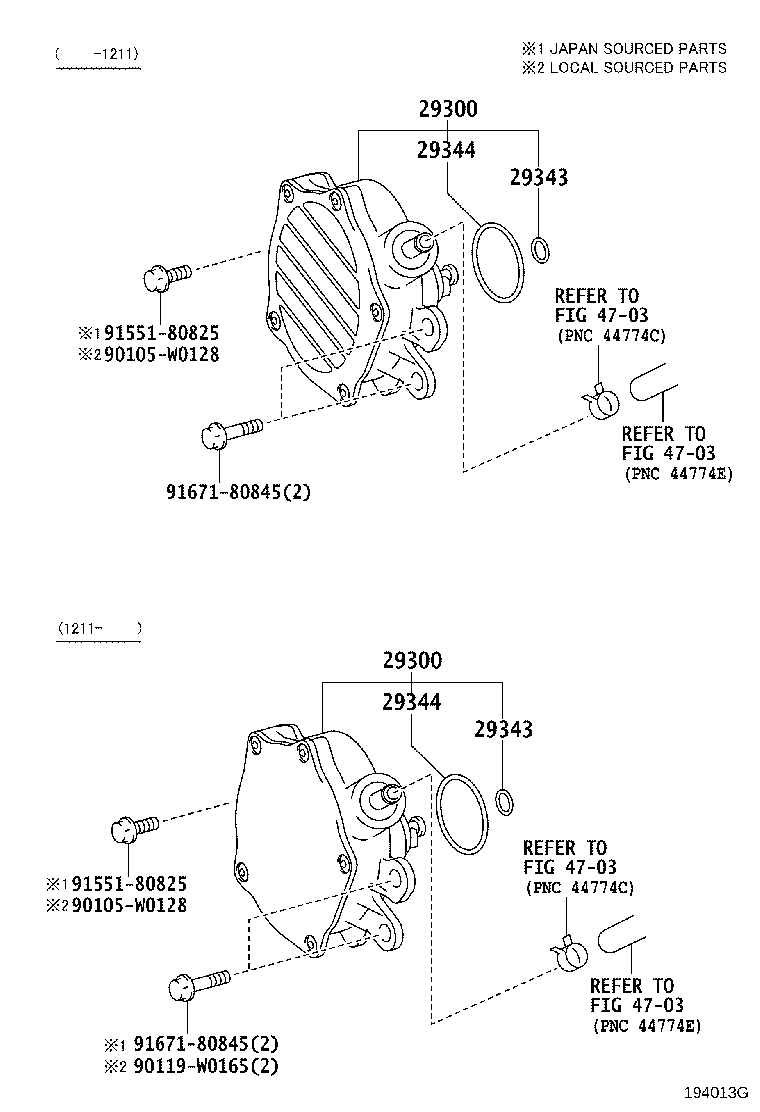

Click highlighted areas on diagram

diagram 29300 29300 29343 29343 29344 29344 4703 4703 4703 4703 90105W0128 90105W0128 90119W0165 9155180825 9155180825 9167180845 9167180845
Part # Description Qty Price
29300 - PUMP ASSY, VACUUM
29300-0W022

1ZRFAE..ZRE181

 1
29300-0T020

1ZRFAE..ZRE181

 1
29300 - PUMP ASSY, VACUUM
29300-0W022

1ZRFAE..ZRE181

 1
29300-0T020

1ZRFAE..ZRE181

 1
29343 - RING, O VACUUM PUMP, NO.1
29343-0N010

1ZRFAE..ZRE181

 1
29343 - RING, O VACUUM PUMP, NO.1
29343-0N010

1ZRFAE..ZRE181

 1
29344 - RING, O VACUUM PUMP, NO.2
29344-0W022

1ZRFAE..ZRE181

 1
29344 - RING, O VACUUM PUMP, NO.2
29344-0W022

1ZRFAE..ZRE181

 1
Common parts
90105-W0128
90119-W0165
91551-80825
91671-80845
Linked diagrams
4703
