ZRE181L-DHFDP (2012)
Toyota Auris (Ukp)
Production
Oct 2012
-
May 2015
Engine
1ZRFAE
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(1210-1505)

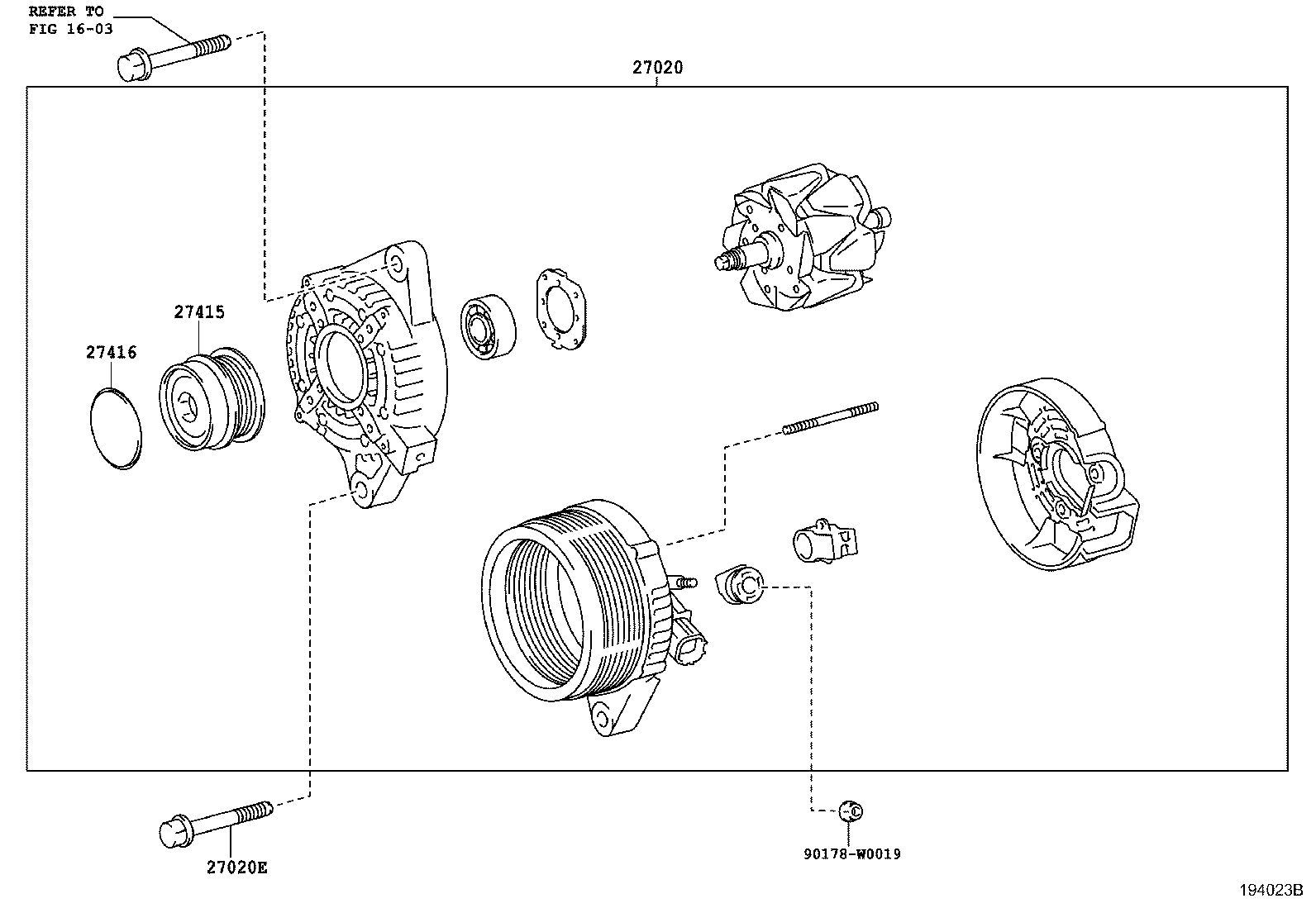

Click highlighted areas on diagram
12V 90A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-0T220 |
1ZRFAE..ZRE181 12V 90A |
1 | ||
| 27020E - BOLT(FOR ALTERNATOR) | ||||
| 90105-10307 |
1ZRFAE..ZRE181 |
1 | ||
| 27415 - PULLEY, ALTERNATOR W/CLUTCH | ||||
| 27415-0T021 |
1ZRFAE..ZRE181 |
1 | ||
| 27415-0T022 |
1ZRFAE..ZRE181 |
1 | ||
| 27416 - CAP, ALTERNATOR PULLEY | ||||
| 27416-0W020 |
1ZRFAE..ZRE181 |
1 | ||
| 27416-0W050 |
1ZRFAE..ZRE181 |
1 | ||
| Common parts | ||||
| 90178-W0019 | ||||
| Linked diagrams | ||||
| 1603 | ||||
