ZRE152R-DHFNKN (2007)

Toyota Auris (Ukp)

Production Jun 2007 - Feb 2009
Engine 2ZRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0706- )

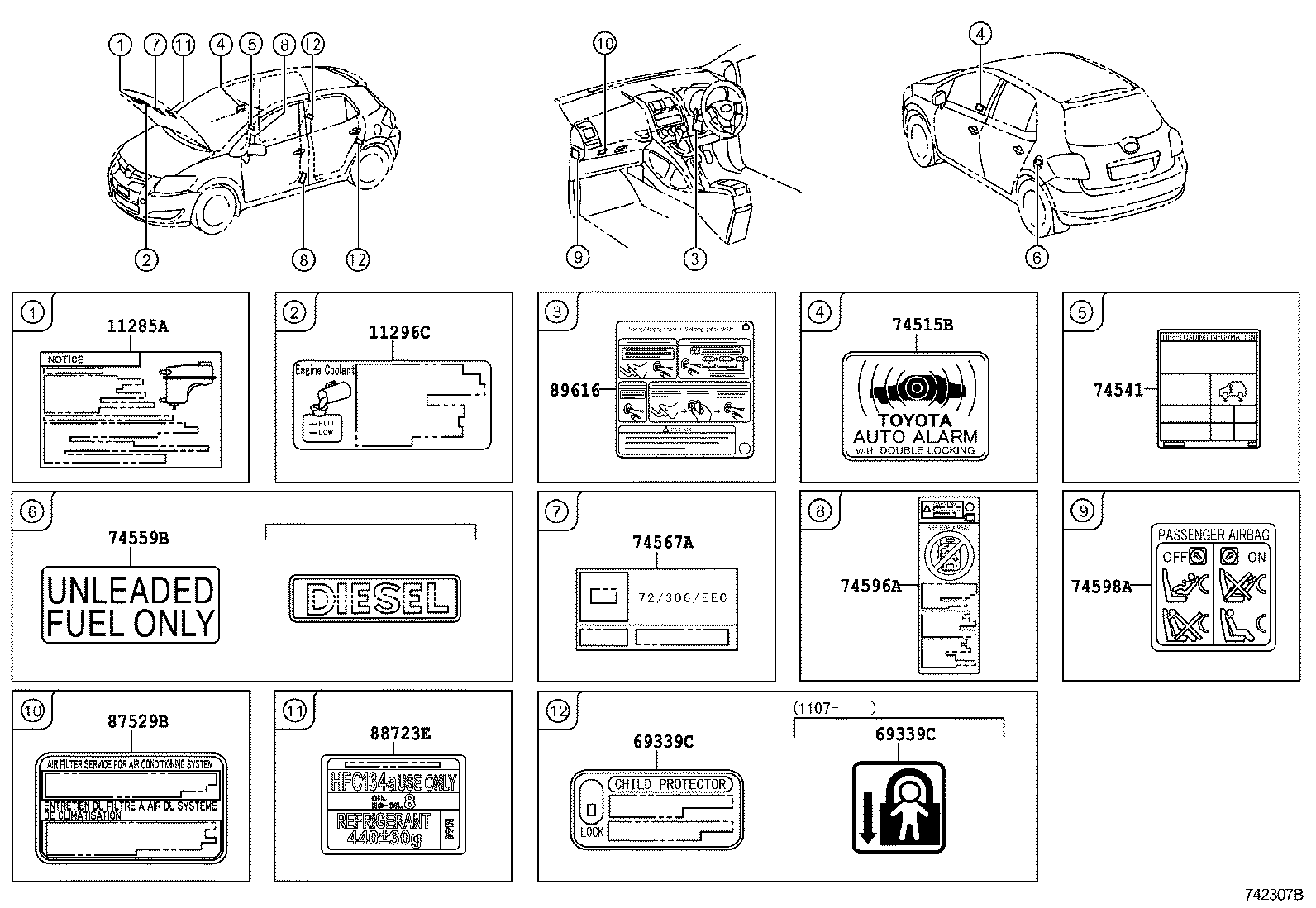

Click highlighted areas on diagram

diagram 11285A 11296C 69339C 69339C 74515B 74541 74559B 74567A 74596A 74598A 87529B 88723E 89616
Part # Description Qty Price
11285A - LABEL, COOLANT SYSTEM NOTICE
11285-22080

1ZRFE,2ZRFE..ZRE15#

 1
11296C - LABEL, ENGINE SERVICE INFORMATION
11296-27020

1ZRFE,2ZRFE..ZRE15#

 1
69339C - LABEL, CHILD PROTECTOR INFORMATION
69339-03010

ZRE15#

 2
69339C - LABEL, CHILD PROTECTOR INFORMATION
69339-03010

ZRE15#

 2
74515B - PLATE, THEFT WARNING
74515-42010

ZRE15#

 2
74541 - PLATE, TIRE PRESSURE CAUTION
42661-02540

ZRE15#

 1
74559B - LABEL, FUEL INFORMATION
74559-05010

ZRE15#

 1
74596A - LABEL, SIDE AIR BAG CAUTION
74596-02040

ZRE15#..RS,RX

 2
74598A - LABEL, PASSENGER AIR BAG CAUTION
74598-02020

ZRE15#

 1
87529B - LABEL, A/C FILTER INFORMATION
87529-0D010

ZRE15#

 1
88723E - LABEL, COOLER SERVICE CAUTION
88733-20020

ZRE15#

 1
89616 - LABEL, PUSH START INFORMATION
89616-53010

ZRE152..RX;ZRE151..5F..RS

STARTING SYSTEM-PUSH BUTTON

 1
