ZRE152R-DHFDKN (2009)

Toyota Auris (Ukp)

Production Feb 2009 - Jan 2010
Engine 2ZRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 9(0706-1001)ZRE15#..5F,5FS,6F..RS,RT,RX

Click highlighted areas on diagram

ENGINE

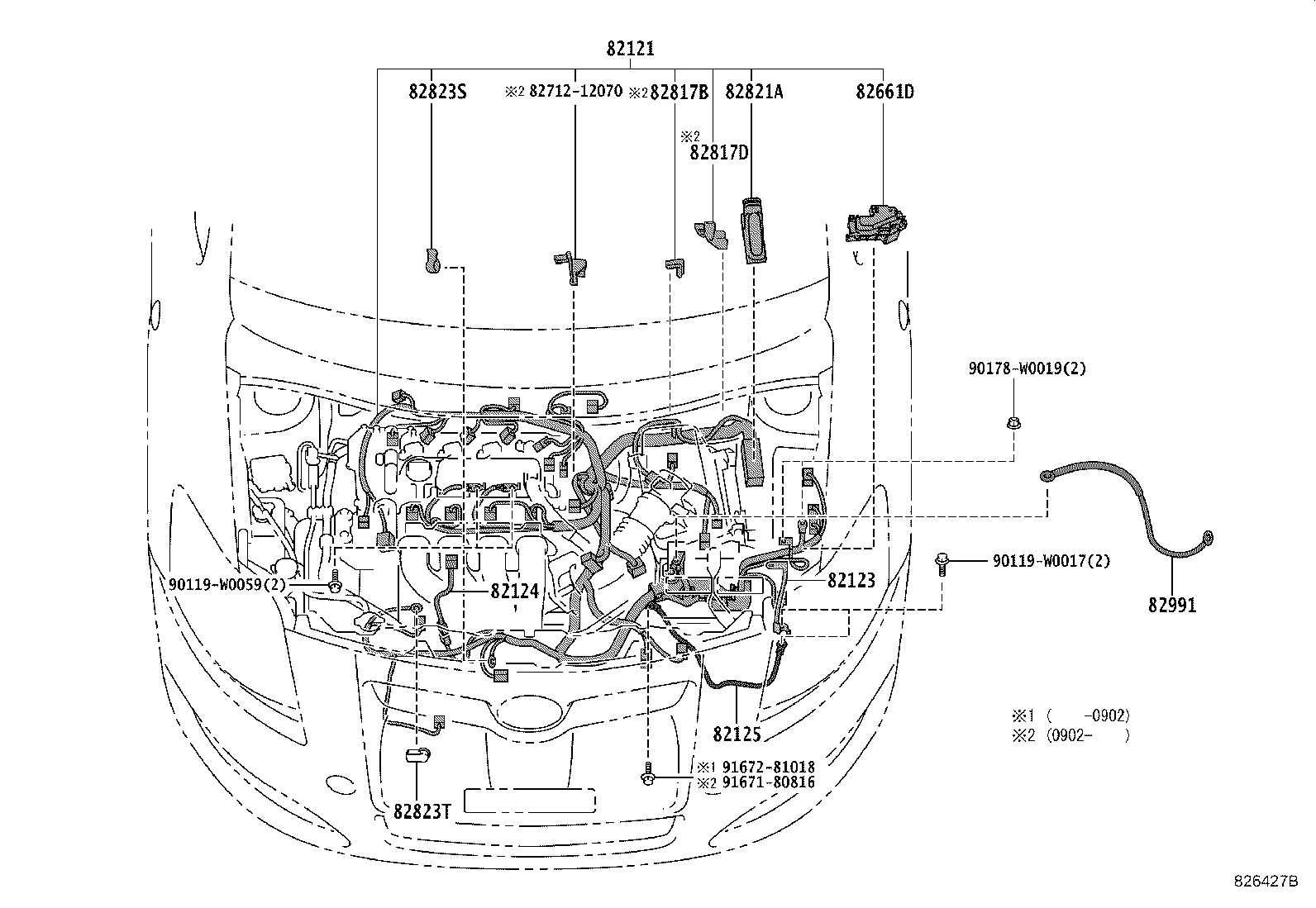

diagram 82121 82123 82124 82125 82661D 8271212070 82817B 82817D 82821A 82823S 82823T 82991 90119W0017 90119W0059 90178W0019 9167180816 9167281018
Part # Description Qty Price
82121 - WIRE, ENGINE
82121-02D00

ZRE152

 1
82121-02Q70

ZRE152

 1
82123 - WIRE, ENGINE, NO.3
82123-02270

ZRE15#

 1
82124 - WIRE, ENGINE, NO.4
82124-02090

ZRE15#

 1
82124-02090

ZRE15#..RS,RT,RX

 1
82125 - WIRE, TRANSMISSION
82125-02050

ZRE15#

 1
82661D - COVER, RELAY BLOCK, SIDE NO.1
82661-12280

ZRE15#

 1
82817B - PROTECTOR, WIRING HARNESS, NO.3
82817-12860

ZRE15#..RS,RT,RX

 1
82821A - COVER, CONNECTOR
82821-12560

ZRE15#

 1
82821-12560

ZRE15#..6F..(RS,RT,RX)

 1
82823S - CAP, STARTER TERMINAL
82823-12090

ZRE15#..6F..(RS,RT,RX)

 1
82823-30120

ZRE15#,ZZE150

 1
82823T - CAP, ALTERNATOR TERMINAL
82823-22050

ZRE151..5F,5FS;ADE150,ZRE152,ZZE150

 1
82991 - WIRE, FUSIBLE LINK REPAIR
82991-12110

ZRE15#

 1
Common parts
82712-12070
90119-W0017
90119-W0059
90178-W0019
91671-80816
91672-81018
