ZRE151R-DHMNKN (2007)
Toyota Auris (Ukp)

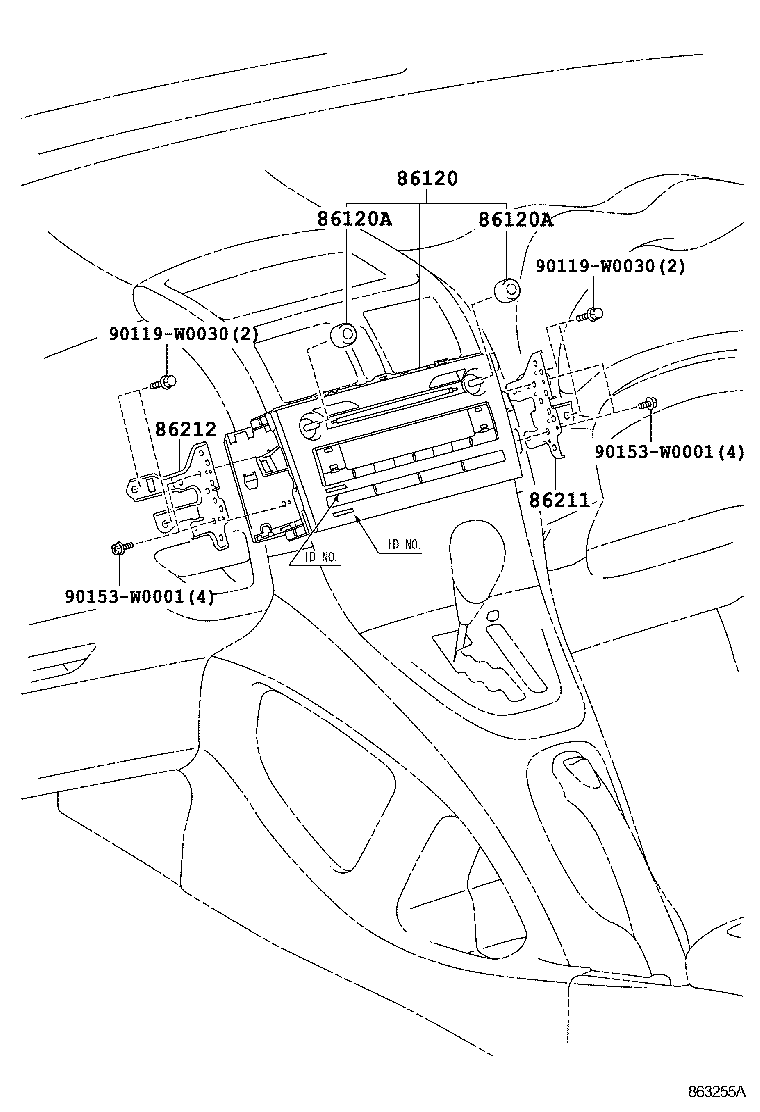

ILLUST NO. 1 OF 3(0706- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-02520 |
ADE150,ZRE152..RX;ZRE151,ZZE150..RS FUJITSU,ID=W13805 |
1 | ||
| 86120-02520 |
ZRE151,ZZE150..RS FUJITSU,ID=W13805,INSTRUMENT PANEL CENTER CLUSTER-BLACK PAINT,W(TRAY)&AUDIO (OVERSEAS MARKET)-RADIOLESS 6SPEAKER |
1 | ||
| 86120-02520 |
ADE150,ZRE152..RX;ZRE151,ZZE150..RS FUJITSU,ID=W13805,AUDIO (OVERSEAS MARKET)-RADIOLESS 6SPEAKER |
1 | ||
| 86120-02570 |
ADE150,ZRE152..RX;ZRE151,ZZE150..RS FUJITSU,ID=W13807,AUDIO (OVERSEAS MARKET)-CD-CHANGER 6SPEAKER |
1 | ||
| 86120-02510 |
ZRE151..RS FUJITSU,ID=W13804,INSTRUMENT PANEL CENTER CLUSTER-BLACK PAINT,W(TRAY) |
1 | ||
| 86120-02521 |
ZRE151..RS FUJITSU,ID=W13830,INSTRUMENT PANEL CENTER CLUSTER-BLACK PAINT,W(TRAY)&AUDIO (OVERSEAS MARKET)-RADIOLESS 6SPEAKER |
1 | ||
| 86120-02560 |
ZRE151..RS FUJITSU,ID=W13806,INSTRUMENT PANEL CENTER CLUSTER-BLACK PAINT,W(TRAY)&AUDIO (OVERSEAS MARKET)-CD-CHANGER 6SPEAKER |
1 | ||
| 86120-02521 |
ZRE151..RS;ADE150,ZRE152..RX FUJITSU,ID=W13830,AUDIO (OVERSEAS MARKET)-RADIOLESS 6SPEAKER |
1 | ||
| 86120-02521 |
ZRE151..RS;ADE150,ZRE152..RX FUJITSU,ID=W13830 |
1 | ||
| 86120-02571 |
ZRE151..RS;ADE150,ZRE152..RX FUJITSU,ID=W13807,AUDIO (OVERSEAS MARKET)-CD-CHANGER 6SPEAKER |
1 | ||
| 86120A - KNOB, RADIO RECEIVER SWITCH | ||||
| 90011-23019 |
ADE150,ZRE152..RX;ZRE151,ZZE150..RS AUDIO (OVERSEAS MARKET)-RADIOLESS 6SPEAKER |
2 | ||
| 90011-23019 |
ADE150,ZRE152..RX;ZRE151,ZZE150..RS |
2 | ||
| 90011-25168 |
ZRE151..RS;ZRE152..RX |
2 | ||
| 90011-23018 |
ZRE151..RS INSTRUMENT PANEL CENTER CLUSTER-BLACK PAINT,W(TRAY) |
2 | ||
| 90011-23019 |
ZRE151,ZZE150..RS INSTRUMENT PANEL CENTER CLUSTER-BLACK PAINT,W(TRAY)&AUDIO (OVERSEAS MARKET)-RADIOLESS 6SPEAKER |
2 | ||
| 90011-23018 |
ZRE151..RS INSTRUMENT PANEL CENTER CLUSTER-BLACK PAINT,W(TRAY)&AUDIO (OVERSEAS MARKET)-CD-CHANGER 6SPEAKER |
2 | ||
| 90011-25168 |
ZRE151..RS;ZRE152..RX AUDIO (OVERSEAS MARKET)-RADIOLESS 6SPEAKER |
2 | ||
| 90011-25168 |
ZRE151..RS INSTRUMENT PANEL CENTER CLUSTER-BLACK PAINT,W(TRAY)&AUDIO (OVERSEAS MARKET)-RADIOLESS 6SPEAKER |
2 | ||
| 86120A - KNOB, RADIO RECEIVER SWITCH | ||||
| 90011-23019 |
ADE150,ZRE152..RX;ZRE151,ZZE150..RS AUDIO (OVERSEAS MARKET)-RADIOLESS 6SPEAKER |
2 | ||
| 90011-23019 |
ADE150,ZRE152..RX;ZRE151,ZZE150..RS |
2 | ||
| 90011-25168 |
ZRE151..RS;ZRE152..RX |
2 | ||
| 90011-23018 |
ZRE151..RS INSTRUMENT PANEL CENTER CLUSTER-BLACK PAINT,W(TRAY) |
2 | ||
| 90011-23019 |
ZRE151,ZZE150..RS INSTRUMENT PANEL CENTER CLUSTER-BLACK PAINT,W(TRAY)&AUDIO (OVERSEAS MARKET)-RADIOLESS 6SPEAKER |
2 | ||
| 90011-23018 |
ZRE151..RS INSTRUMENT PANEL CENTER CLUSTER-BLACK PAINT,W(TRAY)&AUDIO (OVERSEAS MARKET)-CD-CHANGER 6SPEAKER |
2 | ||
| 90011-25168 |
ZRE151..RS;ZRE152..RX AUDIO (OVERSEAS MARKET)-RADIOLESS 6SPEAKER |
2 | ||
| 90011-25168 |
ZRE151..RS INSTRUMENT PANEL CENTER CLUSTER-BLACK PAINT,W(TRAY)&AUDIO (OVERSEAS MARKET)-RADIOLESS 6SPEAKER |
2 | ||
| 86211 - BRACKET, RADIO, NO.1 | ||||
| 86211-02170 |
ZRE151..5F,5FS;ADE150,ZRE152,ZZE150 |
1 | ||
| 86212 - BRACKET, RADIO, NO.2 | ||||
| 86212-02160 |
ZRE151..5F,5FS;ADE150,ZRE152,ZZE150 |
1 | ||
| Common parts | ||||
| 90119-W0030 | ||||
| 90153-W0001 | ||||

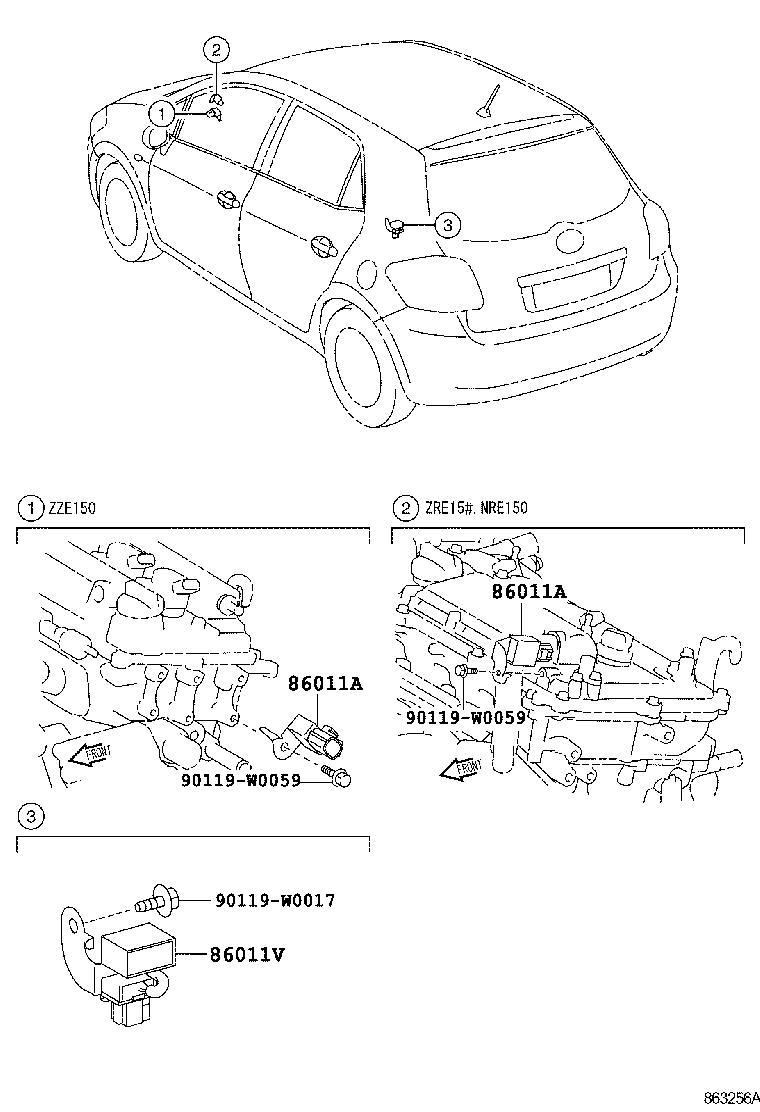

ILLUST NO. 3 OF 3(0706- )
CONDENSER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86011A - CONDENSER, RADIO SETTING | ||||
| 90980-04196 |
ZRE15# |
1 | ||
| 86011A - CONDENSER, RADIO SETTING | ||||
| 90980-04196 |
ZRE15# |
1 | ||
| 86011V - CONDENSER, RADIO SETTING | ||||
| 90980-05357 |
ZRE15# |
1 | ||
| Common parts | ||||
| 90119-W0017 | ||||
| 90119-W0059 | ||||
