ZRE151R-DHMNKN (2007)

Toyota Auris (Ukp)

Production Jun 2007 - Feb 2009
Engine 1ZRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(0706- )

Click highlighted areas on diagram

diagram 44510 4452112060 4452112070 44547B 44547B 44590 9011906844 9017806019 9017908200 9017908249
Part # Description Qty Price
44510 - ACTUATOR ASSY, BRAKE
44050-02150

ZRE15#

 1
44547B - CUSHION, BRAKE ACTUATOR BRACKET
44547-12010

ZRE15#

NO.2

 1
44547-02030

ZRE15#

NO.1

 2
44547B - CUSHION, BRAKE ACTUATOR BRACKET
44547-12010

ZRE15#

NO.2

 1
44547-02030

ZRE15#

NO.1

 2
44590 - BRACKET ASSY, BRAKE ACTUATOR
44590-02120

ZRE15#

 1
Common parts
44521-12060
44521-12070
90119-06844
90178-06019
90179-08200
90179-08249

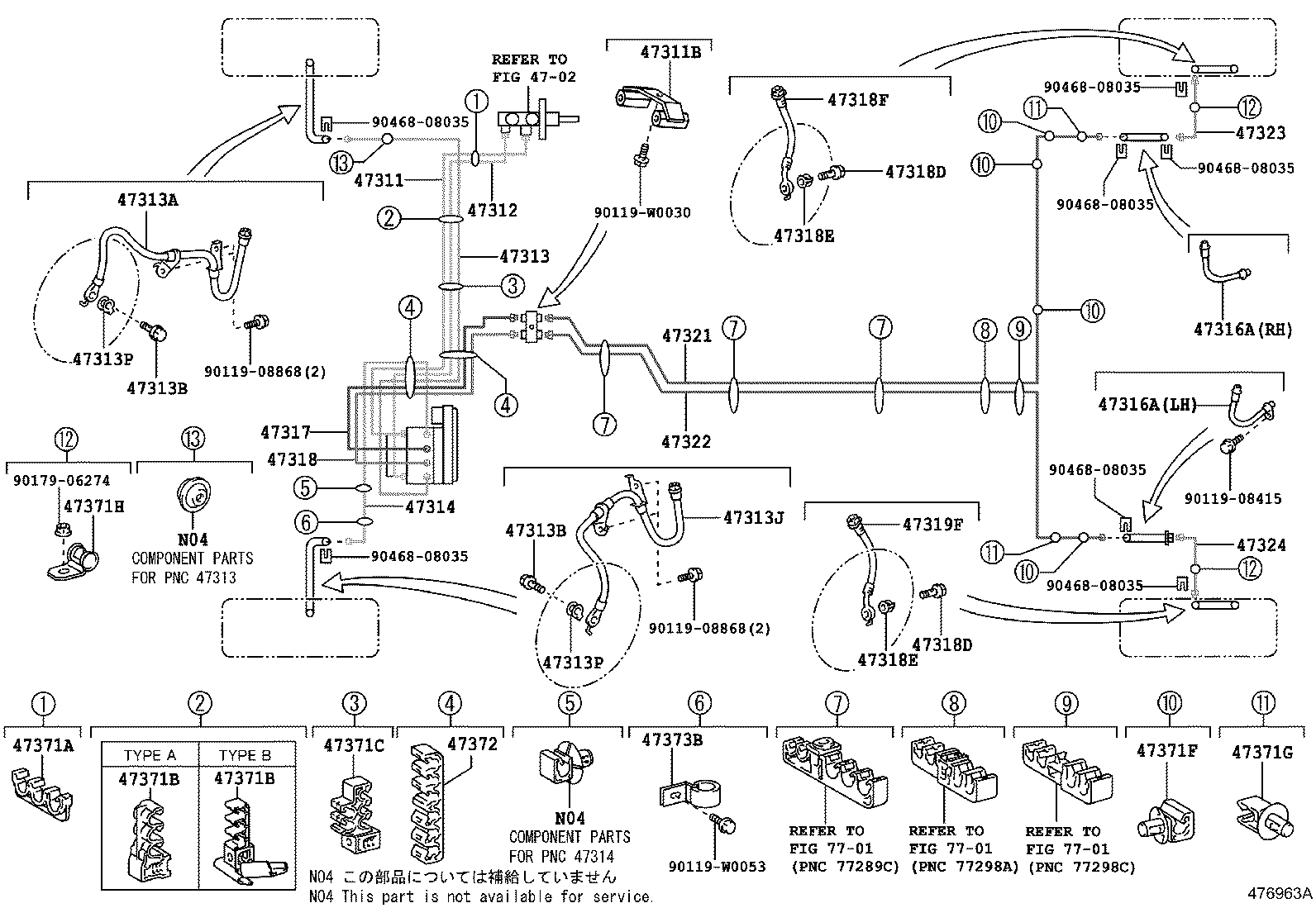

ILLUST NO. 1 OF 2(0706- )NRE150,ZRE15#,ZZE150

Click highlighted areas on diagram

diagram 4702 47311 47311B 47312 47313 47313A 47313B 47313B 47313J 47313P 47313P 47314 47316A 47316A 47317 47318 47318D 47318D 47318E 47318E 47318F 47319F 47321 47322 47323 47324 47371A 47371B 47371B 47371C 47371F 47371G 47371H 47372 47373B 7701 7701 7701 9011908415 9011908868 9011908868 90119W0030 90119W0053 9017906274 9046808035 9046808035 9046808035 9046808035 9046808035 9046808035 9046808035
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-02400

ZRE15#

 1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90412-10255

ZRE15#

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-02270

ZRE15#

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-02350

ZRE15#

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-W2012

ZRE15#

 1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

ZRE15#

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

ZRE15#

 2
47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT)
90947-W2013

ZRE15#

 1
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020

ZRE15#

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020

ZRE15#

 2
47314 - TUBE, FRONT BRAKE, NO.4
47314-02370

ZRE15#

 1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-W2014

ZRE15#

LH

 1
90947-W2015

ZRE15#

RH

 1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-W2014

ZRE15#

LH

 1
90947-W2015

ZRE15#

RH

 1
47317 - TUBE, FRONT BRAKE, NO.7
47317-02270

ZRE15#

 1
47318 - TUBE, FRONT BRAKE, NO.8
47318-02290

ZRE15#

 1
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10058

ZRE15#

 2
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10058

ZRE15#

 2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-50020

ZRE15#

 2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-50020

ZRE15#

 2
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90947-W2016

ZRE15#

 1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90947-W2016

ZRE15#

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-02170

ZRE15#

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-02170

ZRE151..5F,5FS;ADE150,ZRE152,ZZE150

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-02080

ZRE15#

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-02080

ZRE15#

 1
47371A - CLAMP, BRAKE TUBE, NO.1
90464-00868

ZRE15#

 1
47371B - CLAMP, BRAKE TUBE, NO.6
90949-01D05

ADE150,ZRE15#,ZZE150

TYPE A:REFER ILLUST.

 1
90949-01D69

ZRE15#

TYPE A:REFER ILLUST.

 1
47371B - CLAMP, BRAKE TUBE, NO.6
90949-01D05

ADE150,ZRE15#,ZZE150

TYPE A:REFER ILLUST.

 1
90949-01D69

ZRE15#

TYPE A:REFER ILLUST.

 1
47371C - CLAMP, BRAKE TUBE, NO.7
90949-01D45

ZRE15#

 1
47371F - CLAMP, BRAKE TUBE, NO.10
90949-01D17

ZRE151..5F,5FS;ADE150,ZRE152,ZZE150

 4
47371G - CLAMP, BRAKE TUBE, NO.11
90949-01D29

ZRE151..5F,5FS;ADE150,ZRE152,ZZE150

 2
47371H - CLAMP, BRAKE TUBE, NO.12
90461-10837

ZRE15#

 2
47372 - CLAMP, BRAKE TUBE, NO.2
90464-00890

ZRE15#

 2
47373B - CLAMP, BRAKE TUBE, NO.3
90461-10781

ZRE15#

 1
Common parts
90119-08415
90119-08868
90119-W0030
90119-W0053
90179-06274
90468-08035
Linked diagrams
4702
7701
