ZRE151R-DHMNKN (2007)

Toyota Auris (Ukp)

Production Jun 2007 - Feb 2009
Engine 1ZRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0706-0902)ZRE152 ; (0706- )5F,5FS

Click highlighted areas on diagram

C50,C50A,C66

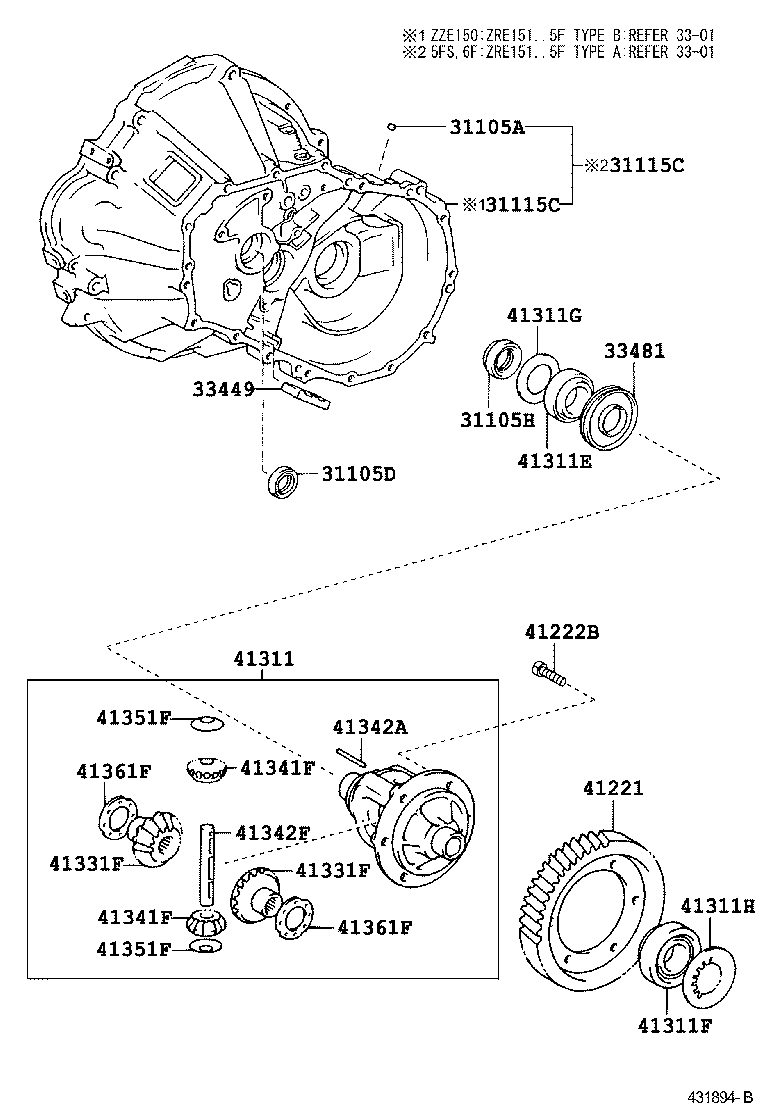

diagram 31105A 31105D 31105H 31115C 31115C 33449 33481 41221 41222B 41311 41311E 41311F 41311G 41311H 41331F 41331F 41341F 41341F 41342A 41342F 41351F 41351F 41361F 41361F
Part # Description Qty Price
31105A - PLUG, TIGHT(FOR FRONT TRANSAXLE CASE)
90331-08002

ZRE15#

 1
31105D - SEAL, OIL, NO.1(FOR FRONT TRANSAXLE CASE)
90311-25028

ZRE15#

 1
31105H - SEAL, OIL, NO.2(FOR TRANSAXLE CASE)
90311-W0003

ZRE151..5F

TYPE B:REFER 33-01

 1
90311-34033

ZRE151..5F

TYPE A:REFER 33-01

 1
31115C - CASE, FRONT TRANSAXLE(MTM)
31105-12220

ZRE151..5F

TYPE A:REFER 33-01

 1
31115-02020

ZRE151..5F

TYPE B:REFER 33-01

 1
31115C - CASE, FRONT TRANSAXLE(MTM)
31105-12220

ZRE151..5F

TYPE A:REFER 33-01

 1
31115-02020

ZRE151..5F

TYPE B:REFER 33-01

 1
33449 - MAGNET, TRANSMISSION
33449-12020

ZRE15#

 1
33481 - GEAR, SPEEDOMETER DRIVE (MTM)
33481-12040

ZRE151

N=35,MARK 35X29-31

 1
41221 - GEAR, FRONT DIFFERENTIAL RING
41221-12420

ZRE151..5F

TYPE A:REFER 33-01

 1
41221-02080

ZRE151..5F

TYPE B:REFER 33-01

 1
41222B - BOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)
90105-11040

ZRE15#

 8
41311 - CASE, FRONT DIFFERENTIAL
41301-12041

ZRE151..5F

TYPE A:REFER 33-01

 1
41301-12041

ZRE151..5F

TYPE B:REFER 33-01

 1
41301-05010

ZRE151..5F

TYPE B:REFER 33-01

 1
41311E - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FR
90080-36163

ZRE151..5F

TYPE B:REFER 33-01

 1
90366-38004

ZRE151..5F

TYPE A:REFER 33-01

 1
41311F - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE RE
90368-38010

ZRE151..5F

TYPE A:REFER 33-01

 1
90080-36166

ZRE151..5F

TYPE B:REFER 33-01

 1
41311G - WASHER, PLATE (FOR FRONT DIFFERENTIAL CASE FRONT)
90560-41003

ZRE15#

T=2.1

 1
41311H - WASHER, PLATE (FOR FRONT DIFFERENTIAL CASE REAR)
90564-41066

ZRE151..5F

T=1.15,MARK 02,TYPE B:REFER 33-01

 1
90564-41065

ZRE151..5F

T=1.10,MARK 01,TYPE B:REFER 33-01

 1
90564-41067

ZRE151..5F

T=1.20,MARK 03,TYPE B:REFER 33-01

 1
90564-41070

ZRE151..5F

T=1.35,MARK 06,TYPE B:REFER 33-01

 1
90564-41069

ZRE151..5F

T=1.30,MARK 05,TYPE B:REFER 33-01

 1
90564-41077

ZRE151..5F

T=1.70,MARK 13,TYPE B:REFER 33-01

 1
90564-41074

ZRE151..5F

T=1.55,MARK 10,TYPE B:REFER 33-01

 1
90564-41071

ZRE151..5F

T=1.40,MARK 07,TYPE B:REFER 33-01

 1
90564-41072

ZRE151..5F

T=1.45,MARK 08,TYPE B:REFER 33-01

 1
90564-41076

ZRE151..5F

T=1.65,MARK 12,TYPE B:REFER 33-01

 1
90564-41082

ZRE151..5F

T=1.95,MARK 18,TYPE B:REFER 33-01

 1
90564-41081

ZRE151..5F

T=1.90,MARK 17,TYPE B:REFER 33-01

 1
90564-41078

ZRE151..5F

T=1.75,MARK 14,TYPE B:REFER 33-01

 1
90564-41015

ZRE151..5F

T=2.15,MARK BB,TYPE A:REFER 33-01

 1
90564-41080

ZRE151..5F

T=1.85,MARK 16,TYPE B:REFER 33-01

 1
90564-41075

ZRE151..5F

T=1.60,MARK 11,TYPE B:REFER 33-01

 1
90564-41079

ZRE151..5F

T=1.80,MARK 15,TYPE B:REFER 33-01

 1
90564-41083

ZRE151..5F

T=2.00,MARK 19,TYPE B:REFER 33-01

 1
90564-41014

ZRE151..5F

T=2.10,MARK AA,TYPE A:REFER 33-01

 1
90564-41018

ZRE151..5F

T=2.30,MARK EE,TYPE A:REFER 33-01

 1
90564-41068

ZRE151..5F

T=1.25,MARK 04,TYPE B:REFER 33-01

 1
90564-41016

ZRE151..5F

T=2.20,MARK CC,TYPE A:REFER 33-01

 1
90564-41024

ZRE151..5F

T=2.60,MARK LL,TYPE A:REFER 33-01

 1
90564-41073

ZRE151..5F

T=1.50,MARK 09,TYPE B:REFER 33-01

 1
90564-41026

ZRE151..5F

T=2.70,MARK NN,TYPE A:REFER 33-01

 1
90564-41027

ZRE151..5F

T=2.75,MARK PP,TYPE A:REFER 33-01

 1
90564-41019

ZRE151..5F

T=2.35,MARK FF,TYPE A:REFER 33-01

 1
90564-41028

ZRE151..5F

T=2.80,MARK QQ,TYPE A:REFER 33-01

 1
90564-41029

ZRE151..5F

T=2.85,MARK RR,TYPE A:REFER 33-01

 1
90564-41020

ZRE151..5F

T=2.40,MARK GG,TYPE A:REFER 33-01

 1
90564-41022

ZRE151..5F

T=2.50,MARK JJ,TYPE A:REFER 33-01

 1
90564-41025

ZRE151..5F

T=2.65,MARK MM,TYPE A:REFER 33-01

 1
90564-41031

ZRE151..5F

T=2.95,MARK TT,TYPE A:REFER 33-01

 1
90564-41030

ZRE151..5F

T=2.90,MARK SS,TYPE A:REFER 33-01

 1
90564-41017

ZRE151..5F

T=2.25,MARK DD,TYPE A:REFER 33-01

 1
90564-41032

ZRE151..5F

T=3.00,MARK UU,TYPE A:REFER 33-01

 1
90564-41021

ZRE151..5F

T=2.45,MARK HH,TYPE A:REFER 33-01

 1
90564-41023

ZRE151..5F

T=2.55,MARK KK,TYPE A:REFER 33-01

 1
41331F - GEAR, FRONT DIFFERENTIAL SIDE
41331-12011

ZRE151..5F

(J)

 2
41331-05020

ZRE151..5F

(L)

 2
41331F - GEAR, FRONT DIFFERENTIAL SIDE
41331-12011

ZRE151..5F

(J)

 2
41331-05020

ZRE151..5F

(L)

 2
41341F - PINION, FRONT DIFFERENTIAL
41341-12030

ZRE151..5F

(J)

 2
41341-05020

ZRE151..5F

(L)

 2
41341F - PINION, FRONT DIFFERENTIAL
41341-12030

ZRE151..5F

(J)

 2
41341-05020

ZRE151..5F

(L)

 2
41342A - PIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)
90250-06058

ZRE15#

 1
41342F - SHAFT, FRONT DIFFERENTIAL PINION, NO.1
41342-12140

ZRE151

 1
41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST
41351-12020

ZRE151

 2
41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST
41351-12020

ZRE151

 2
41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
41361-22040

ZRE15#

T=1.20,MARK 04

 2
41361-22160

ZRE15#

T=1.15,MARK 16

 2
41361-22150

ZRE15#

T=1.05,MARK 15

 2
41361-22030

ZRE15#

T=1.10,MARK 03

 2
41361-22020

ZRE15#

T=1.00,MARK 02

 2
41361-22140

ZRE15#

T=0.95,MARK 14

 2
41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
41361-22040

ZRE15#

T=1.20,MARK 04

 2
41361-22160

ZRE15#

T=1.15,MARK 16

 2
41361-22150

ZRE15#

T=1.05,MARK 15

 2
41361-22030

ZRE15#

T=1.10,MARK 03

 2
41361-22020

ZRE15#

T=1.00,MARK 02

 2
41361-22140

ZRE15#

T=0.95,MARK 14

 2
