ZRE151R-DHMNKN (2007)

Toyota Auris (Ukp)

Production Jun 2007 - Feb 2009
Engine 1ZRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0706- )1ZR#,2ZRFE

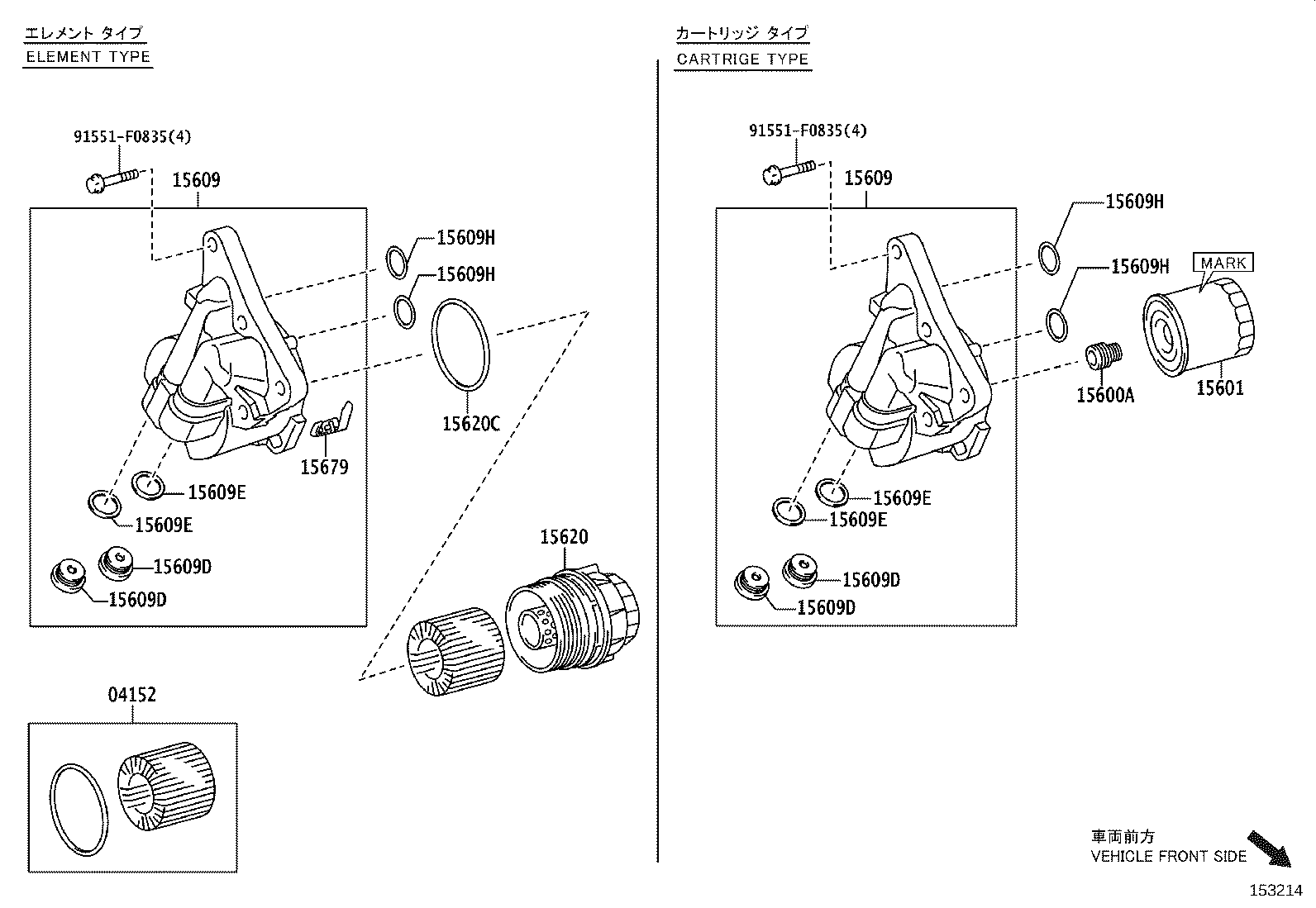

Click highlighted areas on diagram

diagram 04152 15600A 15601 15609 15609 15609D 15609D 15609D 15609D 15609E 15609E 15609E 15609E 15609H 15609H 15609H 15609H 15620 15620C 15679 91551F0835 91551F0835
Part # Description Qty Price
15600A - UNION(FOR OIL FILTER)
90904-04006

1ZRFE,2ZRFE..ZRE15#

CARTRIGE TYPE

 1
15601 - FILTER SUB-ASSY, OIL
90915-CA003

1ZRFE,2ZRFE..ZRE15#

(L),MARK 90915-CA003

 1
90915-10003

1ZRFE,2ZRFE,4ZZFE..ZRE15#,ZZE150

(J),MARK 90915-10003

 1
90915-TA001

1ZRFE,2ZRFE..ZRE15#

(L),MARK 90915-TA001

 1
15609 - BRACKET SUB-ASSY, OIL FILTER
15609-37010

1ZRFE,2ZRFE..ZRE15#

CARTRIGE TYPE

 1
15609 - BRACKET SUB-ASSY, OIL FILTER
15609-37010

1ZRFE,2ZRFE..ZRE15#

CARTRIGE TYPE

 1
15609D - PLUG, W/HEAD STRAIGHT SCREW(FOR OIL FILTER BRACKET)
90341-20002

1ZRFE,2ZRFE..ZRE15#

CARTRIGE TYPE

 2
15609D - PLUG, W/HEAD STRAIGHT SCREW(FOR OIL FILTER BRACKET)
90341-20002

1ZRFE,2ZRFE..ZRE15#

CARTRIGE TYPE

 2
15609D - PLUG, W/HEAD STRAIGHT SCREW(FOR OIL FILTER BRACKET)
90341-20002

1ZRFE,2ZRFE..ZRE15#

CARTRIGE TYPE

 2
15609D - PLUG, W/HEAD STRAIGHT SCREW(FOR OIL FILTER BRACKET)
90341-20002

1ZRFE,2ZRFE..ZRE15#

CARTRIGE TYPE

 2
15609E - GASKET, W/HEAD STRAIGHT SCREW PLUG
90430-20018

1ZRFE,2ZRFE..ZRE15#

CARTRIGE TYPE

 2
15609E - GASKET, W/HEAD STRAIGHT SCREW PLUG
90430-20018

1ZRFE,2ZRFE..ZRE15#

CARTRIGE TYPE

 2
15609E - GASKET, W/HEAD STRAIGHT SCREW PLUG
90430-20018

1ZRFE,2ZRFE..ZRE15#

CARTRIGE TYPE

 2
15609E - GASKET, W/HEAD STRAIGHT SCREW PLUG
90430-20018

1ZRFE,2ZRFE..ZRE15#

CARTRIGE TYPE

 2
15609H - RING, O(FOR OIL FILTER BRACKET)
96721-24020

1ZRFE,2ZRFE..ZRE15#

*149,CARTRIGE TYPE

 2
96723-24020

1ZRFE,2ZRFE..ZRE15#

*148,CARTRIGE TYPE

 2
15609H - RING, O(FOR OIL FILTER BRACKET)
96721-24020

1ZRFE,2ZRFE..ZRE15#

*149,CARTRIGE TYPE

 2
96723-24020

1ZRFE,2ZRFE..ZRE15#

*148,CARTRIGE TYPE

 2
15609H - RING, O(FOR OIL FILTER BRACKET)
96721-24020

1ZRFE,2ZRFE..ZRE15#

*149,CARTRIGE TYPE

 2
96723-24020

1ZRFE,2ZRFE..ZRE15#

*148,CARTRIGE TYPE

 2
15609H - RING, O(FOR OIL FILTER BRACKET)
96721-24020

1ZRFE,2ZRFE..ZRE15#

*149,CARTRIGE TYPE

 2
96723-24020

1ZRFE,2ZRFE..ZRE15#

*148,CARTRIGE TYPE

 2
Common parts
91551-F0835
