ZRE151R-DHGNKN (2007)

Toyota Auris (Ukp)

Production Jun 2007 - Feb 2009
Engine 1ZRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0706-1001)ZRE15#..5F,5FS,6F..RS,RT,RX

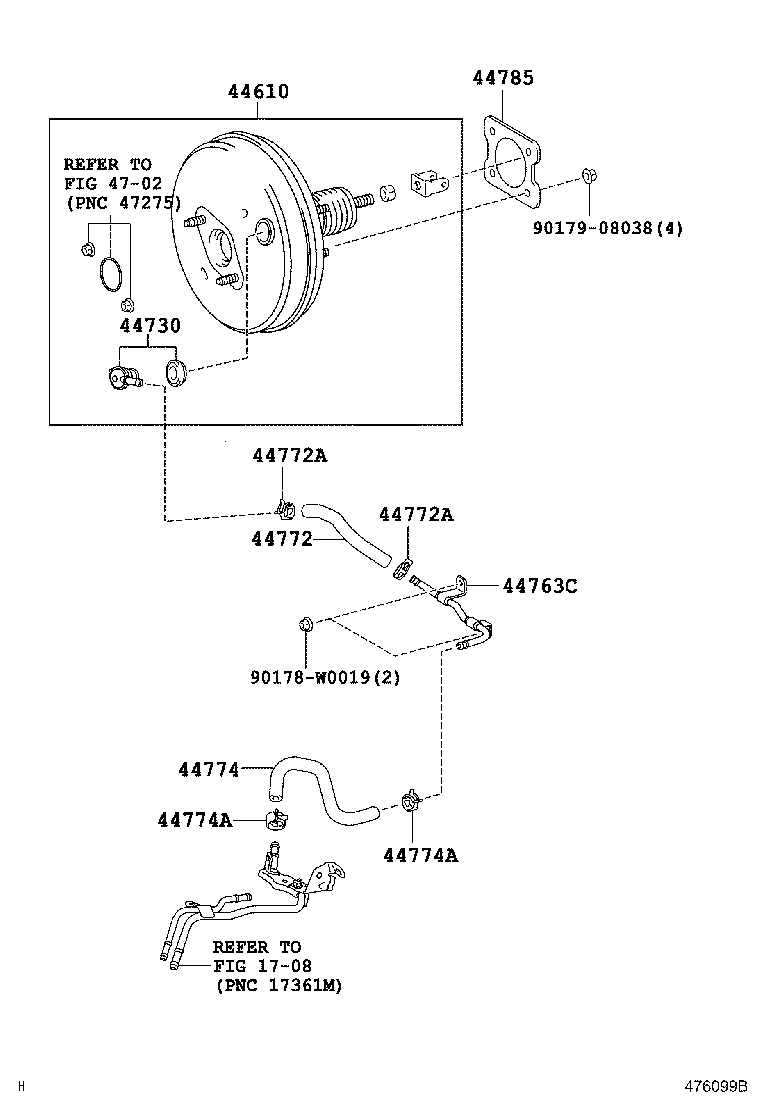

Click highlighted areas on diagram

diagram 1708 44610 44730 44763C 44772 44772A 44772A 44774 44774A 44774A 44785 4702 90178W0019 9017908038
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-09450

ZRE15#,ZZE150

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-09020

ZRE15#

 1
44763C - TUBE, HOSE TO HOSE, NO.2
44763-12440

ZRE15#

 1
44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE
44772-12620

ZRE15#

 1
44772A - CLIP(FOR CHECK VALVE TO CONNECTOR TUBE)
90466-W0008

ZRE15#

 2
44772A - CLIP(FOR CHECK VALVE TO CONNECTOR TUBE)
90466-W0008

ZRE15#

 2
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-12560

ZRE15#

 1
44774A - CLIP(FOR UNION TO CONNECTOR TUBE HOSE)
90466-W0008

ZRE15#

 2
44774A - CLIP(FOR UNION TO CONNECTOR TUBE HOSE)
90466-W0008

ZRE15#

 2
44785 - GASKET, BRAKE BOOSTER
44785-12040

ZRE15#

 1
Common parts
90178-W0019
90179-08038
Linked diagrams
1708
4702
