ZRE151R-DHGDKN (2007)

Toyota Auris (Ukp)

Production Jun 2007 - Feb 2009
Engine 1ZRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0706- )

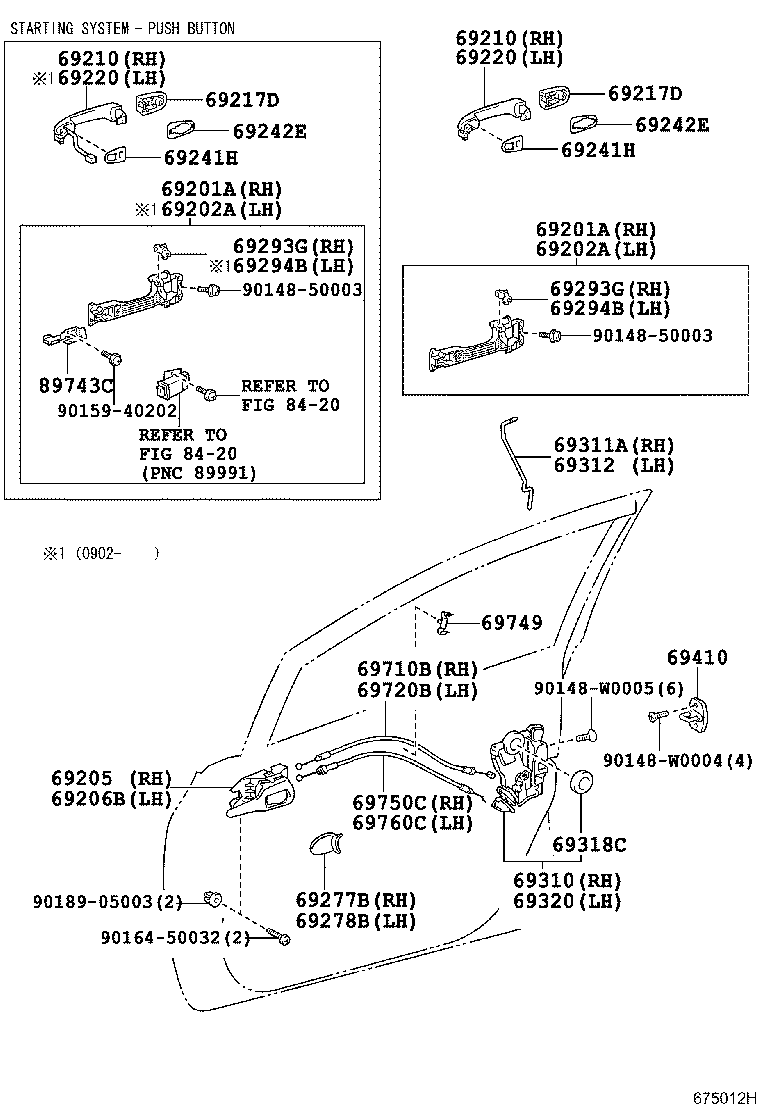

Click highlighted areas on diagram

diagram 69201A 69201A 69202A 69202A 69205 69206B 69210 69210 69217D 69217D 69220 69220 69241H 69241H 69242E 69242E 69277B 69278B 69293G 69293G 69294B 69294B 69310 69311A 69312 69318C 69320 69410 69710B 69720B 69749 69750C 69760C 8420 8420 89743C 9014850003 9014850003 90148W0004 90148W0005 9015940202 9016450032 9018905003
Part # Description Qty Price
69201A - FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
69201-02130

ZRE15#

 1
69201A - FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
69201-02130

ZRE15#

 1
69202A - FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
69202-0D010

ZRE15#

 1
69202A - FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
69202-0D010

ZRE15#

 1
69205 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69205-02120B1

ZRE151..(5F,5FS)..RT;ADE150,ZRE152,ZZE150..RS,RT

SILVER,TRIM1#

 1
69206B - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69206-02120B1

ZRE151..(5F,5FS)..RT;ADE150,ZRE152,ZZE150..RS,RT

SILVER,TRIM1#

 1
69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69211-0D070

ZRE151,ZZE150..RT

NO PAINT REQ.

 1
69211-0D901

ZRE151,ZZE150..RT

PAINT REQ.,OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)

 1
69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69211-0D070

ZRE151,ZZE150..RT

NO PAINT REQ.

 1
69211-0D901

ZRE151,ZZE150..RT

PAINT REQ.,OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)

 1
69217D - COVER, FRONT DOOR OUTSIDE HANDLE
69217-0D040

ZRE151..RT

BLACK,DRIVER SIDE

 1
69217-0D903

ZRE151..RT

OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),DRIVER SIDE

 1
69217-0D050

ZRE151..RT

BLACK,PASSENGER SIDE

 1
69217-0D904

ZRE151..RT

OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),PASSENGER SIDE

 1
69217D - COVER, FRONT DOOR OUTSIDE HANDLE
69217-0D040

ZRE151..RT

BLACK,DRIVER SIDE

 1
69217-0D903

ZRE151..RT

OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),DRIVER SIDE

 1
69217-0D050

ZRE151..RT

BLACK,PASSENGER SIDE

 1
69217-0D904

ZRE151..RT

OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),PASSENGER SIDE

 1
69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69211-0D901

ZRE151,ZZE150..RT

PAINT REQ.,OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)

 1
69211-0D070

ZRE151,ZZE150..RT

NO PAINT REQ.

 1
69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69211-0D901

ZRE151,ZZE150..RT

PAINT REQ.,OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)

 1
69211-0D070

ZRE151,ZZE150..RT

NO PAINT REQ.

 1
69241H - PAD, FRONT DOOR OUTSIDE HANDLE, FRONT
69241-02040

ZRE15#

*153

 2
69241-0D020

ZRE15#

*154

 2
69241H - PAD, FRONT DOOR OUTSIDE HANDLE, FRONT
69241-02040

ZRE15#

*153

 2
69241-0D020

ZRE15#

*154

 2
69242E - PAD, FRONT DOOR OUTSIDE HANDLE, REAR
69242-0D020

ADE150,ZRE15#

*154

 2
69242-02040

ZRE15#

*153

 2
69242E - PAD, FRONT DOOR OUTSIDE HANDLE, REAR
69242-0D020

ADE150,ZRE15#

*154

 2
69242-02040

ZRE15#

*153

 2
69277B - BEZEL, FRONT DOOR INSIDE HANDLE, RH
69277-02100B0

ZRE151..5F,5FS;ADE150,ZRE152,ZZE150

DK.GRAY,TRIM1#

 1
69278B - BEZEL, FRONT DOOR INSIDE HANDLE, LH
69278-02090B0

ZRE151..5F,5FS;ADE150,ZRE152,ZZE150

DK.GRAY,TRIM1#

 1
69293G - SNAP, FRONT DOOR OUTSIDE HANDLE, RH
69293-12030

ZRE15#

 1
69293G - SNAP, FRONT DOOR OUTSIDE HANDLE, RH
69293-12030

ZRE15#

 1
69294B - SNAP, FRONT DOOR OUTSIDE HANDLE, LH
69293-12040

ZRE15#

 1
69294B - SNAP, FRONT DOOR OUTSIDE HANDLE, LH
69293-12040

ZRE15#

 1
69310 - LOCK ASSY, FRONT DOOR, RH
69030-02250

ZRE15#

 1
69311A - ROD, FRONT DOOR LOCK OPEN, RH
69311-02120

ZRE15#

 1
69312 - ROD, FRONT DOOR LOCK OPEN, LH
69312-02120

ZRE15#

 1
69318C - SEAL, DOOR LOCK WIRING HARNESS
69318-51010

ZRE15#

 2
69320 - LOCK ASSY, FRONT DOOR, LH
69040-02240

ZRE15#

 1
69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER
69410-33010

ZRE15#

 2
69710B - CABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
69710-02070

ZRE15#

 1
69720B - CABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
69710-02070

ZRE15#

 1
69749 - CLAMP, FRONT DOOR LOCK LINK
69749-32040

ZRE15#

 2
69750C - CABLE ASSY, FRONT DOOR INSIDE LOCKING, RH
69750-02100

ZRE15#

 1
69760C - CABLE ASSY, FRONT DOOR INSIDE LOCKING LH
69750-02100

ZRE15#

 1
Common parts
90148-50003
90148-W0004
90148-W0005
90159-40202
90164-50032
90189-05003
Linked diagrams
8420
