ZRE151R-DHGDKN (2007)

Toyota Auris (Ukp)

Production Jun 2007 - Feb 2009
Engine 1ZRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0706-0902)ZRE152 ; (0706- )5F

Click highlighted areas on diagram

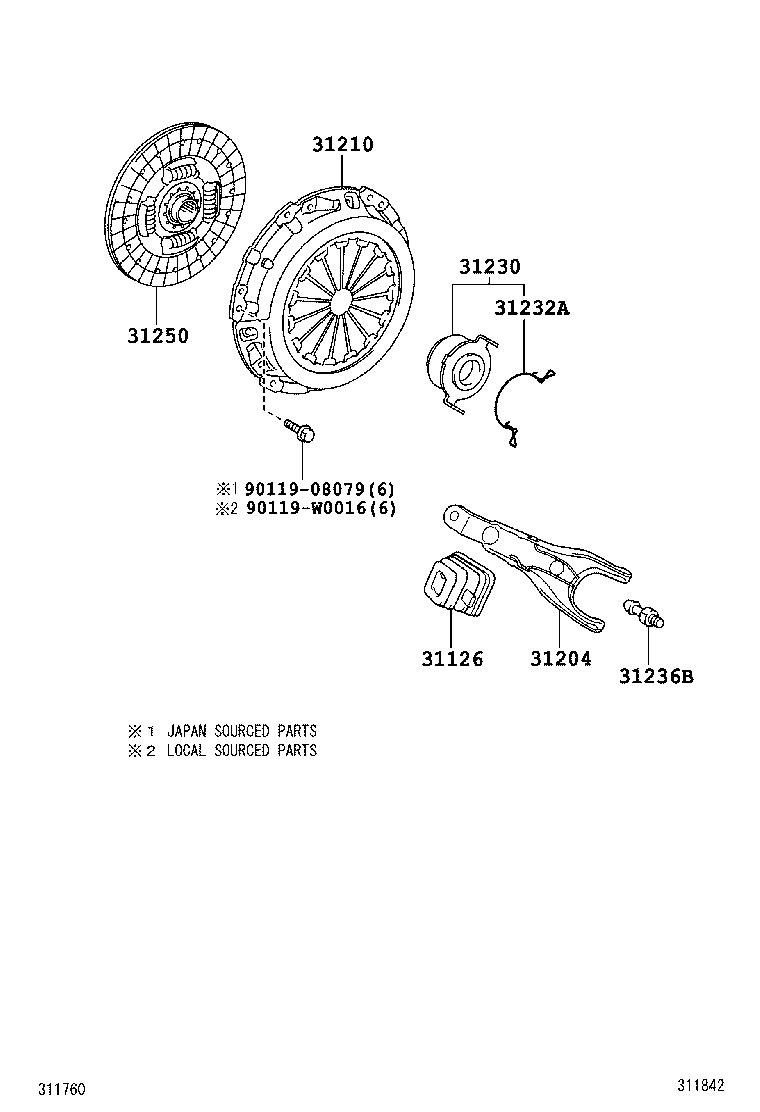

diagram 31126 31204 31210 31230 31232A 31236B 31250 9011908079 90119W0016
Part # Description Qty Price
31126 - BOOT, CLUTCH RELEASE FORK
31126-64010

ZRE151..5FS

 1
31126-12051

ZRE15#..5F,6F

 1
31204 - FORK SUB-ASSY, CLUTCH RELEASE
31204-52010

ZRE15#..5F,6F

 1
31204-64010

ZRE151..5FS

 1
31210 - COVER ASSY, CLUTCH
31210-02210

ZRE151..5F

*153

 1
31210-52052

ZRE151..5F

*154

 1
31230 - BEARING ASSY, CLUTCH RELEASE
31230-05012

ZRE151..5F

 1
31230-17011

ZRE151..5FS

 1
31232A - CLIP, RELEASE BEARING HUB
31232-05011

ZRE151..5F

 1
31232-17010

ZRE151..5FS

 1
31236B - SUPPORT, RELEASE FORK
31236-12020

ZRE15#

 1
31250 - DISC ASSY, CLUTCH
31250-02160

ZRE15#..5F,6F

*153

 1
31250-02161

ZRE15#..5F,6F

*153

 1
31250-12510

ZRE15#..5F,6F

*154

 1
Common parts
90119-08079
90119-W0016

(0706- )5FS

Click highlighted areas on diagram

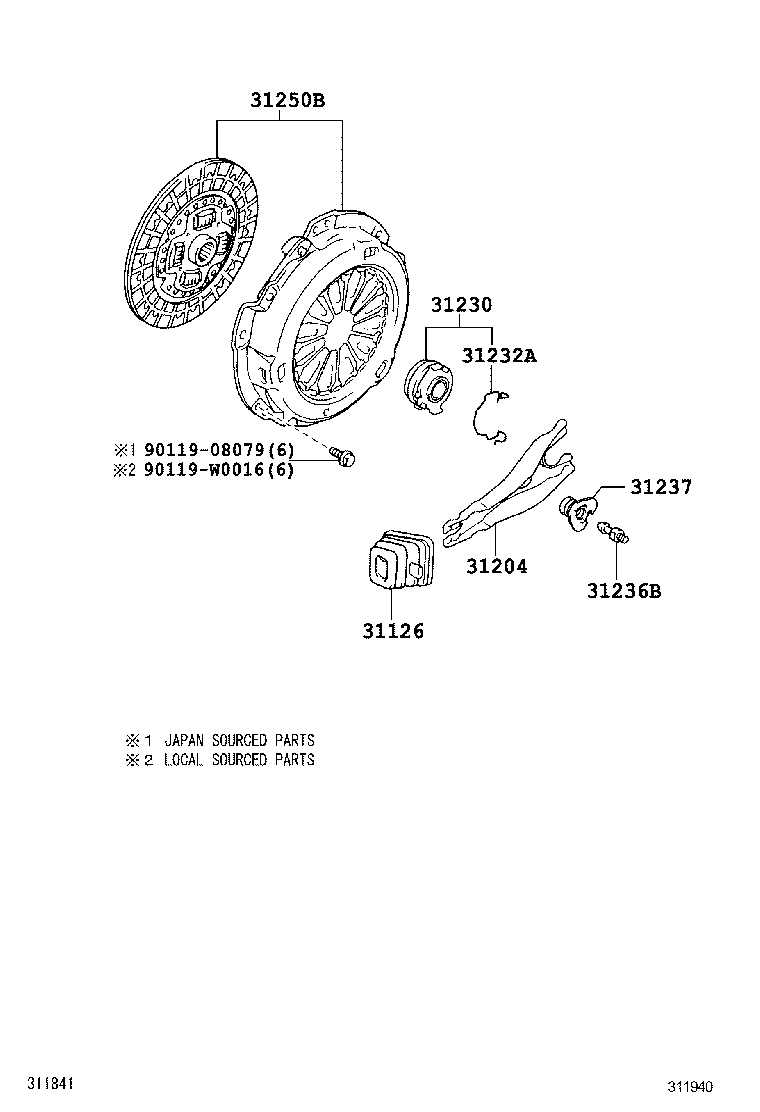

diagram 31126 31204 31230 31232A 31236B 31237 31250B 9011908079 90119W0016
Part # Description Qty Price
31126 - BOOT, CLUTCH RELEASE FORK
31126-64010

ZRE151..5FS

 1
31126-12051

ZRE15#..5F,6F

 1
31204 - FORK SUB-ASSY, CLUTCH RELEASE
31204-52010

ZRE15#..5F,6F

 1
31204-64010

ZRE151..5FS

 1
31230 - BEARING ASSY, CLUTCH RELEASE
31230-05012

ZRE151..5F

 1
31230-17011

ZRE151..5FS

 1
31232A - CLIP, RELEASE BEARING HUB
31232-05011

ZRE151..5F

 1
31232-17010

ZRE151..5FS

 1
31236B - SUPPORT, RELEASE FORK
31236-12020

ZRE15#

 1
31237 - BOOT, CLUTCH RELEASE FORK SUPPORT
31237-12010

ZRE151..5FS

 1
31250B - DISC SET, ADJUSTABLE CLUTCH
31250-19095

ZRE151..5FS

 1
Common parts
90119-08079
90119-W0016
