ZRE151R-DHFNPN (2009)

Toyota Auris (Ukp)

Production Dec 2009 - Oct 2012
Engine 1ZRFAE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0912- )ZRE151..SOL,TERRA ; (0912- )ADE150,NRE150..RX,TERRA

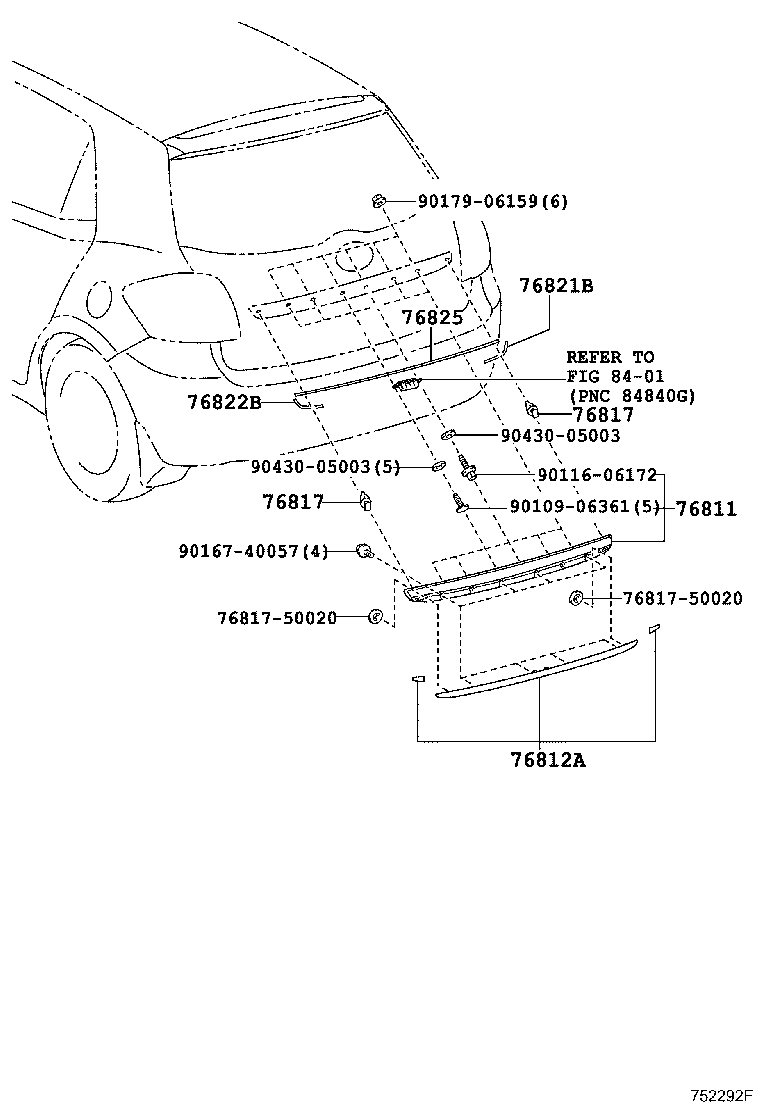

Click highlighted areas on diagram

diagram 76811 76812A 76817 76817 7681750020 7681750020 76821B 76822B 76825 8401 9010906361 9011606172 9016740057 9017906159 9043005003 9043005003
Part # Description Qty Price
76811 - GARNISH, BACK DOOR, OUTSIDE
76811-02931

ZRE151..SOL,TERRA;ADE150,NRE150..RX,TERRA

 1
76812A - GARNISH, BACK DOOR, OUTSIDE NO.2
76812-02020

ZRE151..SOL,TERRA;ADE150,NRE150..RX,TERRA

 1
76817 - CLIP, BACK DOOR OUTSIDE GARNISH
76817-02080

ZRE151..SOL,TERRA;ADE150,NRE150..RX,TERRA

 2
76817 - CLIP, BACK DOOR OUTSIDE GARNISH
76817-02080

ZRE151..SOL,TERRA;ADE150,NRE150..RX,TERRA

 2
76821B - PROTECTOR, BACK DOOR GARNISH SIDE, RH
76821-12250

ZRE151..SOL,TERRA;ADE150,NRE150..RX,TERRA

(J)

 1
76821-02130

ZRE151..SOL,TERRA;ADE150,NRE150..RX,TERRA

(L)

 1
76822B - PROTECTOR, BACK DOOR GARNISH SIDE, LH
76822-12110

ZRE151..SOL,TERRA;ADE150,NRE150..RX,TERRA

(J)

 1
76822-02070

ZRE151..SOL,TERRA;ADE150,NRE150..RX,TERRA

(L)

 1
76825 - PROTECTOR, BACK DOOR OUTSIDE GARNISH
76825-02030

ZRE15#

 1
76825-02090

ZRE151..SOL,TERRA;ADE150,NRE150..RX,TERRA

 1
Common parts
76817-50020
90109-06361
90116-06172
90167-40057
90179-06159
90430-05003
Linked diagrams
8401
