NRE150R-DHFNKN (2008)

Toyota Auris (Ukp)

Production Nov 2008 - Jan 2010
Engine 1NRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0706-0912) ; (0912-1001)ZRE151..RS,RT ; (0912-1001)NRE150,ZRE152..RS,RX,SOL

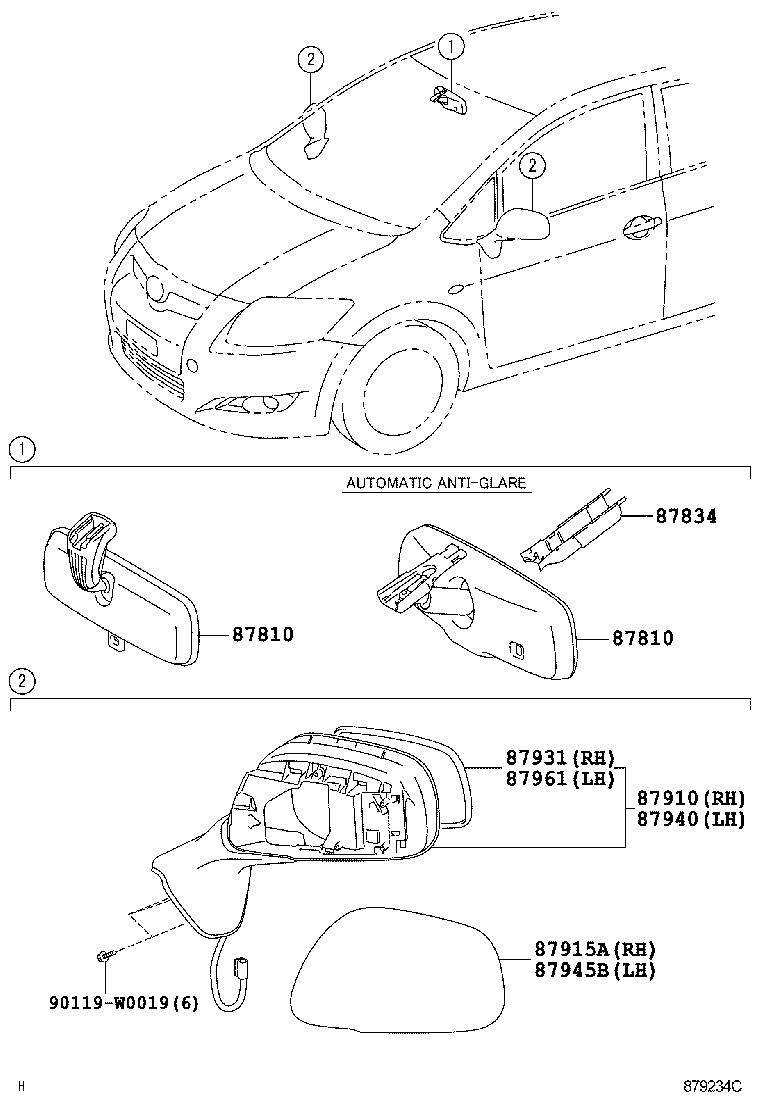

Click highlighted areas on diagram

diagram 87810 87810 87834 87910 87915A 87931 87940 87945B 87961 90119W0019
Part # Description Qty Price
87810 - MIRROR ASSY, INNER REAR VIEW
87810-0D011

ADE150,NRE150,ZRE152;ZRE151..(6F,6FS)..(RS,RT)

 1
87810-0F050

NRE150..SOL

INTERMITTENT WIPER-AUTO(RAIN SENSOR)

 1
87810 - MIRROR ASSY, INNER REAR VIEW
87810-0D011

ADE150,NRE150,ZRE152;ZRE151..(6F,6FS)..(RS,RT)

 1
87810-0F050

NRE150..SOL

INTERMITTENT WIPER-AUTO(RAIN SENSOR)

 1
87834 - COVER, INNER REAR VIEW MIRROR STAY HOLDER
87818-33010

NRE150..SOL

INTERMITTENT WIPER-AUTO(RAIN SENSOR)

 1
87910 - MIRROR ASSY, OUTER REAR VIEW, RH
87901-02280

ADE150,NRE150,ZRE152;ZRE151..(6F,6FS)..(RS,RT)

NO PAINT REQ.

 1
87915A - COVER, OUTER MIRROR, RH
87915-02909

ZRE151..(6F,6FS)..RS;ADE150,NRE150,ZRE152..RS,RX,SOL

 1
87931 - OUTER MIRROR, RH
87908-02750

ADE150,NRE150,ZRE152;ZRE151..(6F,6FS)..(RS,RT)

 1
87940 - MIRROR ASSY, OUTER REAR VIEW, LH
87906-02270

ADE150,NRE150,ZRE152;ZRE151..(6F,6FS)..(RS,RT)

NO PAINT REQ.

 1
87945B - COVER, OUTER MIRROR, LH
87945-02909

ZRE151..(6F,6FS)..RS;ADE150,NRE150,ZRE152..RS,RX,SOL

 1
87961 - MIRROR OUTER, LH
87909-02730

ADE150,NRE150,ZRE152;ZRE151..(6F,6FS)..(RS,RT)

 1
Common parts
90119-W0019
