NRE150R-DHFNKN (2008)

Toyota Auris (Ukp)

Production Nov 2008 - Jan 2010
Engine 1NRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0811- )NRE150,ZRE151..6F,6FS ; (0902- )ZRE152

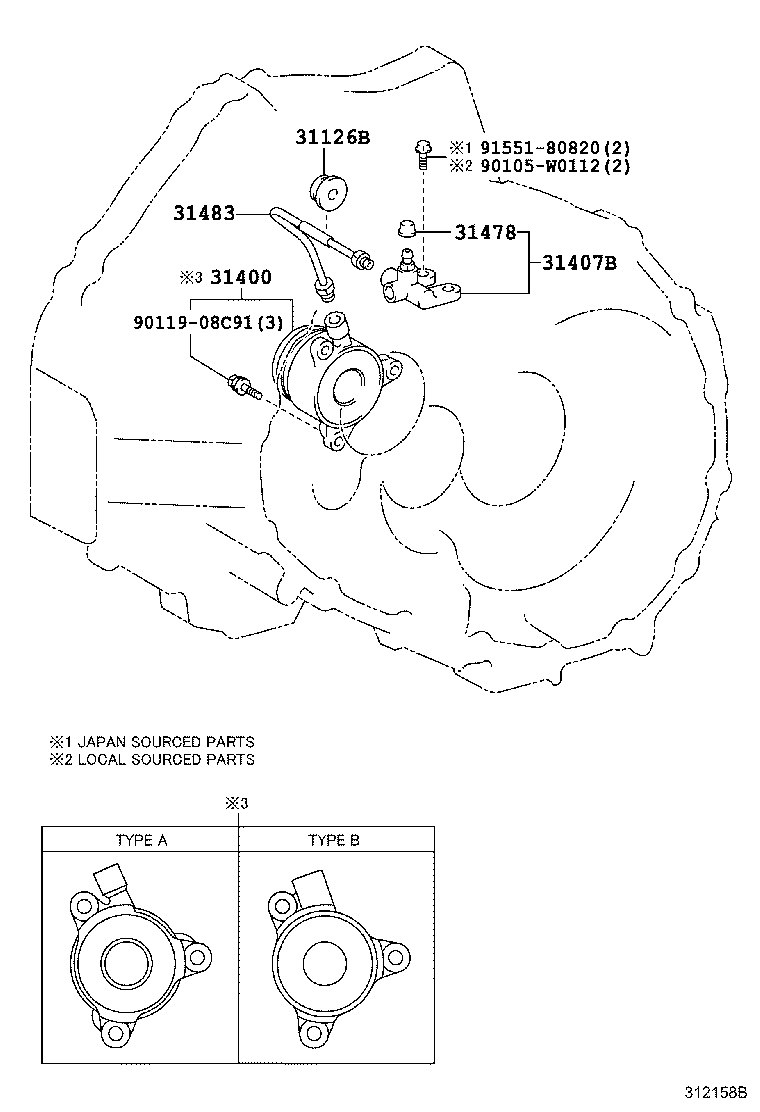

Click highlighted areas on diagram

diagram 31126B 31400 31407B 31478 31483 90105W0112 9011908C91 9155180820
Part # Description Qty Price
31126B - BOOT, CLUTCH TUBE
31126-20090

NRE150,ZRE152;ZRE151..6F..(RS,RT)

*201,*206

 1
31126-05010

NRE150,ZRE152;ZRE151..6F..(RS,RT)

*202

 1
31400 - CYLINDER ASSY, CLUTCH RELEASE W/BEARING
31400-19005

NRE150,ZRE152;ZRE151..6F..(RS,RT)

*201,*202,*206

 1
31407B - BLEEDER SUB-ASSY, CLUTCH RELEASE
31407-52010

NRE150,ZRE152;ZRE151..6F..(RS,RT)

*201,*202,*206

 1
31478 - CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)
31478-30010

NRE150,ZRE152;ZRE151..6F..(RS,RT)

*201,*202,*206

 1
31483 - TUBE, BLEEDER CLUTCH RELEASE
31482-05130

NRE150,ZRE152;ZRE151..6F..(RS,RT)

*202

 1
31482-52110

NRE150,ZRE152;ZRE151..6F..(RS,RT)

*201,*206

 1
Common parts
90105-W0112
90119-08C91
91551-80820
