NRE150R-DHFDKN (2009)

Toyota Auris (Ukp)

Production Dec 2009 - Oct 2012
Engine 1NRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0912- )ZRE151..SOL,TERRA ; (0912- )ADE150,NRE150..RX,TERRA

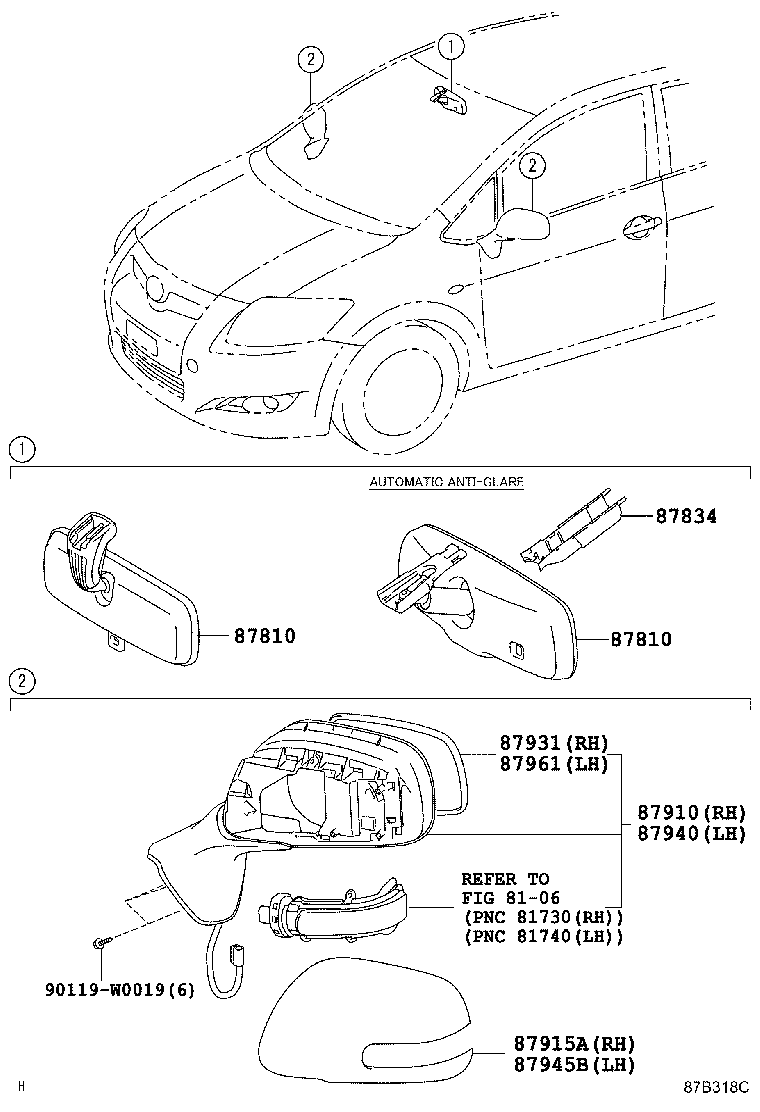

Click highlighted areas on diagram

diagram 8106 87810 87810 87834 87910 87915A 87931 87940 87945B 87961 90119W0019
Part # Description Qty Price
87810 - MIRROR ASSY, INNER REAR VIEW
87810-0D011

ZRE151..SOL,TERRA;ADE150,NRE150..RX,TERRA

 1
87810 - MIRROR ASSY, INNER REAR VIEW
87810-0D011

ZRE151..SOL,TERRA;ADE150,NRE150..RX,TERRA

 1
87910 - MIRROR ASSY, OUTER REAR VIEW, RH
87901-02210

ZRE151..SOL,TERRA;ADE150,NRE150..RX,TERRA

NO PAINT REQ.

 1
87915A - COVER, OUTER MIRROR, RH
87915-02330

NRE150,ZRE151..TERRA

 1
87915-02918

NRE150,ZRE151..TERRA

OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)

 1
87931 - OUTER MIRROR, RH
87908-02750

ZRE151..SOL,TERRA;ADE150,NRE150..RX,TERRA

 1
87940 - MIRROR ASSY, OUTER REAR VIEW, LH
87906-02290

ZRE151..SOL,TERRA;ADE150,NRE150..RX,TERRA

NO PAINT REQ.

 1
87945B - COVER, OUTER MIRROR, LH
87945-02330

NRE150,ZRE151..TERRA

 1
87945-02918

NRE150,ZRE151..TERRA

OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)

 1
87961 - MIRROR OUTER, LH
87909-02730

ZRE151..SOL,TERRA;ADE150,NRE150..RX,TERRA

 1
Common parts
90119-W0019
Linked diagrams
8106
